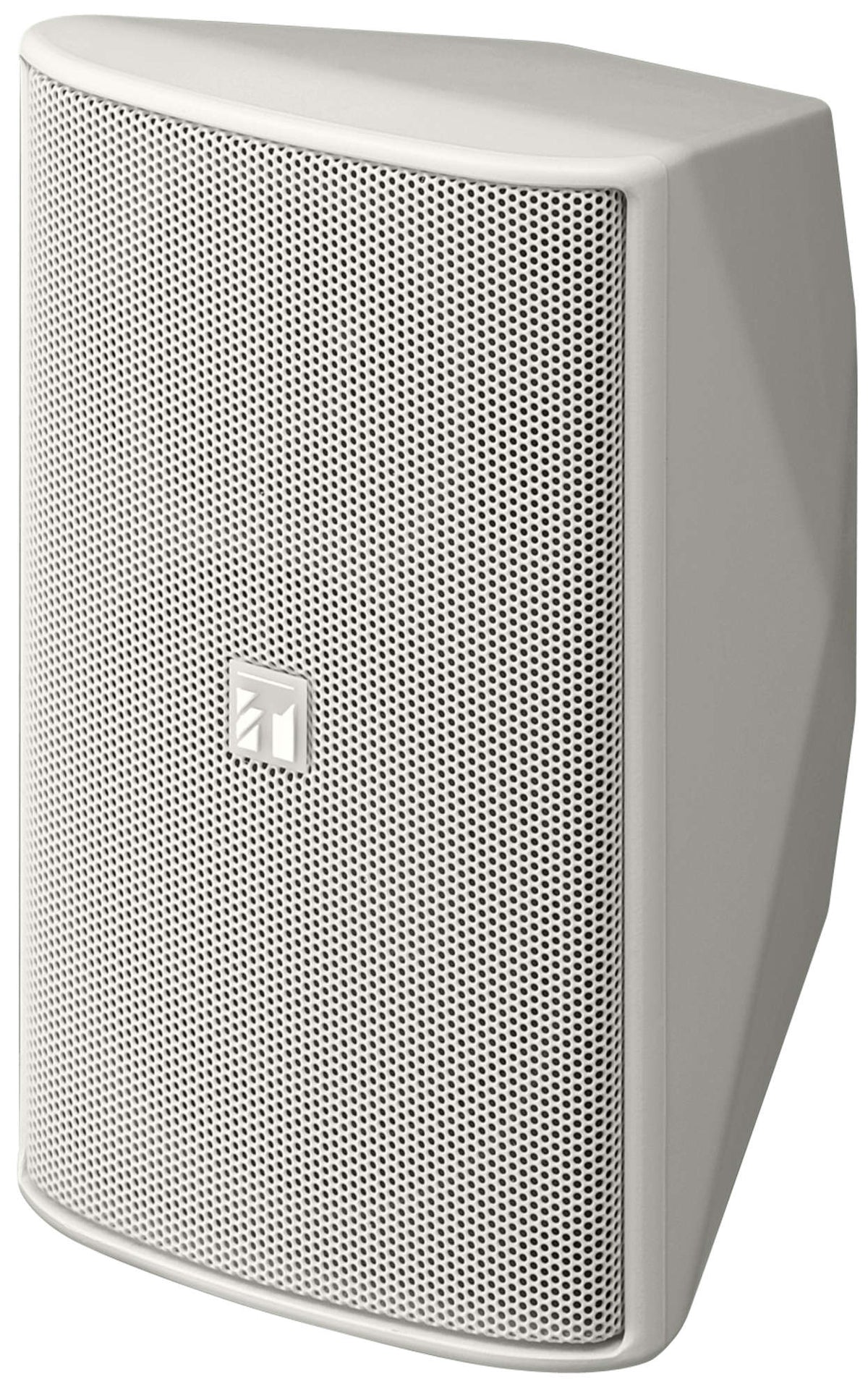

TOA F-1000WT Surface Mount Speaker 2-way 4” 8Ω/70.7/100 V Transformer (15 W) Wall/Ceiling-Mount Bracket Included
Product Details
The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
Drive components are low frequency: 10 cm (4) cone-type. Rated input is 15 W (high impedance). Sensitivity is 87 dB (1 W, 1 m) at installation in 1/2 free sound field. Frequency response is 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field. Dispersion is horizontal: 90°, vertical: 90°.
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. Supplied with speaker bracket x 1, joint bracket x 1, wall bracket x 1, bracket fixing screw x 1 set. Weight is 2 kg.
Features
- Up to 90 W continuous program (F-1000B / F-1000W)
- Dispersion angle of 90° x 90°
- 2-way speaker with high quality 10 cm woofer and balanced dome tweeter
- Paintable
- Rated input: 15 W (high impedance)
- Rated impedance: 8 Ω | 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 330 Ω (15 W), 670 Ω (7.5
- Sensitivity: 87 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency response: 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
- Crossover frequency: 5 kHz
- Directivity angle: Horizontal: 90°, Vertical: 90°
- Enclosure: Bass-reflex type
- Input terminal: Push-in terminal
- Compact Box Speaker
Specifications
| Technical | |
|---|---|
| Enclosure | Bass-reflex type |
| Rated Input | 15 W (high impedance) |
| Power Handling | Continuos pink noise: 30 W (low impedance) | Continuos program: 90 W (low impedance) |
| Rated Impedance | 8 Ω | 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 5 kHz |
| Directivity Angle | Horizontal: 90°, Vertical: 90° |
| Speaker Component | Low frequency: 10 cm (4) cone-type | High frequency: Balanced dome tweeter |
| Input Terminal | Push-in terminal |
| Physical | |
|---|---|
| Finish | Enclosure: HIPS, white | Punched net: Surface-treated steel plate, white, paint | Joint bracket, wall bracket: Steel plate, t1.6, white, paint | Speaker bracket: Die-cast aluminum, white, paint |
| Dimensions | 130 (W) x 202 (H) x 131 (D) mm (5.12 x 7.95" x 5.16") |
| Weight | 2 kg (4.41 lb) (including the supplied brackets) |
| Included Accessories | Speaker bracket x 1, Joint bracket x 1, Wall bracket x 1, Bracket fixing screw x 1 set |
| Optional Accessories | Board hanger bracket: HY-BH10B | Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting) | Cluster bracket: HY-CL10B, Speaker stand: ST-16A |
Specifications subject to change.
