Description

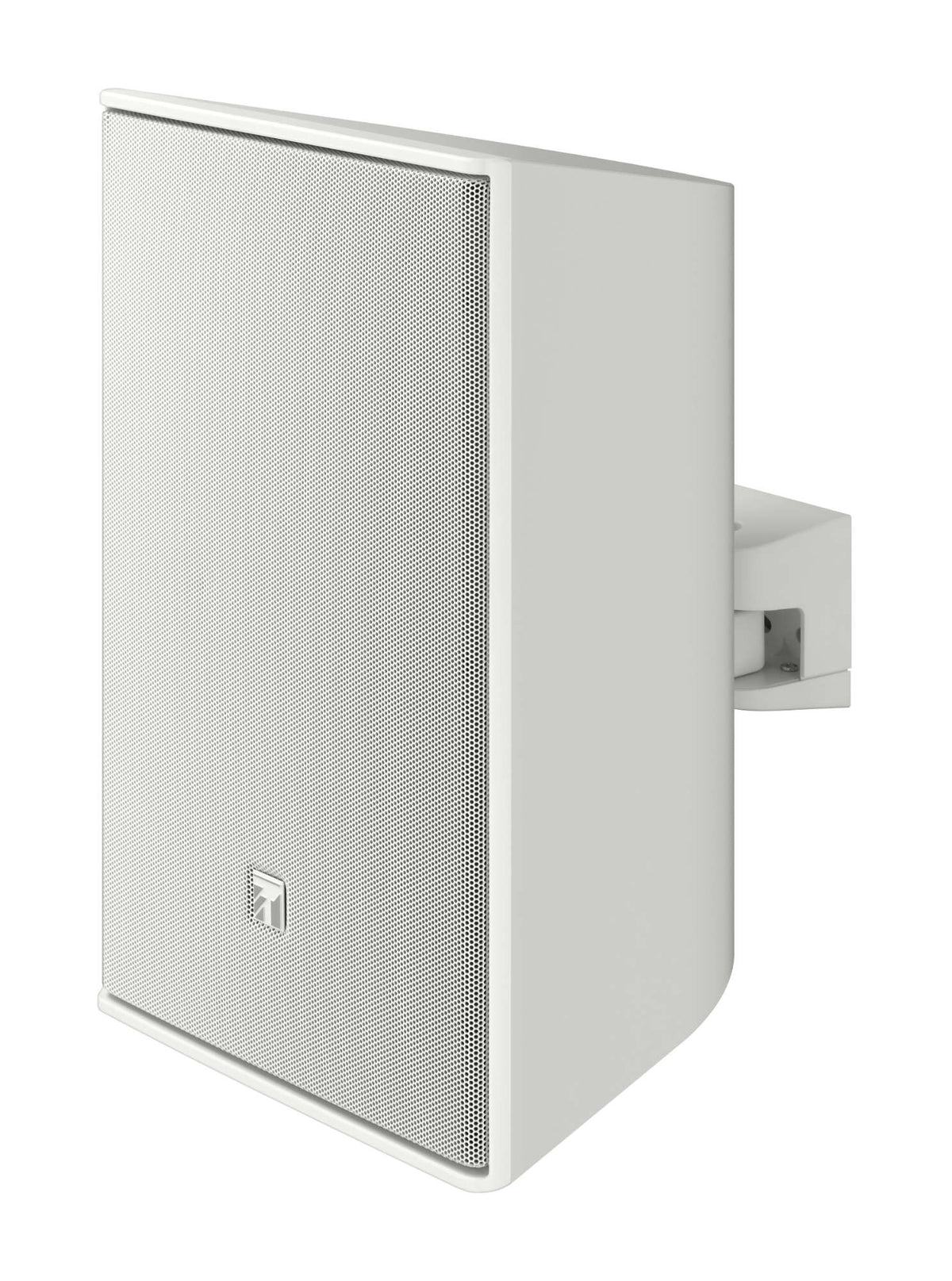

TOA F-08WT 2-Way Surface Mount Speaker System (White)
Product Details
F-08WT is a 2-way surface-mount speaker system designed to deliver high-quality audio for a variety of applications. This versatility makes it ideal for foreground or background music playback, as well as public address announcements. The F-08WT boasts a sleek aesthetic that seamlessly integrates with walls and ceilings hardware incorporates a temporary hanging feature, allowing for easy and secure single-handed installation with effortless wiring and angle adjustments.
Drive components are low frequency: 20 cm (8") pp cone-type. Rated input is 60 W (100 V line, 70 V line). Sensitivity is 91 dB (1 W, 1 m) at installation in 1/2 free sound field. Frequency response is 50 Hz - 20 kHz, –10 dB at installation in 1/2 free sound field. Dispersion is horizontal: 100°, vertical: 100°.
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. Supplied with speaker bracket x 1, base bracket x 1, base bracket cover x 1, bracket fixing screw x 1 set. Weight is 5.2 kg.
Features
- Versatile 8-inch 2-way surface-mount speaker system
- Perfect for music and announcements
- Sleek design for seamless integration with walls and ceilings
- Safe and easy installations with included mounting bracket
- Temporary docking feature allows effortless wiring and positioning
- Flexible angle adjustment for both wall and ceiling mounts
- Ideal for permanent installs or portable setups
- Rated input: 60 W (100 V line, 70 V line)
- Rated impedance: 8 Ω
- Sensitivity: 91 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency response: 50 Hz - 20 kHz, –10 dB at installation in 1/2 free sound field
- Crossover frequency: 3 kHz
- Directivity angle: Horizontal: 100°, Vertical: 100°
- Enclosure: Bass-reflex type
- Input terminal: Push-in Terminal
- Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
- Surface Mount Speaker System
Specifications
| Technical | |
|---|---|
| Enclosure | Bass-reflex type |
| Rated Input | 60 W (100 V line, 70 V line) |
| Power Handling | Rated noise power: 90 W (8 Ω) | Continuous program: 180 W (8 Ω) |
| Rated Impedance | 8 Ω | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) | 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 91 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 50 Hz - 20 kHz, –10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 3 kHz |
| Directivity Angle | Horizontal: 100°, Vertical: 100° |
| Speaker Component | Low frequency: 20 cm (8") PP cone-type | High frequency: 25 mm (1") dome tweeter |
| Input Terminal | Push-in Terminal |
| Installation Environment | Indoor installation |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Physical | |
|---|---|
| Finish | Enclosure: HIPS, white (RAL 9016 equivalent), paint | Grille: Aluminum, white (RAL 9016 equivalent), paint | Speaker bracket: Die-cast aluminum, white (RAL 9016 equivalent), paint | Base bracket: Steel plate, t4.5, white (RAL 9016 equivalent), paint | Base bracket cover: HIPS, white (RAL 9016 equivalent) |
| Dimensions | 251 (W) x 392 (H) x 216 (D) mm (9.88" x 15.43" x 8.5") |
| Weight | 5.2 kg (11.46 lb) |
| Included Accessories | Speaker bracket x 1, Base bracket x 1, Base bracket cover x 1, Bracket fixing screw x 1 set |
| Optional Accessories | Adapter plate: HY-F08W | Speaker stand: ST-34B Note: K 19780 or K 19610 is required. |
Specifications subject to change.
