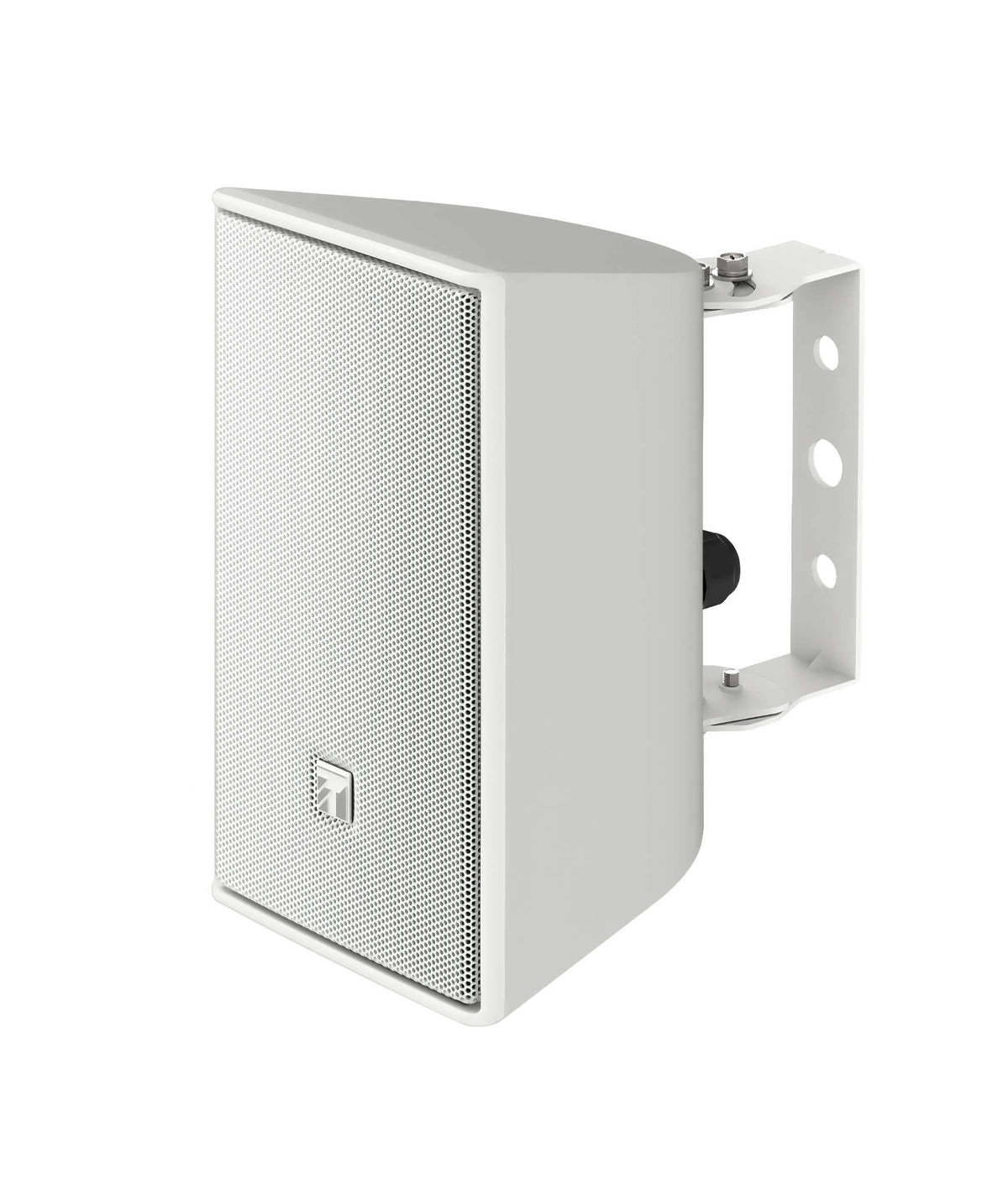

TOA F-03WT-WP-UE 3" full -range surface mount loudspeaker UL1480A for outdoor environments
Product Details
The F-03WT-WP-UE is a full-range surface-mount speaker system designed to deliver high-quality audio for a variety of applications, This versatility makes it ideal for foreground or background music playback, as well as public address announcements. It is IP65-rated and compliant with EN 54-24 Type B as well as UL 1480A (UEAY (Outdoor use). | The F-03WT-WP-UE is certified according to the European Standard EN 54-24: 2008, DoP number is 24-105.
Drive components are 9 cm (3.5") full-range ppcone-type. Rated input is 15 W (100V line, 70V line). Sensitivity is 86 dB (1 W, 1 m) (1 - 10 kHz, pink noise). Frequency response is 100 Hz - 20 kHz, -10 dB at installation in 1 /2 free sound field. Dispersion is horizontal: 100°, vertical: 100°.
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. This is the weather-resistant version, for covered outdoor areas — walkways, loading bays, platforms and forecourts. Supplied with u bracket x 1, speaker bracket x 2, bracket fixing screw x 1 set, terminal cover x 1, terminal cover mounting screw x 4. Weight is 1.7 kg.
Features
- Versatile 3.5-inch full-range surface-mount speaker system
- Perfect for music and announcements
- Sleek design for seamless integration with walls and ceilings
- Flexible angle adjustment for both wall and ceiling mounts
- IP65-rated for dust and water resistance
- Compliant with EN 54-24 and UL 1480A (UEAY outdoor use)
- Ideal for permanent installs or portable setups
- Sensitivity: 86 dB (1 W, 1 m) (1 - 10 kHz, pink noise)
- Frequency response: 100 Hz - 20 kHz, -10 dB at installation in 1 /2 free sound field
- Directivity angle: Horizontal: 100°, Vertical: 100°
- Enclosure: Sealed type
- Input terminal: M4 screw terminal, distance between barriers: 9 mm ( 0.35")
- Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
- Surface Mount Speaker System
Specifications
| Technical | |
|---|---|
| Enclosure | Sealed type |
| Rated Input | 15 W (100V line, 70V line) |
| Power Handling | Rated noise power: 30 W (8Ω) (*1) | Continuous program: 60 W (8Ω) (*1) |
| Rated Impedance | 8Ω | 100V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 86 dB (1 W, 1 m) (1 - 10 kHz, pink noise) |
| Frequency Response | 100 Hz - 20 kHz, -10 dB at installation in 1 /2 free sound field |
| Directivity Angle | Horizontal: 100°, Vertical: 100° |
| Speaker Component | 9 cm (3.5") Full-range PPcone-type |
| Input Terminal | M4 screw terminal, distance between barriers: 9 mm ( 0.35") |
| Cable Requirements | Cabtyre cable: dia. 6 - dia. 10 mm ( 0.24" - 0.39") | Solid wire, Twisted wire: 0.3 - 3.3 mm² (AWG 22 - 12) |
| Compliance/Certifications | EN 54-24: 2008, UL 1480A (UEAY (outdoor use) |
| Dust/Water Protection | IP65 |
| Installation Environment | Indoor installation, Outdoor installation (*2) (*3) |
| EN 54-24 Specifications | Sensitivity: 73 dB (1 W, 4 m) | Max. SPL: 85 dB (15 W, 4 m) | Coverage Angle (-6 dB): | Horizontal: 360° (500 Hz), 190° (1 kHz), 125° (2 kHz), 100° (4 kHz) | Vertical: 360° (500 Hz), 150° (1 kHz), 130° (2 kHz), 110° (4 kHz) | Environmental Type: B (outdoor applications) | IP Code: IP33C |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Physical | |
|---|---|
| Finish | Enclosure: HIPS, white (RAL 9016 equivalent), paint | Grille: Aluminum, white (RAL 9016 equivalent), paint | U bracket, Speaker bracket: Stainless steel, t2, white (RAL 9016 equivalent), paint |
| Dimensions | 130 (W) X 221 (H) X 132 (D) mm (5.12" X 8.7" X 5.2") |
| Weight | 1.7 kg (3.75 lb) |
| Included Accessories | U bracket x 1, Speaker bracket x 2, Bracket fixing screw x 1 set, Terminal cover x 1, Terminal cover mounting screw x 4 |
Specifications subject to change.
