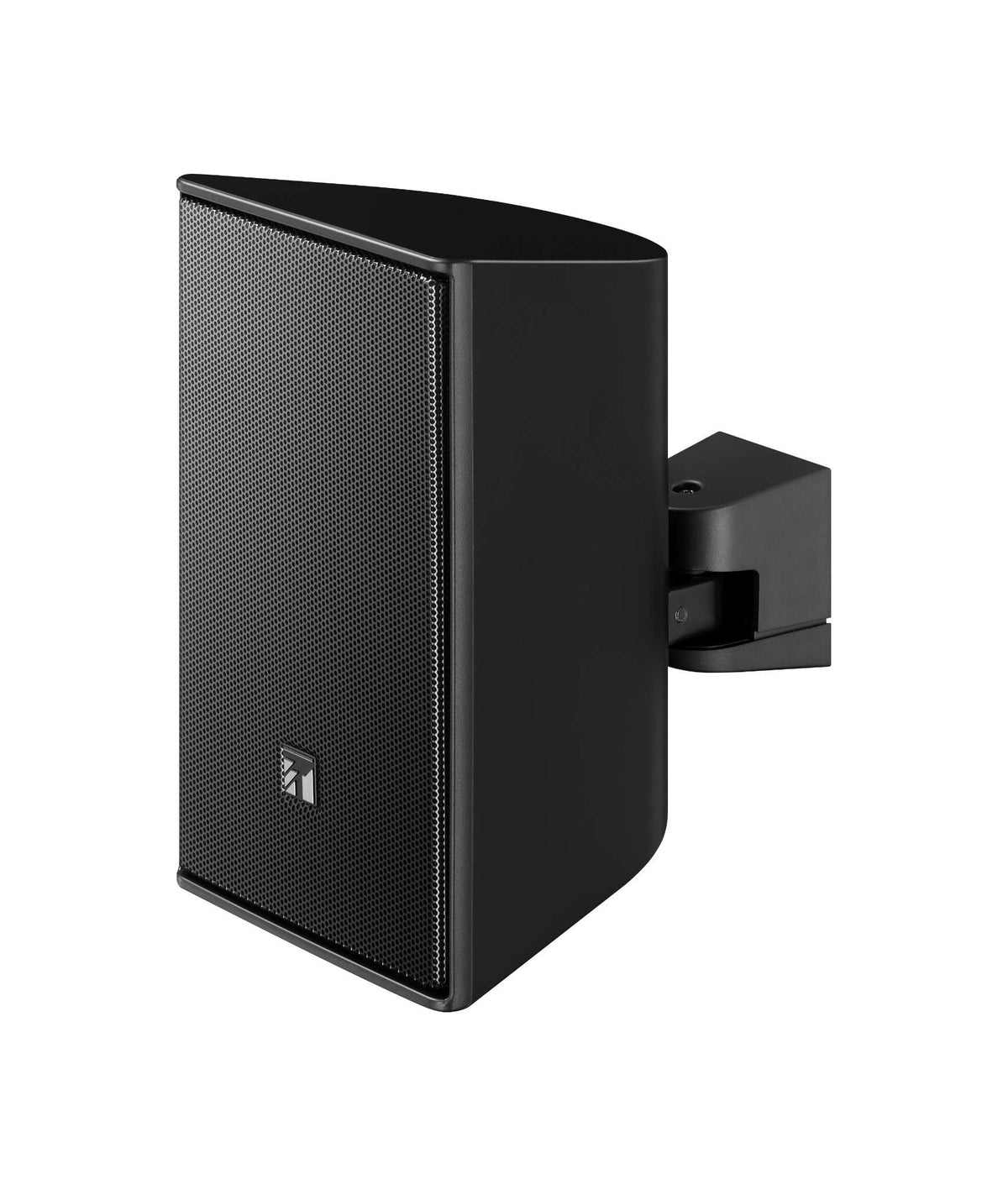

TOA F-03BT Full Range Surface Mount Speaker System
Product Details
F-03BT is a full-range surface-mount speaker system designed to deliver high-quality audio for a variety of applications. This versatility makes it ideal for foreground or background music playback, as well as public address announcements. The F-03BT boasts a sleek aesthetic that seamlessly integrates with walls and ceilings, and its hardware incorporates a temporary hanging feature, allowing for easy and secure single-handed installation with effortless wiring and angle adjustments.
The drive component is a 9 cm (3.5") full-range, PP cone-type. Rated input is 15 W (100 V line, 70 V line). Sensitivity is 87 dB (1 W, 1 m) at installation in 1/2 free sound field. Frequency response is 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field. Dispersion is horizontal: 100°, vertical: 100°.
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. This is the black finish of the F-03WT. The bracket docks the speaker temporarily while the wiring is made off, so one person can hang and aim it without a second pair of hands. Rated for indoor installation. Supplied with speaker bracket x 1, base bracket x 1, base bracket cover x 1, bracket fixing screw x 1 set. Weight is 1.7 kg.
Features
- Versatile 3.5-inch full-range surface-mount speaker system
- Perfect for music and announcements
- Sleek design for seamless integration with walls and ceilings
- Safe and easy installations with included mounting bracket
- Temporary docking feature allows effortless wiring and positioning
- Flexible angle adjustment for both wall and ceiling mounts
- Ideal for permanent installs or portable setups
- Rated input: 15 W (100 V line, 70 V line)
- Rated impedance: 8 Ω | 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 330 Ω (15 W), 670 Ω (7.5 W)
- Sensitivity: 87 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency response: 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
- Directivity angle: Horizontal: 100°, Vertical: 100°
- Enclosure: Bass-reflex type
- Input terminal: Push-in Terminal
- Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
- Compact Box Speaker
Specifications
| Technical | |
|---|---|
| Enclosure | Bass-reflex type |
| Rated Input | 15 W (100 V line, 70 V line) |
| Power Handling | Rated noise power: 30 W (8 Ω) | Continuous program: 60 W (8 Ω) |
| Rated Impedance | 8 Ω | 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Directivity Angle | Horizontal: 100°, Vertical: 100° |
| Speaker Component | 9 cm (3.5") Full-range, PP cone-type |
| Input Terminal | Push-in Terminal |
| Installation Environment | Indoor installation |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Physical | |
|---|---|
| Finish | Enclosure: HIPS, black (RAL 9011 equivalent), paint | Grille: Aluminum, black (RAL 9011 equivalent), paint | Speaker bracket: Die-cast aluminum, black (RAL 9011 equivalent), paint | Base bracket: Steel plate, t4, black (RAL 9011 equivalent), paint | Base bracket cover: HIPS, black (RAL 9011 equivalent) |
| Dimensions | 130 (W) x 221 (H) x 132 (D) mm (5.12" x 8.7" x 5.2") |
| Weight | 1.7 kg (3.75 lb) |
| Included Accessories | Speaker bracket x 1, Base bracket x 1, Base bracket cover x 1, Bracket fixing screw x 1 set |
| Optional Accessories | Adapter plate: HY-F03B | Speaker stand: ST-34B (compatible with K&M 19780 or K&M 19610) |
Specifications subject to change.
