Description

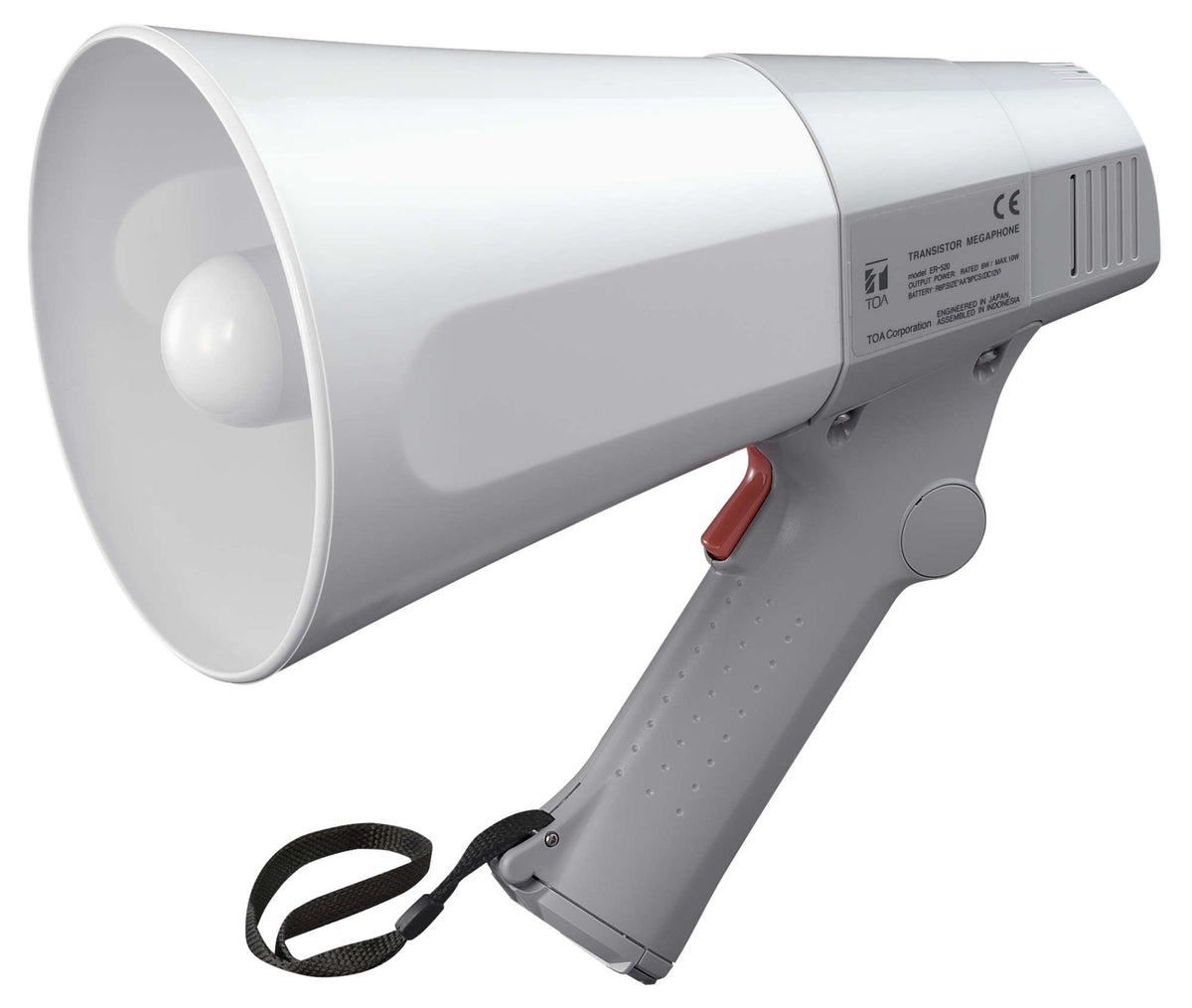

TOA ER-520 Megaphone 6 W White/Gray
Product Details
Small in size and light in weight, the ER-520 megaphone can be easily carried by a single hand. The newly developed polyimide diaphragm is employed to ensure high sound quality.
Rated output is 6 W, with 10 W maximum. Audible range is approximately 250 m. It runs on R6P (AA) x 8 (12 V DC), giving approximately 10 hours.
It is a hand-grip design, light enough to carry and operate in one hand. Weight is 620 g.
Features
- Rated output: 6 W
- Maximum output: 10 W
- Audible range: Approx. 250 m
- Battery life: Approx. 10 hours
- Power source: R6P (AA) x 8 (12 V DC)
- Diaphragm: Polyimide film
- Operating temperature: -10 °C to +40 °C
Specifications
| Technical | |
|---|---|
| Power Source | R6P (AA) x 8 (12 V DC) |
| Rated Output | 6 W |
| Maximum Output | 10 W |
| Battery Life | Approx. 10 hours (JEITA)* |
| Audible Range | Approx. 250 m (JEITA)* |
| Diaphragm | Polyimide film |
| Anti-bacteria Treatment | Mouth and handle |
| Operating Temperature | -10 °C to +40 °C |
| Physical | |
|---|---|
| Finish | Horn: ABS resin, light gray; Strap: Tetoron, black Handle, mouth and others: ABS resin, gray |
| Dimensions | 160 (W) x 256 (H) x 260 (D) mm (6.3 x 10.1 x 10.2 in) |
| Weight | 620 g (1.4 lb) (without batteries) |
Specifications subject to change.
