Description

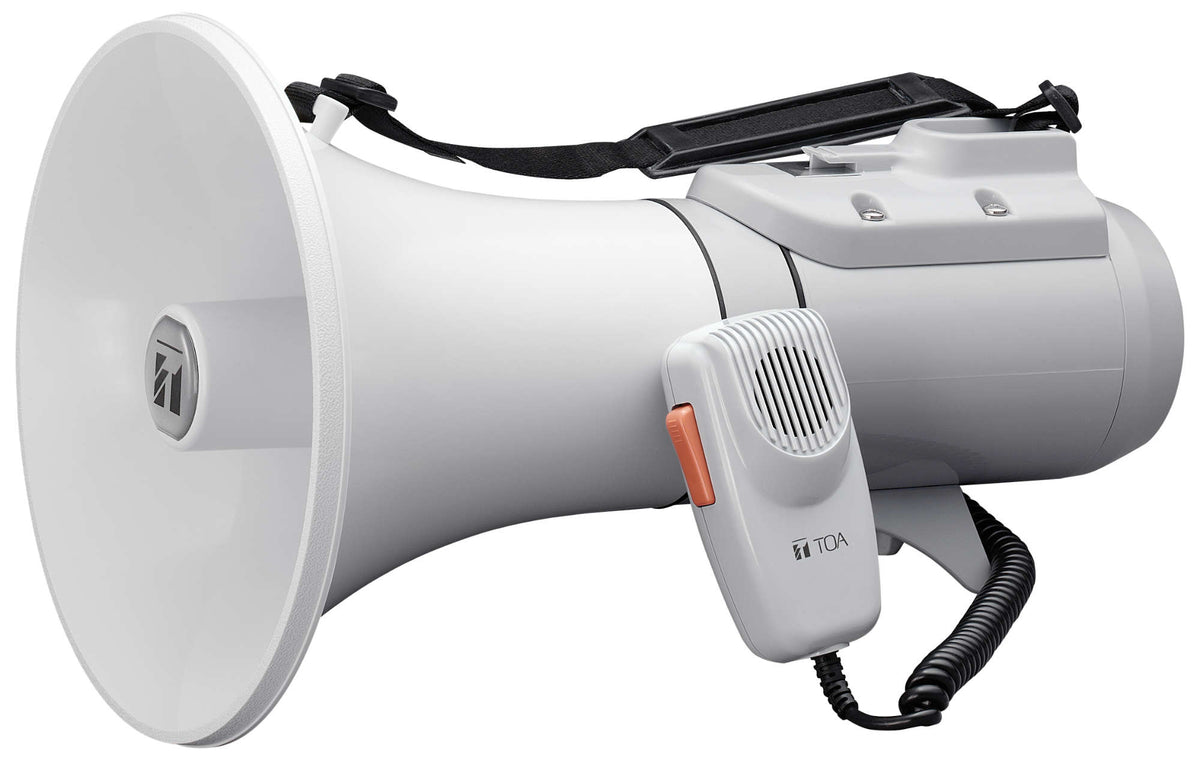

TOA ER-2215 Shoulder Megaphone 15 W White/Gray
Product Details
The ER-2215 is an easy-to-operate, shoulder megaphone rated at 15 W of output and having a separate microphone. It can be mounted to the optional ST-16A speaker stand. The newly developed polyimide diaphragm is employed to ensure high sound quality.
Rated output is 15 W, with 23 W maximum. Audible range is approximately 400 m. It runs on R14P (C) x 6 (9 V DC), giving approximately 9 hours.
The shoulder-strap design leaves both hands free, which is what separates this from a hand-grip megaphone when the operator is also directing people, carrying equipment or driving a vehicle. Weight is 1.1 kg.
Features
- Compact megaphone with shoulder strap and instant-on amplifier
- High audible range
- Handheld microphone
- Howl-free unidirectional dynamic microphone with press-to-talk switch
- Improved endurance
- Rated output: 15 W
- Maximum output: 23 W
- Battery life: Approx. 9 hours
- Power source: R14P (C) x 6 (9 V DC)
- Diaphragm: Polyimide film (voice coil, bobbin)
- Operating temperature: -10 °C to +40 °C
Specifications
| Technical | |
|---|---|
| Power Source | R14P (C) x 6 (9 V DC) |
| Rated Output | 15 W |
| Maximum Output | 23 W |
| Battery Life | Approx. 9 hours (JEITA)* |
| Audible Range | Approx. 400 m (JEITA)* |
| Diaphragm | Polyimide film (voice coil, bobbin) |
| Operating Temperature | -10 °C to +40 °C |
| Physical | |
|---|---|
| Finish | Horn: ABS resin, light gray | Microphone and other: ABS resin, gray | Strap: Nylon, black |
| Dimensions | dia. 210 x 336 mm (dia. 8.3 x 13.2 in) |
| Weight | Body: 1.1 kg (2.4 lb) (without microphone and batteries) | Microphone: 150 g |
| Optional Accessories | Speaker stand: ST-16A |
Specifications subject to change.
