Description

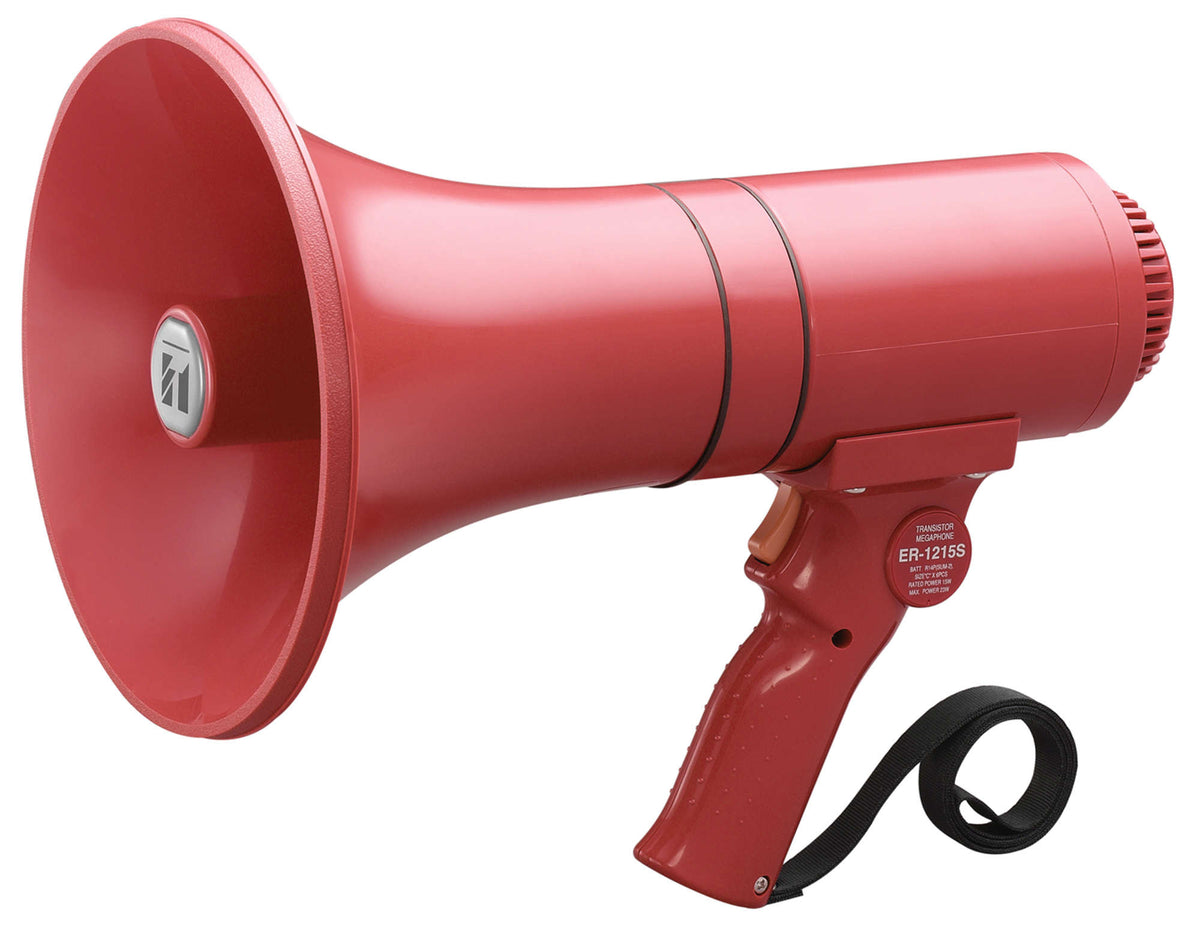

TOA ER-1215S Megaphone 15 W Siren Red
Product Details
The ER-1215S is a hand grip type, 15 W output megaphone with a siren. Pressing the siren button sounds a siren continuously in emergency conditions. The newly developed polyimide diaphragm is employed to ensure high sound quality.
Rated output is 15 W, with 23 W maximum. Audible range is approximately 315 m for voice. It runs on R14P (C) x 6 (9 V DC), giving approximately 14 hours. The signal tone is a siren at sounds at 5 seconds intervals.
It is a hand-grip design, light enough to carry and operate in one hand. The built-in siren gives a warning tone that carries further than voice and needs no words, which matters in an evacuation or a noisy environment. Weight is 1.2 kg.
Features
- Compact megaphone with good sound quality due to wide frequency response
- High audible range
- Neodymium magnet for high power
- Polyimide diaphragm
- Low power consumption
- Rugged enclosure
- Howl-free unidirectional dynamic microphone with press-to-talk switch
- Rated output: 15 W
- Maximum output: 23 W
- Battery life: Voice: Approx. 14 hours Siren: Approx. 20 minutes
- Signal sound: Siren (sounds at 5 seconds intervals)
- Operating temperature: -10 °C to +40 °C
- Megaphone with Siren
Specifications
| Technical | |
|---|---|
| Power Source | R14P (C) x 6 (9 V DC) |
| Rated Output | 15 W |
| Maximum Output | 23 W |
| Signal Sound | Siren (sounds at 5 seconds intervals) |
| Battery Life | Voice: Approx. 14 hours (JEITA)* Siren: Approx. 20 minutes (JEITA)* |
| Audible Range | Voice: Approx. 315 m (JEITA)* Siren: Approx. 500 m (JEITA)* |
| Diaphragm | Polyimide film (voice coil, bobbin) |
| Operating Temperature | -10 °C to +40 °C |
| Physical | |
|---|---|
| Finish | Horn, mouth, battery case and handle: ABS resin, red; Strap: Nylon, black |
| Dimensions | 210 (W) x 291 (H) x 346 (D) mm (8.3 x 11.5 x 13.6 in) |
| Weight | 1.2 kg (2.6 lb) (without batteries) |
Specifications subject to change.
