Description
TOA ER-1206 Megaphone 6 W Dark Gray
Product Details

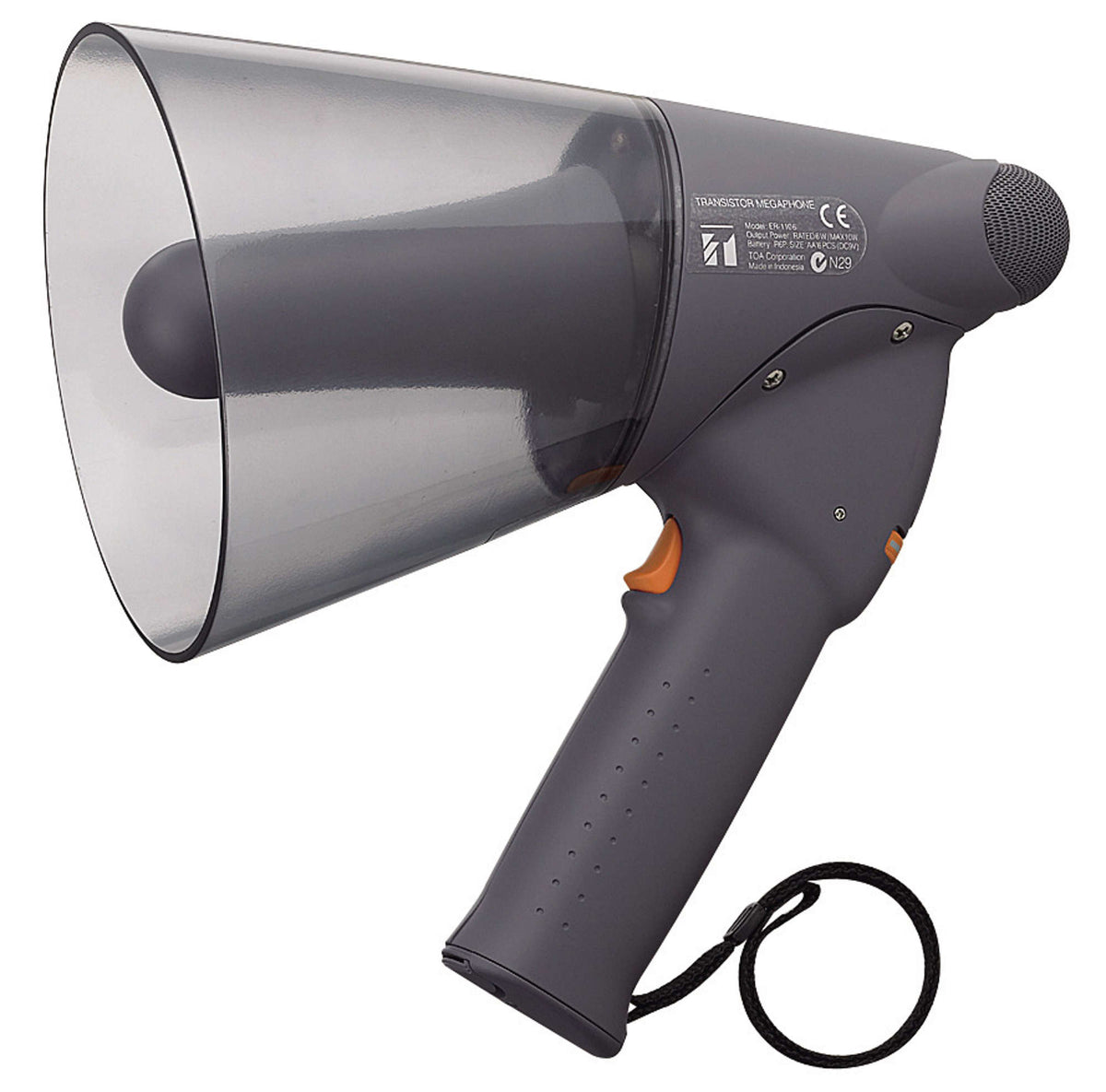

The ER-1206 is a compact splash-proof megaphone rated at 6 W output and features IPX5 water-jet-resistant designs. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.
Rated output is 6 W (when using six R6P batteries), with 10 W (when using six R6P batteries) maximum. Audible range is approximately 250 m(*1). It runs on R6P (AA) x 6 (9 V DC) or R6P (AA) x 4 (6 V DC), giving When using six R6P batteries: Approx. 8 hours(*1) When using four R6P batteries(*2): Approx. 5 hours(*1).
It is a hand-grip design, light enough to carry and operate in one hand. The splash-proof construction suits outdoor use — site work, marshalling, and anywhere it may be used in rain. Weight is 660 g.
Features
- Compact & lightweight
- Good sound quality due to wide frequency response
- Directional microphone with press-to-talk switch
- Neodymium magnet for high performance
- Battery saving operation
- Rugged enclosure
- Rated output: 6 W (when using six R6P batteries)
- Maximum output: 10 W (when using six R6P batteries)
- Audible range: Approx. 250 m(*1)
- Power source: R6P (AA) x 6 (9 V DC) or R6P (AA) x 4 (6 V DC)
- Diaphragm: Polyimide film (voice coil, bobbin)
- Operating temperature: -10 °C to +40 °C
- Splash-Proof Megaphone
Specifications
| Technical | |
|---|---|
| Power Source | R6P (AA) x 6 (9 V DC) or R6P (AA) x 4 (6 V DC) |
| Rated Output | 6 W (when using six R6P batteries) |
| Maximum Output | 10 W (when using six R6P batteries) |
| Battery Life | When using six R6P batteries: Approx. 8 hours (JEITA)(*1) When using four R6P batteries(*2): Approx. 5 hours (JEITA)(*1) |
| Audible Range | Approx. 250 m (JEITA)(*1) |
| Frequency Response | 450 Hz - 6 kHz (SPL -20 dB) |
| Magnetic Circuit | Neodymium magnet, inner magnet type |
| Diaphragm | Polyimide film (voice coil, bobbin) |
| Water Protection | IPX5 |
| Operating Temperature | -10 °C to +40 °C |
| Physical | |
|---|---|
| Finish | Horn: ASA resin, clear dark gray; Other: ASA resin, dark gray; Strap: Nylon, black |
| Dimensions | 154 (W) x 266 (H) x 250 (D) mm (6.1 x 10.5 x 9.8 in) |
| Weight | 660 g (1.5 lb) (without batteries) |
| Included Accessories | Battery spacer …1 |
| Optional Accessories | Wall mounting bracket for megaphone: SP-1100 |
Specifications subject to change.
