Description

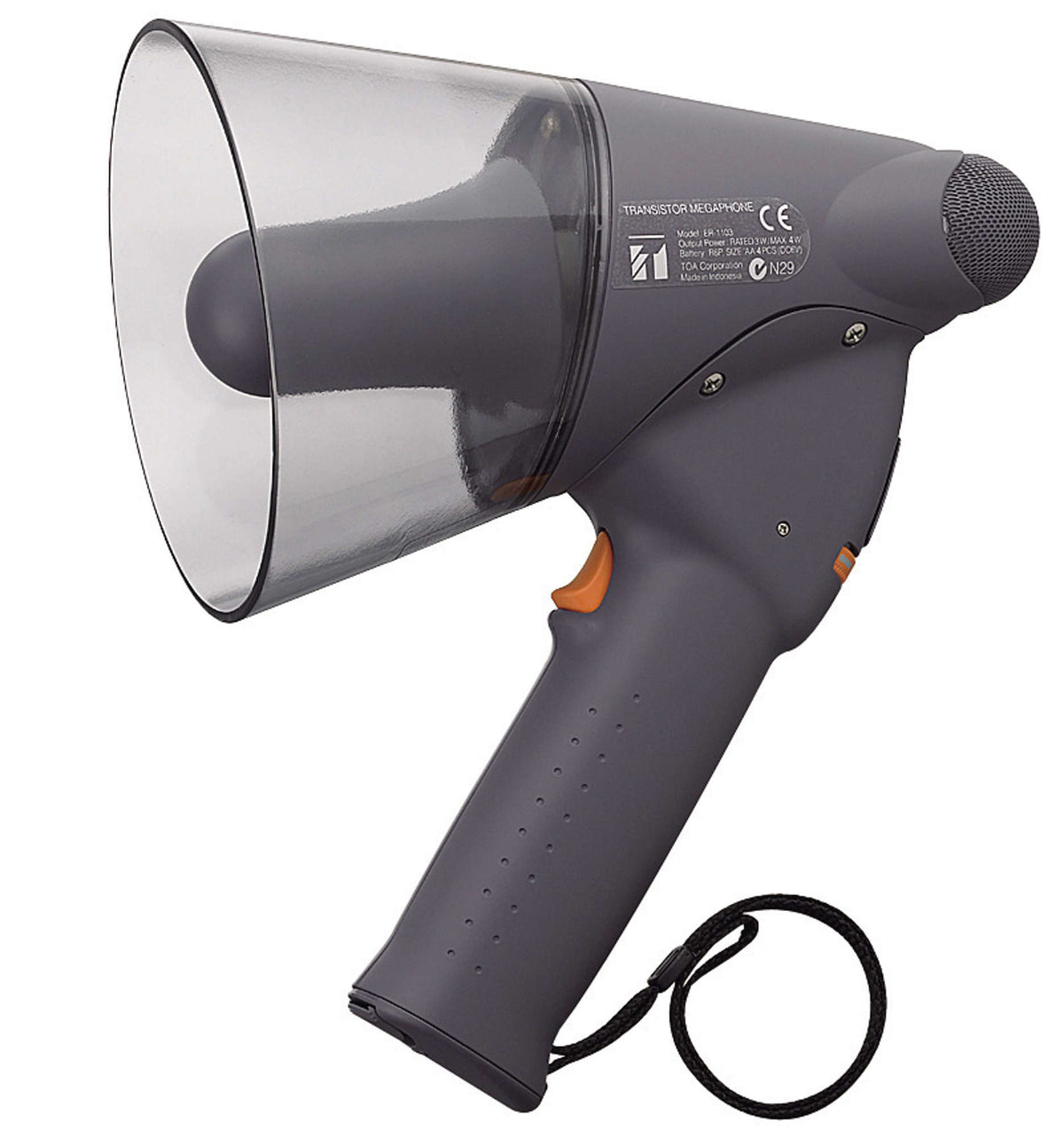

TOA ER-1203 Megaphone 3 W Dark Gray
Product Details
The ER-1203 is a compact splash-proof megaphone rated at 3 W output and features IPX5 water-jet-resistant designs.
Rated output is 3 W, with 4 W maximum. Audible range is approximately 125 m. It runs on R6P (AA) x 4 (6 V DC), giving approximately 8 hours.
It is a hand-grip design, light enough to carry and operate in one hand. The splash-proof construction suits outdoor use — site work, marshalling, and anywhere it may be used in rain. Weight is 610 g.
Features
- Compact & lightweight
- Easy change of batteries
- Directional microphone with press to-talk switch
- Rated output: 3 W
- Maximum output: 4 W
- Audible range: Approx. 125 m
- Battery life: Approx. 8 hours
- Power source: R6P (AA) x 4 (6 V DC)
- Diaphragm: Polyimide film (voice coil, bobbin)
- Operating temperature: -10 °C to +40 °C
- Splash-Proof Megaphone
Specifications
| Technical | |
|---|---|
| Power Source | R6P (AA) x 4 (6 V DC) |
| Rated Output | 3 W |
| Maximum Output | 4 W |
| Battery Life | Approx. 8 hours (JEITA)* |
| Audible Range | Approx. 125 m (JEITA)* |
| Frequency Response | 500 Hz - 6 kHz (SPL -20 dB) |
| Magnetic Circuit | Neodymium magnet, inner magnet type |
| Diaphragm | Polyimide film (voice coil, bobbin) |
| Anti-bacteria Treatment | Mouth and handle |
| Water Protection | IPX5 |
| Operating Temperature | -10 °C to +40 °C |
| Physical | |
|---|---|
| Finish | Horn: ASA resin, clear dark gray; Other: ASA resin, dark gray; Strap: Nylon, black |
| Dimensions | 137 (W) x 257.8 (H) x 210 (D) mm (5.4 x 10.1 x 8.3 in) |
| Weight | 610 g (1.3 lb) (without batteries) |
| Optional Accessories | Wall mounting bracket for megaphone: SP-1100 |
Specifications subject to change.
