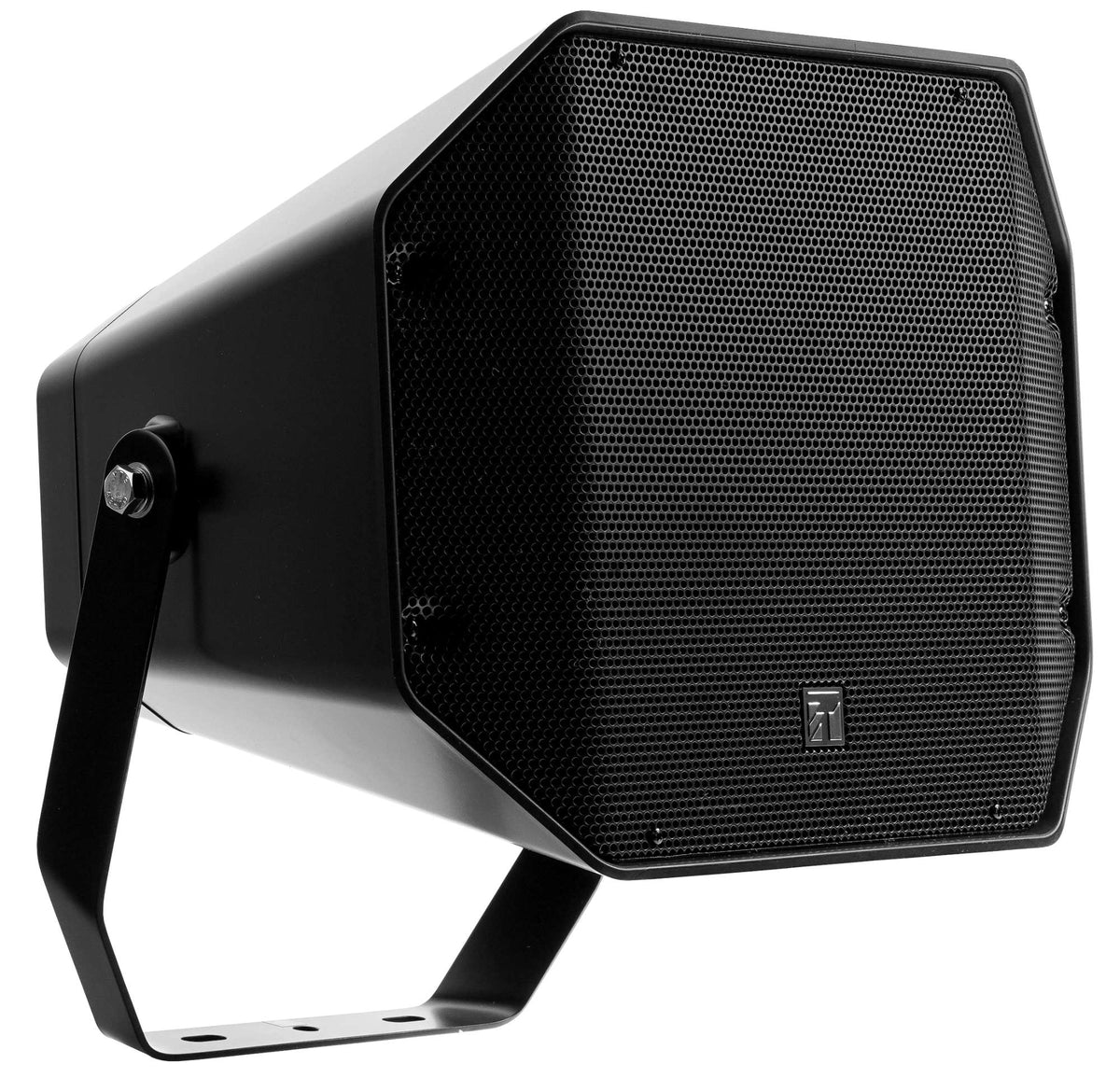

TOA CS-761B 2-Way Weatherproof Music Horn Speaker 70 V Line: 60W, 30W, 15W, 7.5W; Black
Product Details
The TOA CS-761B is a two-way coaxial horn speaker built for outdoor music as much as announcements: a 16 cm (6-inch) cone for the low end and a 2.5 cm (1-inch) tweeter mounted coaxially above it, covering 100 Hz to 20 kHz.
That range is the reason to choose it over any paging horn. A compression horn stops around 6 to 13 kHz and sounds hard with music; this reaches a genuine 20 kHz and 100 Hz at the bottom, so a forecourt, a terrace or a stadium concourse gets music that sounds like music. Dispersion is 90° horizontal by 80° vertical, and maximum output is 117 dB with the full 60 W applied.
IP66 is a step beyond the IP65 of the CS paging horns — sealed against powerful water jets, not just the ordinary kind — and the bracket is stainless steel. Note the narrower temperature range than the CS paging speakers: 14 °F to 122 °F. Supplied in black; the same speaker in white is stocked as CS-761W.
Features
- 2-way coaxial design — 6″ cone plus 1″ tweeter
- 100 Hz – 20 kHz, genuine music bandwidth
- 60 W rated input, 117 dB maximum output
- 100 dB sensitivity at 1 W / 1 m
- 90° × 80° dispersion
- IP66 — sealed against powerful water jets
- Four taps on 100 V, four on 70 V
- Stainless steel bracket included
- Suits forecourts, terraces and concourses where music matters
- Stainless steel screws and fixings
- Available in black (CS-761B) and white (CS-761W)
Specifications
| Technical | |
|---|---|
| Type | 2-way coaxial horn speaker |
| Rated Input | 60 W |
| Rated Impedance — 100 V Line | 170 Ω (60 W) | 330 Ω (30 W) | 670 Ω (15 W) | 1.3 kΩ (7.5 W) |
| Rated Impedance — 70 V Line | 83 Ω (60 W) | 170 Ω (30 W) | 330 Ω (15 W) | 670 Ω (7.5 W) |
| Sound Pressure Level | 100 dB (1 W, 1 m) |
| Maximum Sound Pressure Level | 117 dB at the full 60 W |
| Frequency Response | 100 Hz – 20 kHz |
| Low Frequency Driver | 16 cm (6″) cone type |
| High Frequency Driver | 2.5 cm (1″) tweeter |
| Dispersion | 90° horizontal × 80° vertical |
| Dust and Water Protection | IP66 |
| Operating Temperature | −10 °C to +50 °C (14 °F to 122 °F) |
| Physical | |
|---|---|
| Dimensions | 388 (W) × 310 (H) × 367 (D) mm — 15.28″ × 12.2″ × 14.45″ |
| Weight | 7.6 kg (16.75 lb) |
| Color | Black (RAL 9011 equivalent) |
| Finish and Materials | Enclosure: ABS resin and steel plate, polyurethane paint | bracket: stainless steel with powder coating |
| Mounting Bracket | Stainless steel bracket included |
Specifications subject to change.
