Description

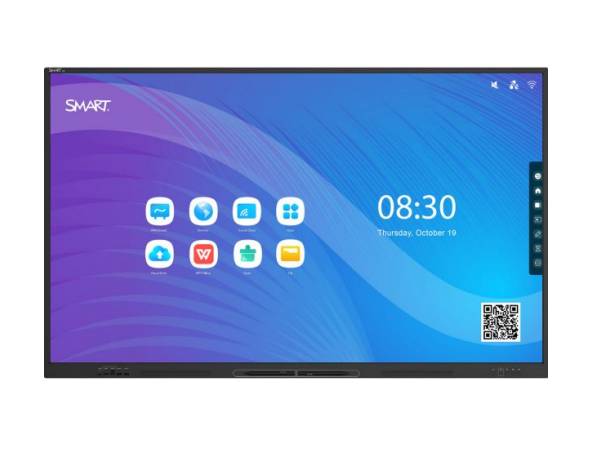

SMART Board GX086-V3 interactive display, no embedded OS
SMART Board GX (V3) - Flat - 3840 x 2160 - 86Inch - 8Ms response time - 60 Hz refresh rate - 400 cd/m2 - 178/178 - 16:9 - Anti-glare - OPS PC accessory slot, HDMI, Display Port, VGA, Stereo 3.5 mm, RS-232 (DB-9 connector) , RJ45, USB, S/PDIF optical (fixed) - Black - 800 x 600 mm
Specifications:
| Category | Feature | Specification |
| Display | Screen Size | 86 Inch (Diagonal) |
| Resolution | 4K Ultra HD ($3840 \times 2160$) | |
| Technology | LED with Anti-glare Bonded Glass | |
| Refresh Rate | 60 Hz | |
| Response Time | 8 ms | |
| Brightness | 400 $cd/m^2$ | |
| Viewing Angle | $178^\circ / 178^\circ$ | |
| Aspect Ratio | 16:9 | |
| Interactive | Touch Technology | Advanced Infrared (IR) |
| Touch Points | 40 (Windows), 32 (Android), 20 (Mac) | |
| Object Awareness | Yes (Pens, Fingers, Palms) | |
| Computing | OS | Embedded Android 11 (Upgradable to 13) |
| CPU | Quad-core | |
| RAM / Storage | 8 GB DDR4 / 64 GB | |
| Included Software | SMART Notebook, SMART Ink, Drivers | |
| Connectivity | Video Inputs | 4x HDMI, 1x DisplayPort, 1x VGA |
| Other Ports | 2x USB-C (15W PD), 9x USB-A/B ports, RS-232, RJ45 | |
| Network | Wi-Fi 6, Bluetooth 5.0, Dual-LAN (Gigabit) | |
| Audio | 2 x 20W Integrated Speakers | |
| Physical | Dimensions | $77.25" \times 46.13" \times 3.5"$ ($196.3 \times 117.1 \times 8.8$ cm) |
| Weight | 65 kg (143 lbs) | |
| VESA Mount | $800 \times 600$ mm | |
| Power | Operational | 119 Watts |
| Standby | < 0.5 Watts | |
| Voltage | 100V to 240V AC, 50/60 Hz | |
| Environment | Operating Temp | $0^\circ\text{C}$ to $40^\circ\text{C}$ ($32^\circ\text{F}$ to $104^\circ\text{F}$) |
| Humidity | 20–80% non-condensing |
