Description

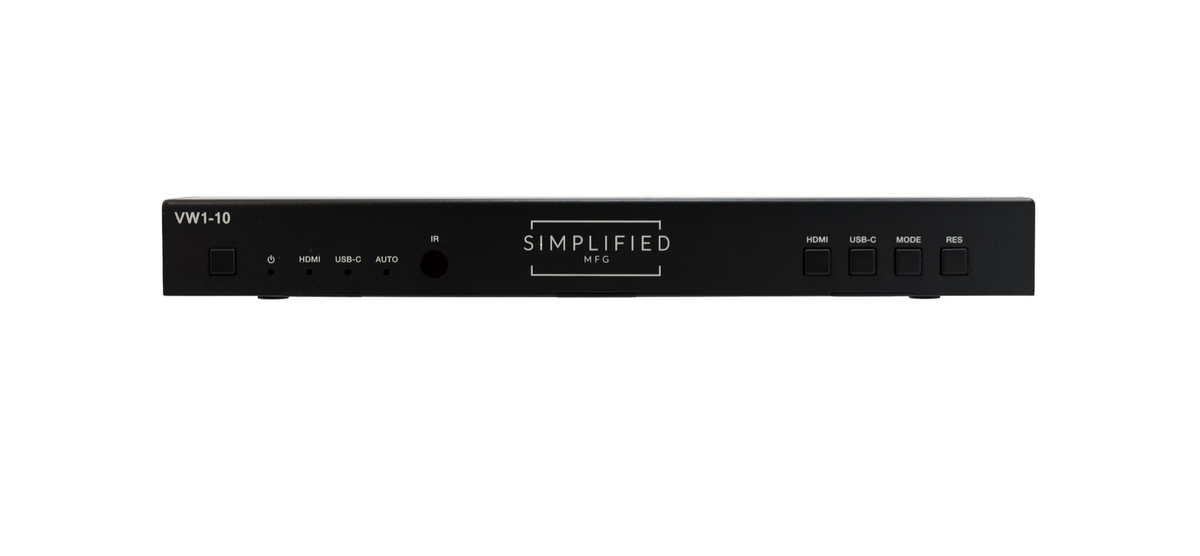

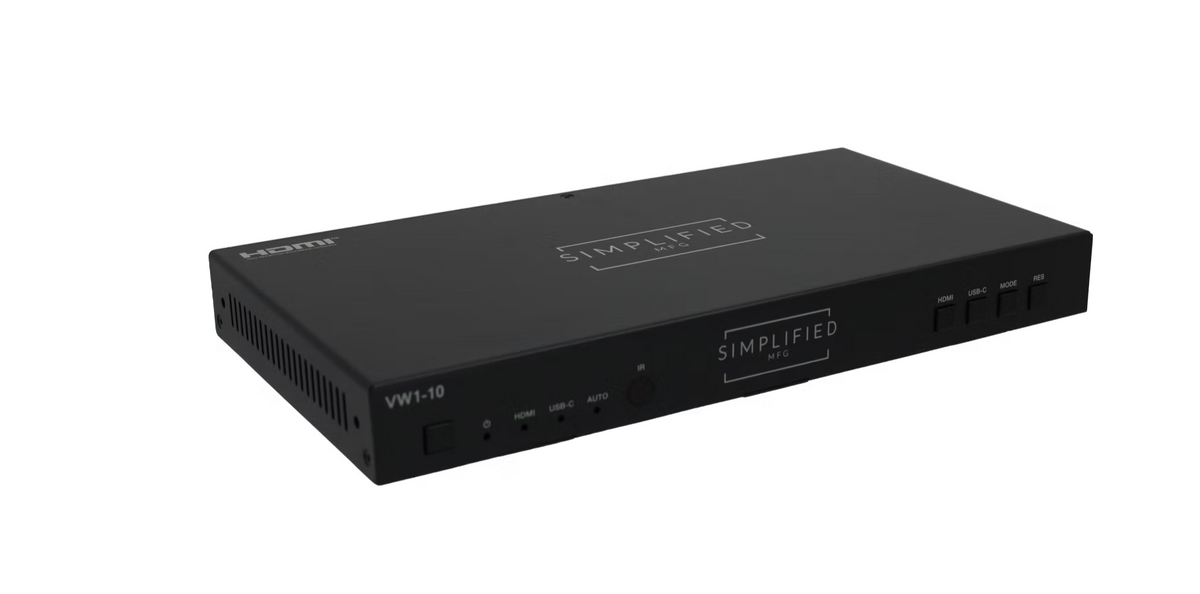

Simplified VW1-10 10 Output 4K Multi-Format Video Wall Processor
Product Details
The VW1-10 is a 2 input (USB-c or HDMI) 10 output 4K video wall processor (1 image across multiple displays) It’s standard modes include 2x2, 2x3, 3x2, 3x3, 2x5, and of course 1 across all displays. With features such as audio breakout, Bezel correction, and Image inversion, this makes for an economical solution for larger format video walls. Because of the fast switching it is also ideal for live events such as presentations, education, and houses of worship. The VW1-10 can be controlled via IR Remote, IR, RS-232 control and front panel buttons.
Features
• HDMI 2.0b (18Gbps)
• Video wall functions allow a single image to be displayed across multiple displays, from 1-10 in 15 configurations.
• HDMI and USB-C inputs
• Deep color supported up to 12-Bit
• On screen feedback when selecting video wall modes and resolution.
• Optical and 3.5mm mini audio breakout
• Bezel correction
• Image rotation
• Can be controlled via RS-232, IR, front panel buttons.
• IR remote and remote receiver included
• 3 Year Warranty
Specifications
| HDMI Compliance | HDMI 2.0b |
| DP Compliance | DP 1.4 ALT Mode |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| HDMI & USB-C Input Resolutions | 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1200p60Hz, 480i60Hz, 480p60Hz, 576i50Hz, 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz, 3840x2160p24/25/30/50/60Hz, 4096x2160p24/25/30/50/60Hz |
| HDMI Output Resolutions | 720p60Hz, 1080p60Hz, 4K30Hz, 1024x768p60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Audio Formats (Optical Output) | LPCM 2.0CH, Dolby/DTS 5.1CH |
| Audio Formats (Analog Output) | LPCM 2.0CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |

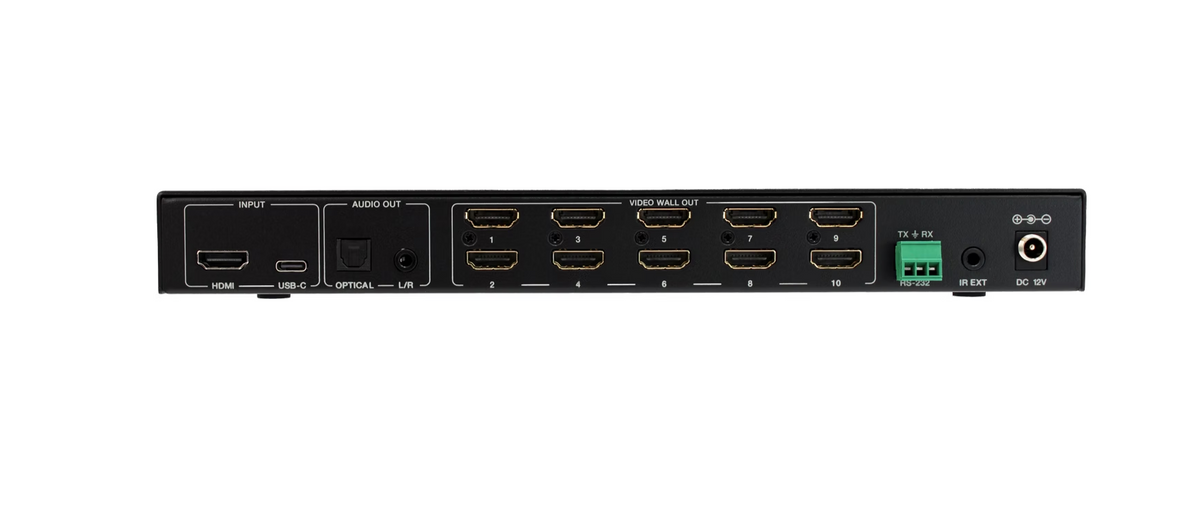

| Inputs | 1x HDMI Type A (19-pin female), 1x USB-C |
| Outputs | 10×HDMI Type A (19-pin female), 1x Optical (S/PDIF), 1x L/R audio (3-Pin Phoenix) |
| Control Ports | 1x RS-232 (3-Pin Phoenix), 1x 3.5mm mini-jack (IR ext.) |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 270mm / 10.63” (W) x 141mm / 5.55” (D) x 30mm / 1.18” (H) |
| Weight | 935g / 2lbs, 1oz |
| Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9.5W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
