Description

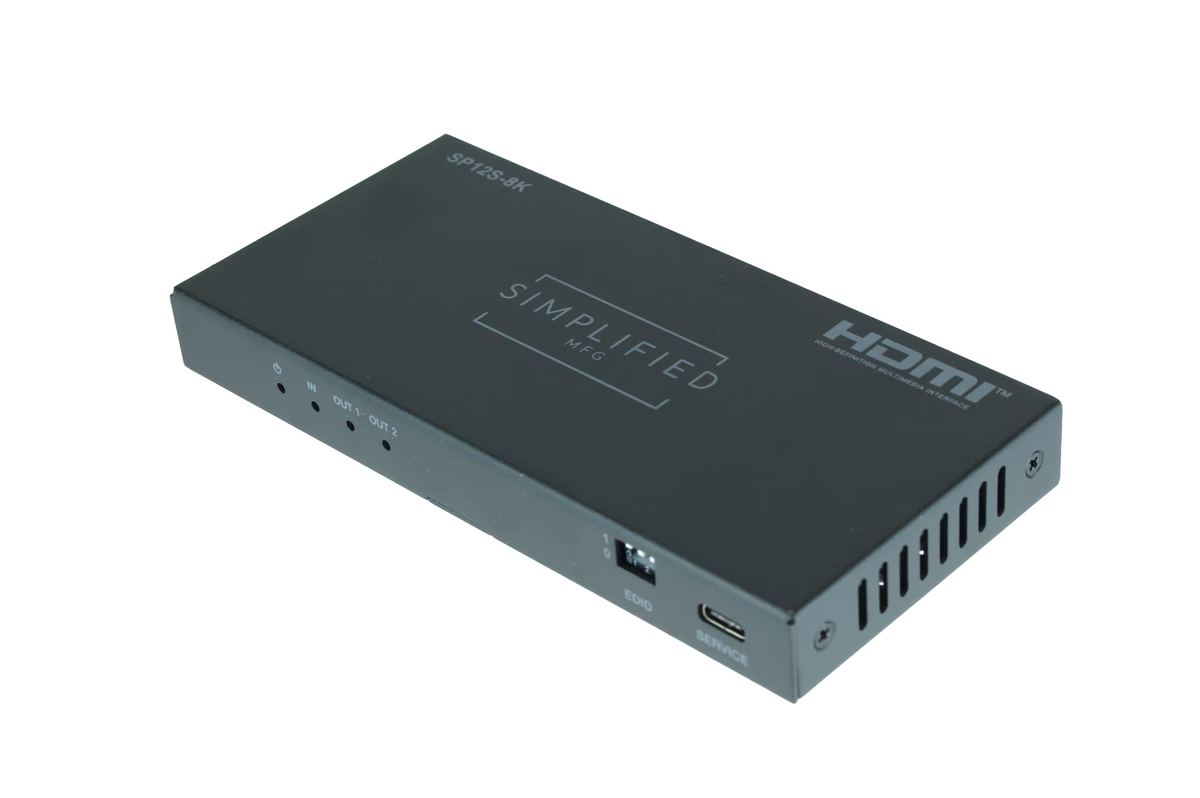

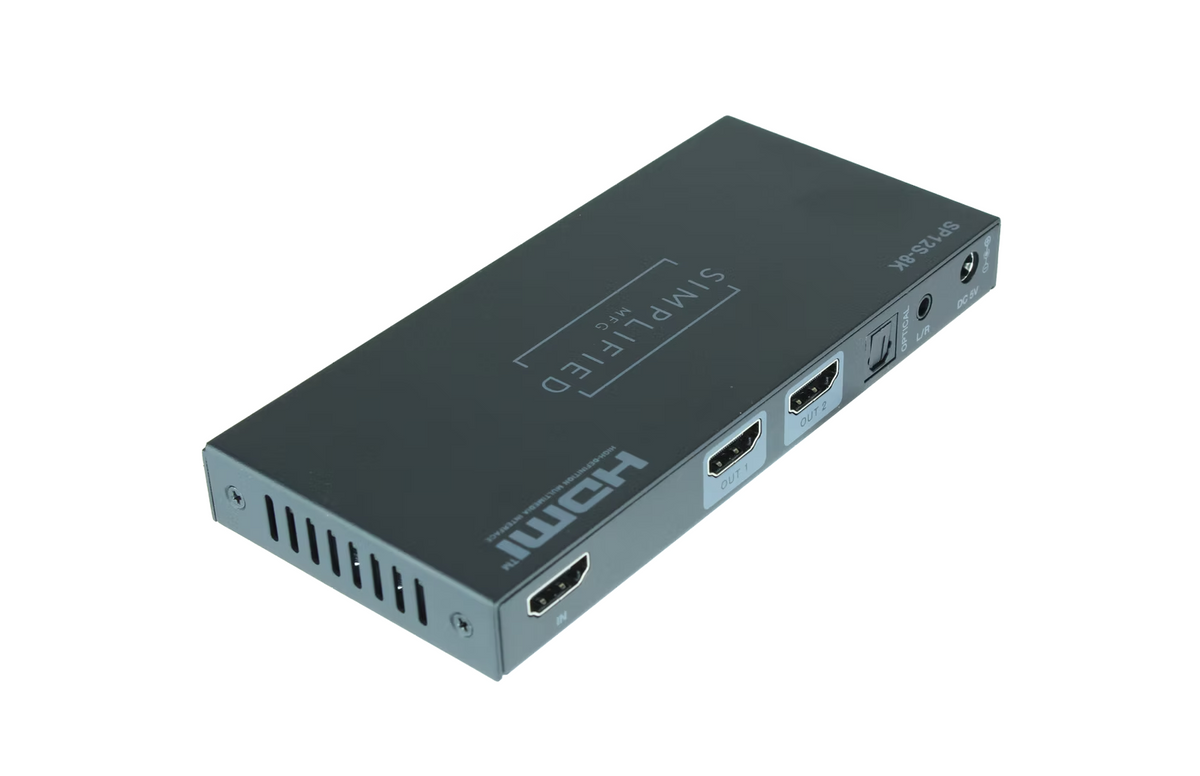

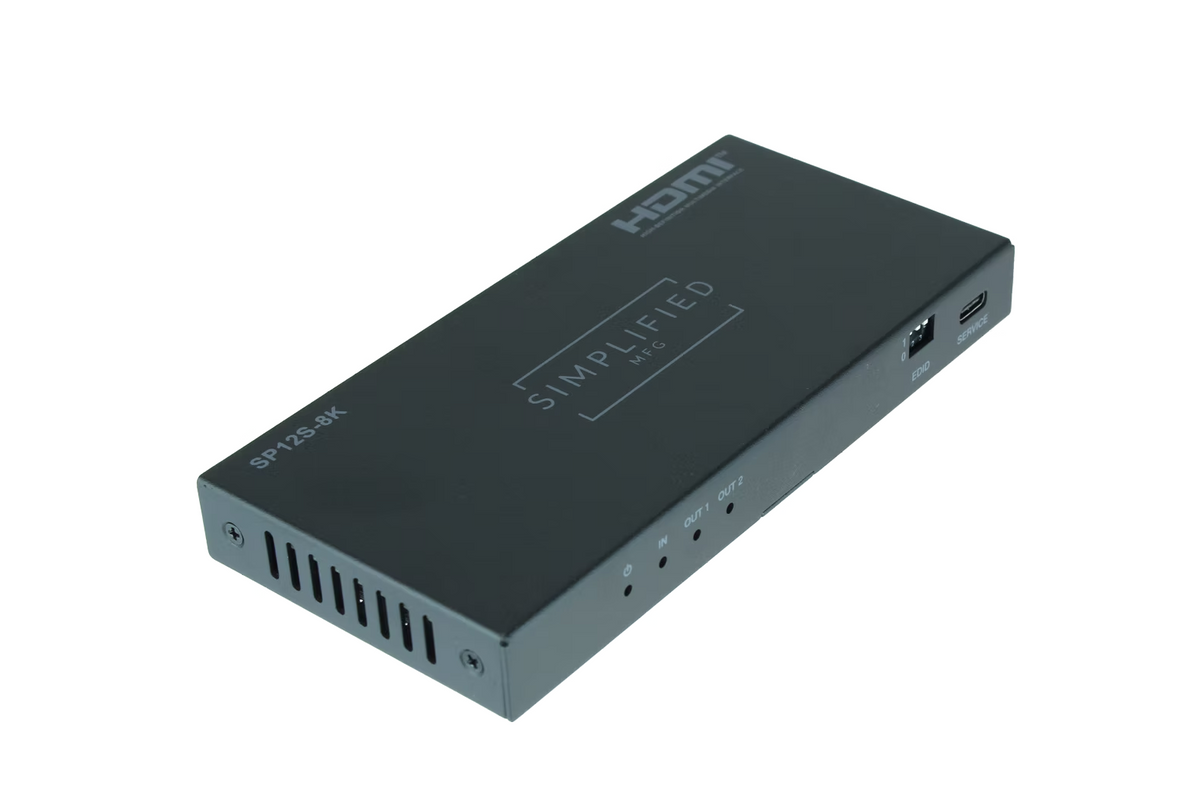

Simplified SP12S-8K HDMI2.1 48Gbps Auto-Scaling 1 to 2 HDMI Splitter with HDR to SDR Conversion
Product Details

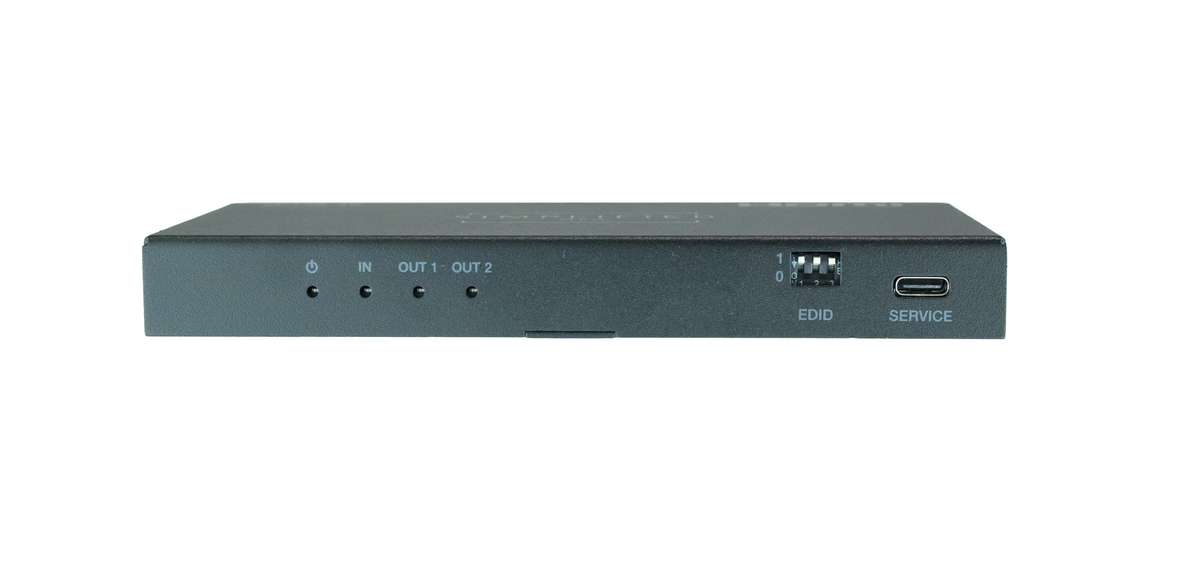

The SP12S-8K HDMI 48Gbps Auto scaling HDMI splitter will scale 8K-4K-1080p automatically. The EDID setting is factory preset to copy the EDID from output number 1. Output number 2 will automatically scale to the EDID detected on that output. It will also convert HDR to SDR on that output if needed as well automatically. The EDID shown to the source can be changed and when doing so, the SP12S-8K will now auto scale to each output. In addition, there is an optical S/PDIF audio breakout for signals from stereo to 5.1. There is also a parallel 3.5 mm mini-jack that will output stereo as long as the source is outputting stereo.
Features
| HDMI & HDCP Compliance | HDMI 2.1b, HDCP 2.3 |
| Signaling Modes | FRL (Fixed Rate Link) and TMDS |
| Supported Resolutions | Up to 8K @ 60Hz (4:2:0 12-bit) / 4K @ 120Hz (4:4:4 12-bit) |
| HDR Support | HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-thru/conversion |
| Video Processing | Auto-scales and converts HDR to SDR |
| Audio Extraction | Optical S/PDIF and 3.5mm audio |
| Form Factor / Mounting | Fits in CXRU1 rack mount system |
| Warranty | 3-Year warranty |
Specifications
| Technical | HDMI Compliance | HDMI 2.1b |
| HDCP Compliance | HDCP 2.3 and HDCP 1.4 | |
| Video Bandwidth | 48Gbps | |
| Video Resolutions | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |
| Color Depth | 8/10/12-bit | |
| HDMI Audio Formats | Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | |
| Audio De-embedding |
Optical: LPCM/Dolby/DTS 5.1ch Analog: LPCM 2.0ch |
|
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) | |

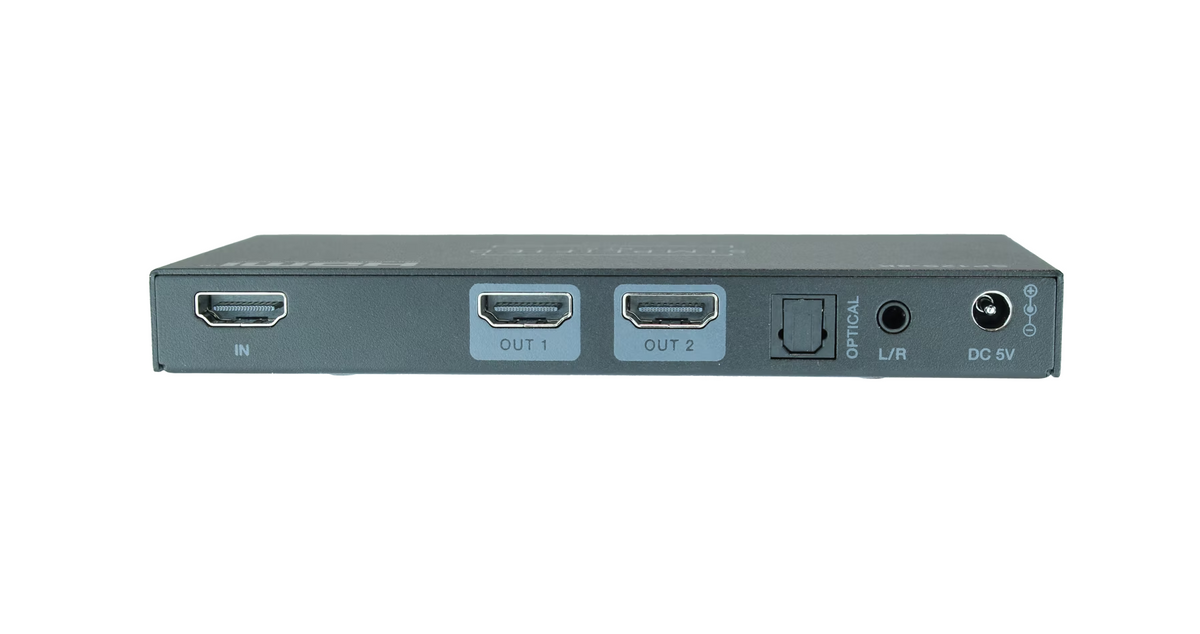

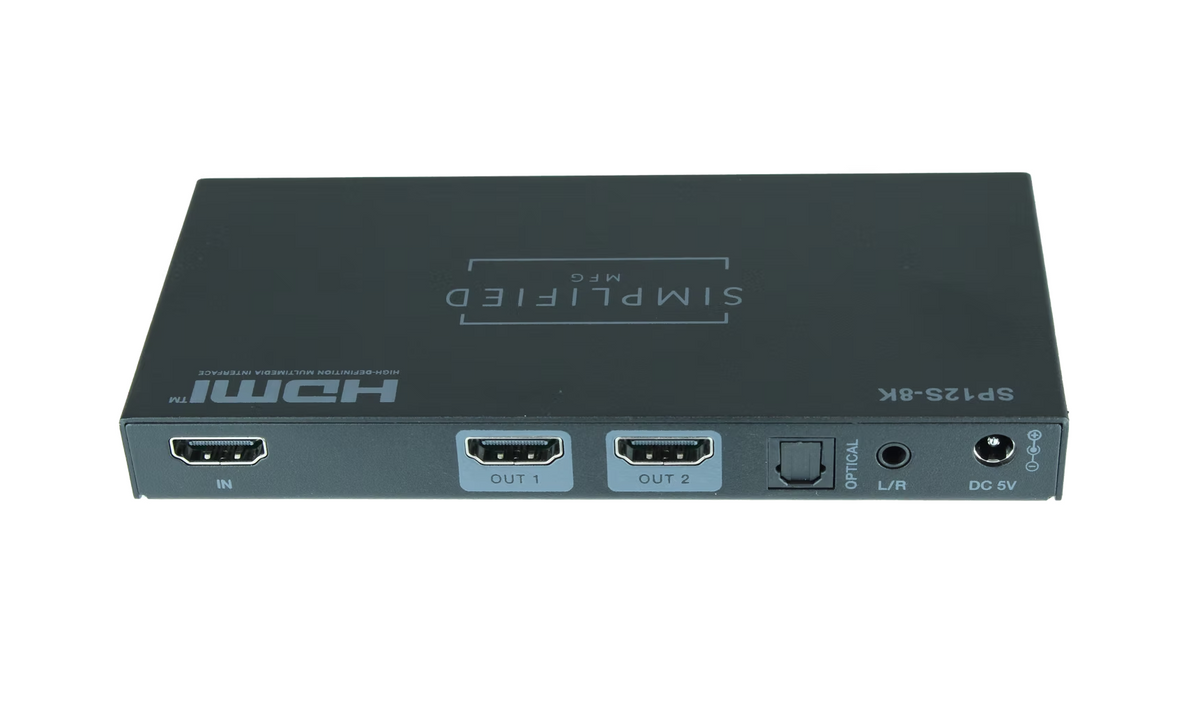

| Connections | Inputs | 1 x HDMI Type A (19-pin female) |
| Outputs |
12 x HDMI Type A (19-pin female) 1 x Optical S/PDIF 1 x 3.5mm analog audio breakout |
|
| Mechanical | Housing | Metal Enclosure |
| Color | Black | |
| Dimensions | 145mm (5.71") [W] x 68mm (2.67") [D] x 17mm (0.70") [H] | |
| Weight | 260g (9.17oz) | |
| Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|
| Power Consumption | 4.5W Max | |
| Operating Temp | 32 - 104°F / 0 - 40°C | |
| Storage Temp | -4 - 140°F / -20 - 60°C | |
| Relative Humidity | 20 - 90% RH (no condensation) |
