Ruckus 9U1-T670-US02 Outdoor Access Point
Product Details
RUCKUS Unleashed T670 Wi-Fi 7 tri-band outdoor concurrent wireless access point with 2x2 (2.4GHz) + 2x2 (5GHz) + 2x2 (6GHz) RF configuration. Wi-Fi 7 in all three bands. 6GHz supports SP mode with AFC. T670 can be also software configurable to 2x2 (2.4GHz) + 4x4 (5GHz) dual- band mode with Wi-Fi 7 support in both frequency bands. BeamFlex+, one 5-Gigabit Ethernet backhaul, one 1- Gigabit auxiliary port, PoH/uPoE/802.3bt/802.3at PoE support, TPM 2.0, Secure Boot. Mounting bracket included. Power adapter or PoE Injector not included. Includes limited one-year warranty.
Specifications
Primary Information
| Product Type: | Access Point |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 5 Gbps |
| Data Link Protocol: | IEEE 802.11 a/b/g/n; IEEE 802.11 ac; IEEE 802.11 ax |
| Processor / Type: | None Processor |
| Processor / Manufacturer: | Not Included |
| Processor / Clock Speed: | Not Included GHz |
| Processor / Number: | Not Included |
| Environment: | Outdoor |
| Radio Count: | Tri |
| Frequency Band: | 2.4 GHz;5 GHz;6GHz |
| Connectivity Technology: | Wireless |
| MIMO Type: | 2x2:2 |
| Antenna Type: | Antenna |
| Model: | RUCKUS T670 |
| Features: | Connect more devices simultaneously; High client density and performance; BeamFlex+ $dapve Antenna Technology |
Networking
| Transport Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | IEEE 802/11a/b/g/n/ac/ax/be |
| Remote Management Protocol: | IPv4; IPv6 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
Miscellaneous

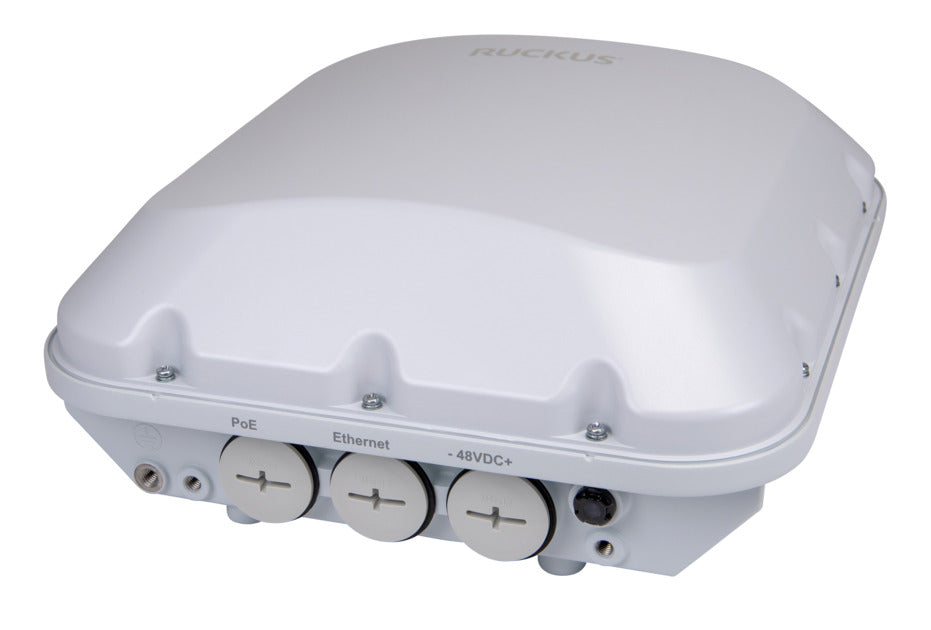

| Interfaces: | One 100M/1/2.5/5GbE Ethernet (PoE) port and one 10M/100M/1GbE Ethernet port |
Dimensions & Miscellaneous
| Width: | 9.4 Inch |
| Depth: | 9.8 Inch |
| Height: | 4.3 Inch |
Power
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 48V DC |
Service & Support
| Service & Support Type: | one year limited warranty |
