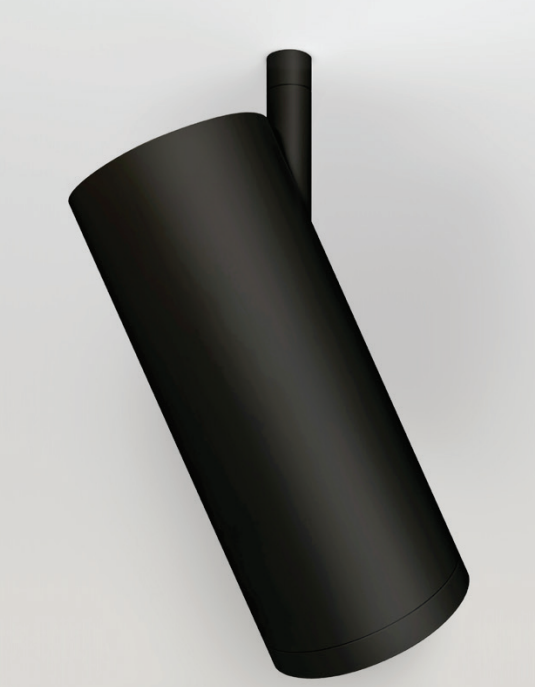

PureEdge VANISHING POINT TUBO LARGE SMART TRACKHEAD
DESCRIPTION
Our Pure Smart Vanishing Point Tubo Large TruColor™ RGBTW Track Head is available in both 12W and 17W options, delivering up to 1315 lumens. Designed as part of a fully low-voltage, Class 2 24VDC system, it ensures effortless installation.
The sleek, cylindrical flat-back design integrates the heat sink, LED module, and WiFi-enabled smart driver, allowing for 360° horizontal rotation and 90° vertical aiming. With two distinct mounting options—drywall and millwork—the Vanishing Point creates a seamless, minimal connection that enhances the architectural flow in any setting.
TRUCOLOR™ RGB & TUNABLE WHITE LIGHT ENGINE
Pure Smart TruColor™ technology uses five channels of tunable LEDs (RGBTW: red, blue, green, and Tunable White 1500K-6500K).
Key Features:
-
Wide Spectrum Mixing: Precision-engineered, proprietary color mixing delivers everything from the warm glow of a sunset (1500K-2400K golden hour) to the pure white light of the mid-day sun (4500K-6500K).
-
Color Accuracy: Achieves an average CRI of 93+ (between 2000K-5000K) and a Duv of $\pm0.0026$ in relation to the blackbody curve.
-
Dynamic Color Changing: Offers millions of possibilities for intricate customization, rich saturated secondary colors, and soft pastels.
SMART CONTROL & INTEGRATION
The onboard smart driver allows for user-friendly installation and feature-rich controls via the WiZ Pro Software Suite, seamlessly integrating into a wireless Wi-Fi control ecosystem.
Control Options:
-
WiZ App & WiZ Pro Dashboard
-
Smart wall controls & remotes
-
Voice control
Functionality:
-
CCT control & dimming
-
Grouping, zoning, and scheduling from anywhere, anytime
-
Preset and custom schedules designed to support a healthy circadian rhythm
| Parameter | Specification |
| Color Temperature | TruColor™ RGBTW: Red, Blue, Green, Tunable White from 1500K-6500K |
| Lumens @ 17W | 1315 Lumens at 3000K |
| CRI | 96 CRI at 3000K |
| Efficacy @ 17W | 82 lumens per watt at 3000K |
| Mounting Options | Mounts seamlessly into drywall using the Vanishing Point system |
| Remote Power Supplies (Sold Separately) |
24VDC, Class 2 wiring • Pure Smart™ WiZ Pro PSBR Power Supplies & Smart Controls |
ACCESSORIES & OPTICS
-
Included: SF Soft Focus Mixing Film is included standard.
-
Field-Changeable Lenses: Available in multiple beam spread options:
-
SP-A: 16°
-
NF: 30°
-
FL: 35°
-
WF: 45°
-
-
Other Accessories: Mixing Films, Louver, and Snoot options available.
APPLICATIONS & ENVIRONMENT
-
Environment: Designed for indoor use only (suitable for dry and damp locations).
-
Ideal Sectors: Commercial, Retail, Residential, Hospitality, Education, and Healthcare Institutions.
WARRANTY & CERTIFICATIONS
-
Warranty: Pro-rated 5-year warranty
-
Origin: Assembled in America
-
Certifications & Labels:
-
ETL Listed (Conforms to UL1598 and CSA 22.2 #250.0)
-
RoHS Compliant
-
