Description
PureEdge TS24 Track Surface Single Circuit, 24VDC
Product Details

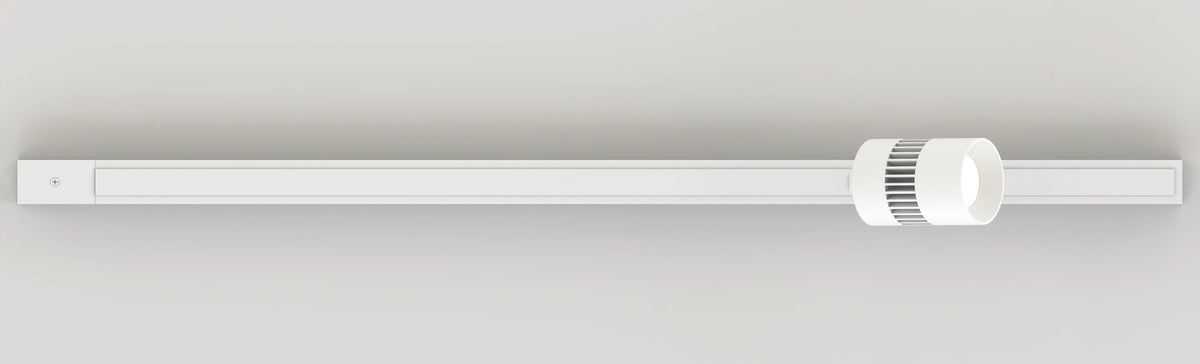

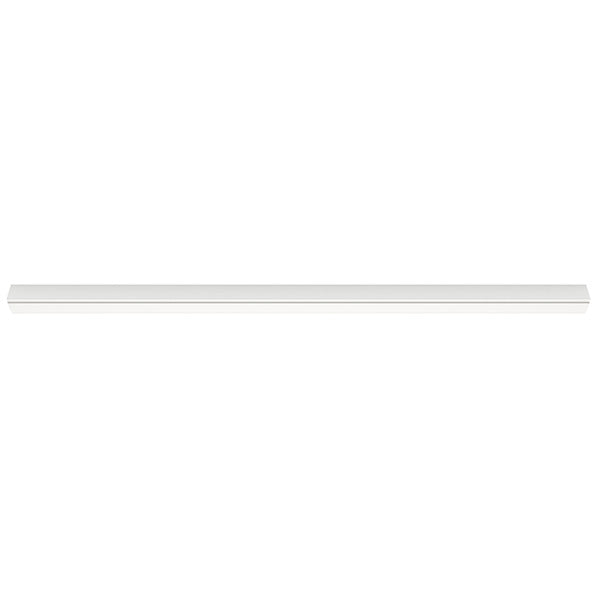

The TS24 Track Surface Mount is designed with a 24VDC remote power supply and minimal track heads giving it a refined appearance. The Single Circuit Track comes with a plastic slot cover that hides the #10 AWG copper conductor allowing the system to blend into the ceiling. Offered in various lengths and can be cut in the field. The T24 Track Heads offer the latest in LED technology including Warm Dim.
Features
-
Designed for use with 24VDC Universal Remote Power Supplies up to 40' away
-
Remote Power Supply, and minimal Track Heads create a refined architectural aesthetic
-
Track Heads allow you to easily adjust the fixture direction, tilt and rotation with one hand
-
Track Heads are available in five color temperatures including Warm Dim (30D) that dims from 3000K down to 1800K
-
Track Head Lumen Output up to 1256 Lumens with multiple fixed and adjustable beam spread options
-
Designer-grade Color Rendering 95CRI
-

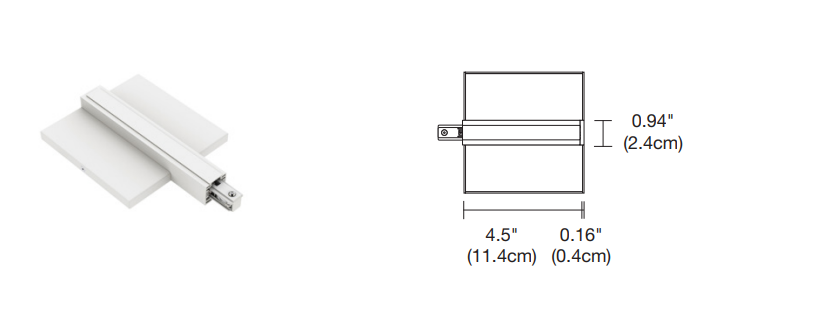

Power Feeds may be ordered in End and Center, up to 100 Watts before re-feeding, 200 Watts with Center Feed
-

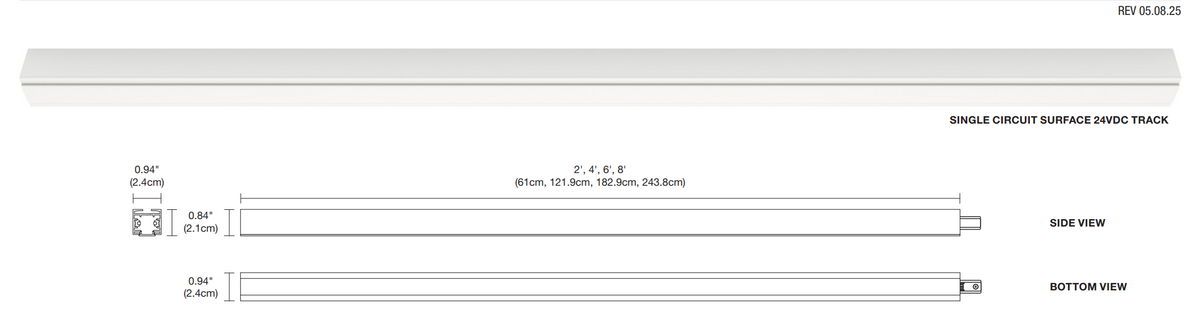

TS24 Track Surface Mount is available in 2', 4', 6' and 8' lengths, with the ability to be cut in the field
-

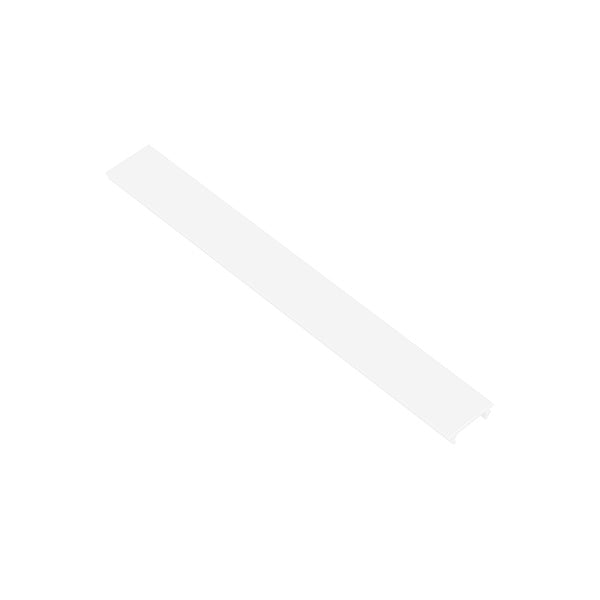

Opaque white cover is included to conceal the track slot
-
10 Gauge busbar helps to eliminate voltage drop
FINISH & MATERIAL
-
BK: Black Powder Paint
-
WH: Warm White Powder Coat RAL 9010
-
Track Material: Extruded Aluminum Channel and a pair of #10 Gauge copper busbar conductors
INTEGRAL LED LAMP
-
Warm Dim: 30D (3000K-1800K)
-
Standard Dim: 24K, 27K, 30K, & 35K
-
50,000 Hour Lamp Life
REMOTE POWER SUPPLIES, DIMMERS & CONTROLS (SOLD SEPARATELY) 24VDC, Class 2 wiring
-
Uni Trim Power Supply Universal Dimming (TRIAC, ELV, 0-10V)
-
ELV & TRIAC Smart Dimmer & Switch
APPLICATIONS Suitable for damp or dry location. Interior use only.
WARRANTY / LABELS 5 year warranty. Assembled in America. ETL listed (Conforms to UL 2018 and CSA 22.2 #250.0).
