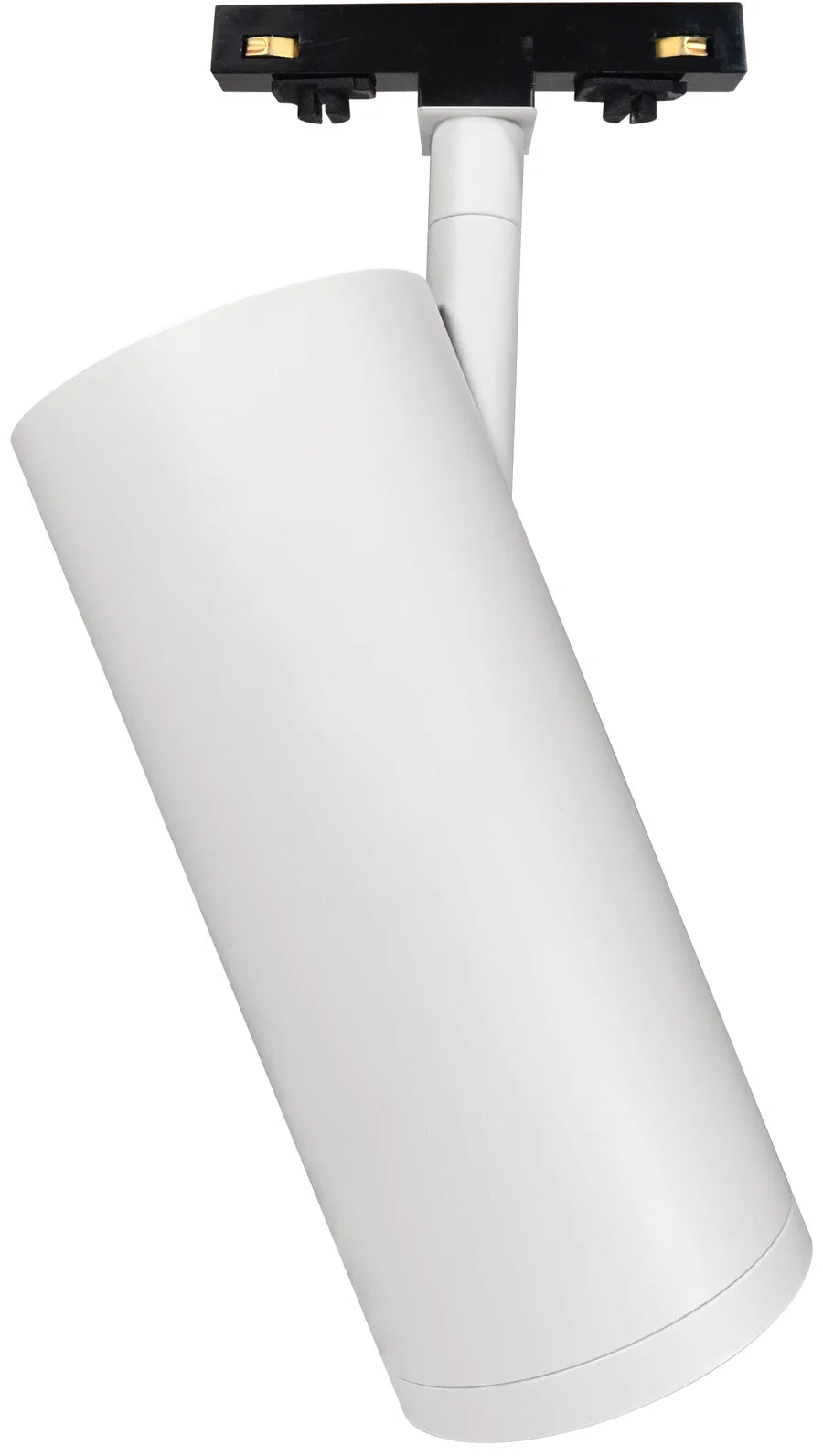

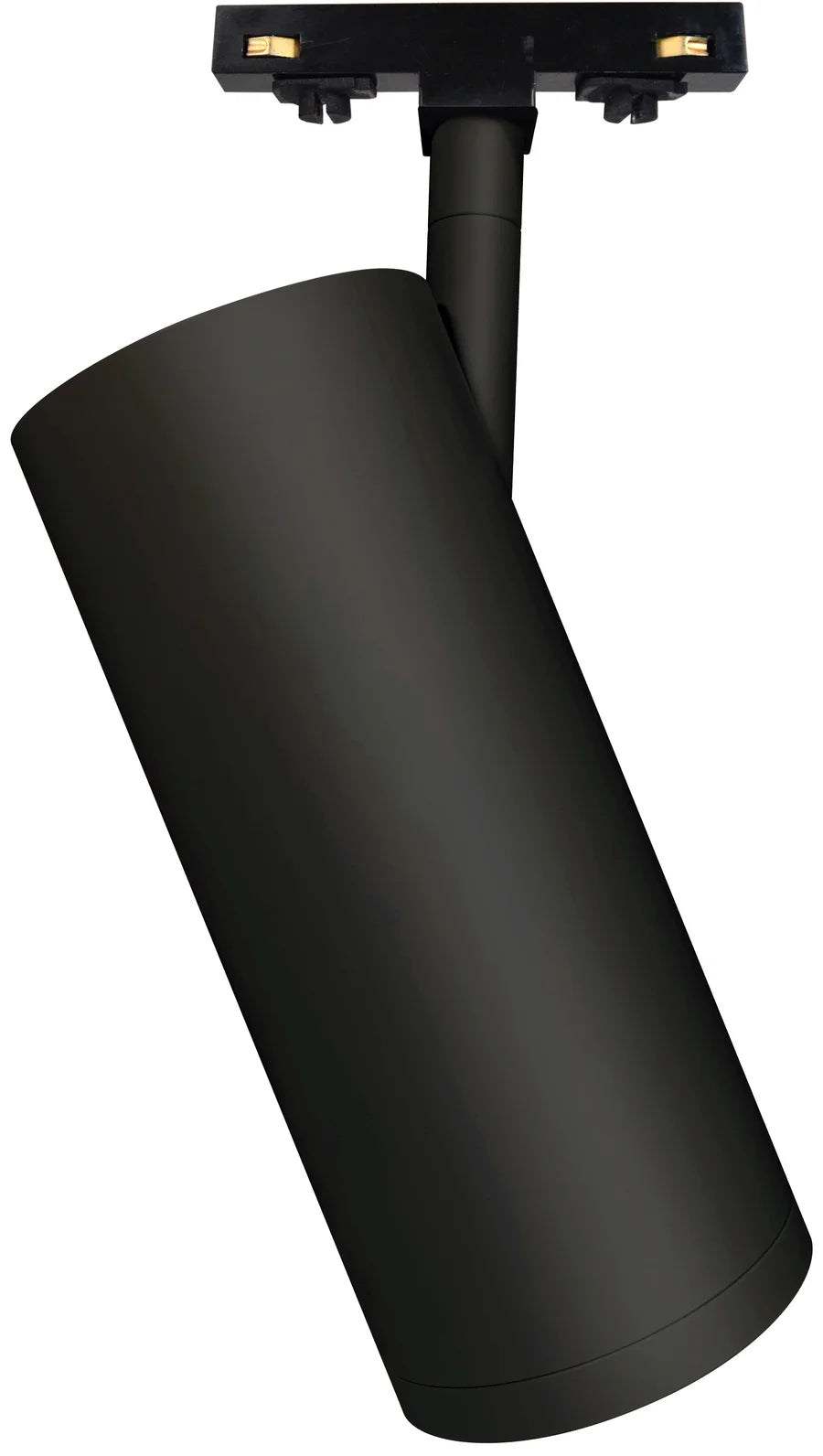

PureEdge T24 TUBO LARGE SMART TRACKHEAD HIGH OUTPUT

Our Pure Smart Tubo Large TruColor RGBTW Track Head has a 12W and 17W option. This luminaire delivers up to 1271 lumens at 30K. Being part of an entirely low voltage, class 2, 24VDC system, it offers an easy installation. The cylindrical flat-back design houses the heat-sink, LED module, and integrated smart wifi enabled driver offering 360° horizontal rotation and 90° vertical aiming. The low voltage track connector is compatible with T24 Single Circuit TruTrack, Pipeline Track and Surface Track. Offered in multiple beam spreads and the optics/lenses can be changed in the field.

TRUCOLOR™ RGB & TUNABLE WHITE LIGHT ENGINE Pure Smart TruColor™ technology uses five channels of tunable LEDs, composed of RGBTW red, blue, green, and Tunable White (1500K-6500K). With our precision-engineered, proprietary color mixing, we produce one of the widest, most accurate spectrums available, giving our customers access to the warm glow of the sunset (1500K-2400K golden hour) to the pure white light from morning to the mid-day sun (4500K-6500K). TruColor LED's achieve an average CRI between 2000K-5500K of 93+ and a Duv of +-.0026 in relation to the blackbody curve at any point on the spectrum of tunable white CCT. Dynamic Color Changing functionality provides millions of possibilities for intricate customization, rich saturated secondary colors, soft pastels and unprecedented ease of installation, making TruColor (RGBTW) the ideal choice for residential and commercial applications. Let TruColor™ transform your space and the people within it. Onboard smart driver allows for user friendly installation, and feature rich controls with the use of the WiZ Pro Software Suite. WiZ Pro compatibility seamlessly integrates into the wireless Wi-Fi control ecosystem. With the WiZ app, WIZ Pro Dashboard, smart wall and remote controls, and voice control you can access CCT control, dimming, grouping/zoning, and scheduling from anywhere anytime. Preset and custom schedules available to best support a healthy circadian rhythm unlocking the full potential of the extensive color palette. Elevate your lighting experience with superior output, energy efficiency, smart control, and exceptional color consistency.

COLOR TEMPERATURE: TruColor™ RGBTW: Red, Blue, Green, Tunable White from 1500K-6500K

LUMENS 17W: 1271 Lumens at 3000K

CRI: 96 CRI at 3000K

EFFICACY 17W: 79 lumens per watt at 3000K

MOUNTING OPTIONS Compatible with PureEdge T24 Track Heads are Compatible with Single Circuit TruTrack (TR24) and Surface Mount track (TS24).

REMOTE POWER SUPPLIES (SOLD SEPARATELY) 24VDC, Class 2 wiring

• Home Integration Solutions

• Pure Smart WiZ Pro PSBR Power Supplies & Smart Controls

LOAD 12W (6 heads), 17W (5 heads) per 96W power supply

ACCESSORIES (SF SOFT FOCUS MIXING INCLUDED) Field changeable lenses in VS (10°), SP (16°), NF (30°), FL (35°), WF (45°), beam spread options, Mixing Films, Louver, and Snoot

APPLICATIONS Designed for indoor use only, dry and damp locations. Ideal applications in commercial, retail, residential, hospitality, education, and healthcare institutions.

WARRANTY / LABELS Pro-rated 5 year warranty. Assembled in America, ETL (Conforms to UL1598 and CSA 22.2 #250.0) RoHs, Title 24 JA8 ccompliant.

Downloads

Spec Sheet
