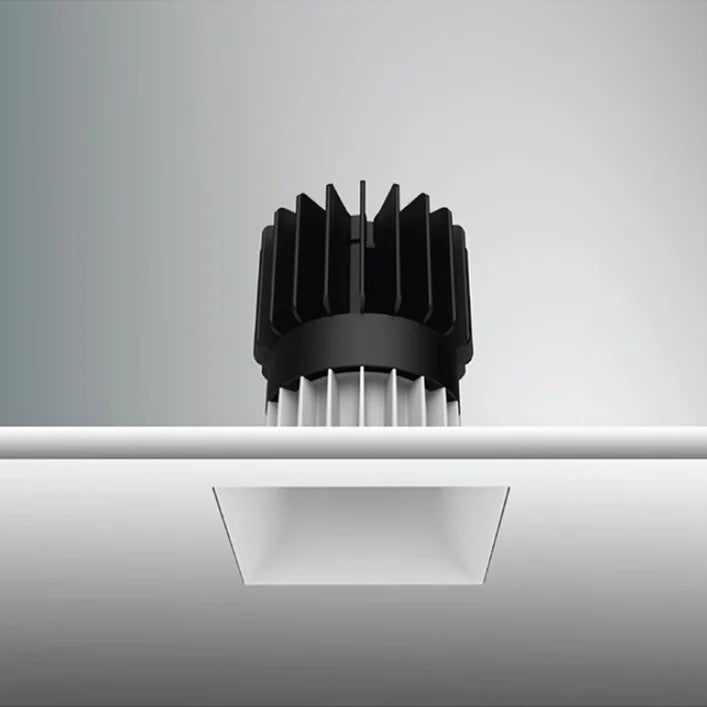

PureEdge LUCA 3.5" TRUCOLOR™ RGBTW 24V CLASS 2, RECESSED WALL WASH DOWNLIGHT

Here is the technical and descriptive data for the Luca 3.5 Wall Wash cleaned up, organized, and formatted into clean Markdown sections for easy copying and pasting.

Experience the radiance of Luca 3.5 Wall Wash, a cutting-edge, 24V Class 2 downlight that embodies its Latin namesake as the "Bringer of Light." This downlight distinguishes itself with precision optics, high performance, and exceptional color rendering using TruColor™ RGBTW.

Its compact form factor allows for installation in spaces with limited clearance, making it highly versatile for a wide array of new construction and remodel applications across hospitality, retail, commercial, and discerning residential spaces.

💡 Design Assistance: For personalized quotes and expert layout assistance, share your drawings and concepts with our design team at [email protected].

Trucolor RGB & Tunable White Light Engine

Pure Smart TruColor™ technology uses five channels of tunable LEDs (RGBTW: red, blue, green, and Tunable White 1500K–6500K).

• Wide Spectrum Mixing: Recreates everything from the warm glow of a sunset (1500K–2400K golden hour) to the pure white light of the mid-day sun (5700K).

• Color Accuracy: Achieves an average CRI of 92+ and a Duv of $\pm0.0020$ in relation to the blackbody curve at any point on the spectrum of tunable white CCT.

• Vibrant White Customization: Adjusts the composition of white light to enhance the vividness of objects, materials, and artwork.

• Circadian Support: Helps support a healthy circadian rhythm and overall well-being.

Specifications

Technical Data

General Specifications

• Beam Angle: Asymmetrical (Wall Wash)

• CCT Range: 16 Million Colors RGBTW, CCT 1500K–6500K

• Average CRI: 92+ at any point on the blackbody curve from 2000K to 5500K

• Input Voltage: 24 Volt, Class 2 wiring

• Power Supply: 24V Remote PSBR (Order Separately)

• Dimming Range: Dimmable from 100% – 4%

• Average Life: 50,000 Hours

Smart Controls & Integration

Optimized for control with the WiZ Pro Wi-Fi-based smart control system, seamlessly integrating into a wireless control ecosystem via the WiZ App, WiZ Pro Dashboard, and smart wall controls from Pure Smart.

• Pure Smart™ Wi-Fi Controller: Features ON/OFF buttons, CCT control, and brightness adjustments.

• Smart Scenes: Supports four preset/custom scenes programmable in the WiZ app.

• Connectivity: Communicates via 2.4GHz Wi-Fi (No Hub needed).

• Voice Control: Compatible with Google Assistant, Alexa, Siri Shortcuts, and IFTTT.

• Zoning: 1 Zone Relay / Multiple Zones via DMX/DALI.

Fixture Options & Construction

Design Trim Options

• Styles: Trim, Trimless, Round, Square

• Reflector Finishes: White, Black, Haze Satin Silver (low-glare)

• Trim Finishes: White, Black

• Note: Select finish options for Reflector and Trim separately.

Physical & Structural Specifications

• Construction Material: Galvanized Steel (Housing); Die-Cast Aluminum (Trims and Reflectors)

• Cut-Out Size: Round: Ø 4" | Square: 4"

• Ceiling Thickness Capacity: 0.5" – 1"

Environment & Compliance

• Environment: Suitable for damp locations, Chicago Plenum rated.

• Certifications: ETL Listed. Meets Title 24 (JA8) requirements.

• Warranty: 5 Years (See published warranty terms for detailed information).
