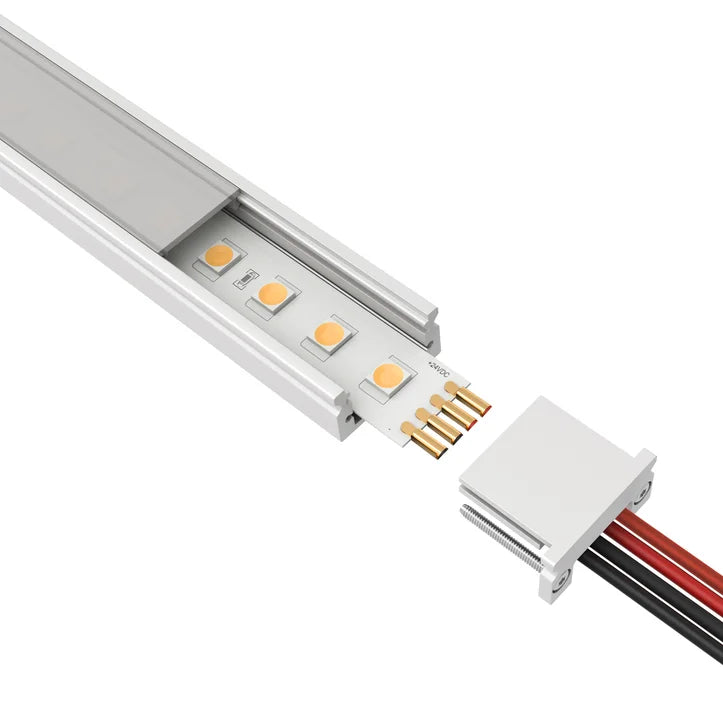

PureEdge Light Channel 0.3" DIY Surface Mount With Lazer & Stomp Strip 24VDC Static White, Monochromatic Color, Tunable White, RGB & RGBTW

Functional and Architectural, our new generation of 0.3” DIY (Do-It-Yourself) Light Channel delivers smooth, continuous light without pixelation. When paired with our patented Lazer Strip with remote phosphor technology, or when using a diffused lens with Soft Strip, it ensures completely pixel-free illumination.

The slim, shallow profile is less than 3/8” high, field-cuttable, and available with three lens options. Offered in a broad range of wattages and color temperatures, it features our proprietary 5-channel color-changing technology.

💡 Design Assistance: For custom quotes and layout assistance, send your drawings and ideas to our design team at [email protected].

Features

• Field Flexibility: Cut and assemble easily in the field.

• Connection Options: Available with Solderless Pin Connections or with 6' Soldered Leads.

• High Performance: 24VDC LED Strip offers excellent color rendering.

• Thermal Management: 5 oz of copper provides better heat dissipation and results in less voltage drop.

• Length Options: Surface mount channel sold in 2', 4', 5', 8', and 10' increments.

• Remote Power: 24VDC, Class 2 remote power supplies can be located up to 40 feet away.

LED Strip Options

• Static White: 2400K to 4000K

• Monochromatic Color: Red (RZ), Blue (BZ), Green (GZ), and Amber (AZ)

• Tunable White: 2K6K (2000K–6000K)

• Dynamic RGB: All color temperatures (with Lazer Strip)

• TruColor™ RGBTW: RGB with Tunable White (1500K–6500K)

Lens Options

• Clear Lens (C): 100° Clear Lens provides maximum illumination using a 40° transparent lens.

• Diffused White Lens (D): 100° Diffused White Lens projects clean lines of light.

• Gel Color Diffused Lens (G): Clear and Diffuser Lenses are Gel Color Filter Suitable, allowing for color personalization (Gel provided by customer; Zircon LED Gel filters recommended via www.leefilters.com).

Note: Diodes will not be visible with any Lazer Strip COB. TruColor™ RGBTW will show pixelation with a clear lens and minimal pixelation with a diffused lens.

Required Components (SOLD SEPARATELY)

• Light Channel 0.3" Surface Mount and Lens (Mounting Clips included)

• End Caps (Sold in pairs)

• 24VDC Light Channel Power Connector

• 24VDC LED Soft/Stomp Strip or Lazer Strip

Applications & Environment

• Installation: DIY systems engineered for both the weekend warrior or the master electrician.

• Lighting Type: Provides maximum light levels for task and general illumination.

• Environment: Indoor use only (suitable for damp locations).

Approvals, Compliance & Warranty

• Title 24 JA8: Listed for 2700K CCT and above when used with PureEdge remote Universal power supplies.

• Certifications: ETL Listed, Class 2 Rated.

• Origin: Made in USA.

• Warranty: 5-year pro-rated warranty included.
