Description
Premier Mount LMVS Slim Press & Release Mount for Video Walls
Product Details
The LMVS Press & Release™ Pop Out Ultra-Slim Mount meets ADA compliance for a variety of video wall, recessed wall, and picture-framed digital signage applications. It works for displays weighing up to 100 lb/ 45.4 kg with a mounting pattern of 200 x 200 mm (min) to 600 x 400 mm (max). The LMVS features the industry’s first Press & Release™ Design, custiom- spacers, top adjustable mounting brackets and scissor design for a smooth extension.
Features
-

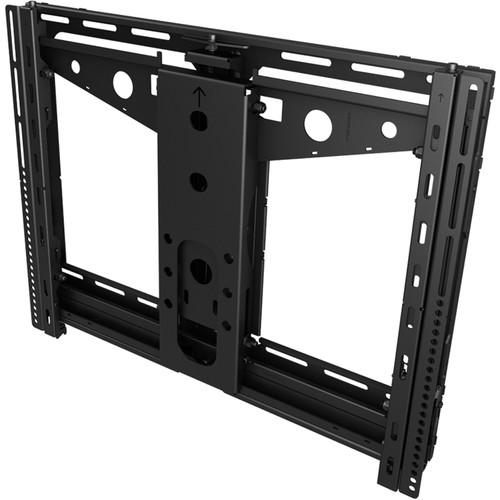

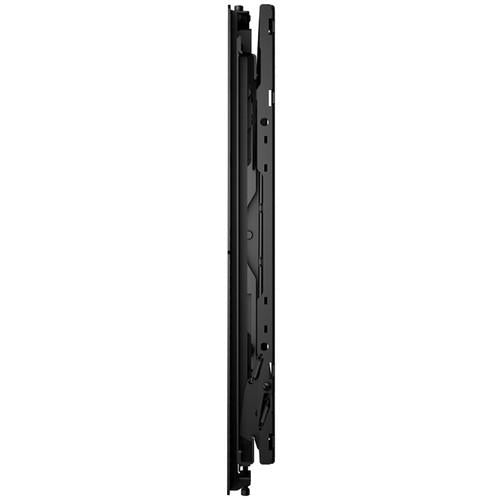

ADA Compliance: Meets ADA compliance with 1.98” of space from the wall in the closed position.
-
Press & Release™ Design: Industry’s first Press & Release™ Design for easy service access in under 5 seconds with a gentle press to the display.
-

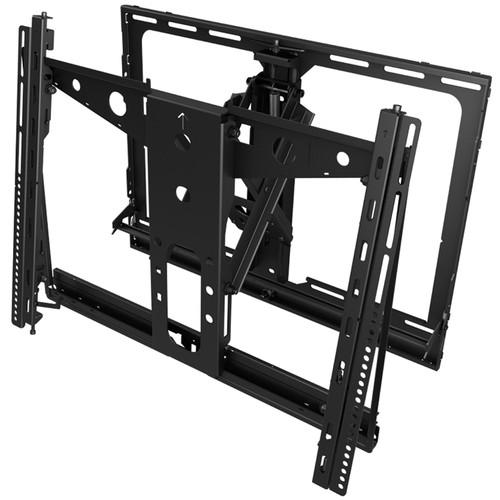

Scissor-Design Extension: Scissor-design with compact mounting arms allows for extension in one smooth motion with a slight press to the display edge.
-

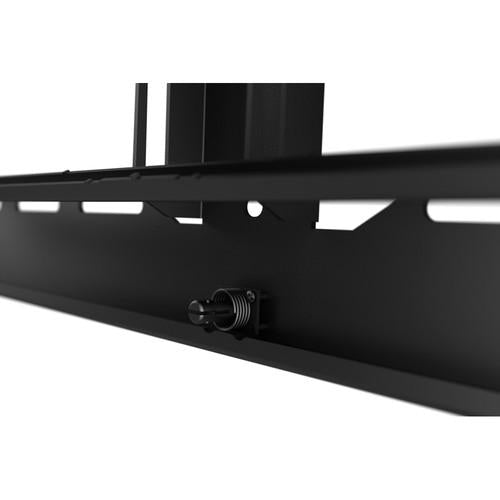

Fine-Tune Alignment: Top-adjustable fine-tune mounting brackets ensure post-installation alignment using the included Comfort-Grip Ball-Nose Allen driver.
-
Service Kickstand: Service-Position Kickstand offers 7° of clear access to the rear of the display.
-
Audible Lock: “Click-It” locking feature confirms display is secure through an audible noise.
-

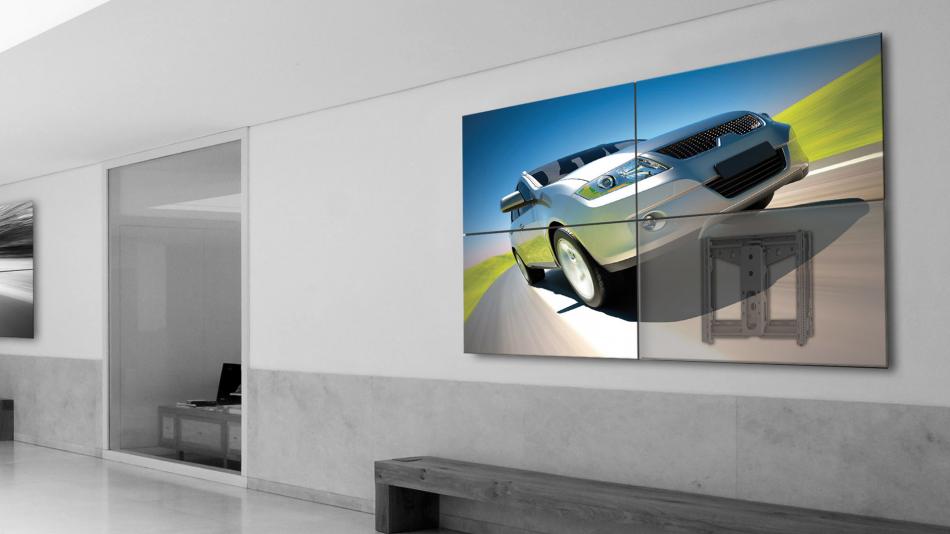

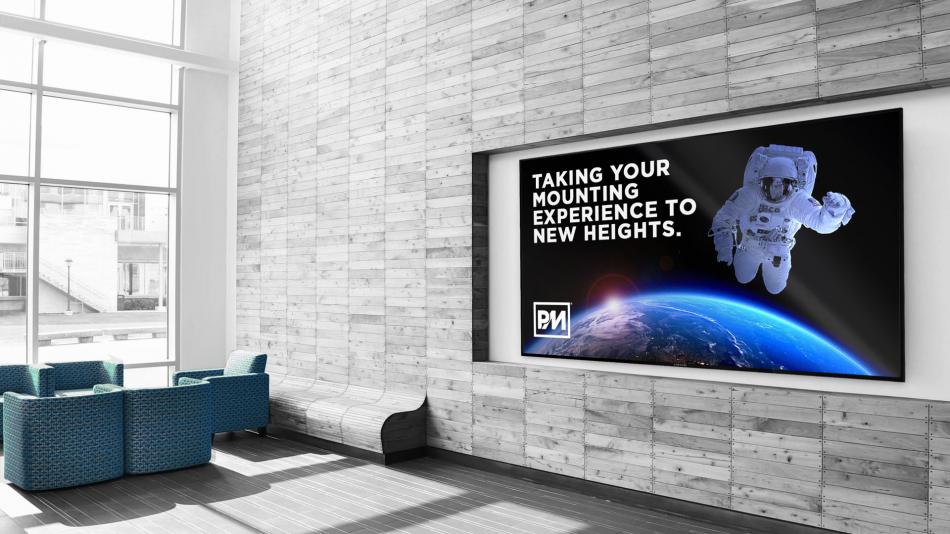

Application Versatility: Perfect for a variety of recessed wall or picture-framed digital signage applications.
Specifications
| Specification | Value |
| Weight | 36 lb. (16.4 kg) |
| Color | Black |
| Weight Capacity / Mount | 100 lb. (45.4 kg) |
| Mounting Pattern | 200 x 200 mm (Min) x 600 x 400 mm (Max) |
| Width x Height x Depth | 27 x 21.6 x 1.98–10.03 in. (686 x 549 x 50–255 mm) |
| Total Weight Capacity | 100 lb. (45.4 kg) |
| Warranty | Lifetime |
| Length x Width x Depth | 31.31 x 23.5 x 4.25 in. (795 x 597 x 108 mm) |
| Contents | Mount (x1), Adapter Arms (x2), Universal Hardware Pack (x1) |
