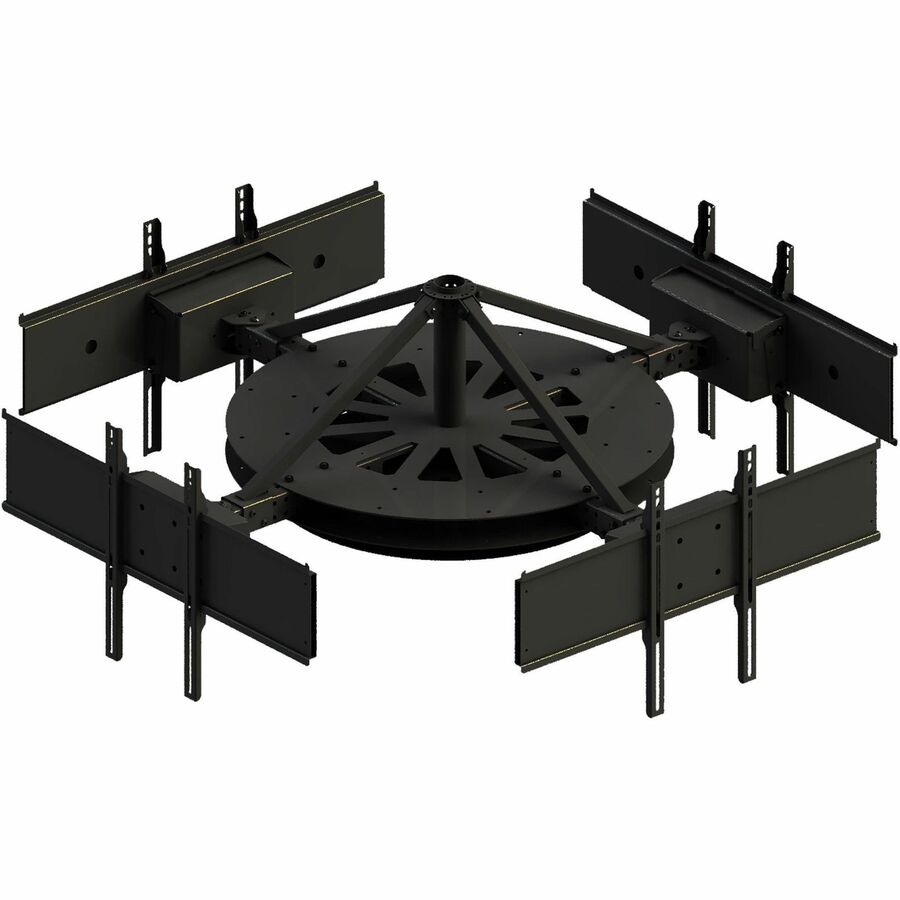

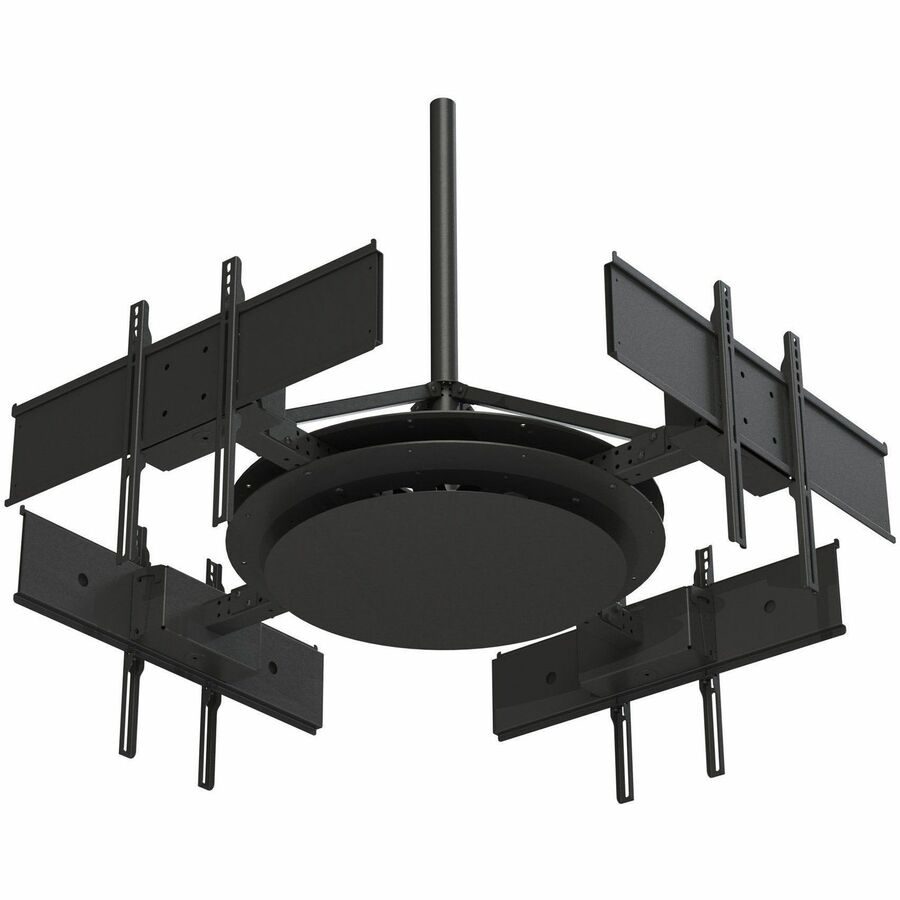

Peerless DST975-4 Multi-Display Ceiling Mount with Four Telescoping Arms For 37" to 75" Displays
Product Details
The DST975-4 Multi-Display Ceiling Mount includes telescoping arms that hold four displays evenly spaced in a square or rectangular configuration, helping you create the ideal multi-display ceiling mounted solution. Each arm's adjustable depth allows the installer to set the spacing between each display to meet your application's needs. With 360° of swivel, and 0° to 20° of tilt, this mount creates the perfect viewing angle for any application. The mount has been designed with superior aesthetics in mind and provides a bottom cover, resulting in sleek and clutter-free cable management throughout the entire solution.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Features
- Universal mount fits displays with mounting patterns up to 730 x 405mm (28.75"W x 15.95"H)
- 0° to 20° of tilt and 360° of swivel at time of installation
- Arms telescope to allow for the desired display spacing
- Bottom cover provides aesthetically pleasing cable management
- Tri and Hex options also available
Specifications
| Device Supported | Display |
| Number of Displays Supported | 4 |
| Minimum Load Capacity | 125 lb |
| Maximum Load Capacity | 500 lb |
| Minimum Screen Size Supported | 37" |
| Maximum Screen Size Supported | 75" |
| Features | Tilt, Swivel, Adjustable Depth, Adjustable Viewing Angle, Cable Management, Telescoping, Adjustable Arm |
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | 360° |
| Mount Function | Tilt, Swivel, Cable Management |
| Mount Surface | Ceiling |
| Color Family | Black |
| Product Color | Black |
| Finishing | Flat Matte, Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 730 x 405 |
| Minimum Mounting Pattern | 100 x 100 |
| Form Factor | Ceiling Mountable |
| Height | 21.80" |
| Width | 51.20" |
| Depth | 51.20" |
| Weight (Approximate) | 141 lb |
