Description
Onkyo Muse Y-40 Network Streamer & Integrated High-Power Amplifier
Product Details
Born from 80 years of Japanese audio craftsmanship, the Onkyo Muse Y-40 is an elegant 150W hi-fi centerpiece that blends timeless design, smart innovation, and effortless connectivity.
Here is the data organized into a clean, easy-to-read Markdown table. You can easily copy and paste this directly into spreadsheets (like Excel or Google Sheets) or markdown-supported documents.
Specifications
| Features & Connectivity | Custom App | Onkyo Control |

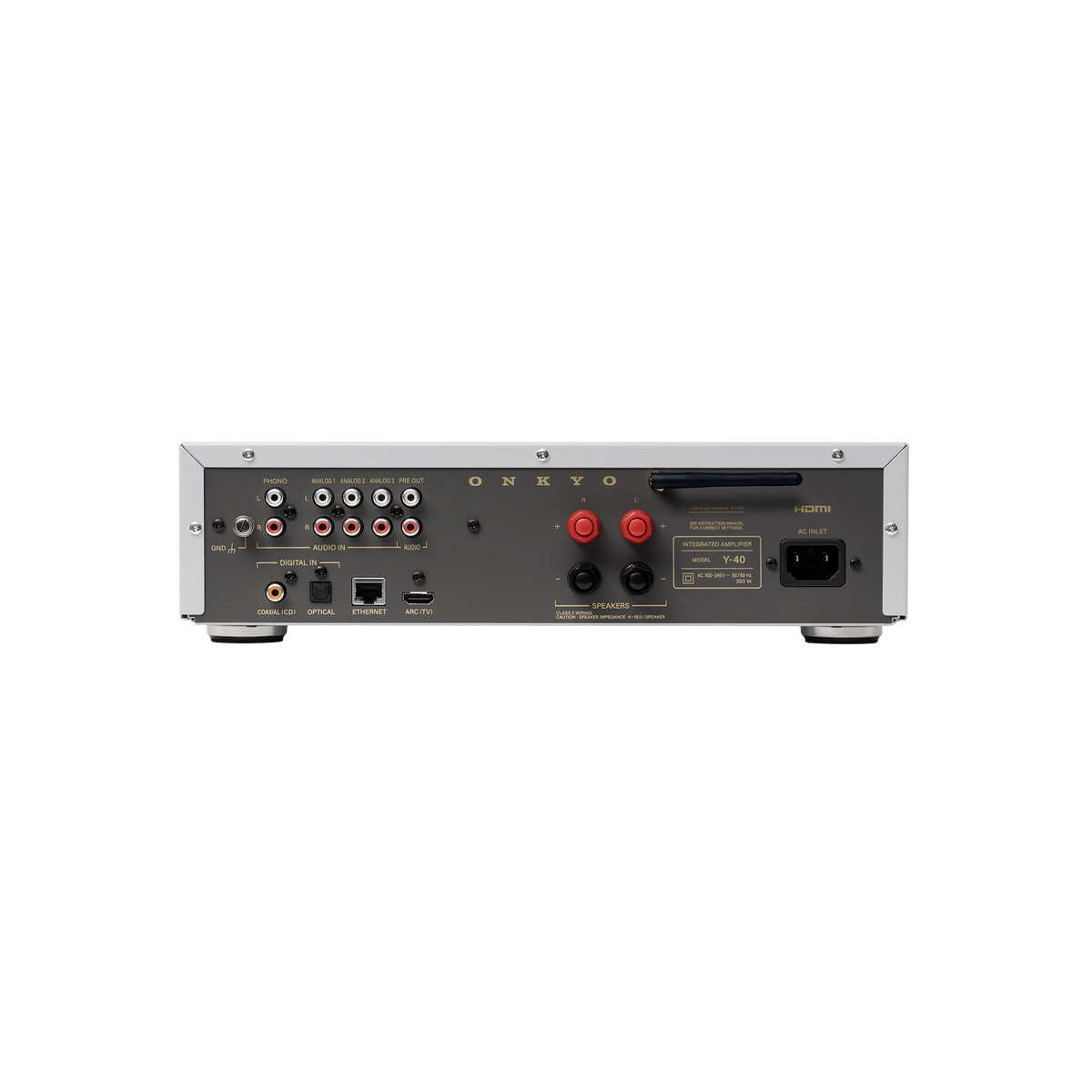

| Analog Audio Input | RCA (Unbalanced) x 3 pair | |
| Digital Audio Input | HDMI ARC, COAX x 1, Optical x 1, USB-A (Storage playback) x 1 | |
| Phono Input | 1 pair (MM) | |
| Audio Pre Output | RCA (Unbalanced) x 1 pair | |
| Headphone Output | 1/4” (6.3mm) Jack x 1 | |
| Network Connectivity | Wi-Fi, Ethernet Terminal (10BASE-T/100BASE-TX) | |
| Bluetooth | SBC, AAC | |
| Network Service | Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, Chromecast | |
| Audio Performance | Output Power (U.S.A.) | 75W (FTC, 8Ω, 20Hz - 20kHz, THD 0.08%, 2ch driven) / 150W (4Ω, 1kHz, THD 0.7%, 2ch driven) |
| Output Power (EMEA/APAC) | 150W (4Ω, 1kHz, THD 0.7%, 2ch driven) / 75W (8Ω, 20Hz-20kHz, THD 0.08%, 2ch driven) | |
| Amplifier Channel | 2ch | |
| Pre Amplifier Channel | 2.0ch | |
| Amplifier Type | Class D | |
| Frequency Response | 20Hz ~ 30kHz (+1/-3dB) | |
| Tone Control (Bass/Treble) | 100Hz ±10dB / 10kHz ±10dB | |
| Speaker Impedance | 4 - 16Ω | |
| General | Product Dimensions (W x H x D) | 350 x 99 x 337 mm (13.8 x 3.9 x 13.3 inches) |
| Product Weight | 4.4 kg (9.7 lbs) | |
| Package Dimensions (W x H x D) | 465 x 225 x 405 mm (18.3 x 8.9 x 15.9 inches) | |
| Package Weight | US: 6.6 kg (14.6 lbs) / EMEA: 7.0 kg (15.4 lbs) | |
| Standby Power Consumption | Less than 0.4W (Standby) / Less than 1.8W (Network Standby) | |
| Power Consumption | 65W | |
| AC Voltage | AC 100-240V, 50Hz/60Hz |
