NAD CI S2 2 Zone BluOS Streaming CI Module
NAD CI S2 2 Zone BluOS Streaming CI Module
Roll over image to zoom in Click on image to zoom
NAD CI S2 2 Zone BluOS Streaming CI ModuleNAD CI S2 2 Zone BluOS Streaming CI Module

NAD CI S2 2 Zone BluOS Streaming CI Module

NADSKU: CI S2
Price:

Login to see pricing

MSRP:
$1,199.00

Description

NAD CI S2 2 Zone BluOS Streaming CI Module

Product Details

The NAD CI S2 BluOS Streaming Module is designed to bring reliable, high-resolution music streaming into professional custom installation systems with efficiency and control. Built on the BluOS multi-room platform, CI S2 provides access to leading streaming services, internet radio, and local music libraries, all delivered with stable network performance and intuitive control. Providing Hi Res audio for 2 zones, the CI S2 integrates seamlessly into distributed audio systems. Compact, flexible, and purpose-built for integrators, the CI S2 delivers modern streaming functionality with the sound quality and reliability expected from NAD Custom Install.

Features

  • BluOS high-resolution music streaming platform
  • Two-zone streamer designed for custom installation

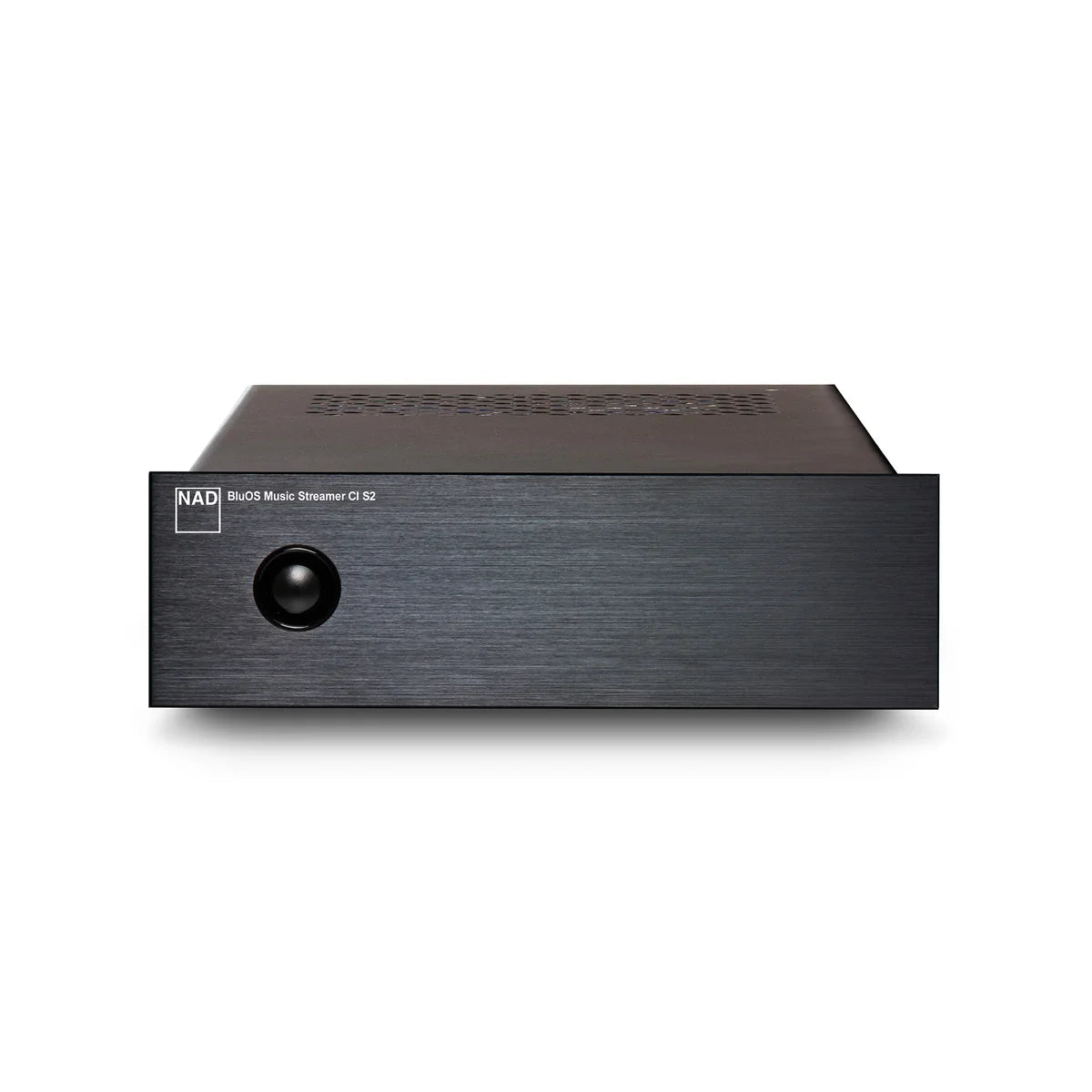

  • Compact 1U 1/3 rack width chassis
  • Access to streaming services, internet radio, and local libraries
  • Analogue and digital audio inputs for source integration
  • POE or DC Power options.
  • ESS DACs for high performance audio
  • Configurable 12v Smart Trigger
  • Ethernet networking for stable, wired performance
  • Support and custom drivers for leading control and automation systems

Specifications:

Feature / Specification Details
Supported Audio File Formats MP3, AAC, WMA, WMA-L, OGG, OPUS
Supported High-Quality Audio File Formats FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
Supported Multi-Channel Audio Formats Dolby Digital® Downmixing to stereo PCM
Native Sampling Rates up to 192 KHz
Bit Depth 16-24
DAC ESS Sabre 9039Q2M
Audio Controls & EQ BluOS Control App
Signal-to-Noise Ratio -120dBA
Distortion THD+N, 0.0008%
Operating System BluOS
App Controller Operating System iOS, Android, Windows, macOS
Processor ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing Server Message Block (SMB) up to 200,000 files
Album Art Supported JPG, PNG
Music Services & Internet Radio 23+
3rd-Party Integrations AirPlay 2, Spotify Connect, Tidal Connect
Room Correction Software No
Control System Integrations Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
Voice Control Integrations Amazon Alexa Skills
Power Supply 12v, 1.25a DC Universal Power Supply
PoE Yes (PoE can be used instead of supplied DC PSU)
Ethernet/LAN Ethernet RJ45, Gigabit 1000Mbps
Wi-Fi Built In No
Bluetooth No
IR Optical Built In No
IR Input 2-pin PHX connector (IR extender kit required)

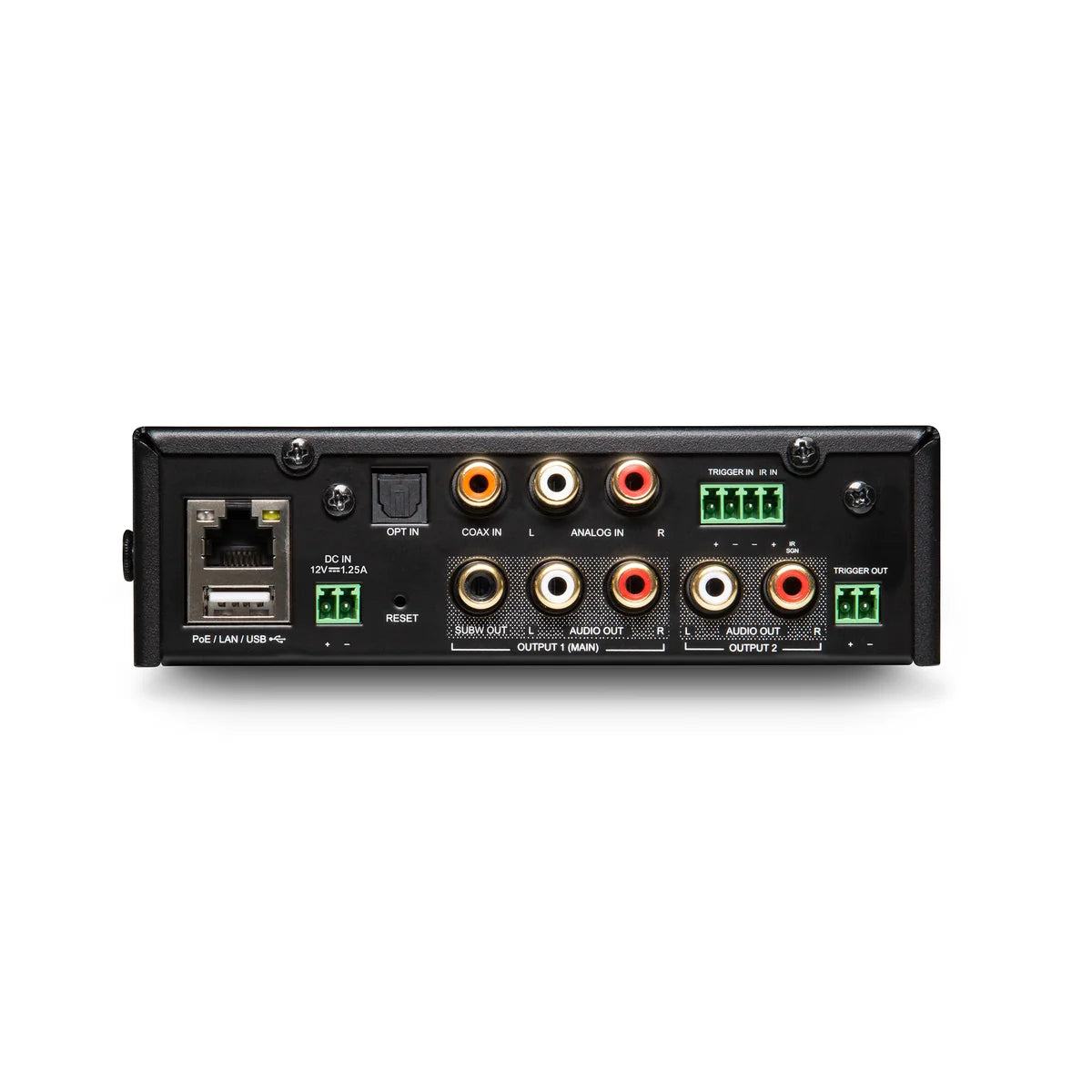

Inputs Toslink Optical, Digital Coax, Stereo RCA (Zone 1 Only)
HDMI Input No
USB In Type A (Fat32, NTFS Formatted) - External Storage Only Local Server Mode
Dual RCA Outputs Yes
Main Zone/Sub Zone Capability Yes (independent volume control over Speaker Output 2 when activated)
Subwoofer Output RCA x 1 (Zone 1 Only)
Headphone Output None
12v Trigger Input x1 Configurable Smart Trigger Input
12v Trigger Output Yes (PHX connector)
Status Indicator BluOS Status LED
Source Status Indicator No
Output Status Indicator No
Finish Black
Max Power Consumption 15w
Storage Environment -10°C to 50°C, 20% to 80% relative humidity
Operating Environment 0°C to 40°C
SKU/Version S1
Generation 1
