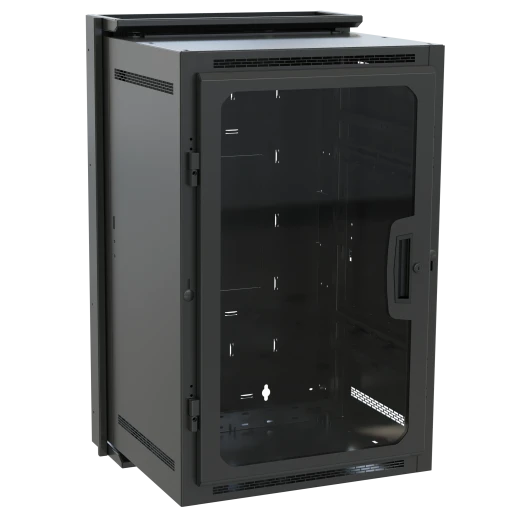

Middle Atlantic DWR-16-22PD DWR Series Pivoting Wall Rack
Product Details
The DWR Series Wall Racks are now Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!
- 16RU and 22" Deep
- Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)
- Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
- Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch
- Center section rear channel accommodates optional PDT and PD Slim PDUs to save space
- Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite
- Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room
- Center section swing is reversible, and can be both key-locked and padlocked
- Center section is keyed differently from optional front door for additional security
- Designed for active or passive cooling to support all systems
- Comes with a factory installed plexi door
Specifications
| Dimensions & Measurements | Depth | 22 in (55.9 cm) |
| Height | 35.06 in (89.1 cm) | |
| Product Weight | 87.5 lbs (39.7 kg) | |
| Rack Units | 16 RU | |
| Shipping Weight | 124 lbs (56.3 kg) | |
| UL Load Capacity | 200 lbs (90.7 kg) | |
| Usable Depth | 20 in (50.8 cm) | |
| Usable Height | 28 in (71.1 cm) | |
| Width | 23.4 in (59.4 cm) | |
| --- | --- | --- |
| Characteristics & Features | Available Internationally | Yes |
| Color | Black | |
| Door Type | Plexi | |
| Federal Ops Country of Origin | Mexico | |
| Finish | Black Wrinkle Powder Coat | |
| Forward Compatible | Yes | |
| Front Door | Yes | |
| Material | Steel | |
| Rack Rail Type | Forward Rackrail | |
| Seismic Rated | Yes | |
| TAA Compliant | Yes | |
| UPC | 656747005312 | |
| --- | --- | --- |
| Certifications & Warranties | Certifications | CSA Standard, TAA |
| Patent Number | 7278183 | |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
