Description

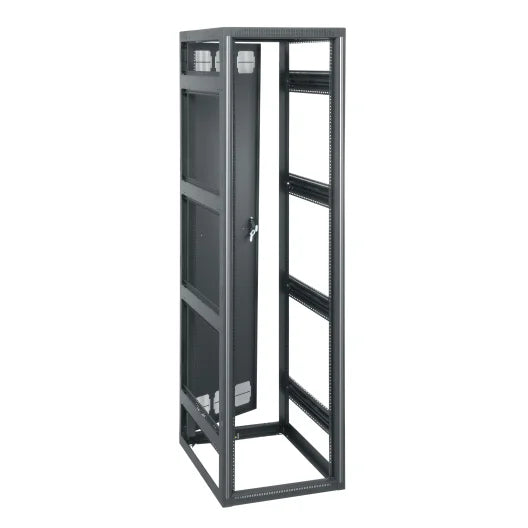

MIddle Atlantic BGR-4532 45 RU BGR Series Rack, 32 Inches Deep
Product Details
The #1 AV rack because it is both Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!
Features
- 45RU
- 32" (813mm) Depth
- The 1st Forward Compatible rack
- Breakthrough design provides high rack strength without extra weight

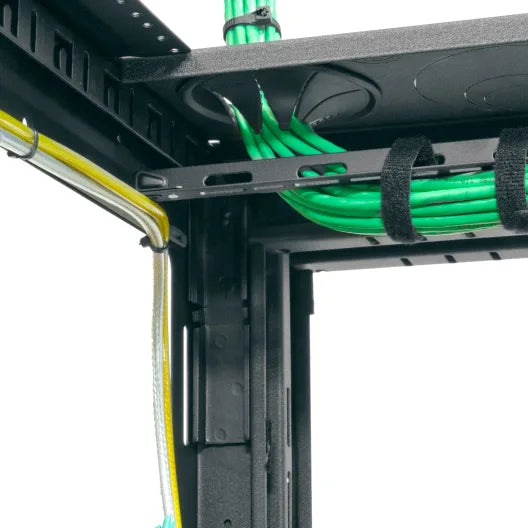

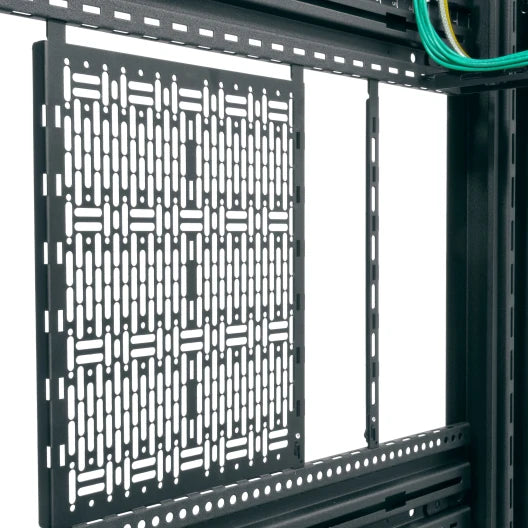

- Accepts Lever Lock™ system tool free cable management accessories
- The 23” width gives you extra room in “no-man’s land” for front-to-back cable management and for mounting small devices on Lever Lock™ freeing up valuable rackspace.
- Innovative side lacing on the Forward rear rackrail provides flexibility for internal cabling and accepts the Forward vertical cable management products.
- Includes standard vented rack rear door that accepts optional fans
- Accepts brush grommet rear door kit for a large cable passage without fishing
- Wide open rack top and bottom offer many cabling and cooling options
- Standard front and rear adjustable Forward Rackrail with numbered spaces
Specifications
| Category | Property | Details |
| Dimensions | Height | 82.88 in (210.5 cm) |
| Width | 23 in (58.4 cm) | |
| Depth | 32 in (81.3 cm) | |
| Usable Height | 78.88 in (200.4 cm) / 45 RU | |
| Usable Depth | 29.4 in (74.7 cm) | |
| Panel Width | 19 in (48.3 cm) | |
| Weight & Load | Shipping Weight | 164 lbs (74.4 kg) |
| UL Load Capacity | 3,000 lbs (1,360.8 kg) | |
| Seismic Load Capacity | 1,175 lbs (533 kg) | |
| Build & Material | Material | Steel |
| Finish | Black Wrinkle Powder Coat | |
| Rack Rail Type | Forward Rackrail | |
| Door & Handles | Rear Door; 25mm x 150mm Swing Handle | |
| Configuration | Frame Only | |
| Features | Color | Black |
| Gangable | Yes | |
| Seismic Rated | Yes | |
| Forward Compatible | Yes | |
| Compliance | Country of Origin | USA |
| TAA Compliant | Yes | |
| NDAA/Federal Ops | Yes | |
| Certifications | ASCE, HCAI (OSHPD), UL Listed | |
| Identification | UPC | 656747140082 |
| OSHPD Number | OPM-0444-13 | |
| Patents | www.legrandav.com/patents |
