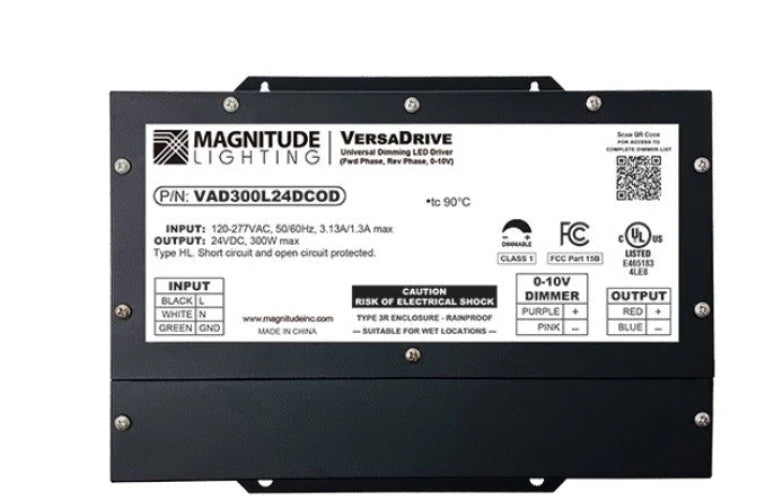

Magnitude VAD300L24DCOD 300 Watt LED 12500mA Constant Voltage Driver
The Magnitude VersaDrive is an LED driver that you can trust. It meets FCC consumer limits for radiated RF and carries a 5-year warranty. It’s compact size fits in tight spaces and a +90% efficiency helps it run cool. As always, a 5-year warranty is a standard on all of Magnitude’s products.
This item is the Magnitude Lighting power supply part number VAD300L24DCOD. This driver has a input voltage of 120-277V. The output current is 12500mA output with a max output power of 300 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with 0-10V dimming and delivers smooth flicker-free linear dimming down to 1% with most LED's and a wide variety of compatible dimmers. It is wet location rated and UL 8750 Approved, and NEMA 3R enclosed rated.
| Manufacturer | Magnitude Lighting |
| MPN | VAD300L24DCOD |
| SKU | VAD300L24DCOD |
| UPC | 810020793031 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Output Current | 12.5A (12500mA) |
| Input Current | 3.0A @120V; 1.8A @ 277V |
| Output Wattage | 300 Watt |
| Input Voltage | 120-277VAC |
| Output Voltage | 24VDC |
| Frequency | 50/60Hz |
| Power Factor | 0.90 @120VAC ; 0.90 @ 277VAC |
| THD (Total Harmonic Distortion) Power | 20% |
| Efficiency | 91% @120VAC ; 93% @ 277VAC |
| Dimming | Phase or 0-10V Dimming |
| Max Case Temperature | 90°C (194°F) |
| Operating Temperature | -40°C to 50°C (-40°F to 125°F) |
| Rated Life | 80,000 Hours |
| Dimensions | 9.9" L x 6.4" W x 1.9" H |
| Certifications | Title 24 Compliant, FCC Compliant, RoHS |
| Environment | Wet Location |
| Warranty | 5 Year Standard |
