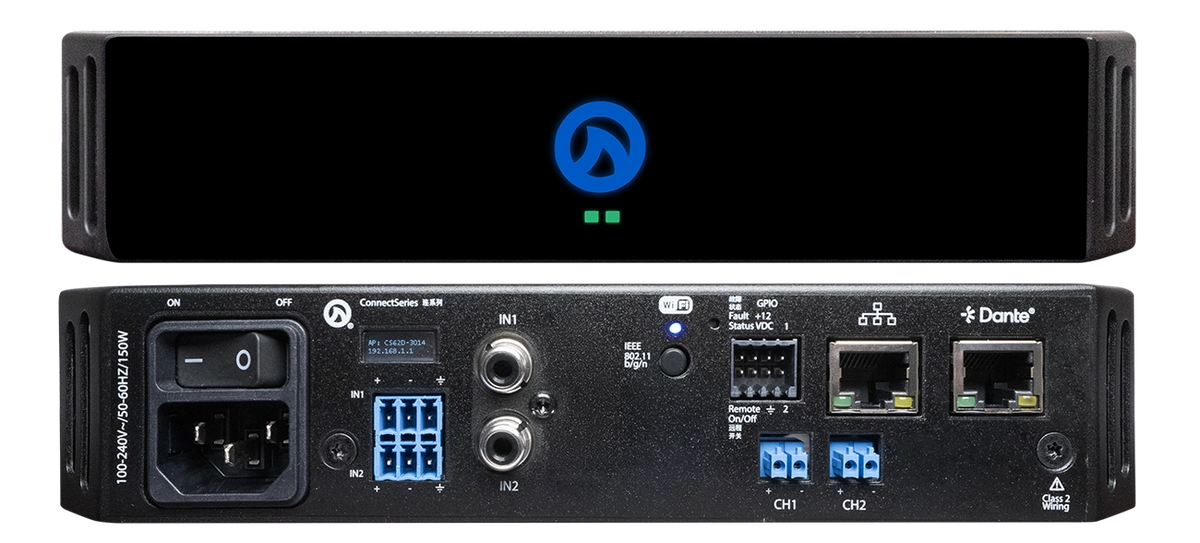

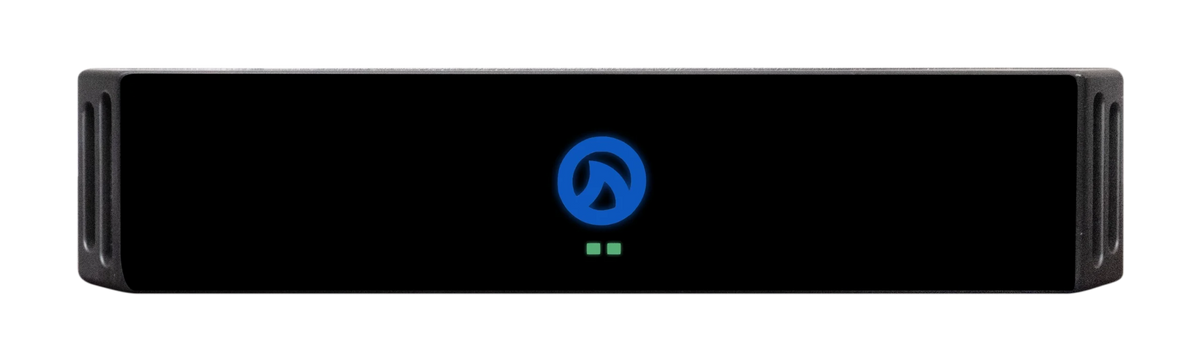

LEA CS62D CONNECT SERIES HALF-RACK SMART AMP | 2 CHANNELS | 60W PER CHANNEL

Product Details

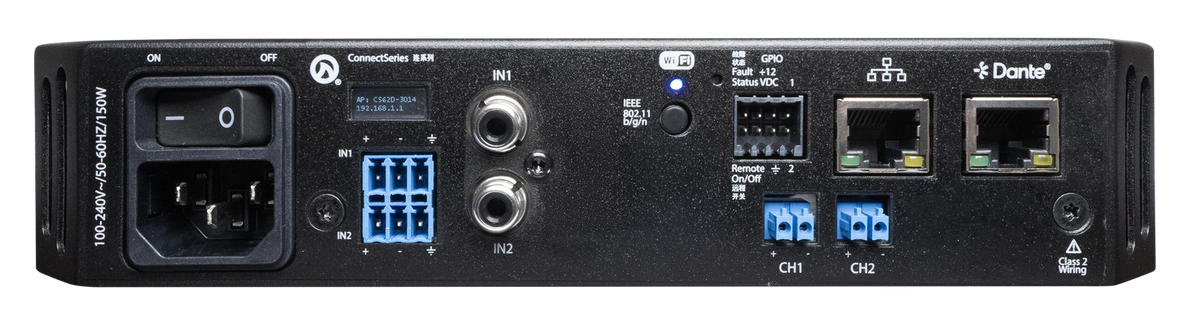

The Connect Series 62D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

Specifications

Audio Inputs & Performance

• Analog Inputs:

  • 2× Balanced Inputs with user-selectable sensitivity (26dB, 34dB, and Mic level)

  • 2× Unbalanced RCA Inputs with user-selectable sensitivity (26dB and 34dB)

  • Note: Unbalanced and RCA inputs share the same analog input channel.

• Network Audio Inputs:

  • Dante: 2×2 Dante audio channel support at 48kHz (Multicast or Unicast)

  • AES67: Configurable via Dante Controller software

• Amplifier Topology: Class D with Proprietary Smart Power Bridge Technology (allows bridged output functionality without sacrificing an amplifier channel)

• Total Harmonic Distortion (THD+N): 0.1% (20Hz to 20kHz)

• Frequency Response: 20Hz to 20kHz (±0.5dB @ 4Ω, 8Ω, 70V, 100V; -2.5dB @ 20kHz at 2Ω)

• Signal-to-Noise Ratio (SNR): 102dB (20Hz to 20kHz referenced to 8Ω)

• Crosstalk: 70dB (20Hz to 20kHz)

Onboard DSP Architecture

• Processor: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core & Sample Rate Converters

• Matrix Routing: Fully routable input matrix & matrix mixer (mix any input to any output)

• Crossovers: Up to 48dB/Octave IIR Filters (Linkwitz-Riley and Butterworth)

• Parametric EQ: 8-Band Parametric EQ per channel

• Output Delay: Up to 100ms per channel

• Limiting & Protection: User-adjustable Peak/RMS Voltage limiting, plus DC, VHF, AC Mains, Overtemp, Current Limiter, and fan fault protection

• Monitoring: Realtime load monitoring and pilot tone detection (internal or external sources)

Control, Monitoring & Networking

• User Interfaces: Web Browser UI, 3rd-Party API Control, Cloud Control, or SharkWare

• External I/O In: Toggles Remote On/Off

• External I/O Out: Indicates Amplifier Health status

• GPIO: 2 General Purpose Input/Output pins for trigger and status functions

Power & Operating Specifications

• AC Mains Input: Universal Switch Mode Power Supply (100VAC – 240VAC ±15%, 50Hz/60Hz)

• Cooling System: Front-to-rear variable-speed fan cooling

• Acoustic Noise Ratings:

  • Idle: 50dB @ 1m

  • 50% Speed: 57dB @ 1m

  • Full Speed: 63dB @ 1m

Physical Dimensions & Weight

• Unit Dimensions (L × W × H): 11.82" × 8.58" × 1.71" (300.11mm × 218mm × 43.5mm)

• Shipping Dimensions (L × W × H): 18.0" × 11.0" × 2.75" (457.2mm × 300mm × 69.85mm)

• Product Weight: 7 lbs (4.1 kg)
