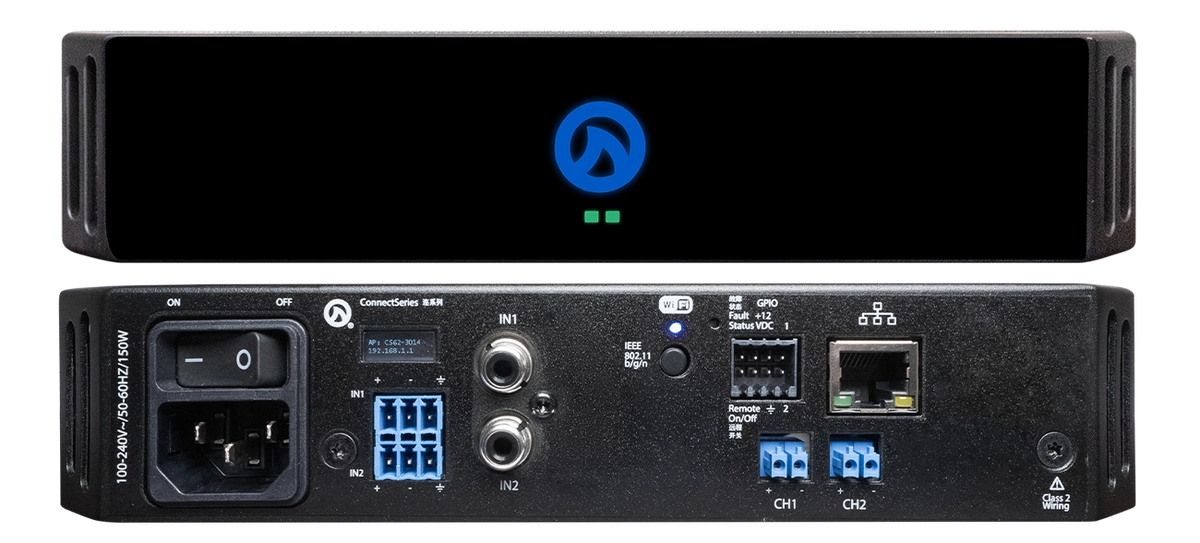

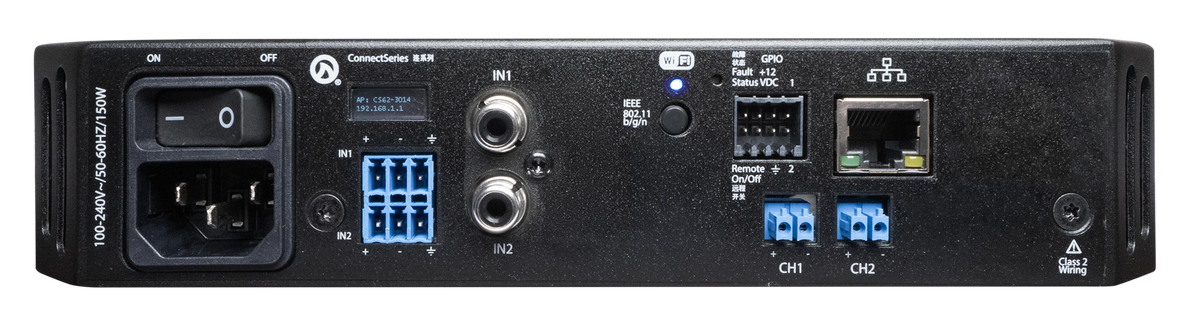

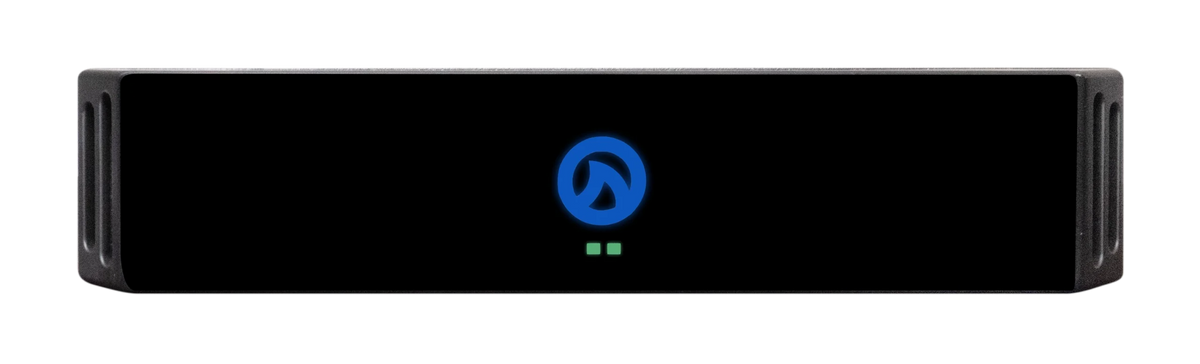

LEA CS62 CONNECT SERIES HALF-RACK SMART AMP | 2 CHANNELS | 60W PER CHANNEL
Product Details
The CS62 delivers one of the most feature-rich amplifier experiences available in the industry—in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The CS62 is built with f ully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel. All models boast three different methods of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Specifications
Audio Inputs & Performance
-
Analog Inputs:
-
2× Balanced Inputs with user-selectable sensitivity (26dB, 34dB, and Mic level)
-
2× Unbalanced RCA Inputs with user-selectable sensitivity (26dB and 34dB)
-
Note: Unbalanced and RCA inputs share the same analog input channel.
-
-
Amplifier Topology: Class D with Proprietary Smart Power Bridge Technology (allows bridged output without losing an amplifier channel)
-
Total Harmonic Distortion (THD+N): 0.1% (20Hz to 20kHz)
-
Frequency Response: 20Hz to 20kHz (±0.5dB @ 4Ω, 8Ω, 70V, 100V; -2.5dB @ 20kHz at 2Ω)
-
Signal-to-Noise Ratio (SNR): 102dB (20Hz to 20kHz referenced to 8Ω)
-
Crosstalk: 70dB (20Hz to 20kHz)
Onboard DSP Architecture
-
Processor: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core & Sample Rate Converters
-
Matrix Routing: Fully routable input matrix & matrix mixer (mix any input to any output)
-
Crossovers: Up to 48dB/Octave IIR Filters (Linkwitz-Riley and Butterworth)
-
Parametric EQ: 8-Band Parametric EQ per channel
-
Output Delay: Up to 100ms per channel
-
Limiting & Protection: User-adjustable Peak/RMS Voltage limiting, plus DC, VHF, AC Mains, Overtemp, Current Limiter, and fan fault protection
-
Monitoring: Realtime load monitoring and pilot tone detection (internal or external sources)
Control, Monitoring & Networking
-
User Interfaces: Web Browser UI, 3rd-Party API Control, Cloud Control, or SharkWare
-
External I/O In: Toggles Remote On/Off
-
External I/O Out: Indicates Amplifier Health status
-
GPIO: 2 General Purpose Input/Output pins for trigger/status functions
Power & Operating Specifications:
-
AC Mains Input: Universal Switch Mode Power Supply (100VAC – 240VAC ±15%, 50Hz/60Hz)
-
Cooling System: Front-to-rear variable-speed fan cooling
-
Acoustic Noise Ratings:
-
Idle: 50dB @ 1m
-
50% Speed: 57dB @ 1m
-
Full Speed: 63dB @ 1m
-
Physical Dimensions & Weight
-
Unit Dimensions (L × W × H): 11.82" × 8.58" × 1.71" (300.11mm × 218mm × 43.5mm)
-
Shipping Dimensions (L × W × H): 18.0" × 11.0" × 2.75" (457.2mm × 300mm × 69.85mm)
-
Product Weight: 7 lbs (4.1 kg)
