Description
Klipsch THX-5002-L White, Each
Product Details
The THX-5002-L is a THX® Select certified loudspeaker. Certification is not a badge — it is a measured standard for output, distortion and frequency response at reference level in a room of a defined size, which is why THX-certified speakers are specified for rooms where the cinema reproduction has to be accurate rather than merely loud.

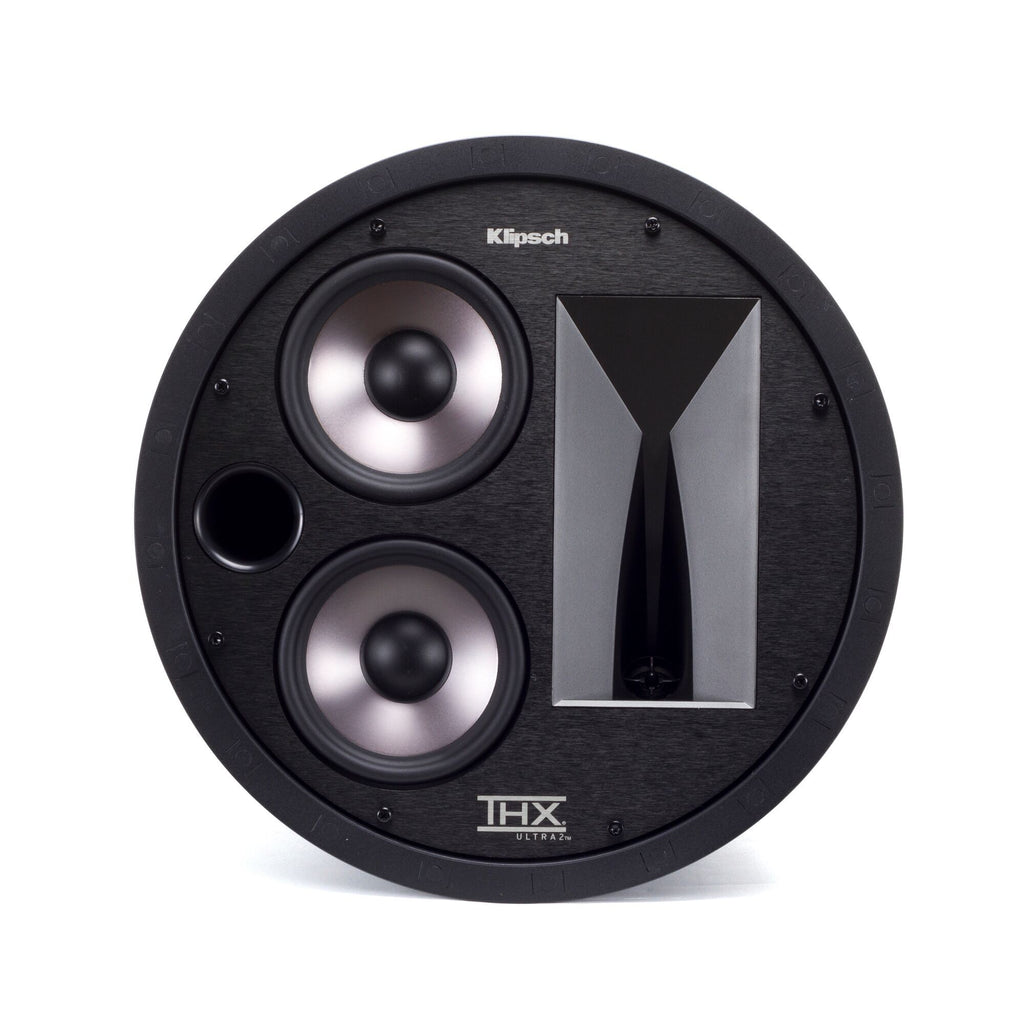

It uses two 5.25" Cerametallic woofers with a 1" Titanium tweeter in a 7.5 x 3.75" 60-90-110 VCT 45º skewed horn. The horn is symmetrical, which gives flat in-room response with high efficiency and low distortion — the combination that lets a speaker hit reference level without strain.

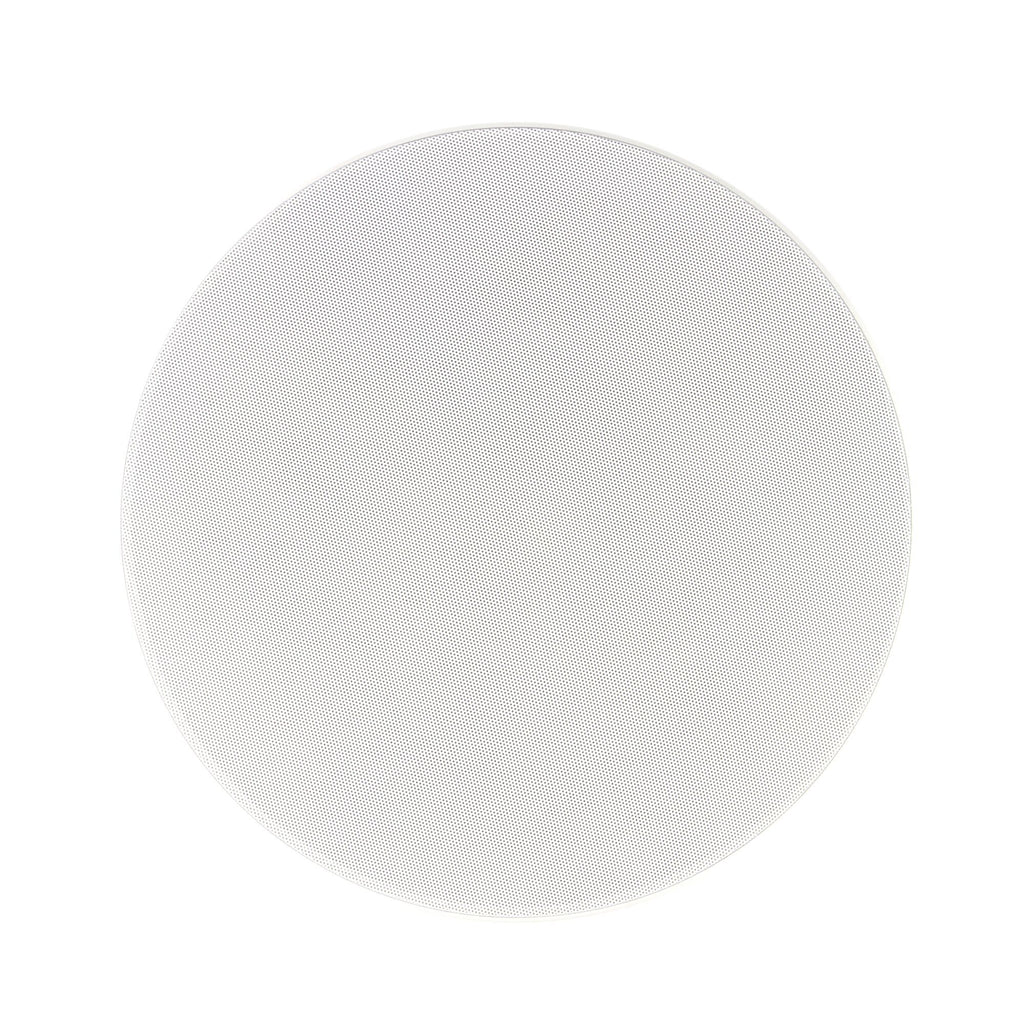

Every THX speaker in the range is timbre-matched to the others, so an LCR front stage, surrounds and in-wall fills can be mixed across models without a tonal seam between channels. An edge-to-edge grille covers the whole speaker — simpler to paint, held by neodymium magnets with no moving parts, and flat enough to disappear into a modern interior.
Features
- 1" Titanium tweeter in a 7.5 x 3.75" 60-90-110 VCT 45º Skewed horn
- Two 5.25" Cerametallic Woofers
- 45 Hz - 20 kHz +/- 3dB frequency response
- 93dB sensitivity
- 100W/400W power handling
- THX® Select certified
- Timbre-matched to all Klipsch THX-certified products
- Symmetrical Tractrix® horn for flat in-room response
- Edge-to-edge paintable grille with neodymium magnets
- Sure-grip mounting dogs for even pressure against drywall
Specifications
| Technical | |
|---|---|
| System | 2-way In-ceiling |
| Frequency Response | 45 Hz - 20 kHz +/- 3dB |
| Power Handling (Cont/Peak) | 100W/400W |
| Sensitivity | 93dB |
| Impedance | 8 Ohms compatible |
| Crossover Frequency | 1200 Hz & 1800 Hz |
| High Frequency Driver | 1" Titanium tweeter in a 7.5 x 3.75" 60-90-110 VCT 45º Skewed horn |
| Low Frequency Driver | Two 5.25" Cerametallic Woofers |
| Enclosure Type | Bass Reflex via 1.6" diameter port - Front Flush with Ceiling |
| Physical | |
|---|---|
| Hole Dimension | Ø13.25" (33.7cm) |
| Dimensions | Ø15.25" (38.7cm) |
| Mounting Depth | 9.5" (24.1cm) |
| Weight | 12 lbs. (5.4kg) |
| Finish | White paintable grill |
Specifications subject to change.
