Description
Klipsch THX-1200-SW Black, Each
Product Details

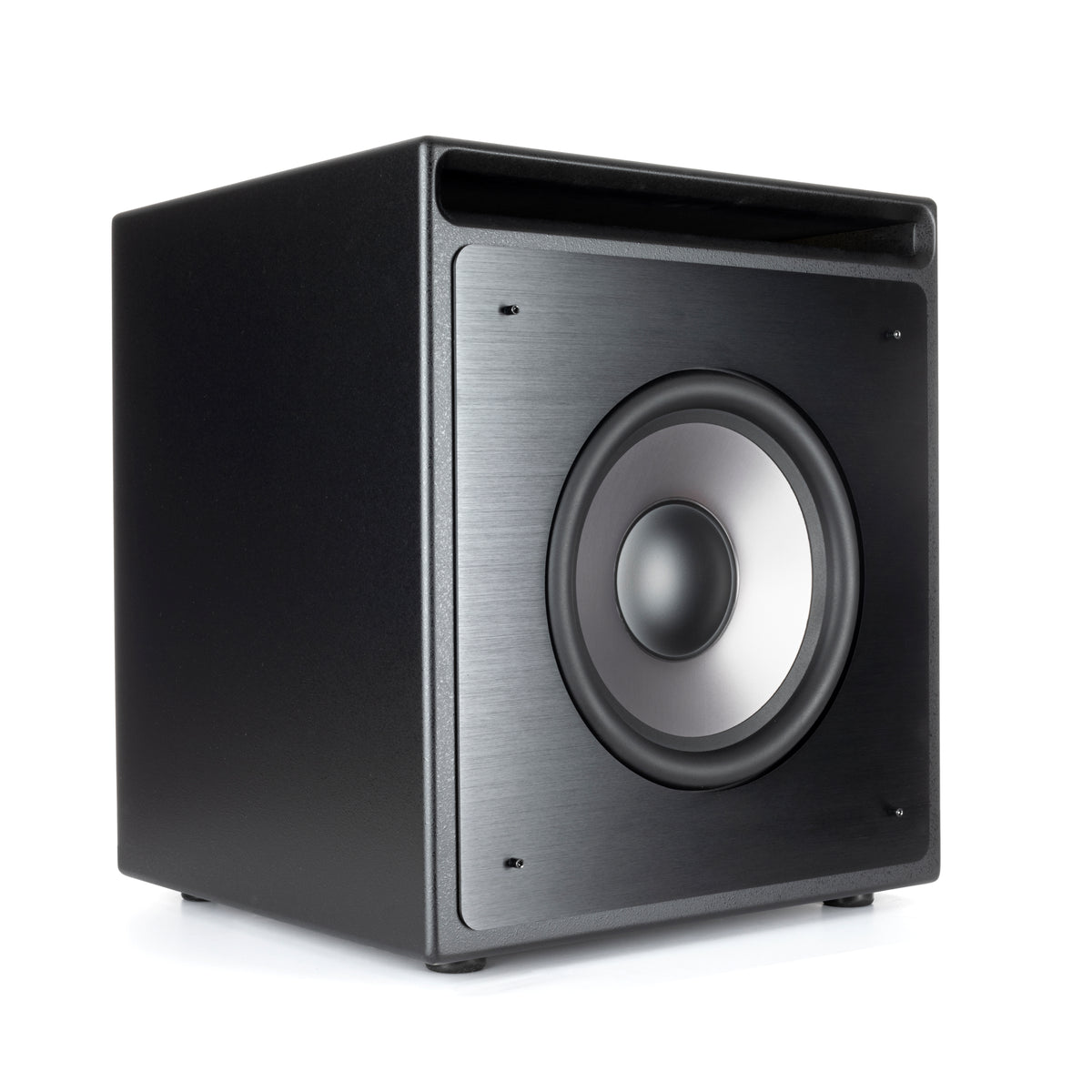

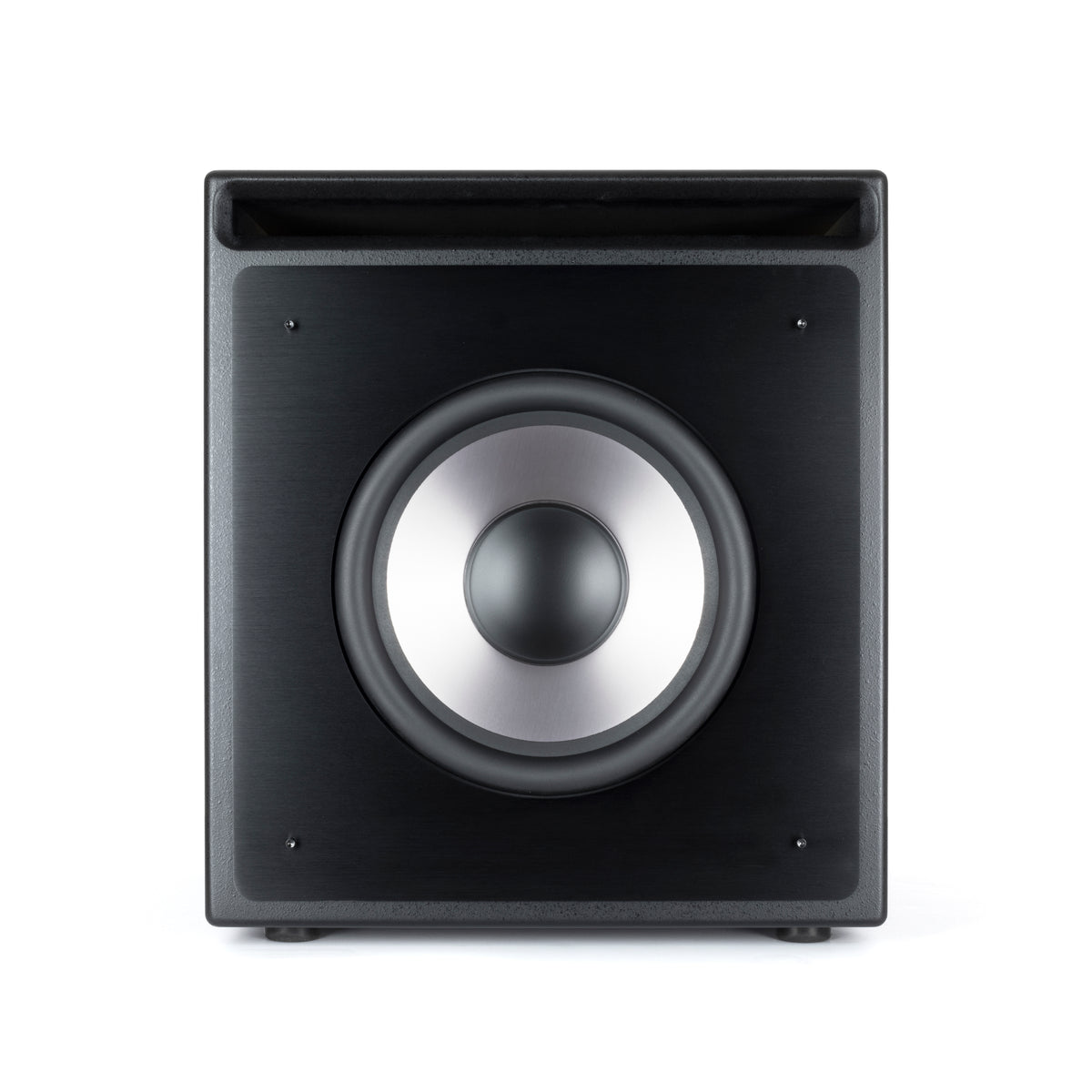

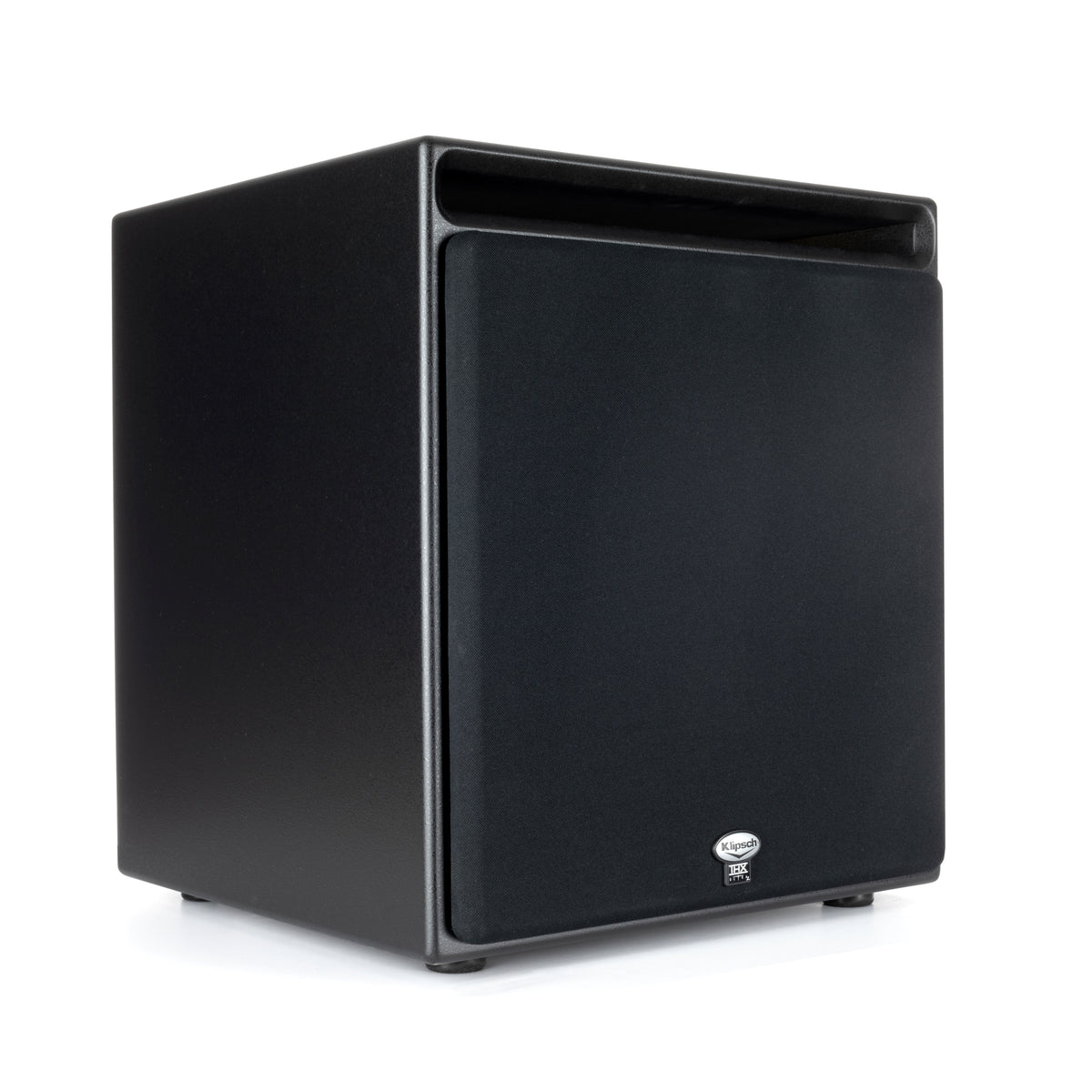

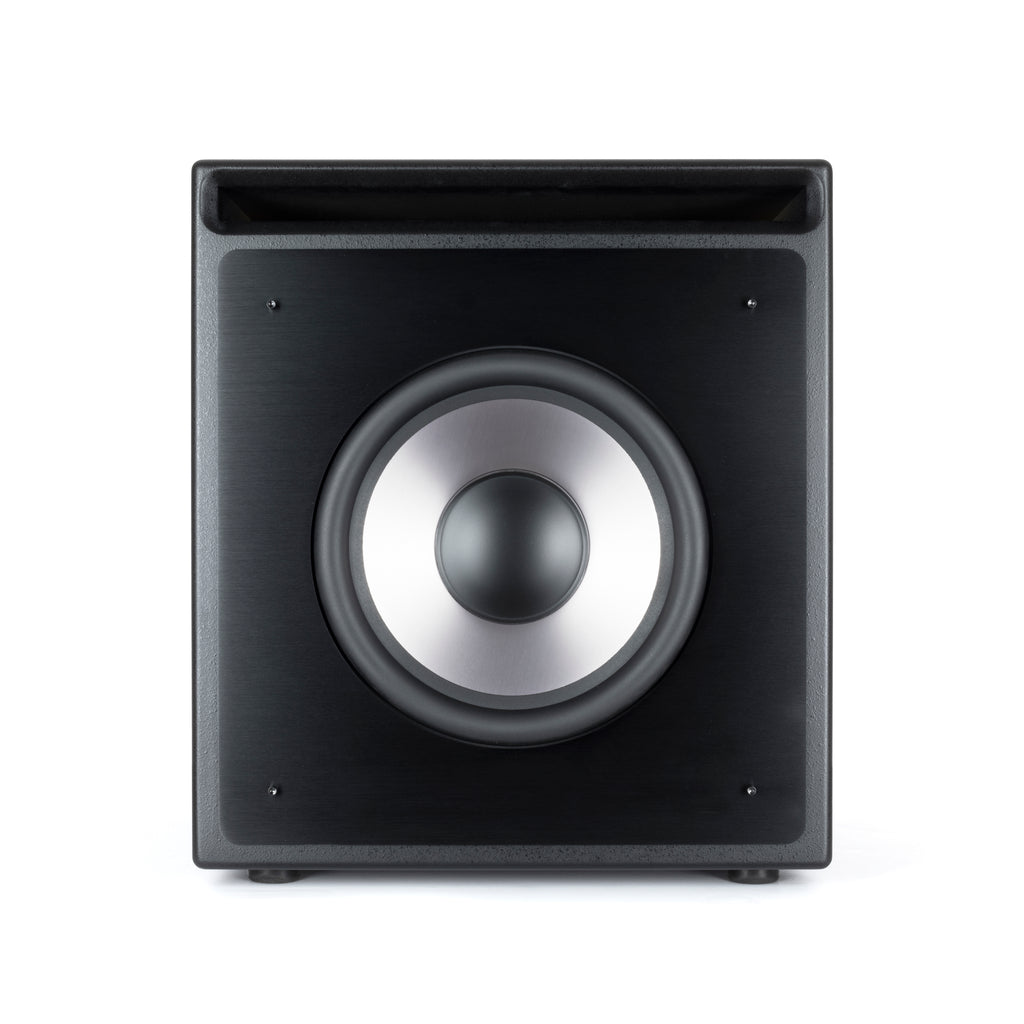

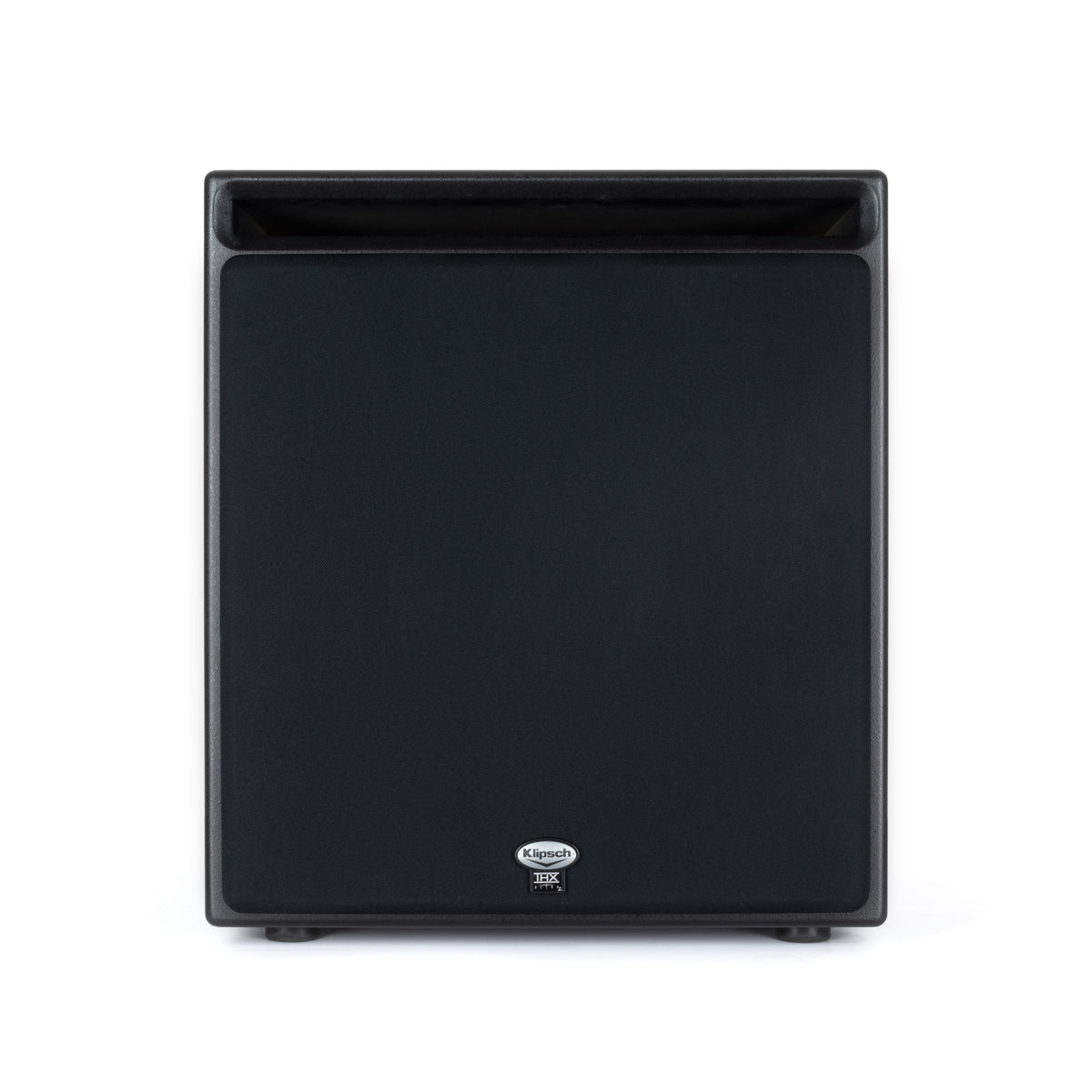

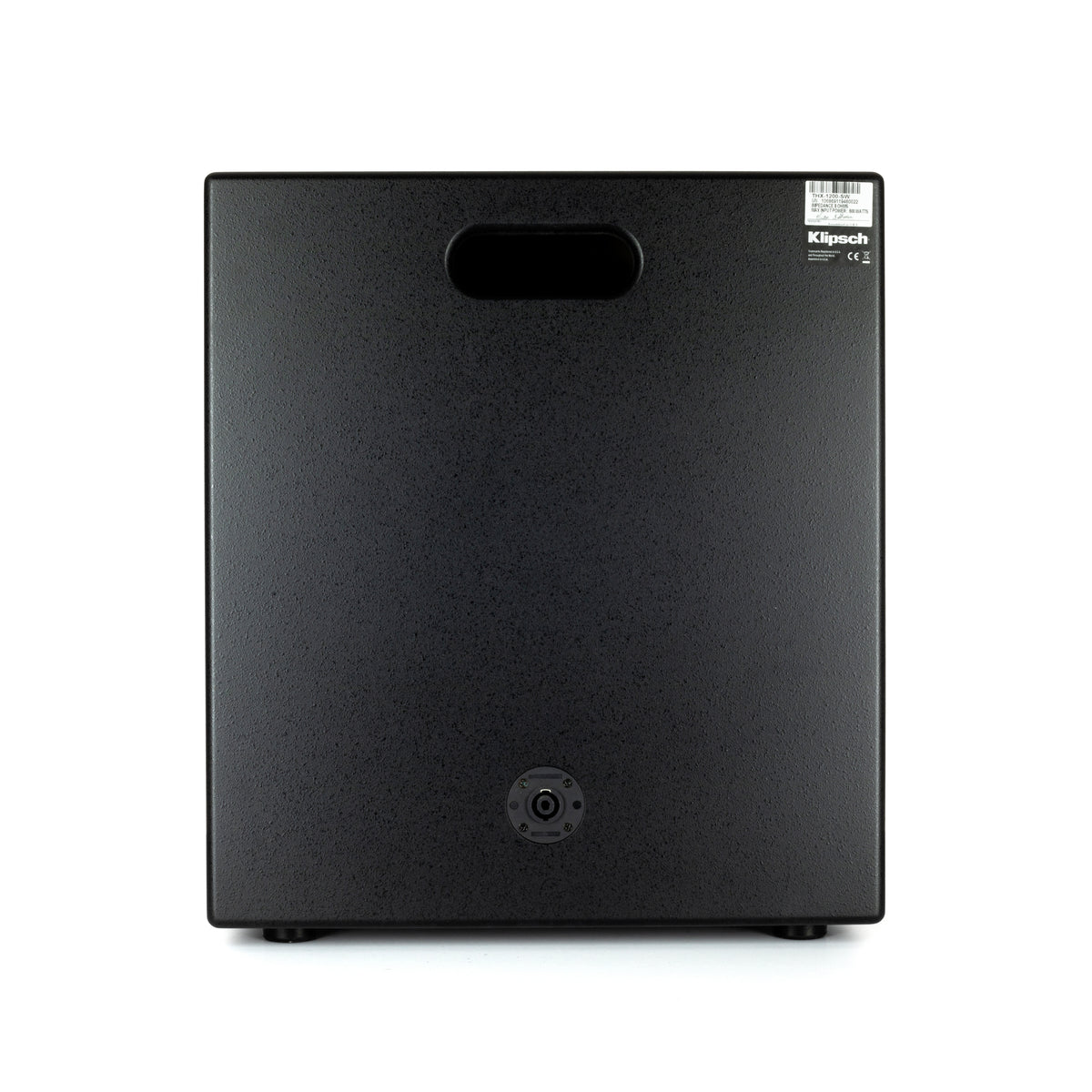

The Klipsch THX-1200-SW is a 12" THX Ultra2 certified passive subwoofer. THX Ultra2 certification is a performance standard for large rooms — it specifies reference output at a defined listening distance, and this enclosure is certified as part of a two-subwoofer configuration.
The driver is a 12" front-firing Cerametallic cone on a cast aluminum frame with a 240oz ceramic magnet structure, in a bass-reflex cabinet with a front-firing slot port. It reaches 20Hz, producing 130dB at 30Hz and 112dB still at 15Hz (measured 1/8 space at one meter, two enclosures side by side).
Important: this is a passive subwoofer with no amplifier of its own. It must be used with the Klipsch KA-1000-THX amplifier, sold separately — no other amplifier is supported.
Features
- 12" THX Ultra2 certified passive subwoofer
- 12" front-firing Cerametallic cone, cast aluminum frame
- 240oz ceramic magnet structure
- 20Hz – 200Hz +/- 3dB
- 130dB @ 30Hz; 122dB @ 20Hz; 112dB @ 15Hz (1/8 space, 1m, two enclosures)
- Bass-reflex via front-firing slot port
- MDF construction
- Requires the Klipsch KA-1000-THX amplifier (sold separately) — no other amplifier supported
- Replaces the Klipsch KW-120-THX
Specifications
| Technical | |
|---|---|
| Frequency Response | 20Hz – 200Hz +/- 3dB |
| Max Acoustic Output | 130dB @ 30Hz; 122dB @ 20Hz; 112dB @ 15Hz (1/8 space, 1 meter, two enclosures side-by-side per THX Ultra2) |
| Nominal Impedance | 8 ohms compatible |
| Enclosure Type | Bass-reflex via front-firing slot port |
| Amplifier | Use only with Klipsch KA-1000-THX |
| Amplifier Power | See KA-1000-THX specifications |
| Woofer | 12" (30.5cm) front-firing Cerametallic™ cone, cast aluminum frame, 240oz ceramic magnet |
| Certification | THX Ultra2 |
| Physical | |
|---|---|
| Dimensions | 20.25" (51.4cm) H x 17.75" (45.1cm) W x 17.75" (45.1cm) D (with grille) |
| Weight | 80 lbs (36kg) |
| Enclosure Material | Medium density fiberboard (MDF) |
| Finish | Galaxy Black cabinet with black anodized aluminum fascia |
Specifications subject to change.
