Klipsch Standard Theater Bar Walnut, Each
Product Details
The Klipsch Heritage Theater Bar is a passive three-channel LCR sound bar, not a powered one. Left, center and right are separate channels with their own spring-loaded input terminals, driven by an AV receiver like any other set of speakers. That means real multichannel processing from the receiver rather than the virtualization a powered bar has to rely on.

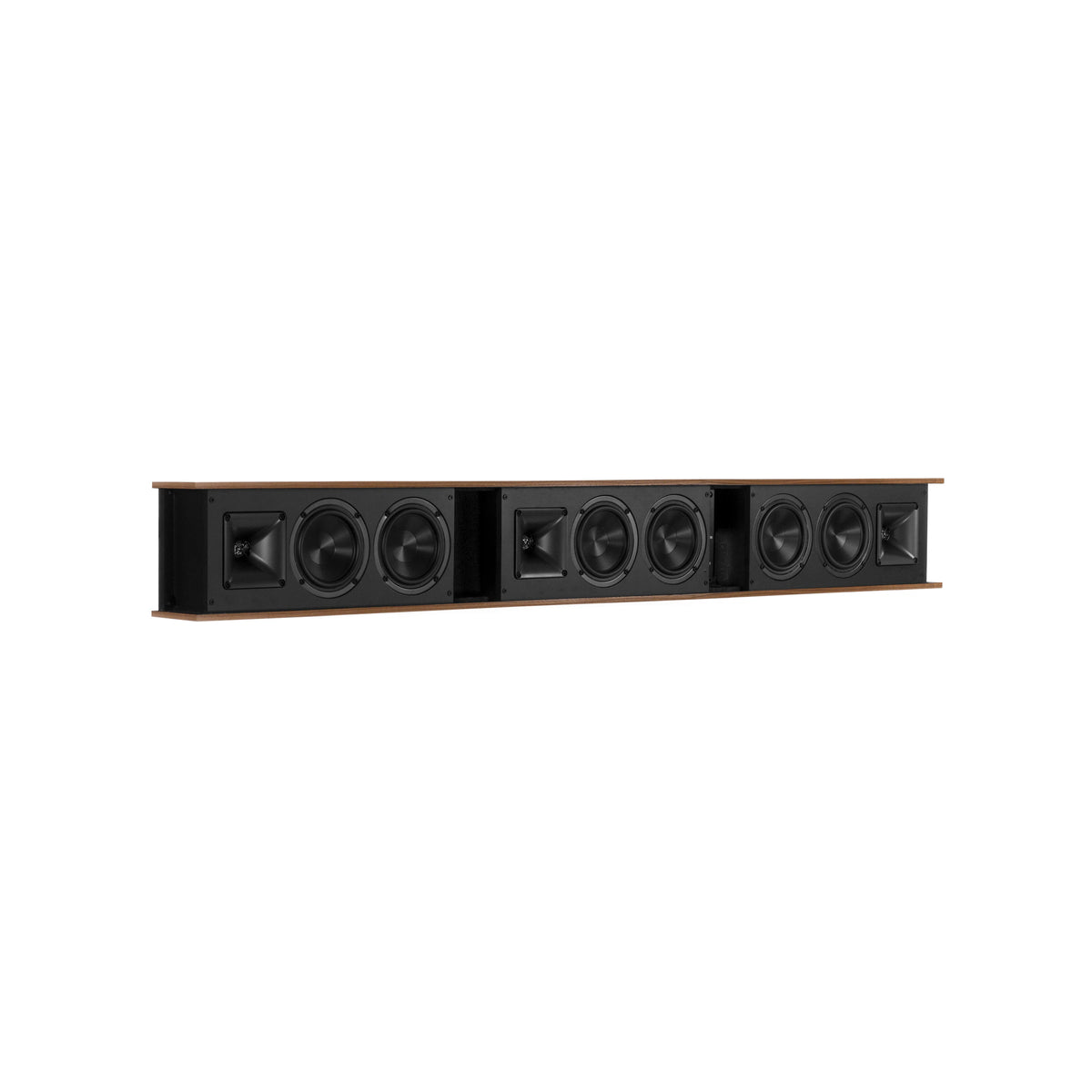

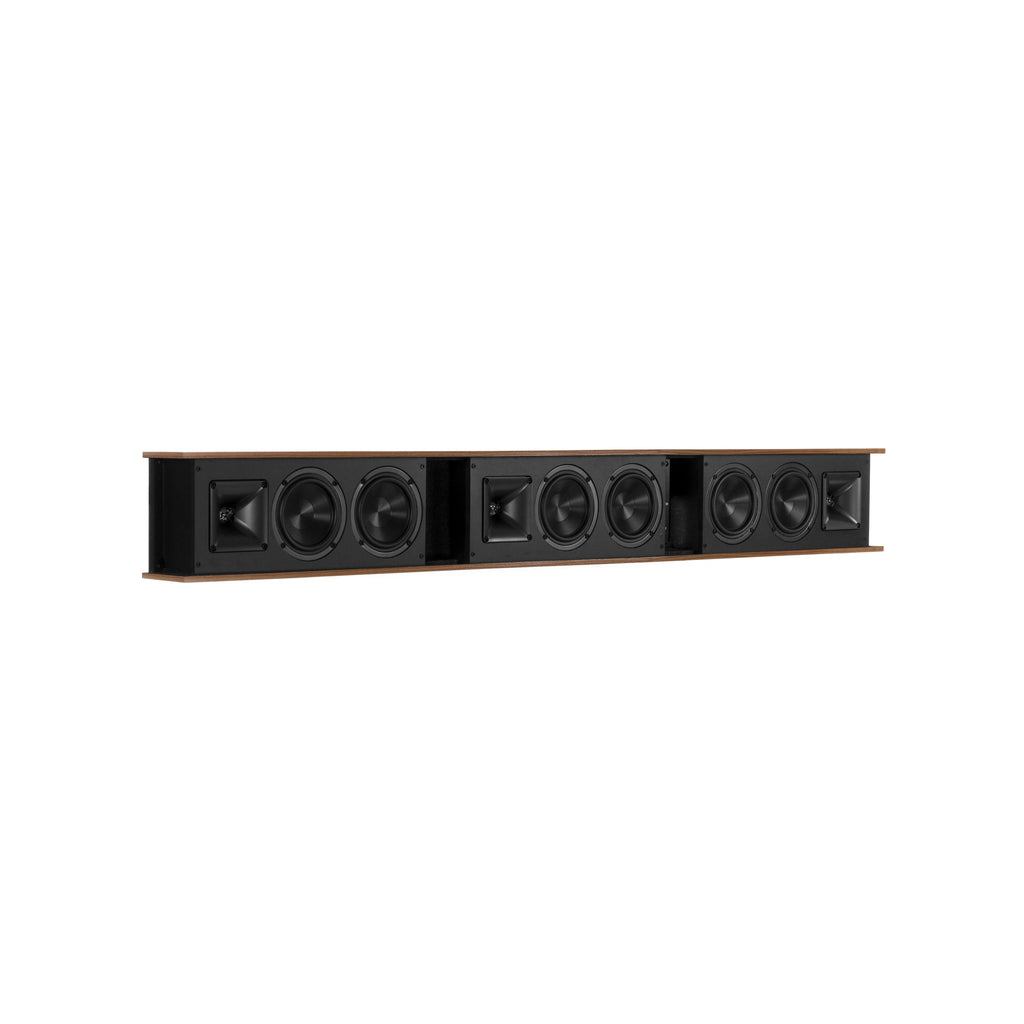

Each channel pairs a 3/4" titanium diaphragm compression driver on a 90° x 90° Tractrix horn with dual 4" black Cerametallic woofers, in a sealed MDF enclosure. Sensitivity is 92dB with 108dB continuous output per channel, and Klipsch recommend 50W – 150W per channel.
At 49.5" wide and only 4" deep in American walnut, it is sized to sit under a typical television without projecting into the room. A low-profile wall hanging bracket and mounting template are included. Assembled in the USA.
Features
- Passive 3-channel LCR sound bar — requires an AV receiver or amplifier
- Separate left, center and right channels with independent spring-loaded terminals
- 3/4" titanium diaphragm compression driver on a 90° x 90° Tractrix horn per channel
- Dual 4" black Cerametallic woofers per channel
- 92dB sensitivity; 108dB continuous, 114dB peak
- 75W / 300W power handling; 50W – 150W recommended amplifier power
- Sealed MDF enclosure
- Black knit grille cloth
- 49.5" wide, only 4" deep
- Low-profile wall hanging bracket and mounting template included
- Assembled in the USA
- American Walnut finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 95Hz – 20kHz +/- 3dB (-10dB @ 75Hz) |
| Sensitivity | 92dB @ 2.83V / 1M |
| Maximum Continuous Output | 108dB (114dB peak) |
| Power Handling (Nom./Peak) | 75W / 300W |
| Recommended Amplifier Power | 50W – 150W |
| Nominal Impedance | 8 ohms compatible |
| Crossover | 2,800 Hz |
| High Frequency Driver | 3/4" (19mm) titanium diaphragm compression driver on a 90° x 90° Tractrix® horn |
| Low Frequency Driver | Dual 4" (10.2cm) black Cerametallic™ woofers |
| Enclosure Material | MDF |
| Enclosure Type | Sealed Box |
| Inputs | Spring-loaded input terminals (left, center, right) |
| Grille Cloth | Black Knit |
| Physical | |
|---|---|
| Height | 6.25" (15.9cm) |
| Width | 49.5" (125.7cm) |
| Depth | 4" (10.2cm) |
| Weight | 26 lbs (11.8kg) |
| Finish | American Walnut |
| Accessories | Low-profile wall hanging bracket and wall mounting template |
Specifications subject to change.
