Klipsch SLM-5400-C White, Each
Product Details

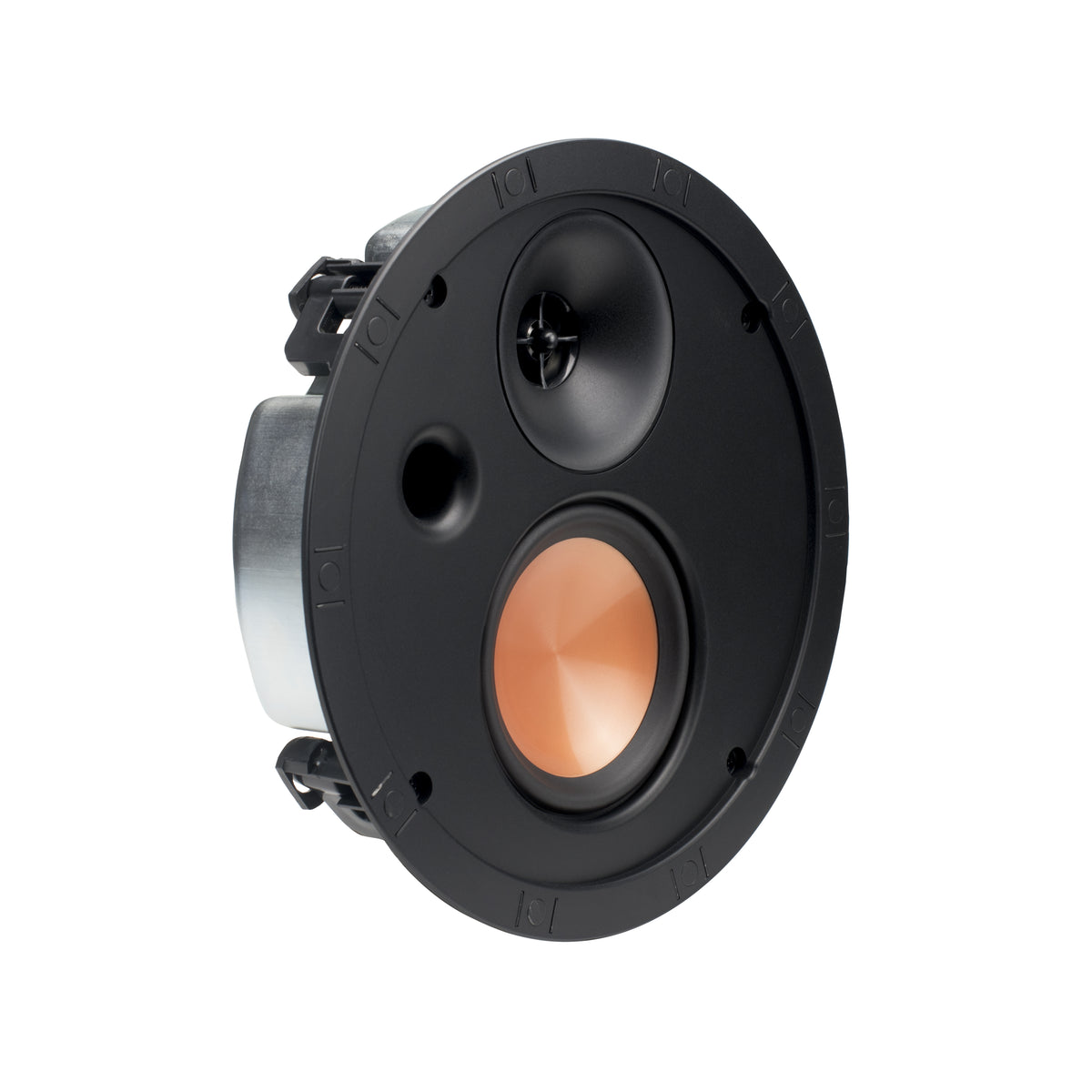

The SLM-5400-C is one of the most compact in-ceiling speakers on the market: 50mm deep, with a fully enclosed back box. It exists for the ceilings that will not take a normal speaker — shallow joist bays, concrete soffits, apartments with a floor directly above.

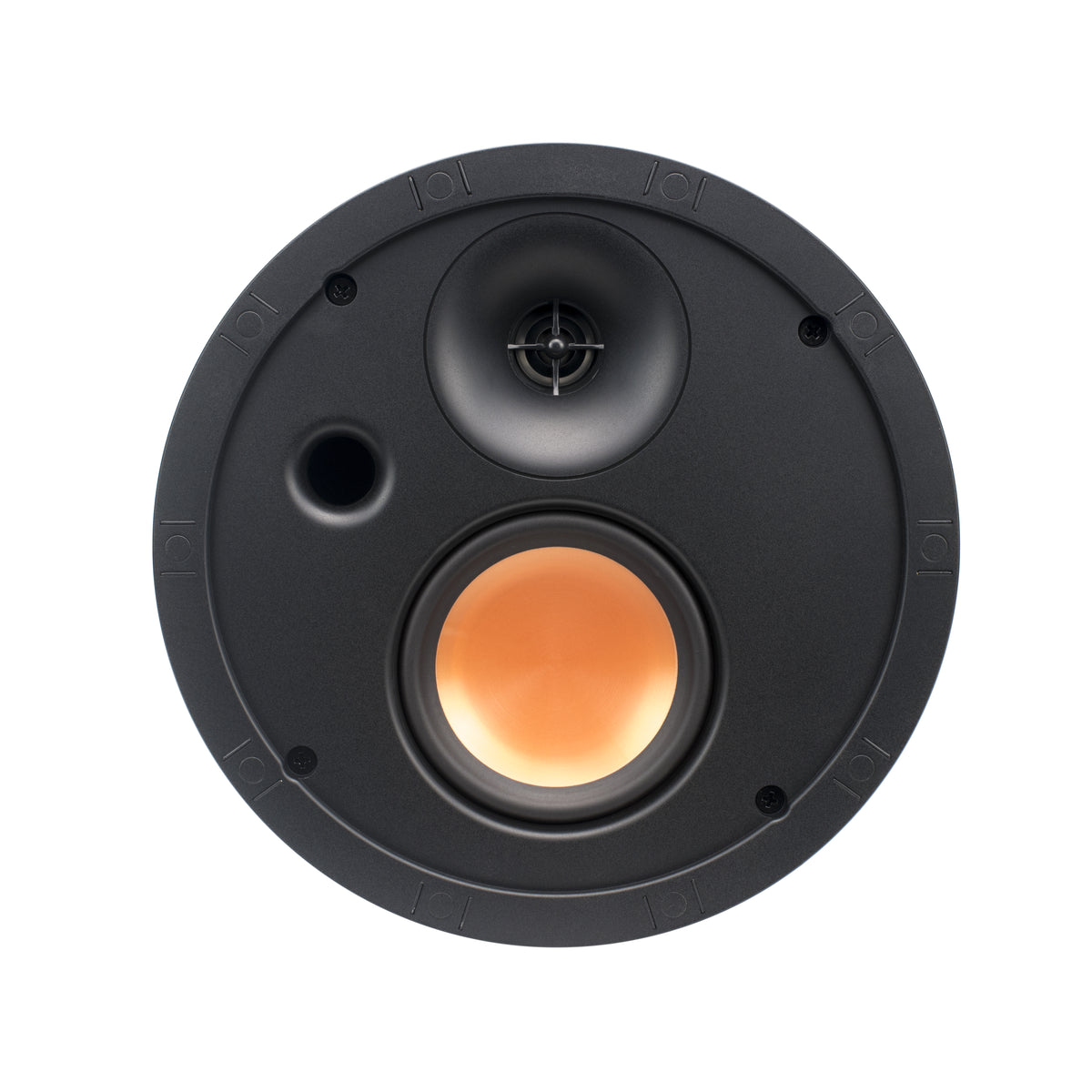

The acoustics come from the Klipsch Reference 3000 architectural series: a 4" (10.2cm) Cerametallic™ woofer with a 1" (2.5cm) Titanium dome tweeter with round Tractrix horn.
The ultra-slim galvanized metal back box is fire-rated, which does two useful things at once: it isolates sound from the floor above or the room next door, and it fixes the enclosure volume so the low-frequency response stays consistent regardless of what is in the cavity.

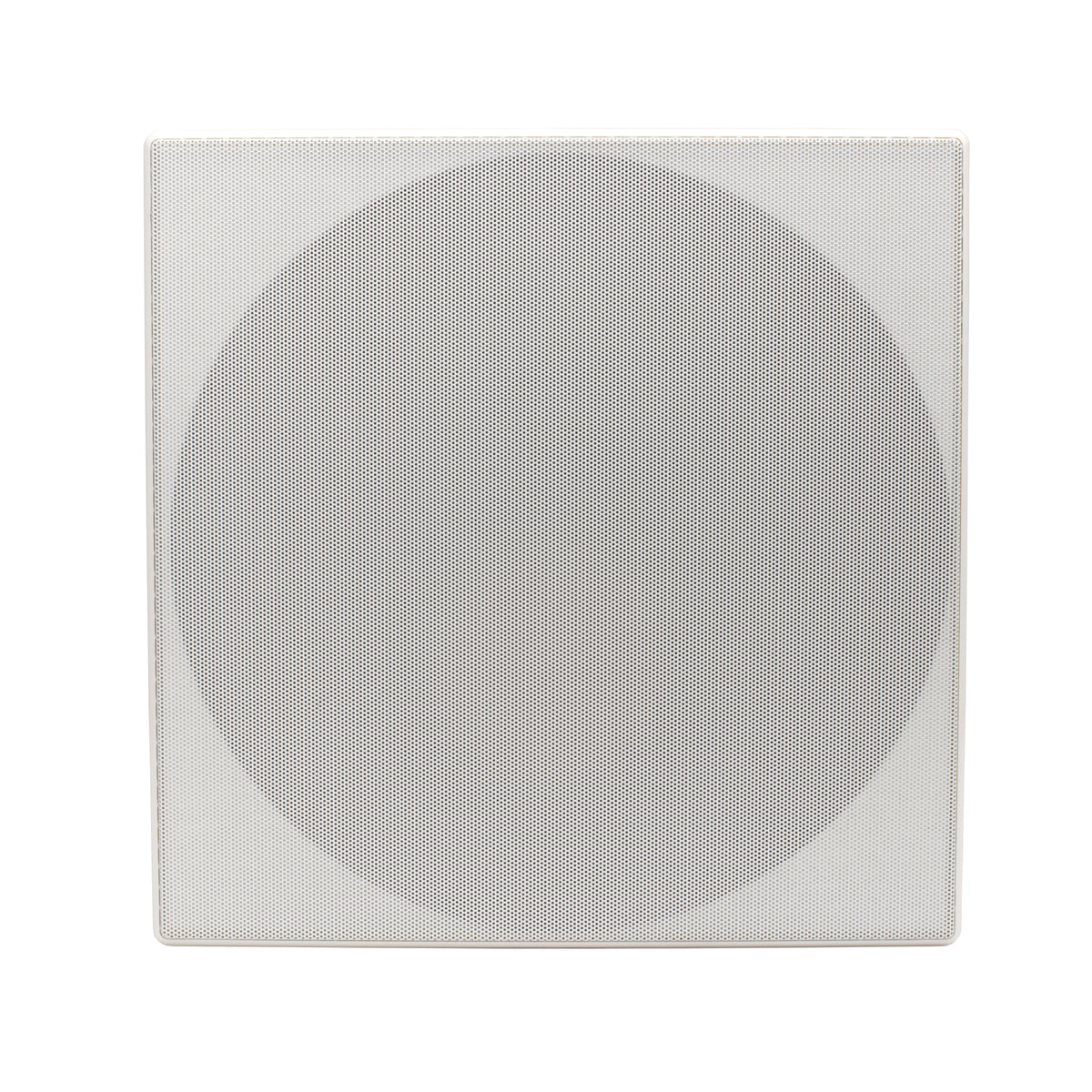

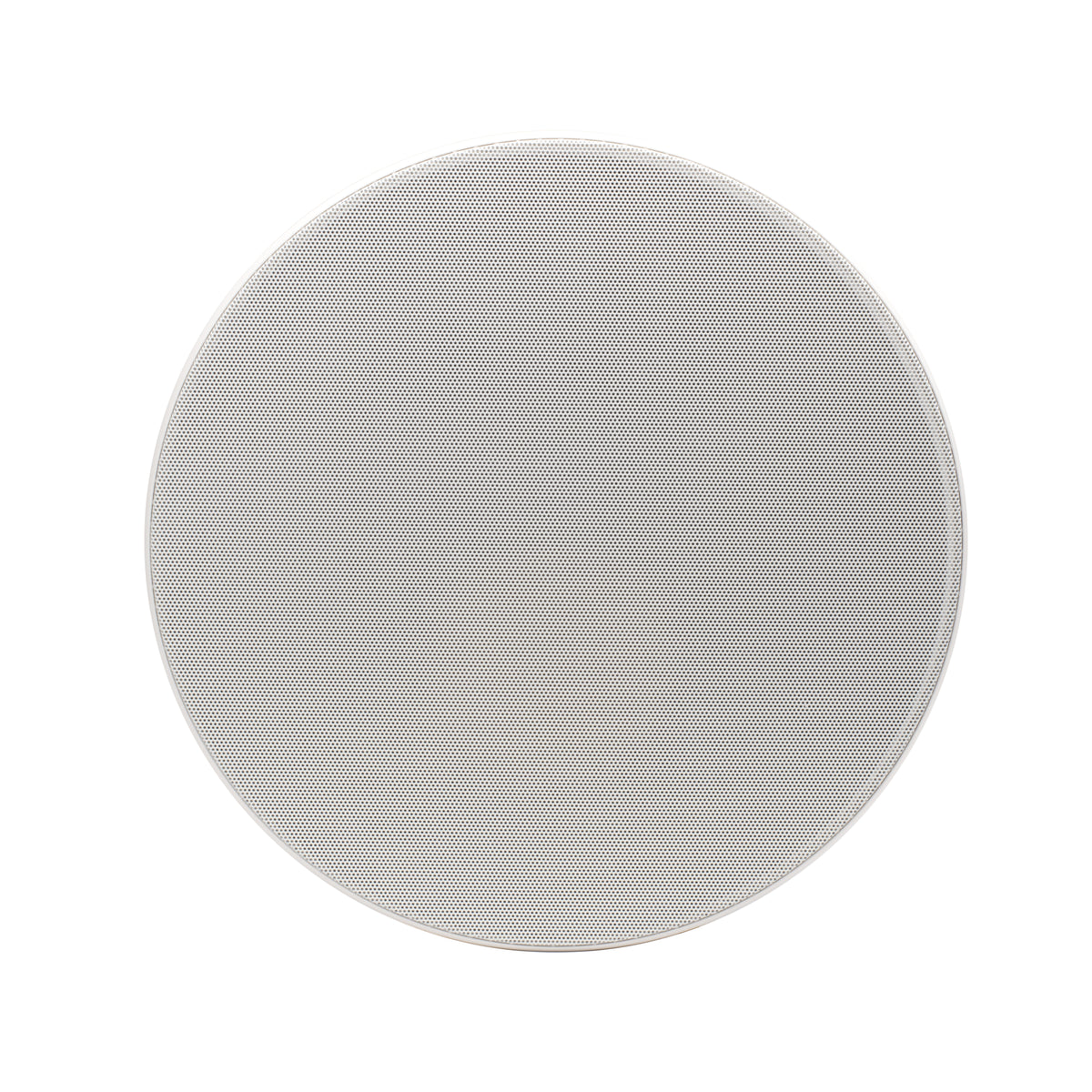

The flat, magnetic, minimum-bezel SlimTrim grille keeps the visible fitting discreet, and both square and round grilles are included so the speaker can match either trim style in the room.
Features
- 1" (2.5cm) Titanium Dome Tweeter with Round Tractrix Horn
- 4" (10.2cm) Cerametallic™ Woofer
- 90Hz – 20kHz frequency response
- 91dB sensitivity
- 120W Peak power handling
- Only 50mm mounting depth
- Fire-rated galvanized metal back box included
- Excellent sound isolation from neighboring rooms and floors
- Consistent acoustics and low-frequency response from a fixed enclosure volume
- Klipsch Reference 3000 architectural series acoustics
- Flat, magnetic, minimum-bezel SlimTrim grille
- Square and round grilles both included
- Compatible with the Klipsch IK-650-C install kit
Specifications
| Technical | |
|---|---|
| Frequency Response | 90Hz – 20kHz |
| Power Handling | 120W Peak |
| Recommended Amp Power | 50W |
| Sensitivity | 91dB |
| Nominal Impedance | 8 Ohm |
| High Frequency Driver | 1" (2.5cm) Titanium Dome Tweeter with Round Tractrix Horn |
| Low Frequency Driver | 4" (10.2cm) Cerametallic™ Woofer |
| Enclosure Type/Material | 50mm Deep Metal Back Box with Ported ABS Baffle |
| Wire Gauge Recommended | 12 Gauge |
| Physical | |
|---|---|
| Diameter | 9.5" (24.13cm) |
| Cutout Dimensions | 8.3" (21cm) |
| Mounting Depth | 1.97" |
| Installation Kit | IK-650-C (Sold Separately) |
| Product Weight | 7.4 lbs |
| Built From | 2016 Shallow Depth In-Ceiling Speaker |
Specifications subject to change.
