Klipsch RP-8060FA II Walnut, Each
Product Details

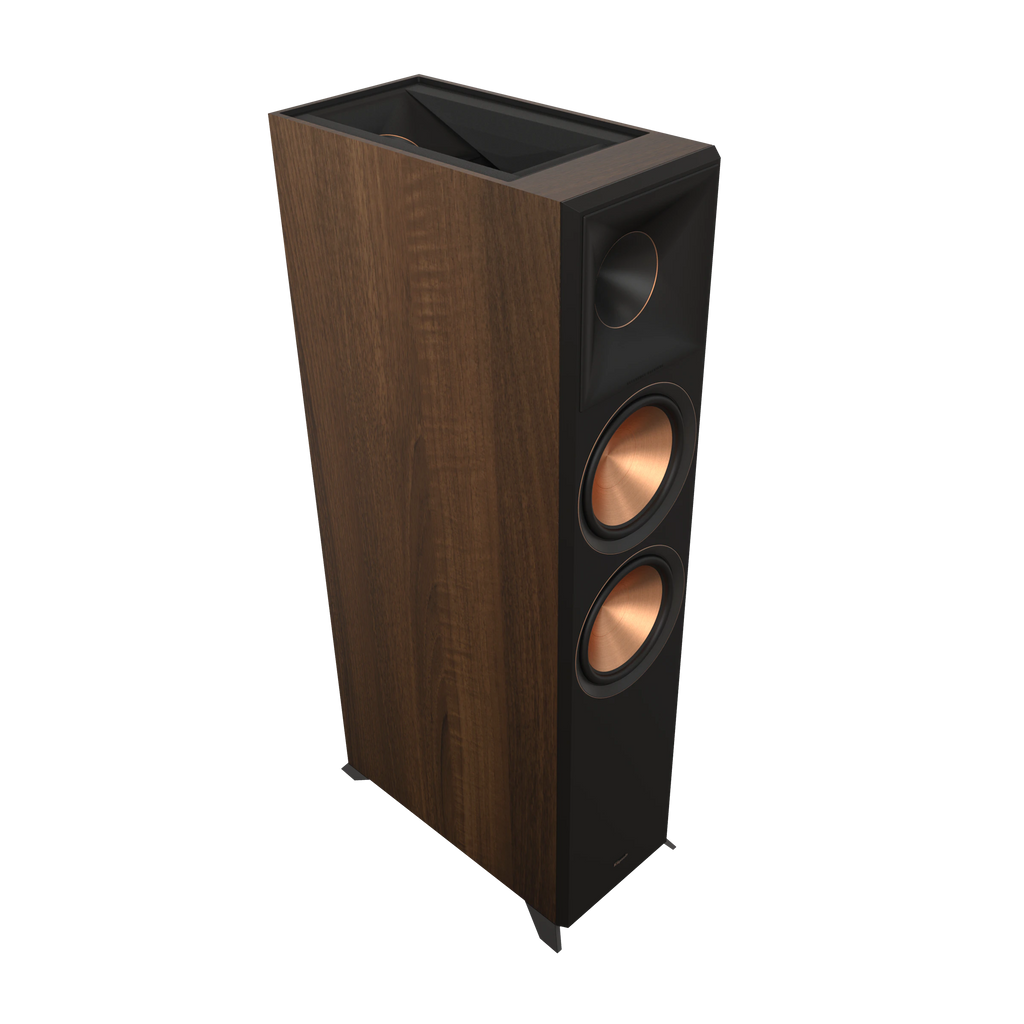

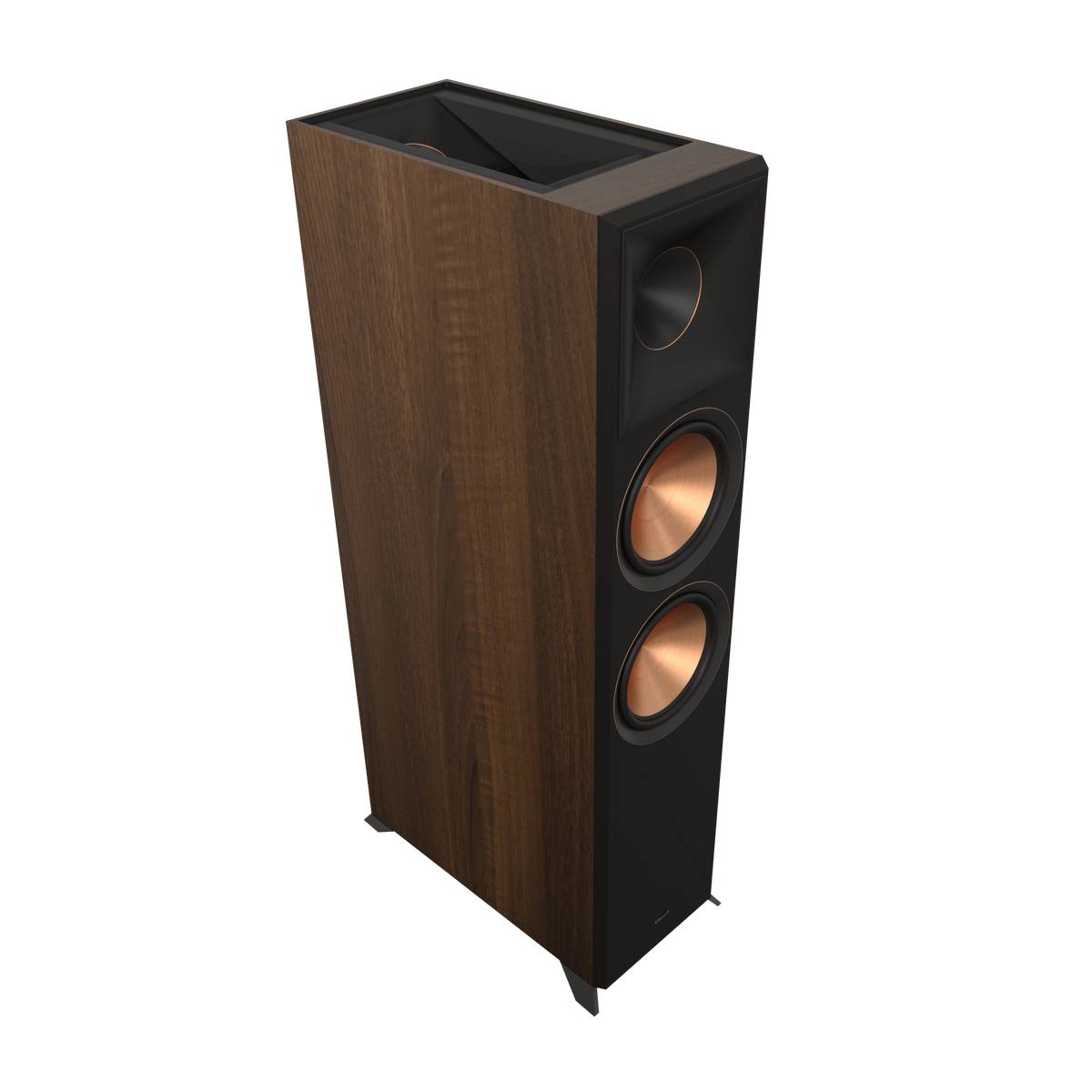

The Klipsch RP-8060FA II is the flagship floorstander of the Reference Premiere II line: a full-size three-way tower with dual 8" Cerametallic woofers and a built-in, up-firing Dolby Atmos elevation channel in the top of the cabinet. At 98dB sensitivity it is an unusually easy speaker to drive, and it reaches down to 35Hz without a subwoofer.
A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Cerametallic cone woofers are exceptionally rigid and light for their mass, which keeps cone break-up out of the passband. Faraday rings and aluminum shorting rings in the redesigned motor reduce distortion and increase power handling, with better transient control than the first-generation Reference Premiere.

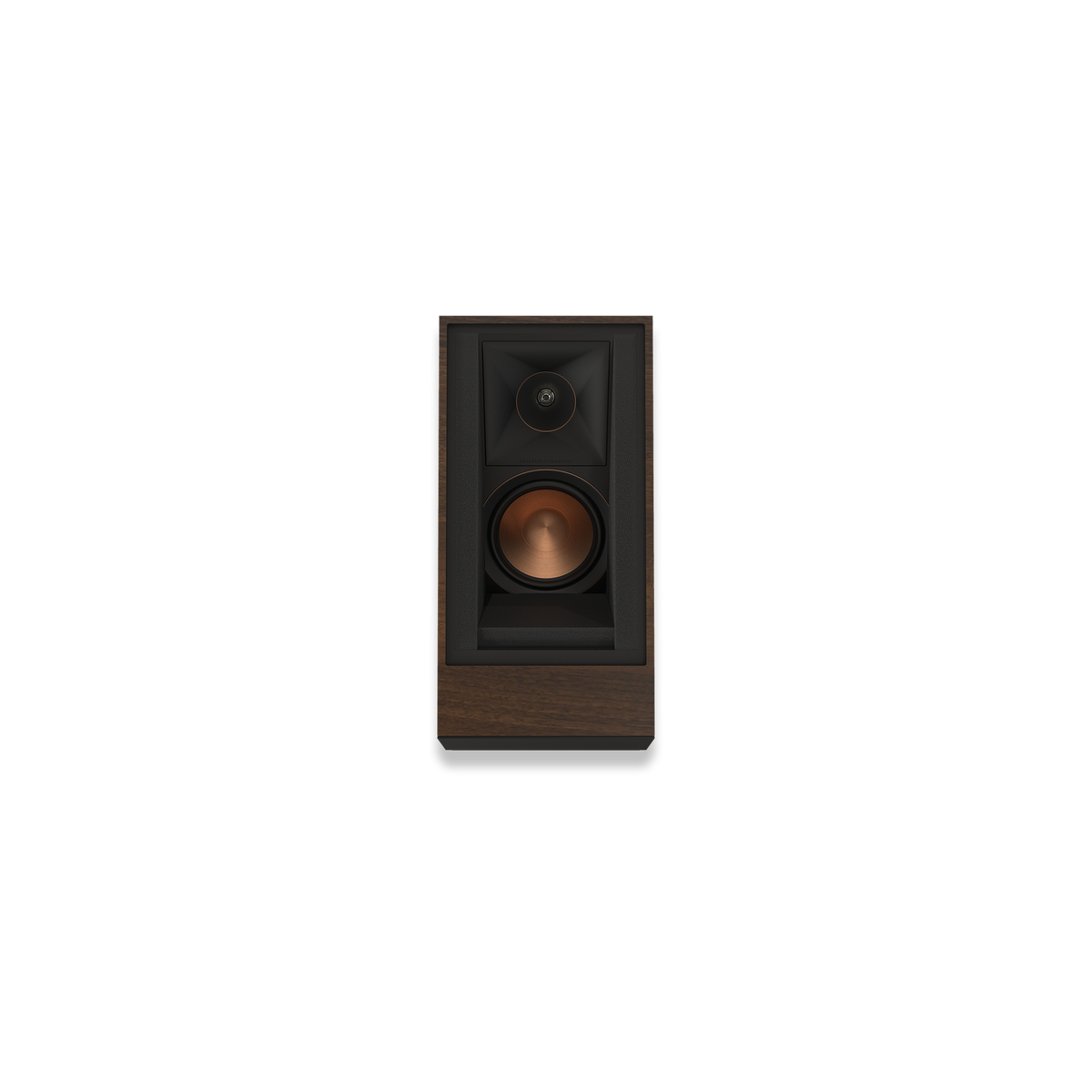

The integrated Atmos module is a discrete sealed enclosure with its own 1" LTS tweeter and 6.5" Cerametallic woofer, firing at the ceiling to place height effects overhead without separate speakers or ceiling installation. Dual aluminum binding posts allow bi-wiring or bi-amping. Bi-wiring separates high- and low-frequency current into separate cables to reduce intermodulation distortion in the midrange; bi-amping allows outboard crossovers and separate amplification.
Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- Dual 8" Cerametallic cone woofers; 35Hz – 25kHz +/- 3dB
- 98dB sensitivity — easy to drive with modest amplification
- Built-in up-firing Dolby Atmos elevation channel (1" LTS tweeter + 6.5" Cerametallic woofer)
- 150W / 600W power handling on the main channel

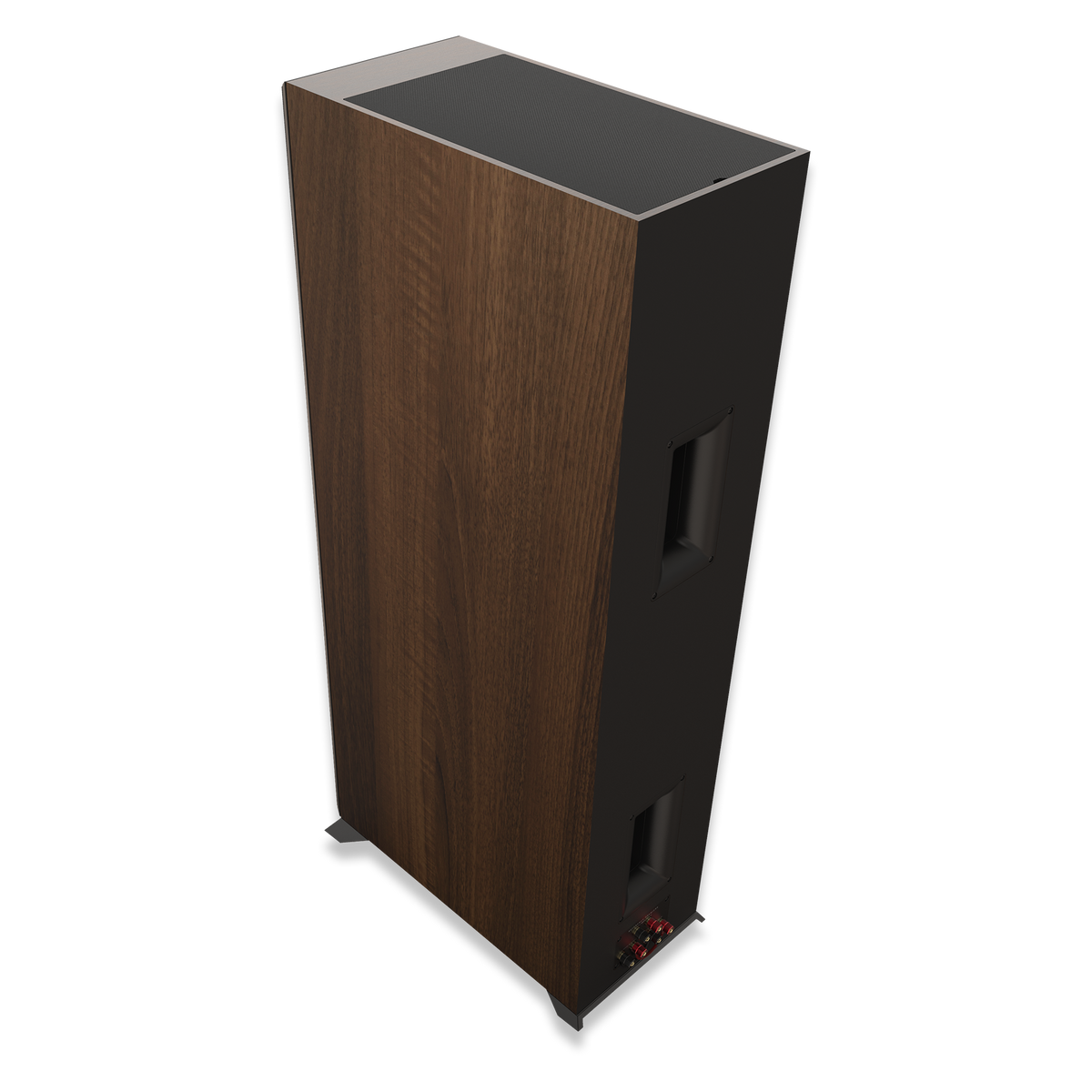

- Bass reflex via dual-chamber rear-firing Tractrix ports
- Dual aluminum binding posts for bi-wiring / bi-amping
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle
- Magnetically attached, removable grille
- Scratch-resistant walnut vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 35-25kHz +/- 3dB |
| Sensitivity | 98dB @ 2.83V / 1m* |
| Power Handling (Cont/Peak) | 150W / 600W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 1630Hz |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | Dual 8” Cerametallic Cone Woofers with Faraday rings |
| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Bass Reflex via dual chamber rear-firing Tractrix® Ports |
| Inputs | Dual aluminum binding posts / bi-wire / bi-amp |
| Physical | |
|---|---|
| Height | 43.11" (109.5 cm) |
| Width | 10.84" (27.5 cm) |
| Depth | 20.80 (52.8 cm) |
| Weight | 75.7 lb (34.35kg) |
| Finish | Walnut |
| Included Accessories | Injection molded feet & screws |
| Dolby Atmos Elevation Channel | |
|---|---|
| Frequency Response | Conforms to Dolby Atmos Specifications |
| Power Handling | 100W / 400W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 2kHz |
| High Frequency Driver | 1" Titanium LTS Tweeter with Hybrid Tractrix Horn |
| Low Frequency Driver | 6.5" Cerametallic Cone Woofer |
| Enclosure Material | MDF |
| Enclosure Type | Acoustic Suspension |
Specifications subject to change.
