Klipsch RP-502S II Walnut, Pair
Product Details
The Klipsch RP-502S II is a dedicated surround speaker with dual 5.25" Cerametallic woofers in a sealed, wall-mountable cabinet, sold as a pair. The angled baffle is designed for side or rear wall placement, spreading surround information across the listening area rather than firing at one seat.
A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Cerametallic cone woofers are exceptionally rigid and light for their mass, which keeps cone break-up out of the passband. Faraday rings and aluminum shorting rings in the redesigned motor reduce distortion and increase power handling, with better transient control than the first-generation Reference Premiere.
The sealed enclosure keeps the surround channel tight and controlled, which matters more than extension in a surround position. Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- Dual 5.25" Cerametallic woofers; 62Hz – 25kHz +/- 3dB
- 94dB sensitivity; 100W / 400W power handling
- Sealed enclosure for controlled surround response
- Angled baffle for side or rear wall mounting
- Rubber feet (8) included
- Sold as a pair
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle

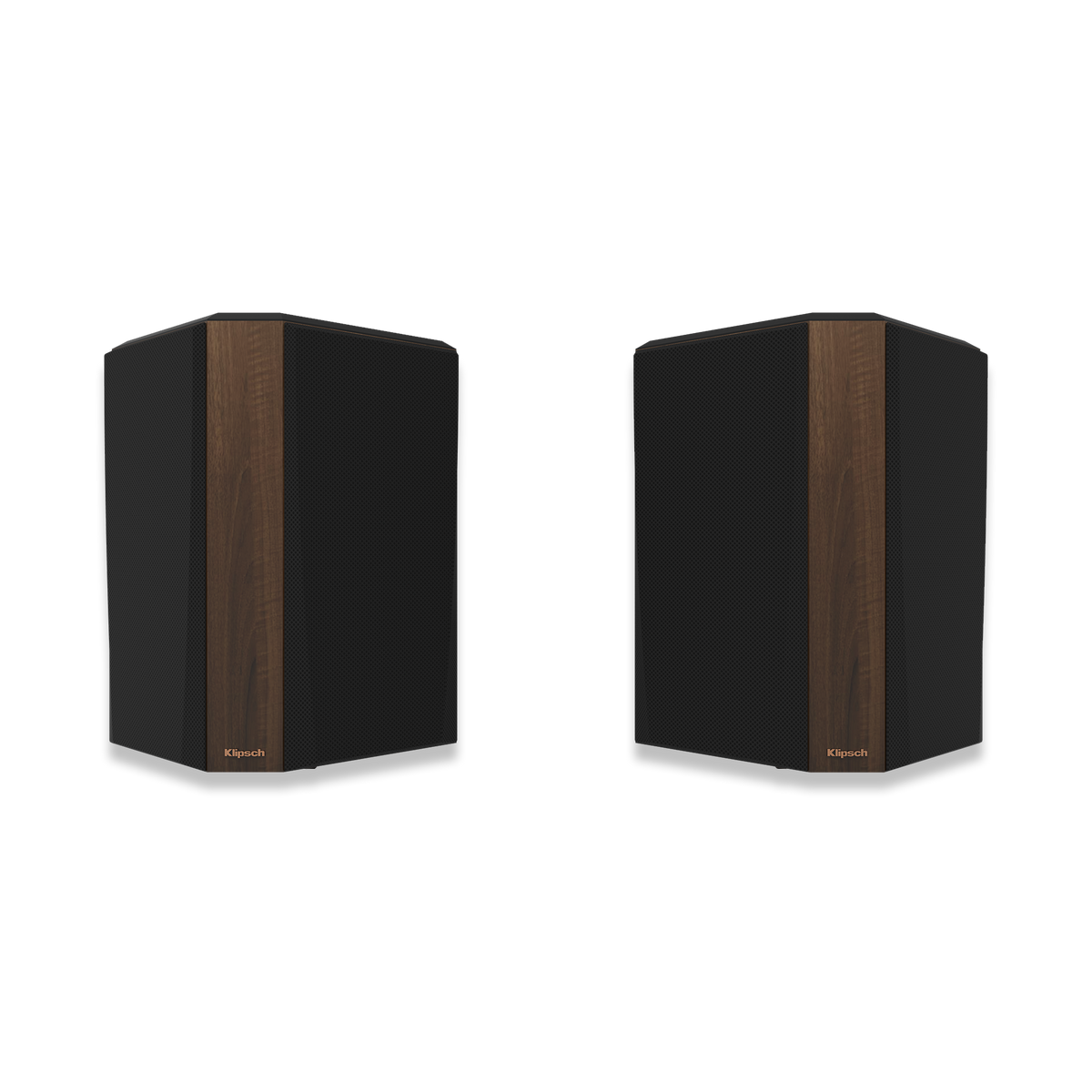

- Magnetically attached, removable grille
- Scratch-resistant walnut vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 62-25kHz +/- 3dB |
| Sensitivity | 94dB @ 2.83V / 1m* |
| Power Handling (Cont/Peak) | 100W/400W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 1500Hz |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | Dual 5.25" Cerametallic Woofers with Faraday rings |
| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Sealed |
| Inputs | Single aluminum binding posts |
| Physical | |
|---|---|
| Height | 14.15" (36.0 cm) |
| Width | 11.94" (30.3 cm) |
| Depth | 7.63" (19.4 cm) |
| Weight | 16.7lb (7.60kg) |
| Finish | Walnut |
| Included Accessories | Rubber Feet (8) |
Specifications subject to change.
