Klipsch RP-500SA II Walnut, Pair
Product Details
The Klipsch RP-500SA II is a Dolby Atmos elevation speaker, sold as a pair. It can sit on top of a floorstanding speaker and fire at the ceiling to create overhead effects without installing in-ceiling speakers, or be wall-mounted and used as a conventional surround.
A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Behind the horn is Klipsch's Linear Travel Suspension titanium diaphragm tweeter. LTS minimizes distortion by keeping the diaphragm's motion linear through its travel — a hallmark of every Reference line Klipsch has built.
The angled cabinet is voiced to Dolby Atmos specification for the reflected-height role. Dolby Atmos jumpers are included for use with Reference Premiere floorstanding speakers that provide Atmos passthrough on their binding posts, along with eight rubber feet. Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- Dolby Atmos elevation speaker — place on a floorstander or wall mount
- 5.25" Cerametallic cone woofer with 1" Titanium LTS vented tweeter
- 75W / 300W power handling; 8 Ohms compatible
- Sealed enclosure, angled for ceiling reflection
- Dolby Atmos jumpers (2) and rubber feet (8) included
- Sold as a pair
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle

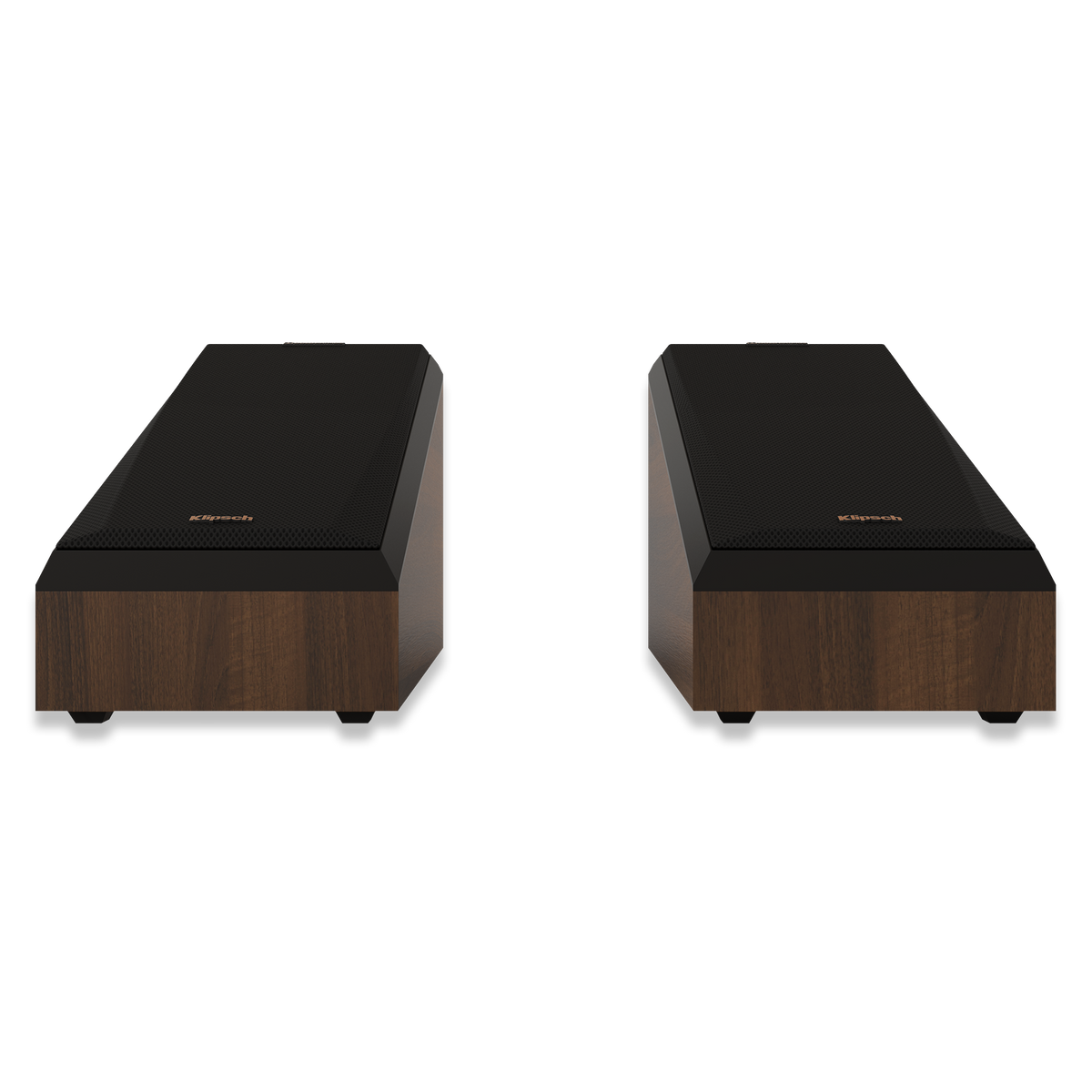

- Magnetically attached, removable grille
- Scratch-resistant walnut vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | Conforms to Dolby Atmos Specifications |
| Sensitivity | Conforms to Dolby Atmos Specifications |
| Power Handling (Cont/Peak) | 75W / 300W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | Conforms to Dolby Atmos Specifications |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | 5.25" Cerametallic Cone Woofer with Faraday rings |
| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Sealed |

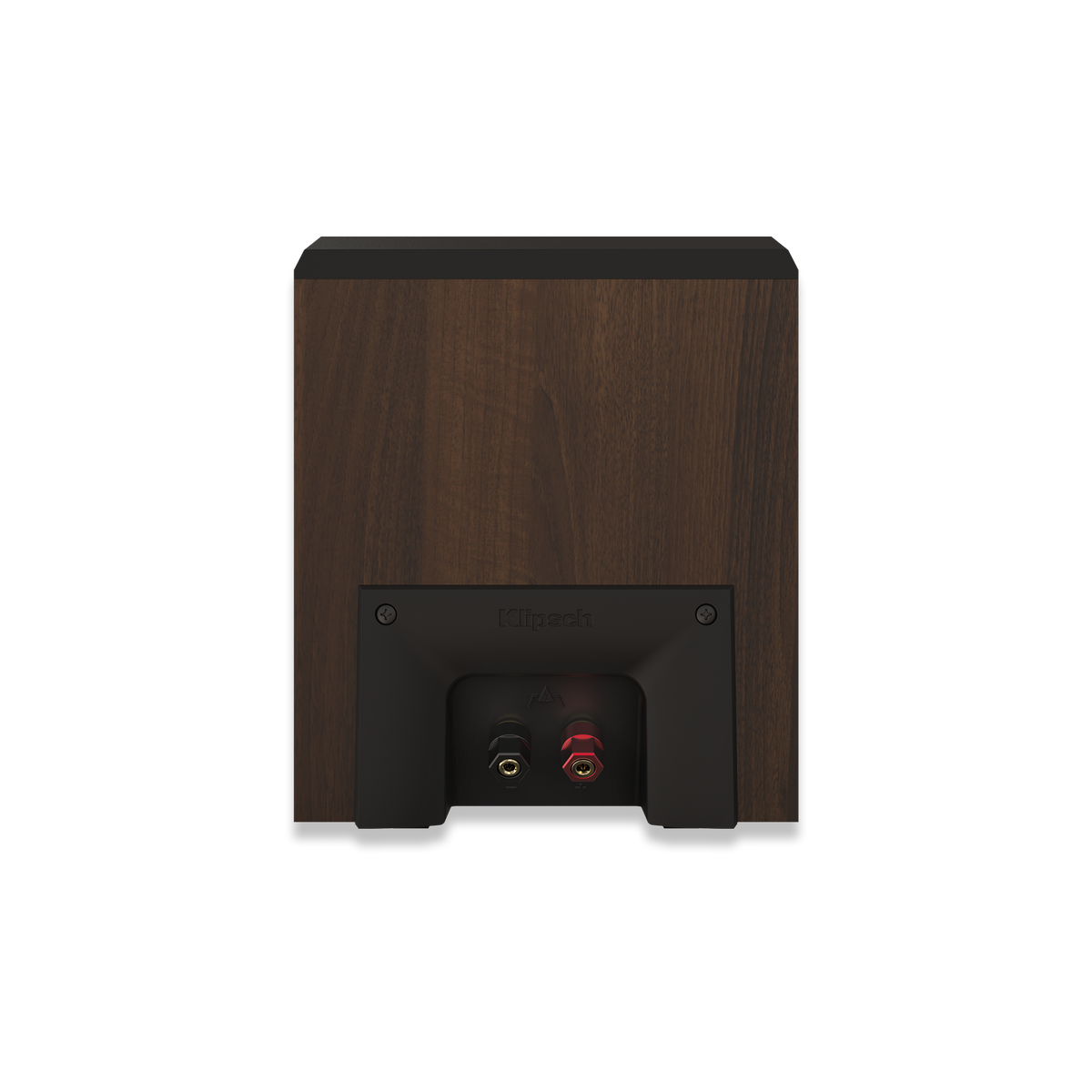

| Inputs | Single Binding Posts |
| Physical | |
|---|---|
| Height | 8.53" (21.7 cm) |
| Width | 6.81" (17.3 cm) |
| Depth | 12.60" (32.0 cm) |
| Weight | 9.6lb (4.35kg) |
| Finish | Walnut |
| Included Accessories | Rubber Feet (8), Dolby Atmos jumpers (2) for use with Reference Premiere floorstanding speakers |
Specifications subject to change.
