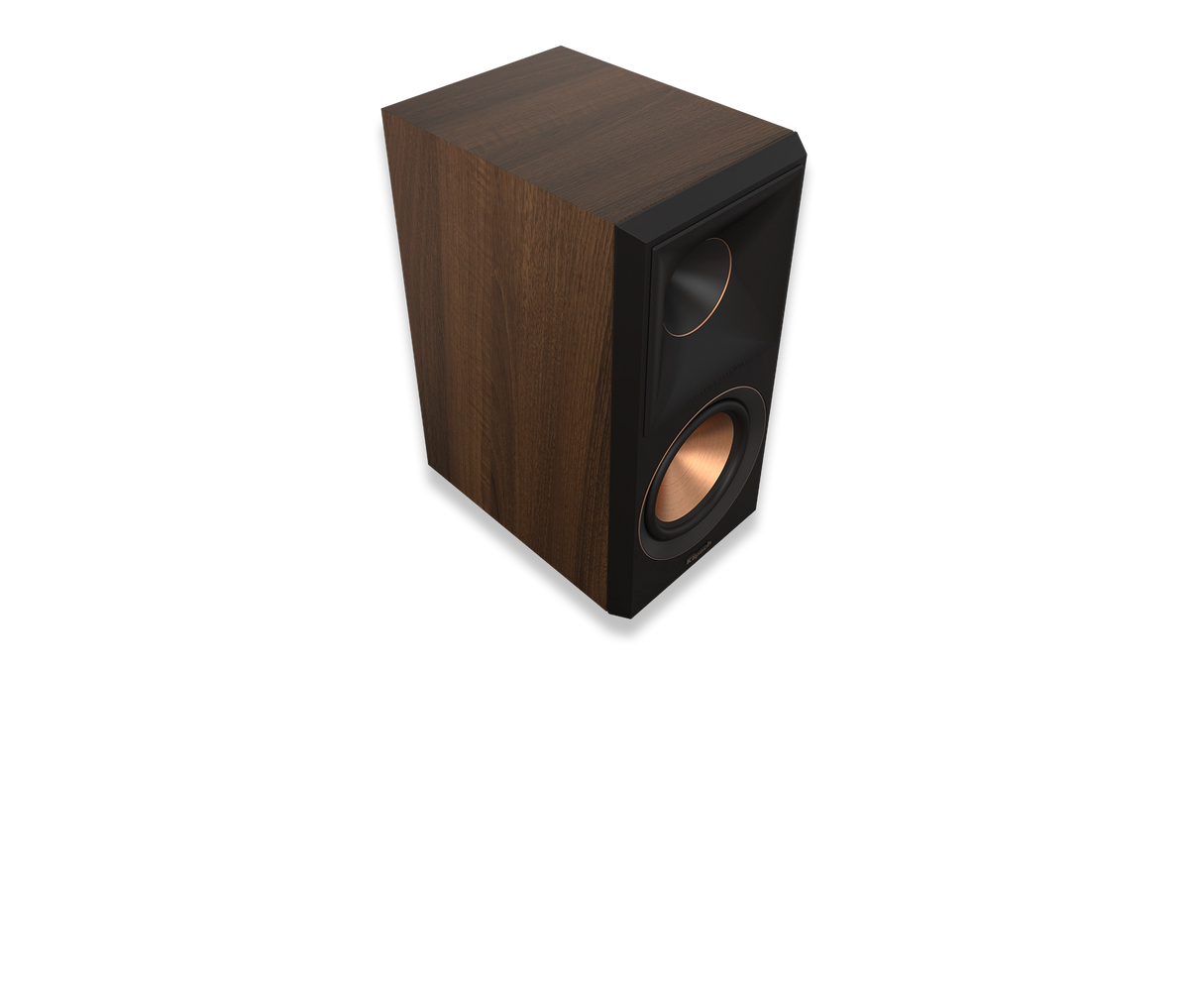

Klipsch RP-500M II Walnut, Pair
Product Details
The Klipsch RP-500M II is a compact two-way bookshelf speaker with a 5.25" Cerametallic woofer, sold as a pair. At 13.56" tall it suits stands, shelves and desktops, and reaches 50Hz at 92dB sensitivity.
A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Cerametallic cone woofers are exceptionally rigid and light for their mass, which keeps cone break-up out of the passband. Faraday rings and aluminum shorting rings in the redesigned motor reduce distortion and increase power handling, with better transient control than the first-generation Reference Premiere.
Cork pads replace rubber bumpers on the base for secure placement on a stand or table. Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- 5.25" Cerametallic cone woofer; 50Hz – 25kHz +/- 3dB
- 92dB sensitivity; 75W / 300W power handling

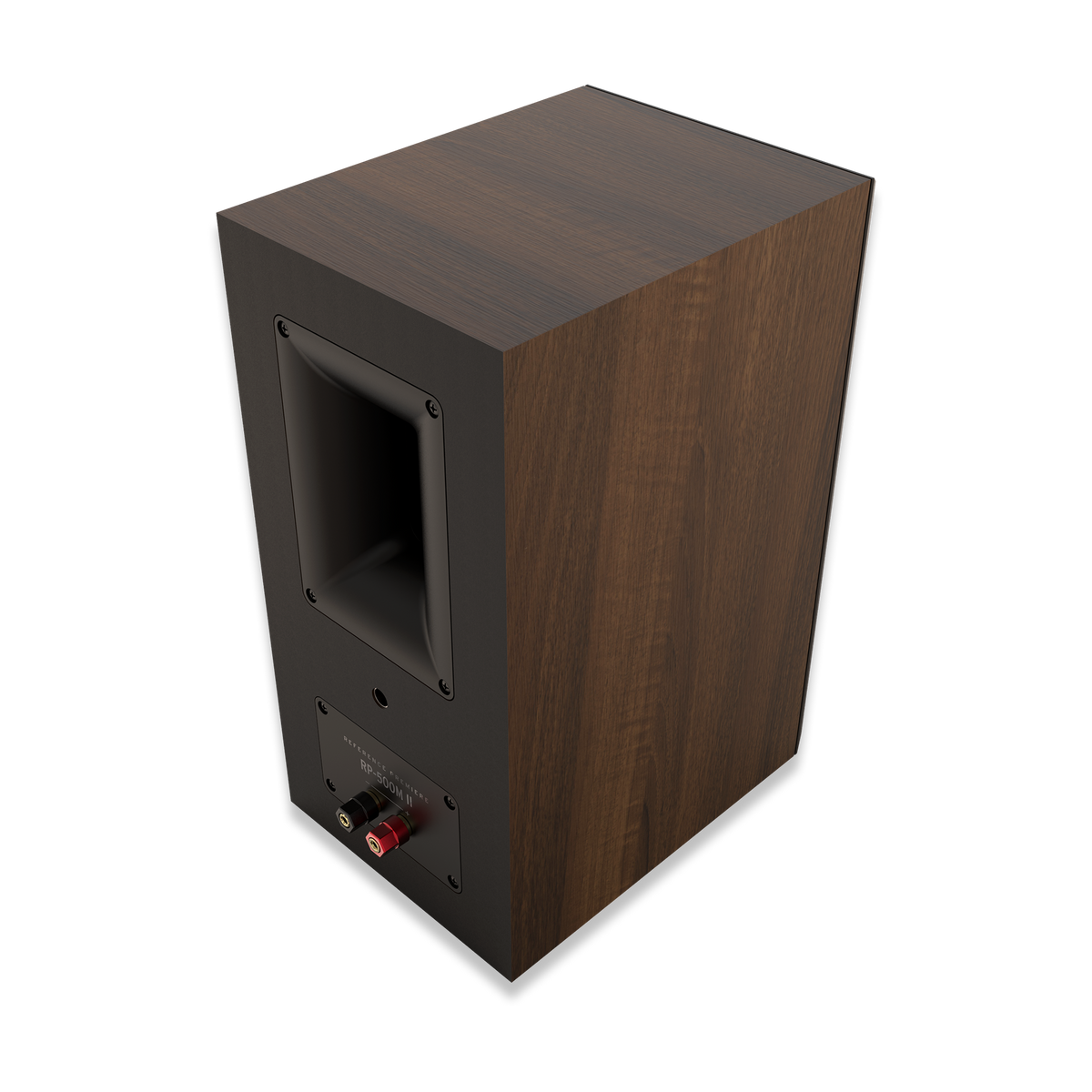

- Bass reflex via rear-firing Tractrix port
- Single aluminum binding posts
- Cork pads for secure placement on stands or shelves
- Sold as a pair
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle
- Magnetically attached, removable grille
- Scratch-resistant walnut vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 50-25kHz +/- 3dB |
| Sensitivity | 92dB @ 2.83V / 1m* |
| Power Handling (Cont/Peak) | 75W/300W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 1530Hz |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | 5.25" Cerametallic Cone Woofer with Faraday rings |
| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Bass Reflex via rear-firing Tractrix® Port |
| Inputs | Single aluminum binding posts |
| Physical | |
|---|---|
| Height | 13.56" (34.4 cm) |
| Width | 6.81" (17.3 cm) |
| Depth | 10.65" (27.0 cm) |
| Weight | 13.1lb (5.95kg) |
| Finish | Walnut |
Specifications subject to change.
