Description
Klipsch RP-500C II Walnut, Each
Product Details

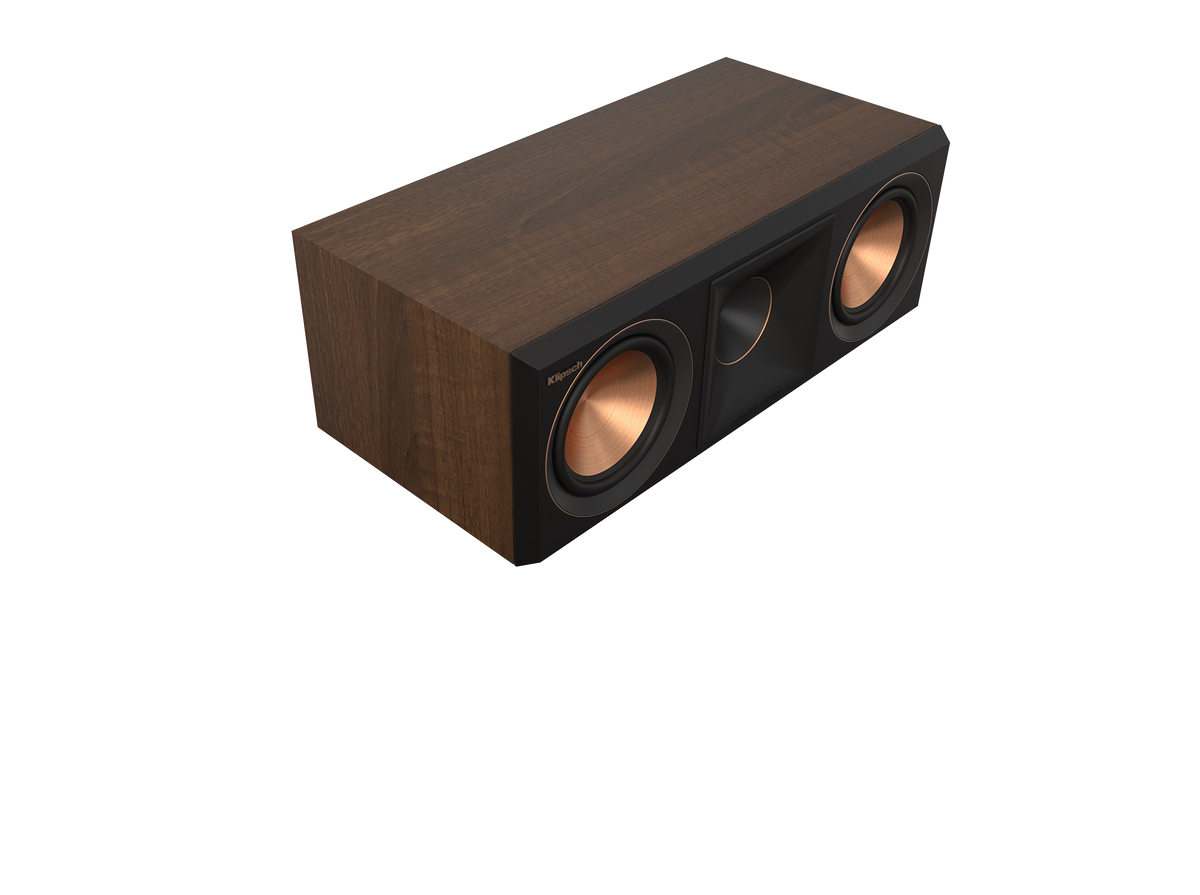

The Klipsch RP-500C II is the compact center channel of the Reference Premiere II line, with dual 5.25" Cerametallic woofers either side of the Tractrix horn. At 6.87" tall and 19.34" wide it fits under a television or inside a media cabinet where the larger RP-504C II will not.
A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Behind the horn is Klipsch's Linear Travel Suspension titanium diaphragm tweeter. LTS minimizes distortion by keeping the diaphragm's motion linear through its travel — a hallmark of every Reference line Klipsch has built.

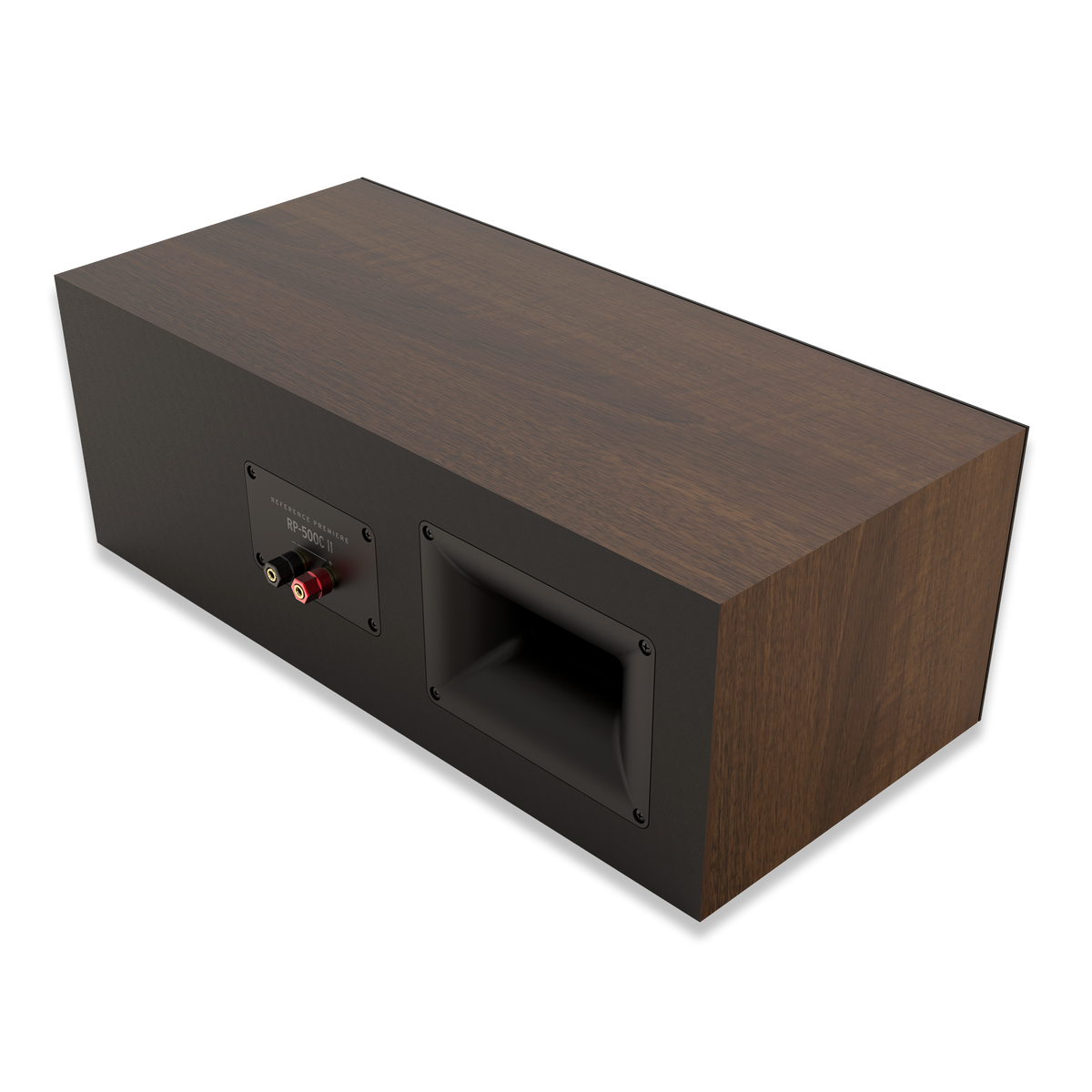

A rear-firing Tractrix port takes response down to 56Hz. Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- Dual 5.25" Cerametallic cone woofers; 56Hz – 25kHz +/- 3dB
- 94dB sensitivity; 100W / 400W power handling
- Bass reflex via rear-firing Tractrix port
- Compact 6.87" H x 19.34" W cabinet
- Angle screw included for aiming toward the listening position
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle
- Magnetically attached, removable grille
- Scratch-resistant walnut vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 56-25kHz +/- 3dB |
| Sensitivity | 94dB @ 2.83V / 1m* |
| Power Handling (Cont/Peak) | 100W/400W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 1630Hz |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | Dual 5.25" Cerametallic™ Cone Woofers with Faraday rings |
| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Bass Reflex via rear-firing Tractrix® Port |
| Inputs | Single aluminum binding posts |
| Physical | |
|---|---|
| Height | 6.87" (17.4 cm) |
| Width | 19.34" (49.1 cm) |
| Depth | 10.58" (26.9 cm) |
| Weight | 18.3lb (8.30kg) |
| Finish | Walnut |
| Included Accessories | Angle screw |
Specifications subject to change.
