Klipsch RP-5000F II Ebony, Each
Product Details

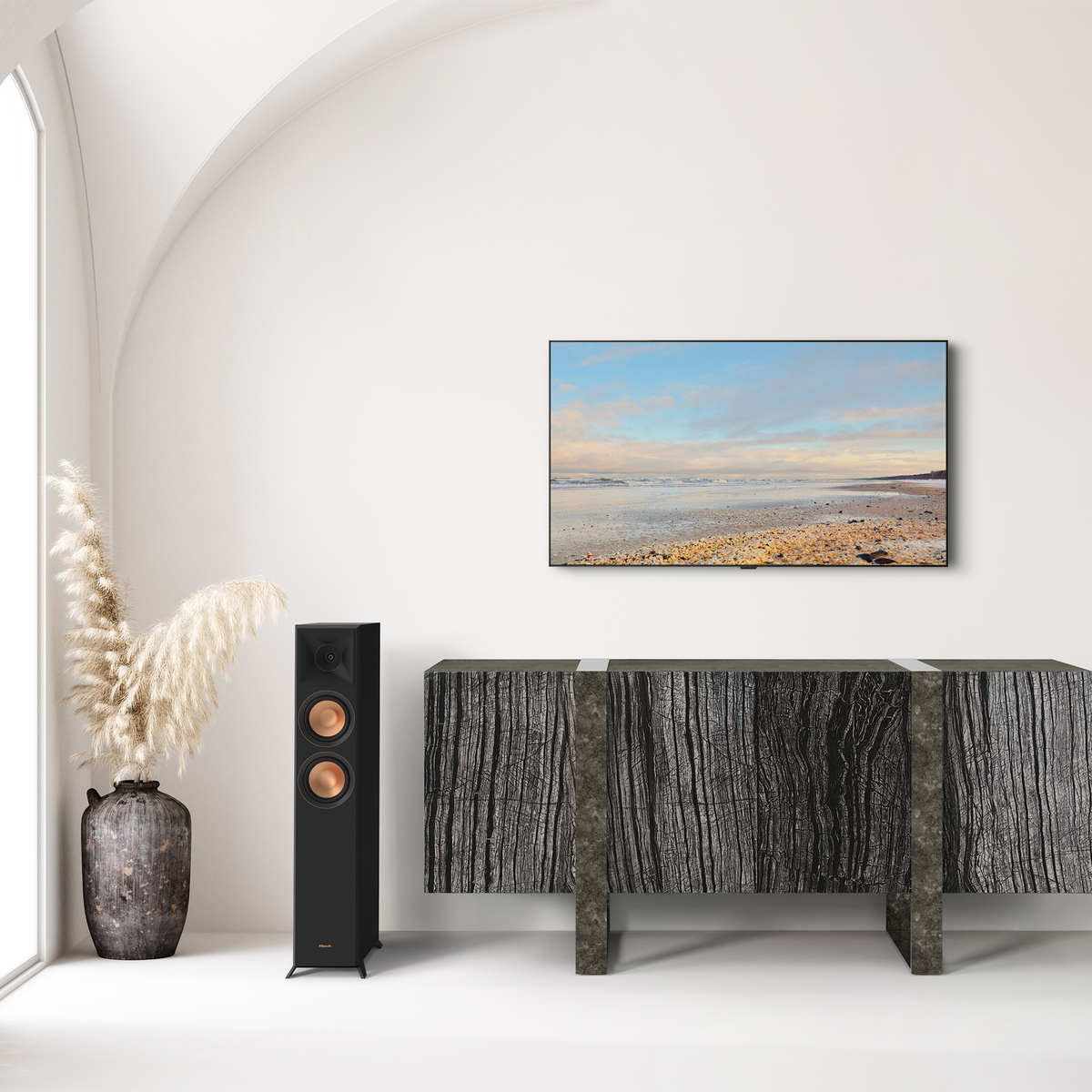

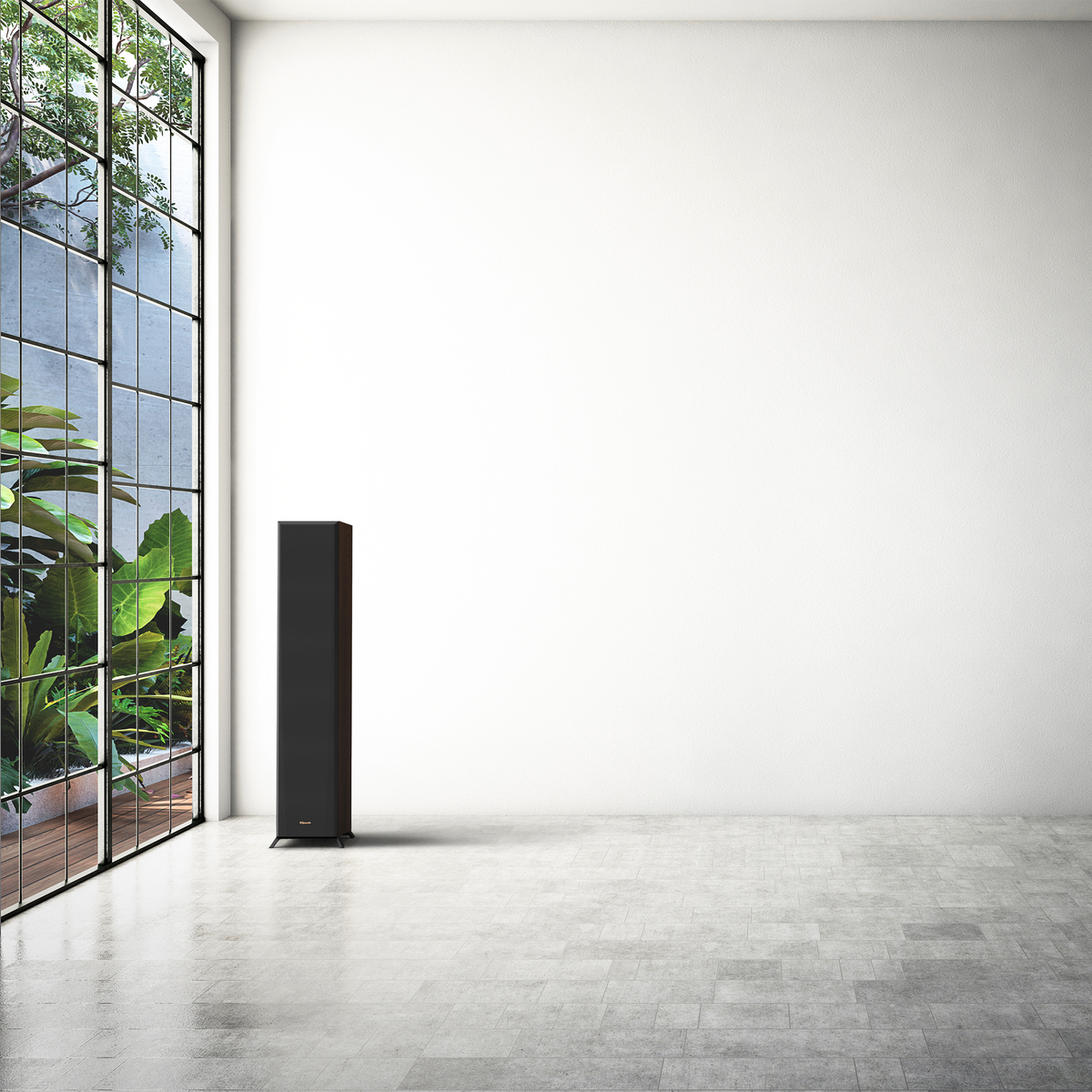

The Klipsch RP-5000F II is a two-way floorstanding speaker with dual 5.25" Cerametallic woofers, the compact tower in the Reference Premiere II line. It reaches 40Hz at 95dB sensitivity in a cabinet narrow enough for rooms where a full-size tower will not fit.

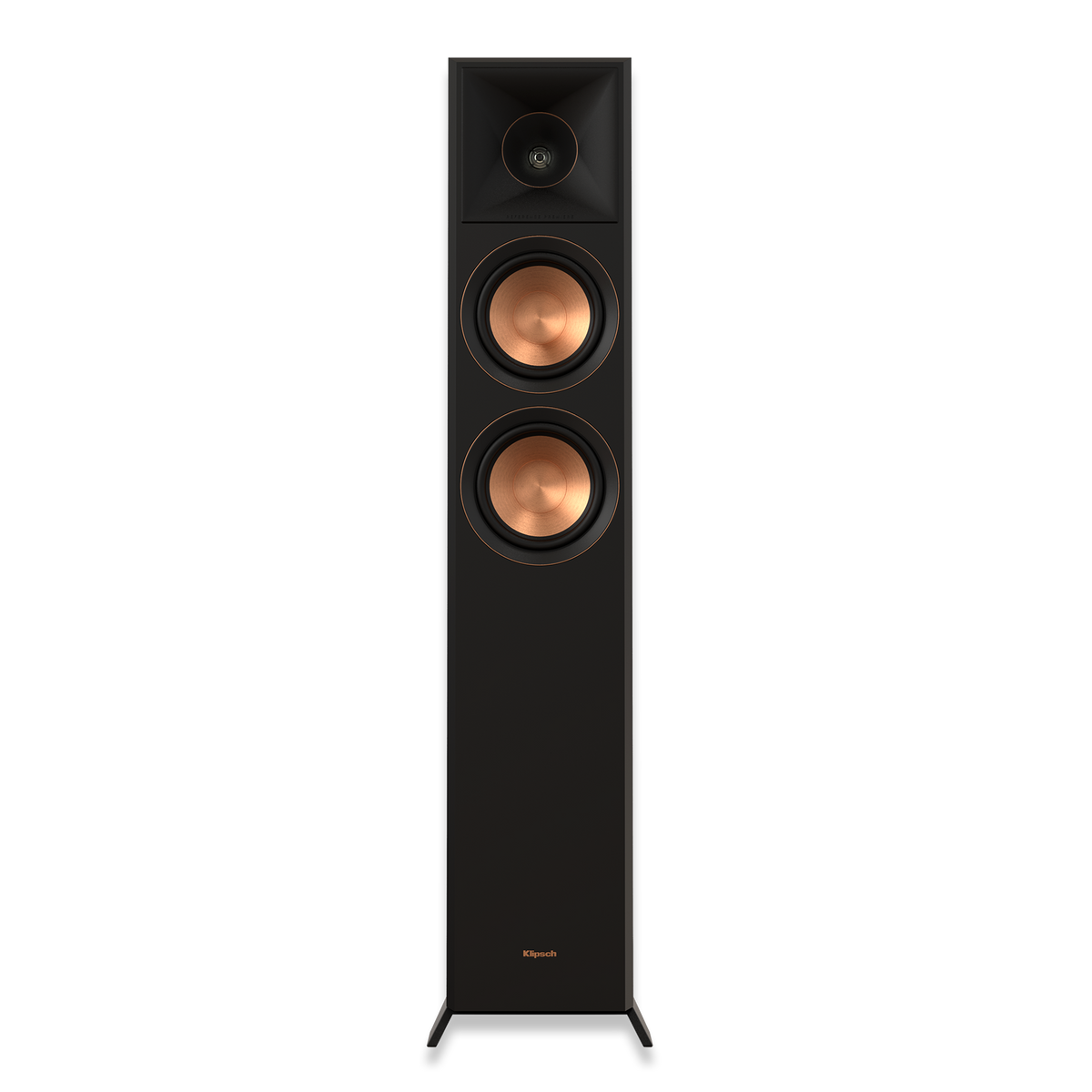

A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Cerametallic cone woofers are exceptionally rigid and light for their mass, which keeps cone break-up out of the passband. Faraday rings and aluminum shorting rings in the redesigned motor reduce distortion and increase power handling, with better transient control than the first-generation Reference Premiere.
Dual aluminum binding posts allow bi-wiring or bi-amping, and include Dolby Atmos passthrough for feeding a Klipsch RP-500SA II elevation speaker placed on top of the cabinet. Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- Dual 5.25" Cerametallic cone woofers; 40Hz – 25kHz +/- 3dB
- 95dB sensitivity; 100W / 400W power handling

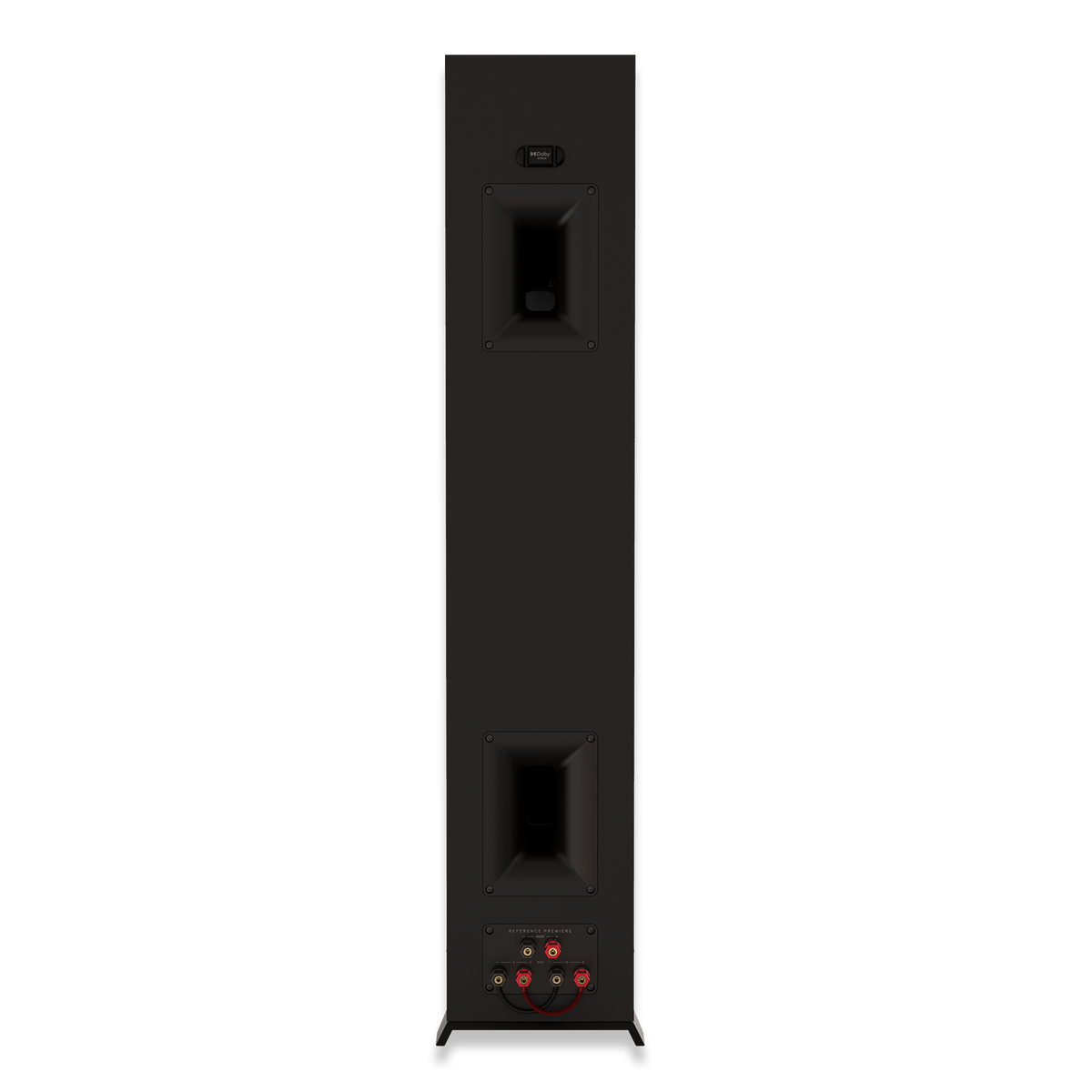

- Bass reflex via dual-chamber rear-firing Tractrix ports
- Dual binding posts for bi-wiring / bi-amping with Dolby Atmos passthrough
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle

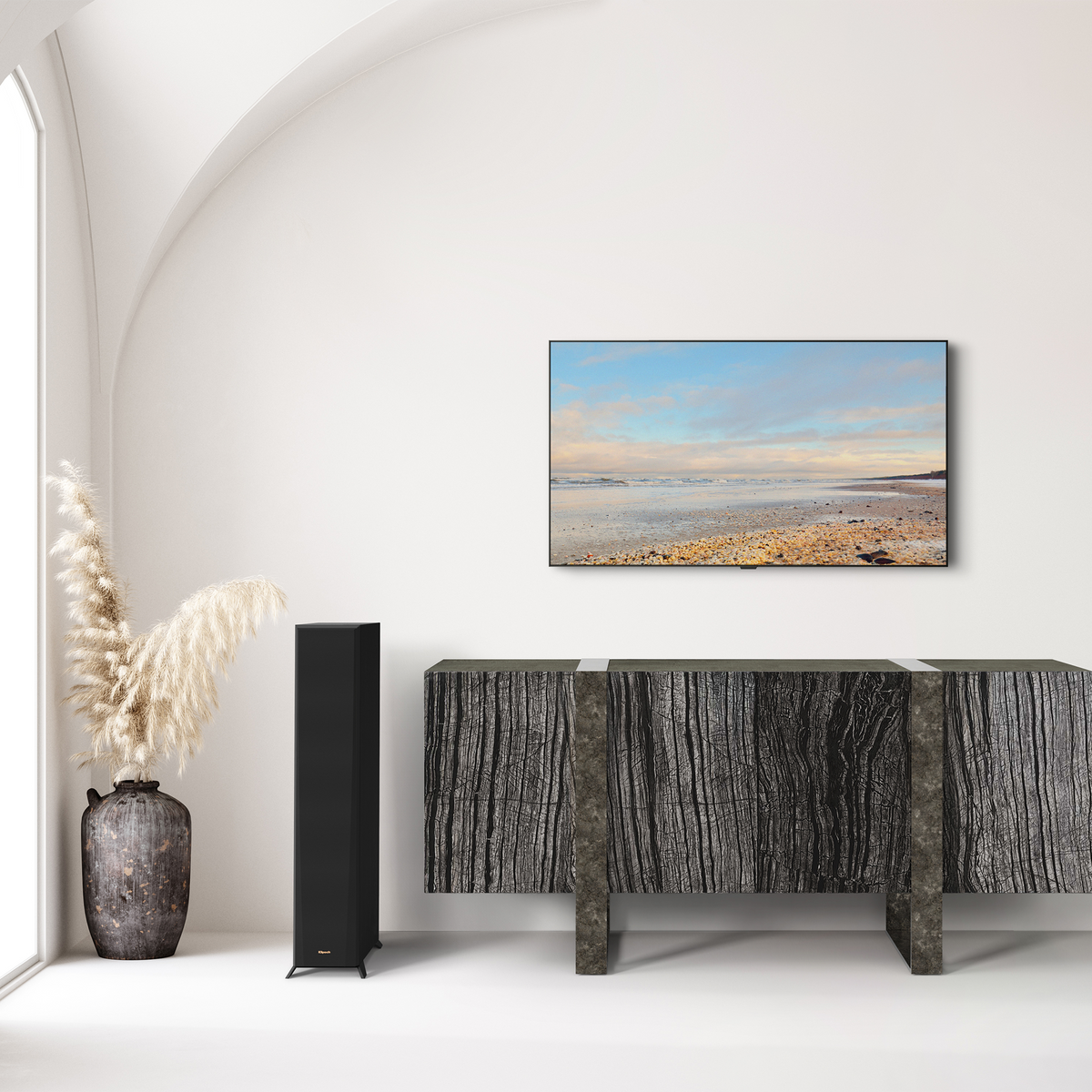

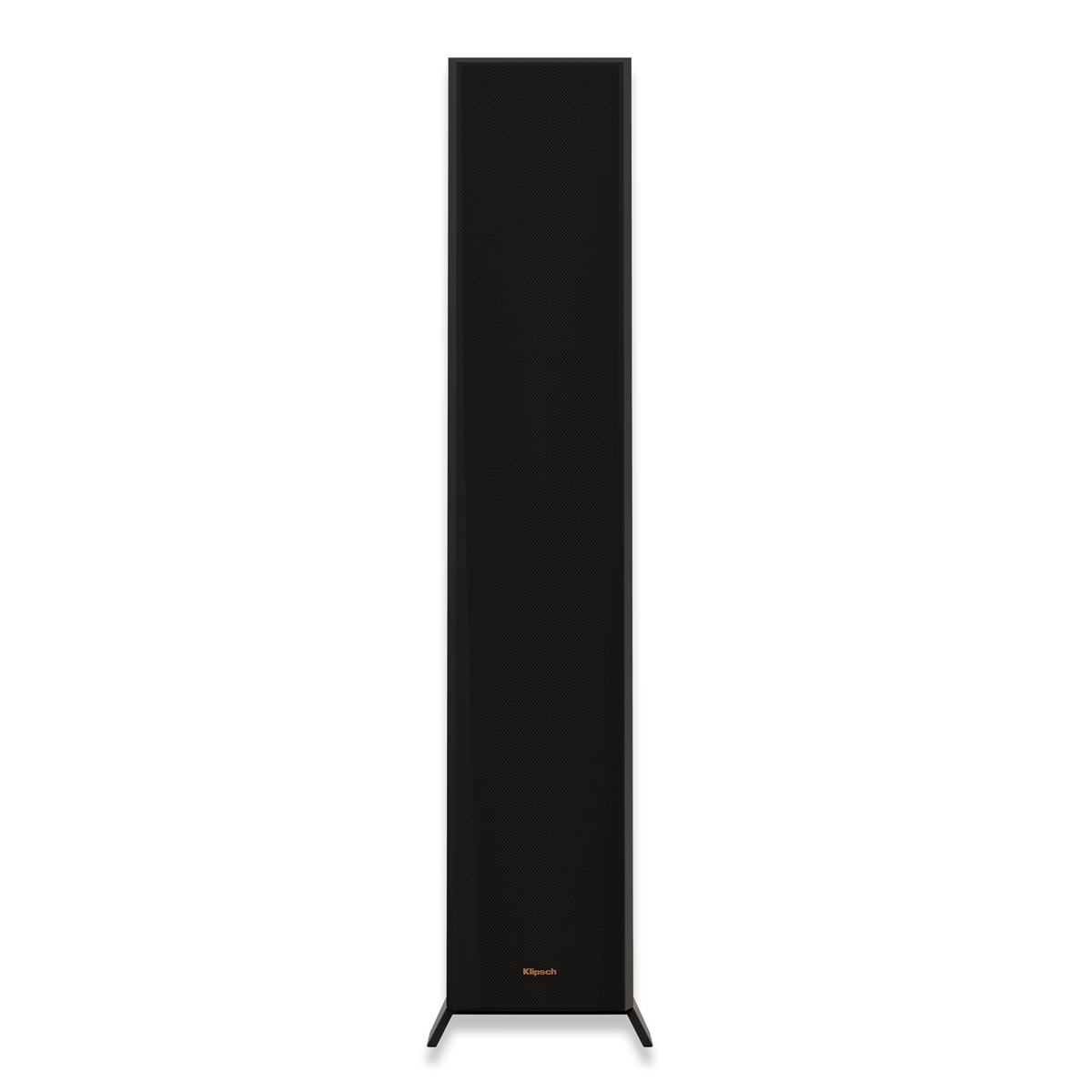

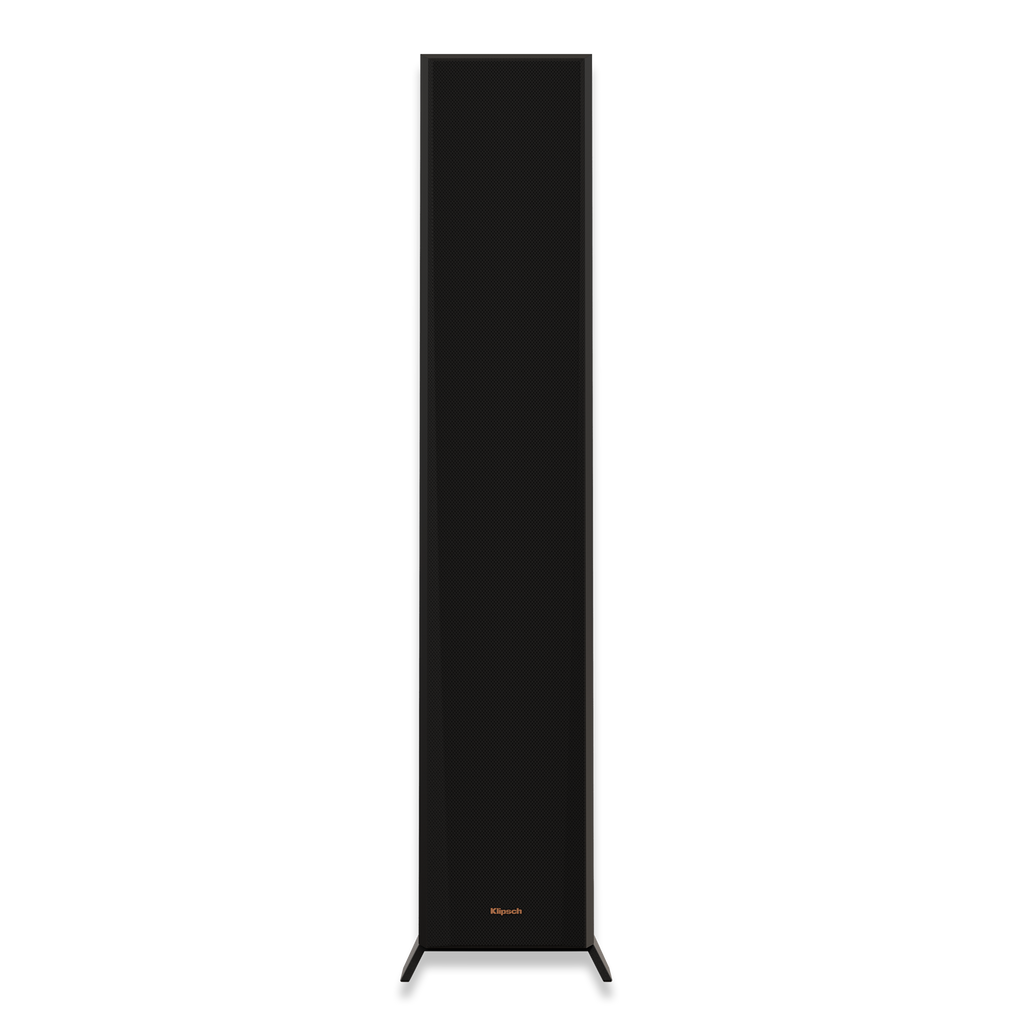

- Magnetically attached, removable grille
- Scratch-resistant ebony vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 40-25kHz +/- 3dB |
| Sensitivity | 95dB @ 2.83V / 1m* |
| Power Handling (Cont/Peak) | 100W / 400W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 1900Hz |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | Dual 5.25" Cerametallic Cone Woofers with Faraday rings |

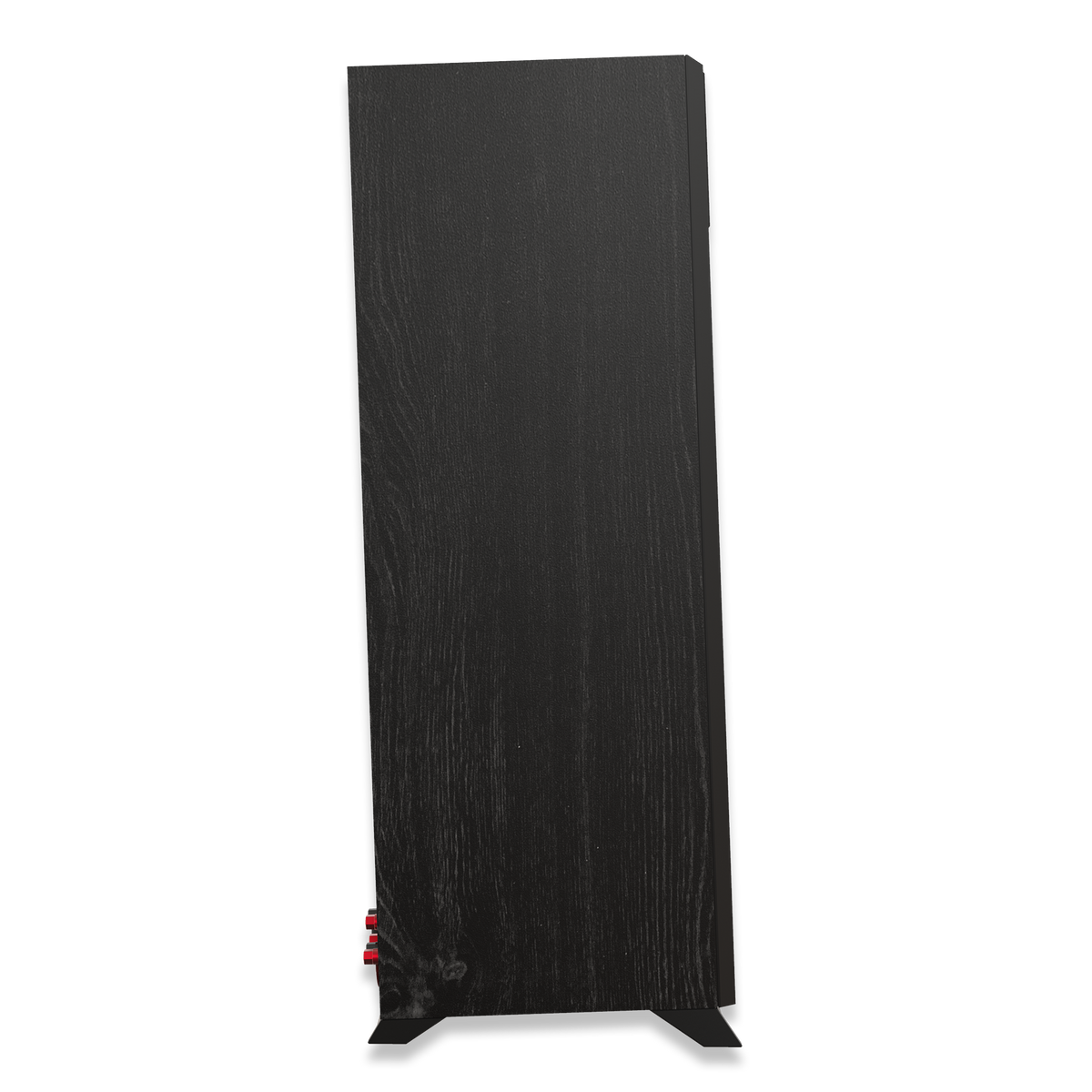

| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Bass Reflex via dual chamber rear-firing Tractrix® Ports |

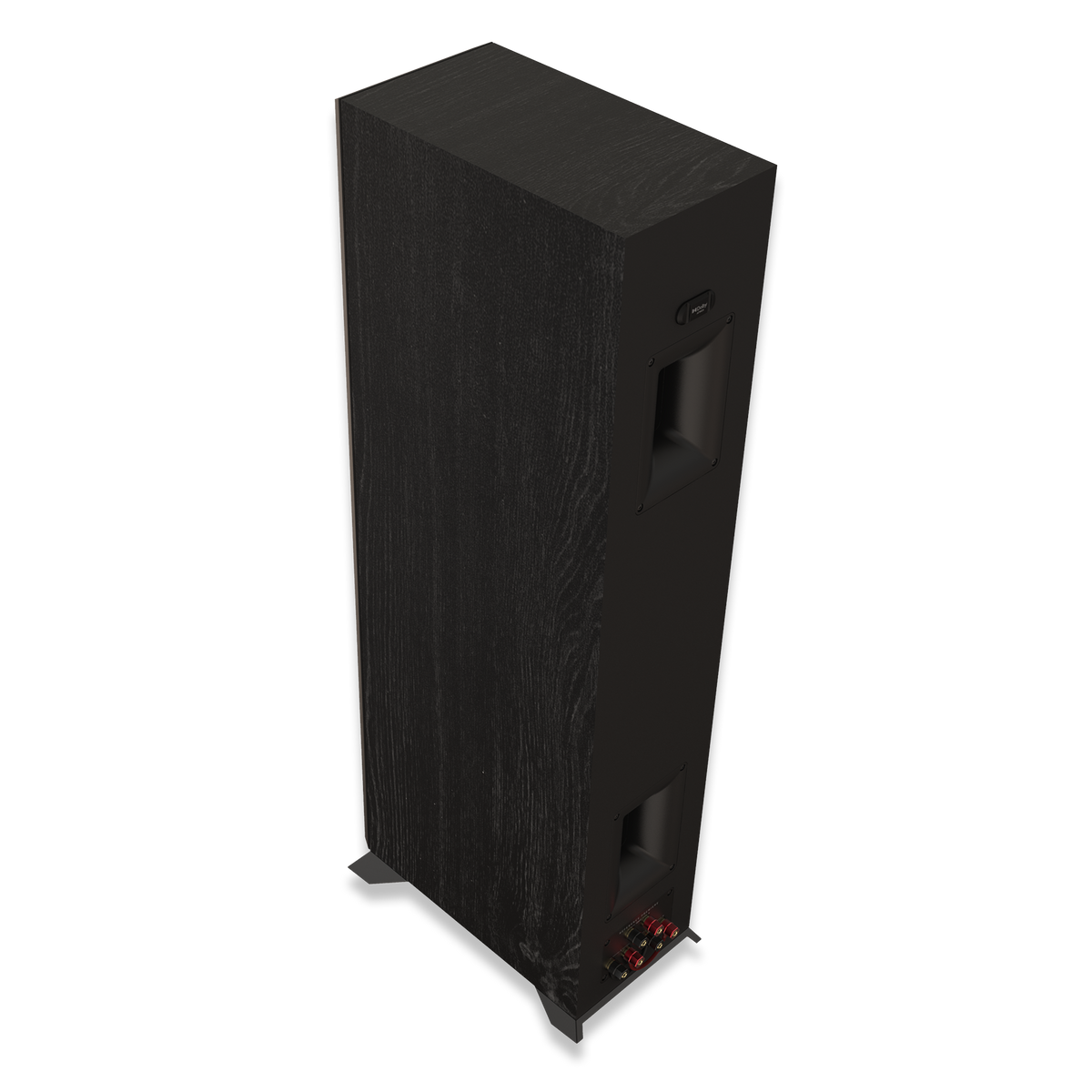

| Inputs | Dual aluminum binding posts / bi-wire / bi-amp with Dolby Atmos® passthrough |
| Physical | |
|---|---|
| Height | 36.10 (91.7 cm) |
| Width | 8.15" (20.7 cm) |
| Depth | 14.75" (37.5 cm) |
| Weight | 38.6lb (17.55kg) |
| Finish | Ebony |
Specifications subject to change.
