Klipsch RP-404C II Ebony, Each
Product Details

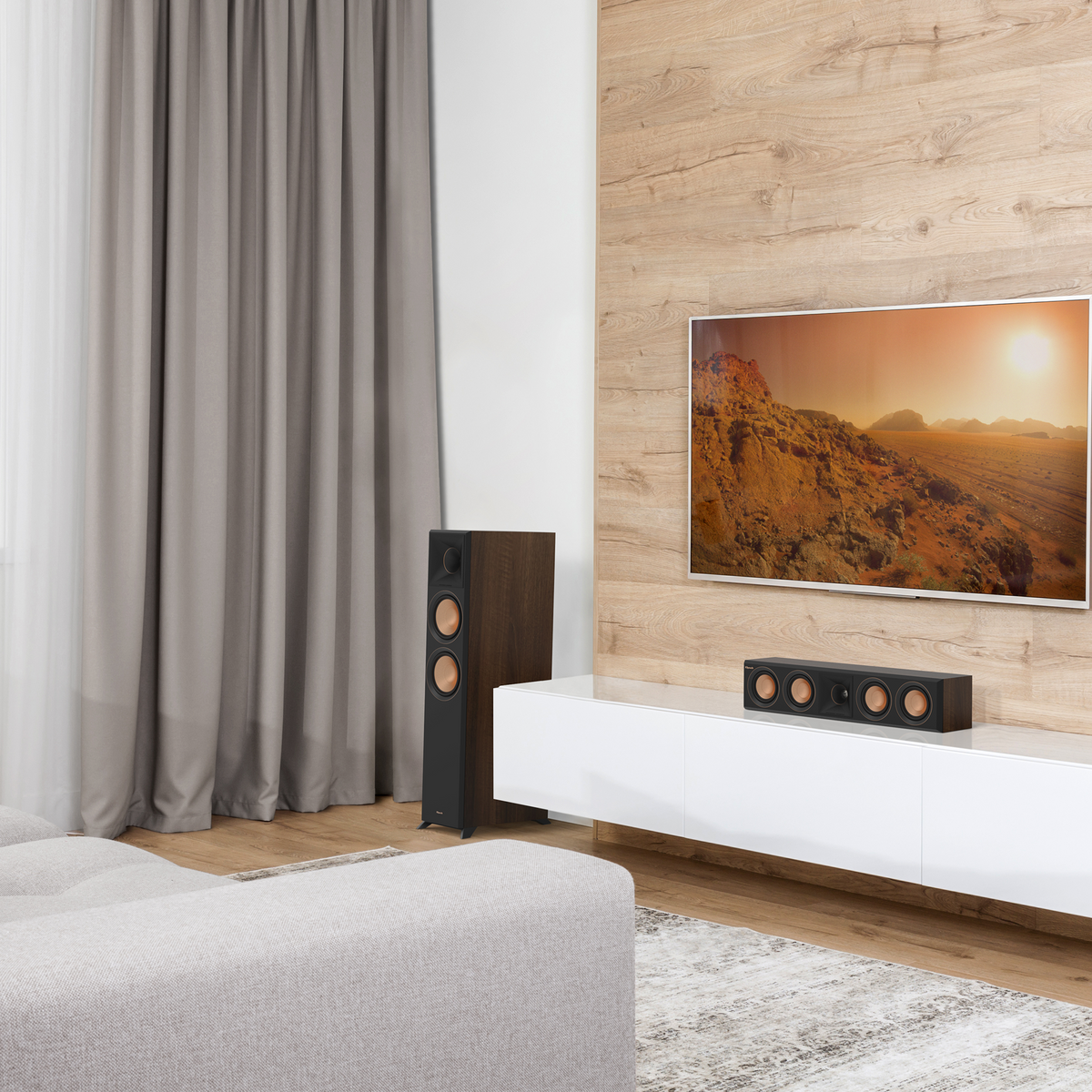

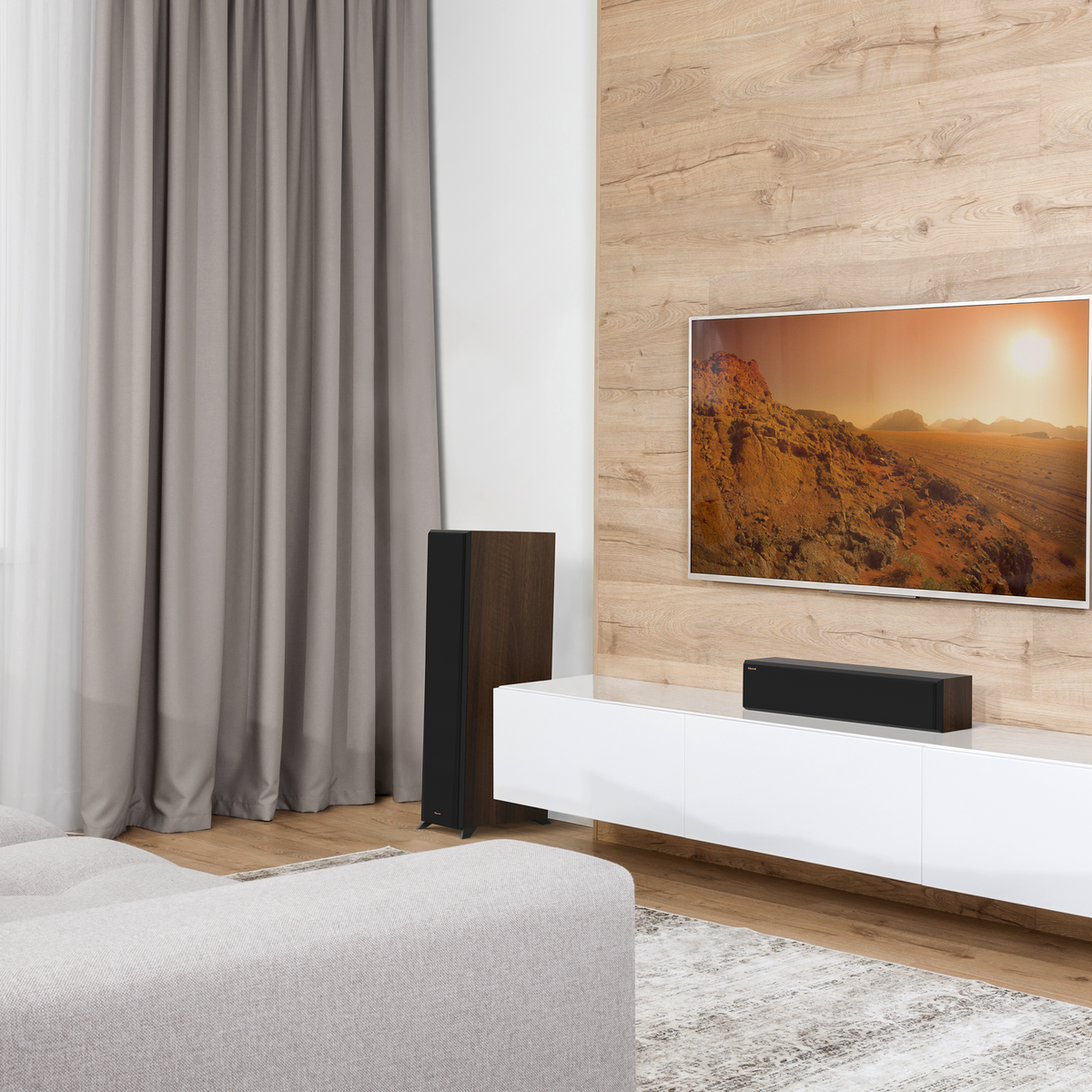

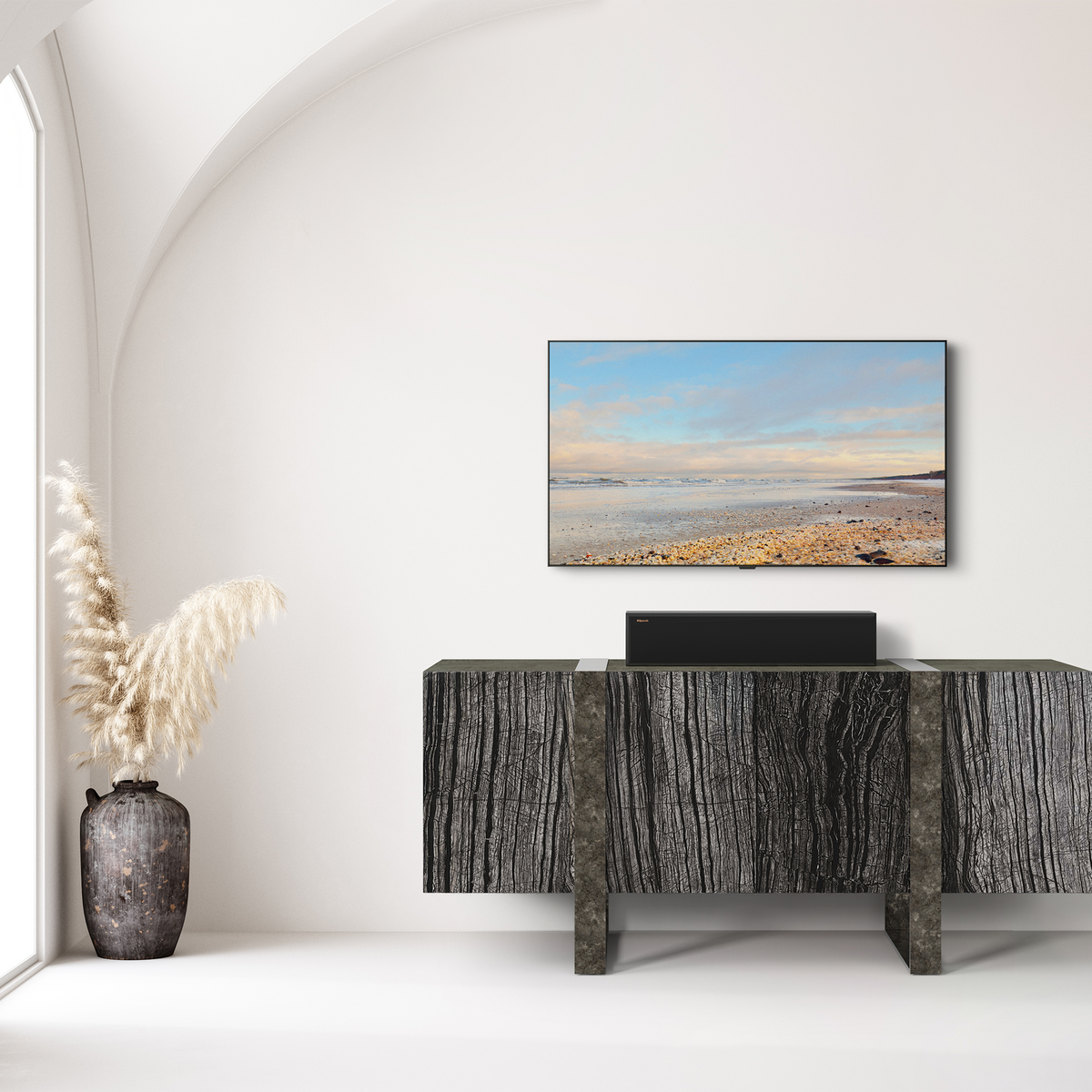

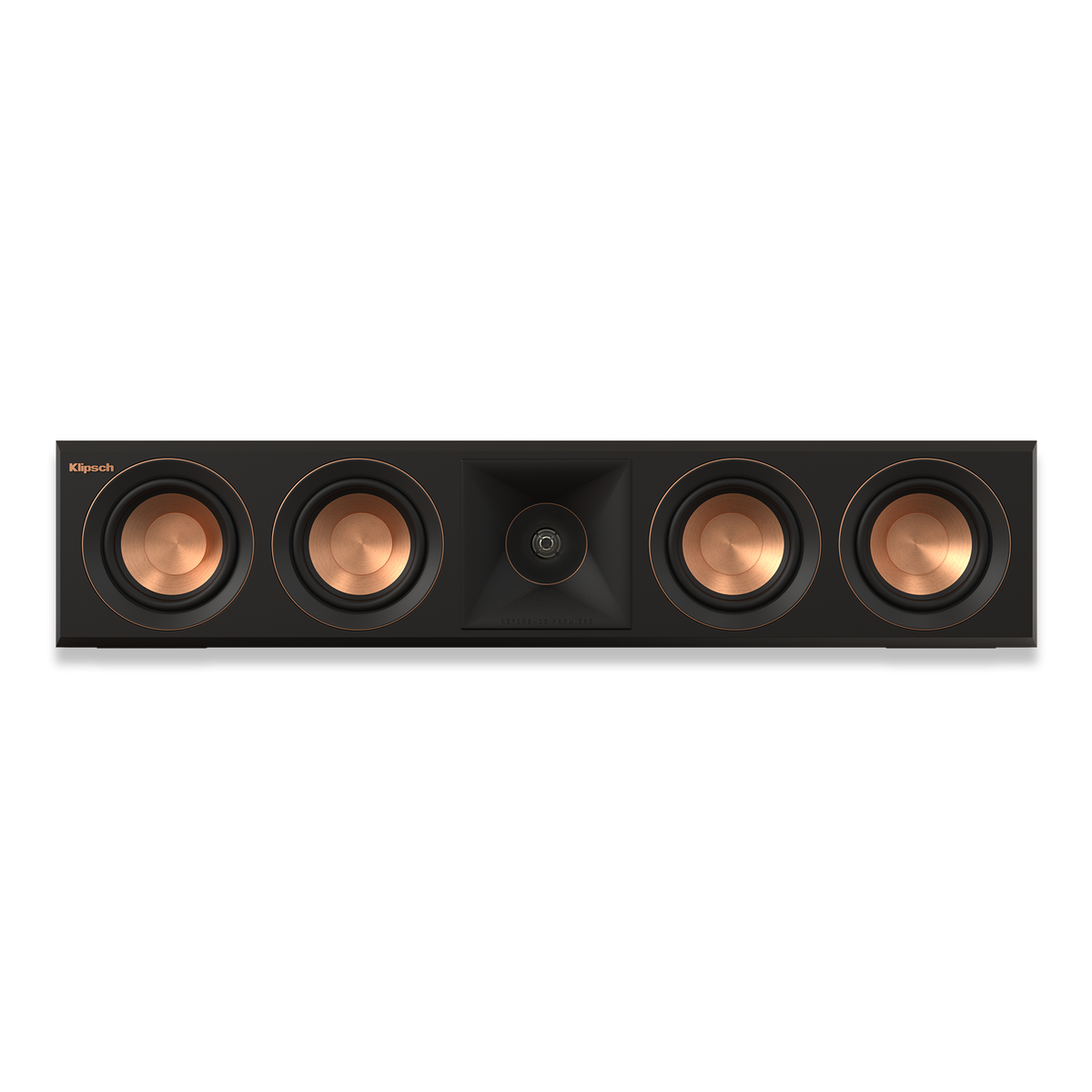

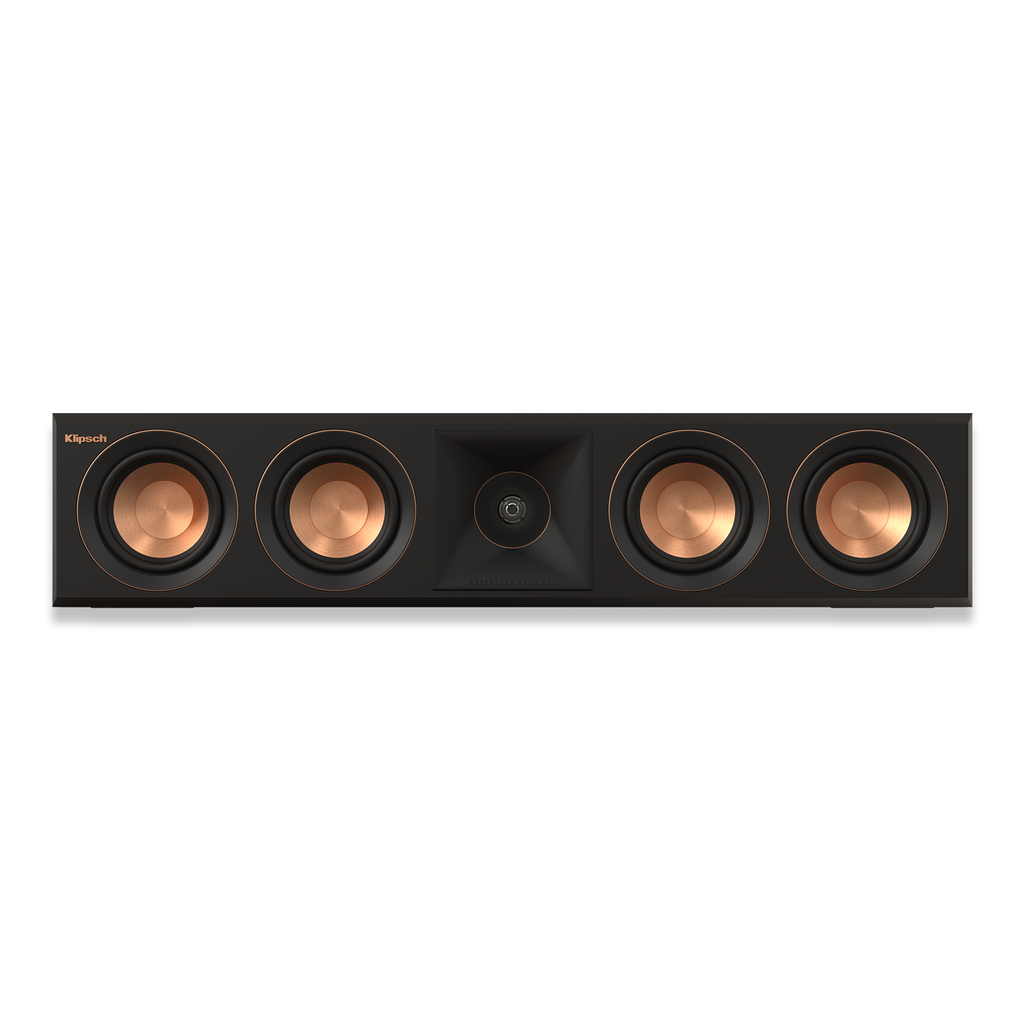

The Klipsch RP-404C II is a slim sealed center channel with quad 4" Cerametallic woofers. At 5.72" tall and 6.47" deep it is built for tight spaces — under a wall-mounted television or on a shallow shelf — while still presenting four woofers to the room for 94dB sensitivity and 125W / 500W power handling.
A 90° x 90° silicon composite hybrid Tractrix horn sits at the center of the design. Horn loading raises efficiency and focuses high frequencies toward the listening position, while the phase plug and compression-molded silicon face keep the response smooth. The second-generation horn is larger than the original Reference Premiere, widening the soundstage and improving directivity.
Behind the horn is Klipsch's Linear Travel Suspension titanium diaphragm tweeter. LTS minimizes distortion by keeping the diaphragm's motion linear through its travel — a hallmark of every Reference line Klipsch has built.
Unlike the ported RP-500C II and RP-504C II, the RP-404C II uses a sealed enclosure, which keeps it predictable when placed close to a wall or inside a cabinet where a port would be loaded unevenly. Cabinets are internally braced MDF in scratch-resistant ebony vinyl with satin-painted baffles. The grille is magnetically attached and fully removable, so the speaker moves between showpiece and discreet without hardware on the baffle.
Features
- Quad 4" Cerametallic cone woofers; 87Hz – 25kHz +/- 3dB
- 94dB sensitivity; 125W / 500W power handling
- Sealed enclosure — predictable near walls and in cabinets
- Dual crossover points at 650Hz / 1900Hz
- Slim 5.72" H x 6.47" D cabinet
- Angle screw included for aiming toward the listening position
- 90° x 90° silicon composite hybrid Tractrix horn — larger second-generation horn
- 1" Titanium LTS vented tweeter for low distortion and extended high frequencies
- Cerametallic cone woofers with Faraday rings and aluminum shorting rings
- Vented tweeter housing reduces standing waves behind the diaphragm
- Internally braced MDF cabinet with satin-painted baffle

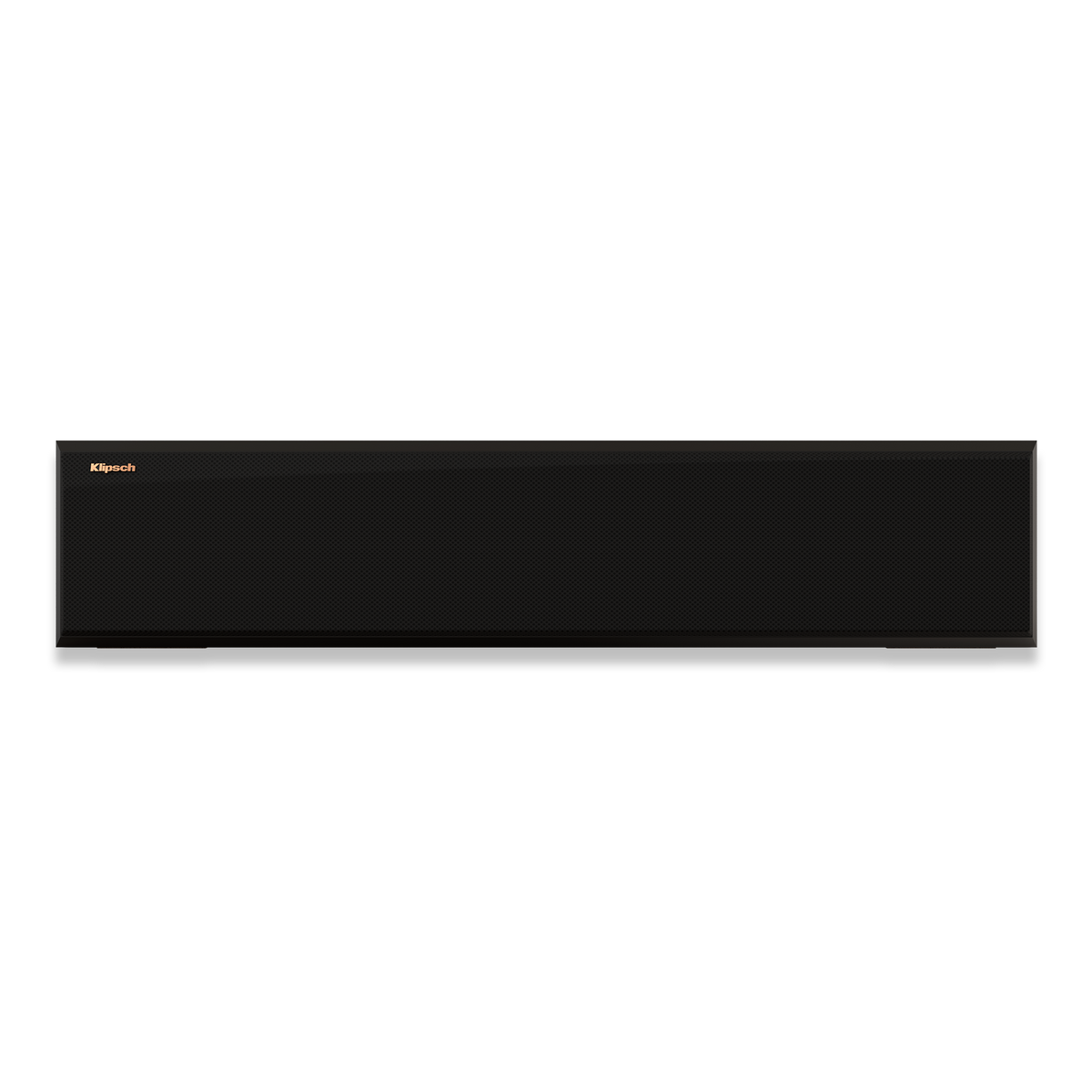

- Magnetically attached, removable grille
- Scratch-resistant ebony vinyl finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 87-25kHz +/- 3dB |
| Sensitivity | 94dB @ 2.83V / 1m* |
| Power Handling (Cont/Peak) | 125W/500W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 650Hz/1900Hz |
| High Frequency Driver | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver | Quad 4" Cerametallic™ Cone Woofers with Faraday rings |
| Enclosure Material | MDF (Internally Braced) |
| Enclosure Type | Sealed |

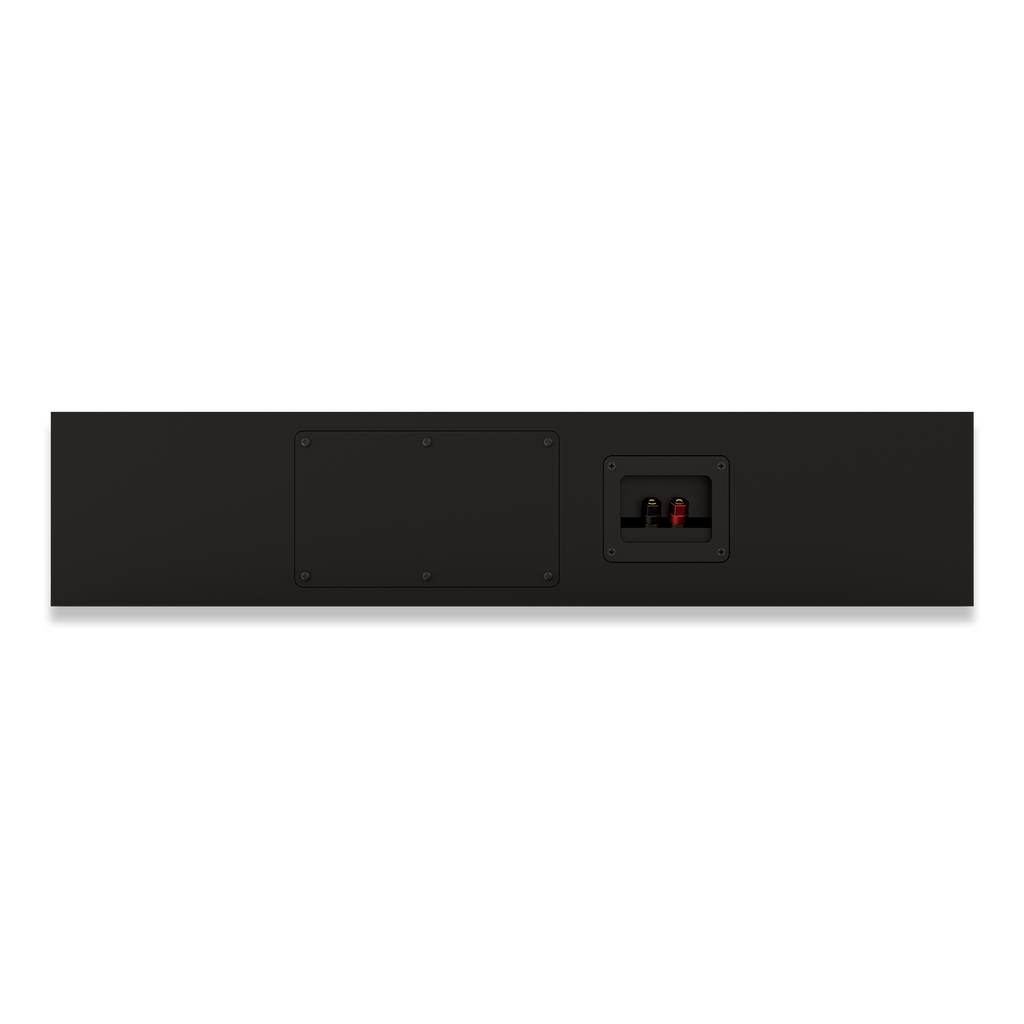

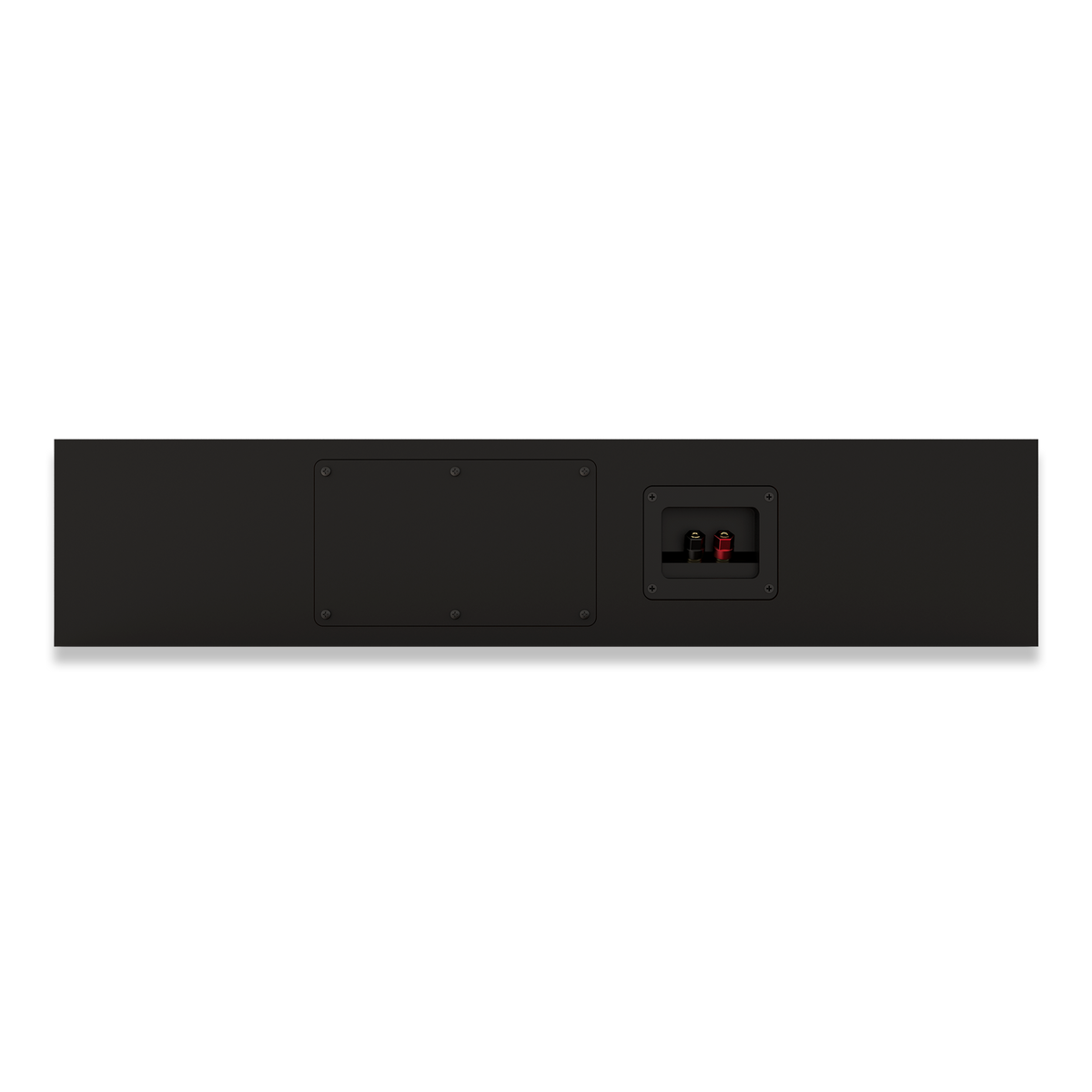

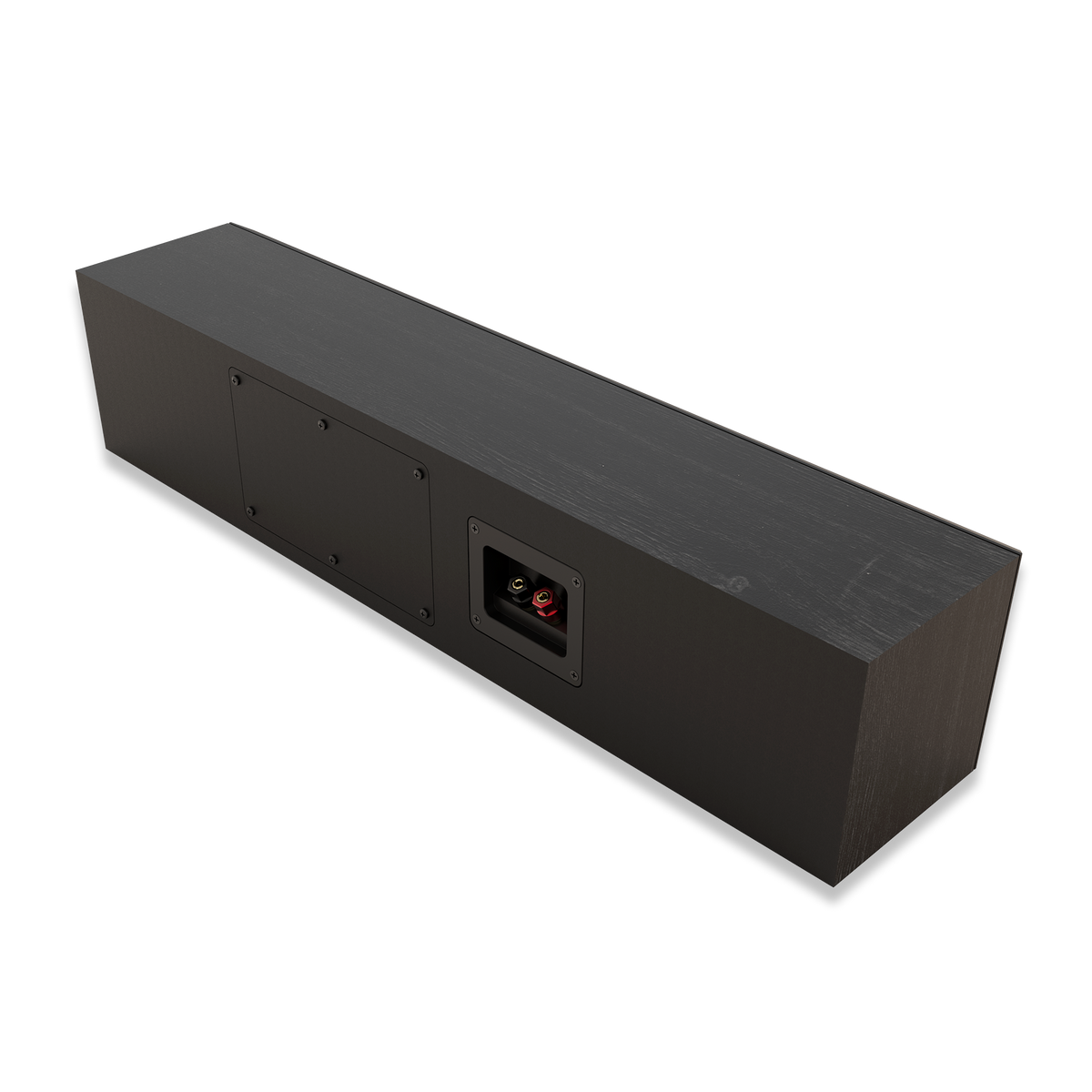

| Inputs | Single aluminum binding posts |
| Physical | |
|---|---|
| Height | 5.72" (14.5 cm) |
| Width | 26.85" (68.2 cm) |
| Depth | 6.47" (16.4 cm) |
| Weight | 20.3lb (9.25kg) |
| Finish | Ebony |
| Included Accessories | Angle screw |
Specifications subject to change.
