Description

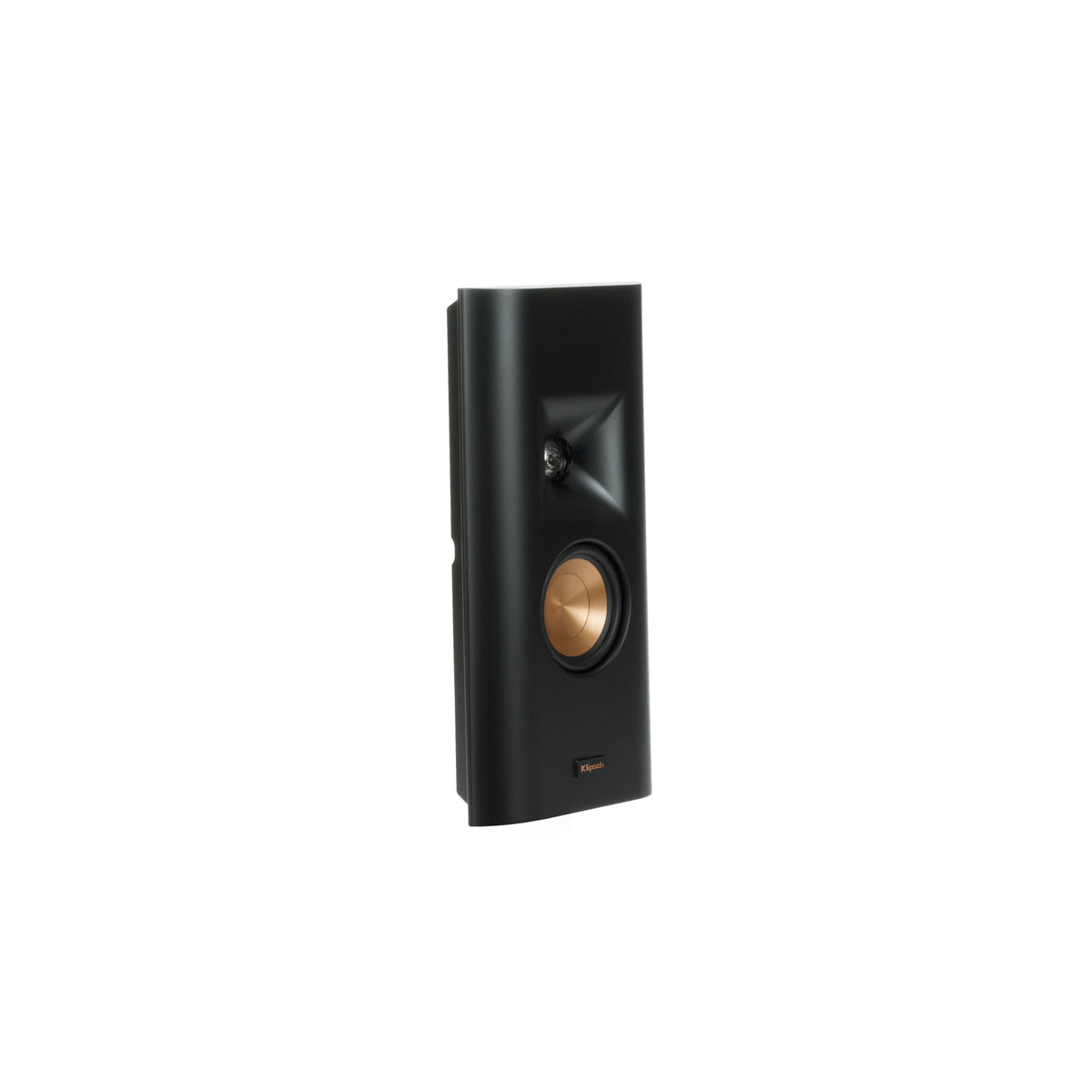

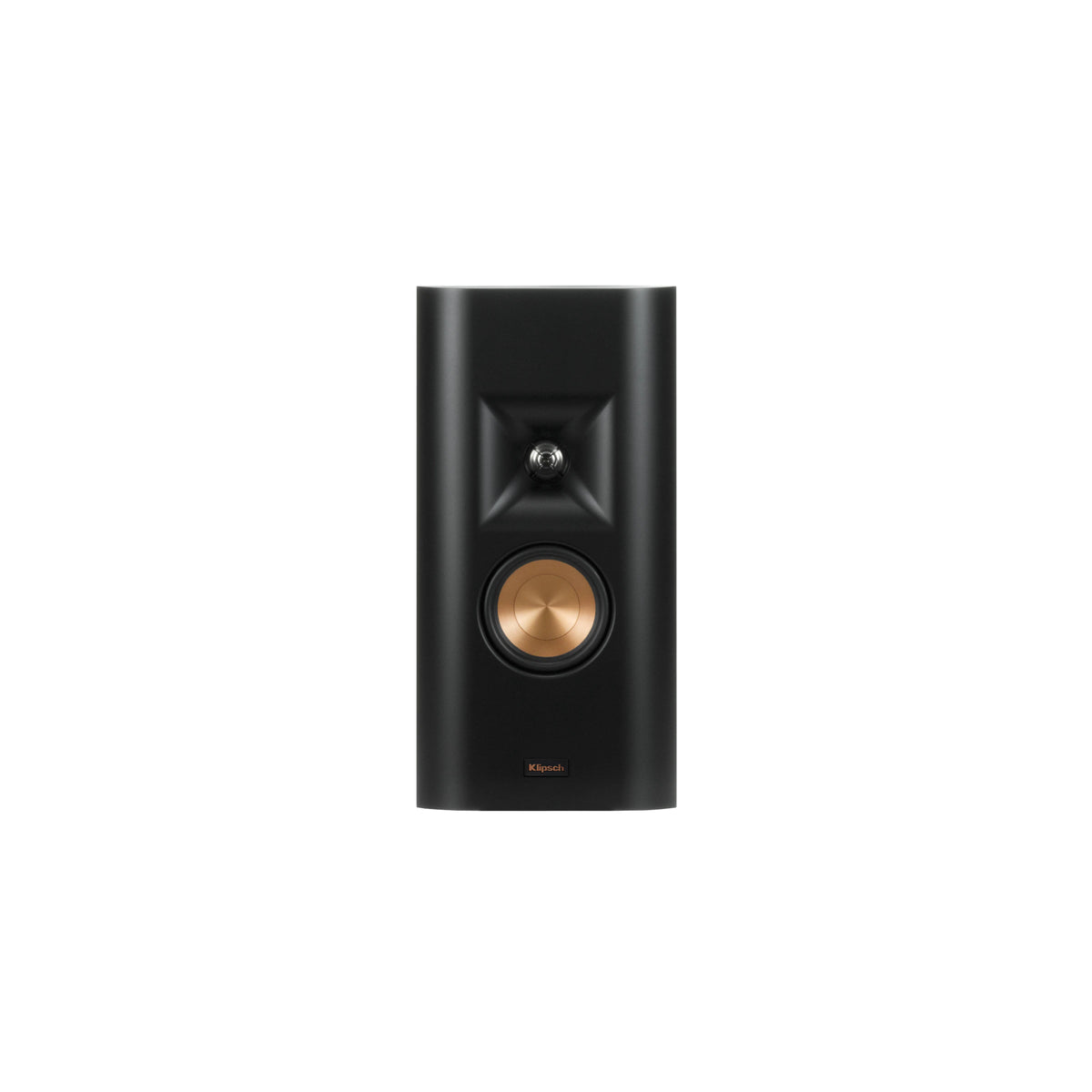

Klipsch RP-140D Black, Each
Product Details
The RP-140D is part of the Reference Premiere Designer on-wall family: Reference Premiere sound in a cabinet only 2.4" deep. It is the speaker for a room where the performance target is high and the floor space is not available.
A 1" titanium dome LTS tweeter on a 90° x 90° Tractrix® horn sits with 3.5" (8.89 cm) Cerametallic cone woofers. The Linear Travel Suspension tweeter is the same part used in the Reference Premiere box line, and the Tractrix horn focuses high frequencies toward the listening area instead of scattering them around the room.
Dual four-way keyholes mount it vertically or horizontally, tight to the wall. The included glass base turns it into a table-top or shelf speaker — useful for a centre channel that has to sit on a credenza rather than hang. A wrap-around magnetic grille attaches without visible hardware, and the matte black finish is chosen to recede against contemporary interiors and electronics.
Features
- 1" (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn
- 3.5" (8.89 cm) Cerametallic Cone Woofers
- 69Hz-25kHz +/- 3dB frequency response
- 91dB @ 2.83V / 1m sensitivity
- 50W / 200W power handling
- Only 2.4" deep
- 1" titanium dome LTS tweeter with 90° x 90° Tractrix® horn
- Spun-copper Cerametallic™ cone drivers
- Mounts vertically or horizontally
- Dual four-way keyholes for tight-to-the-wall mounting
- Glass table base included

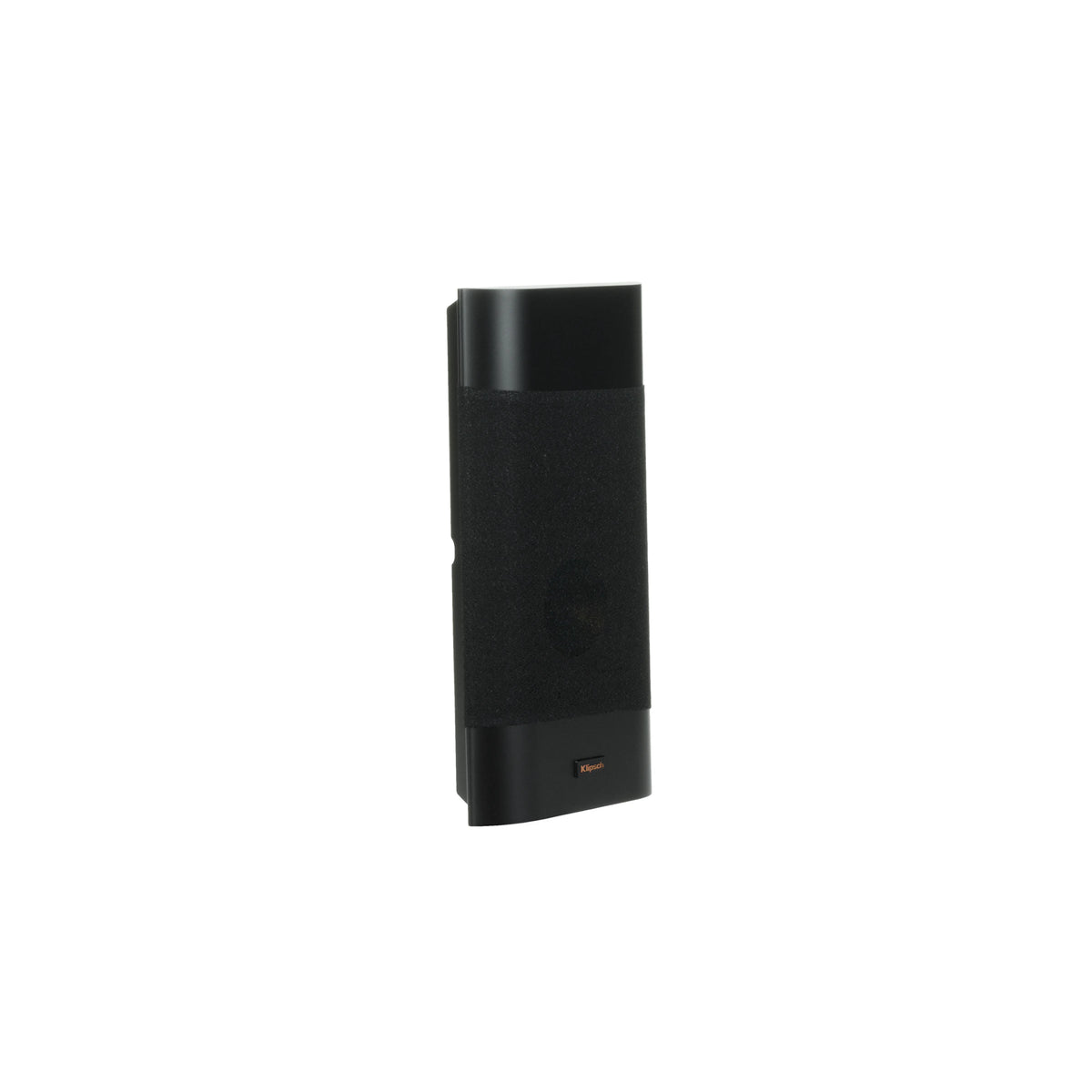

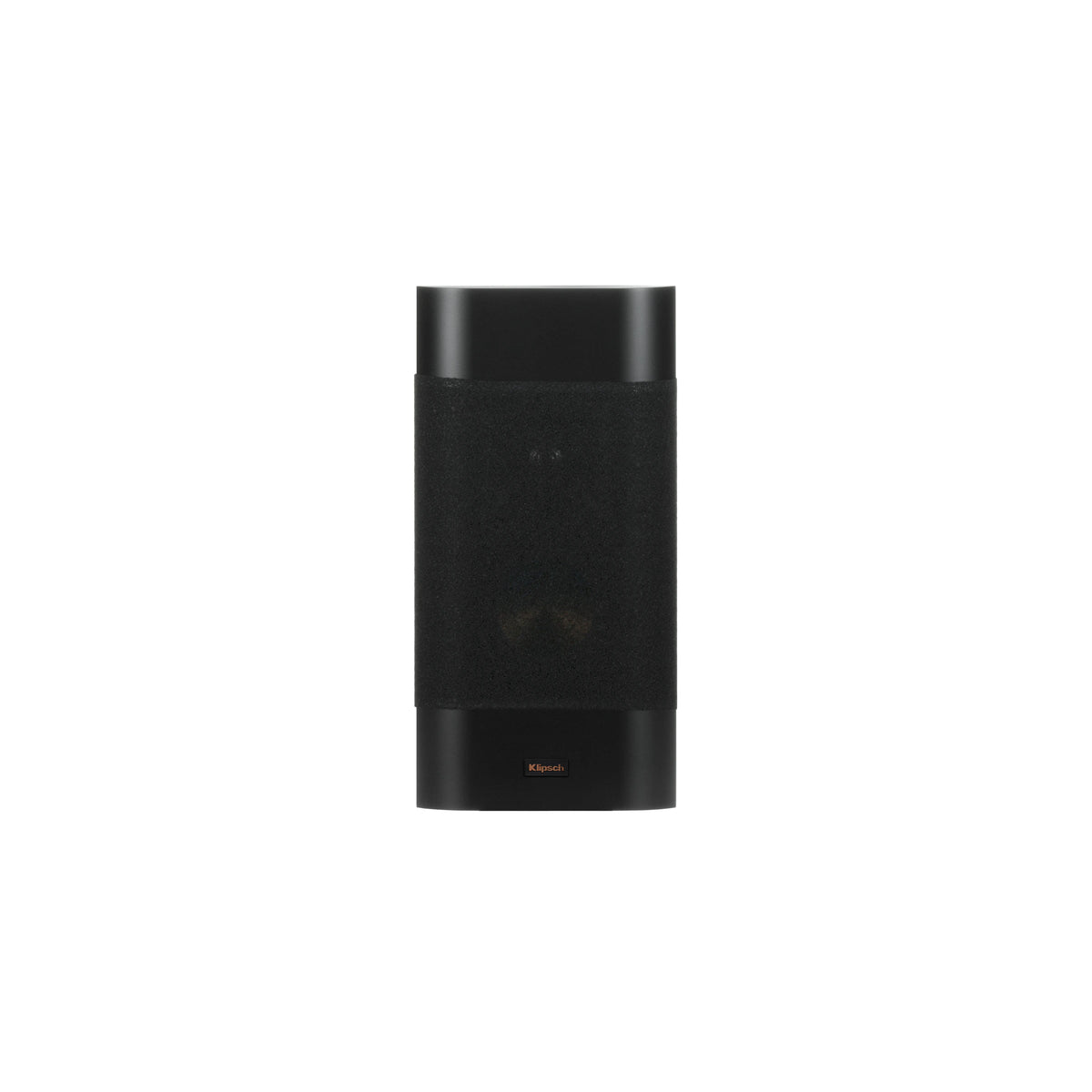

- Wrap-around magnetic grille
- Matte black paint finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 69Hz-25kHz +/- 3dB |
| Sensitivity | 91dB @ 2.83V / 1m |
| Power Handling (Cont/Peak) | 50W / 200W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 2200Hz |
| High Frequency Driver | 1" (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn |
| Low Frequency Driver | 3.5" (8.89 cm) Cerametallic Cone Woofers |
| Enclosure Material | ABS |
| Inputs | Single Binding Posts |
| Physical | |
|---|---|
| Height | 12" (30.48 cm) |
| Width | 6" (15.24 cm) |
| Depth | 2.4" (6.10 cm) |
| Weight | 3.75 lbs (1.7 kg) |
| Finish | Matte Black Paint |
| Built From | 2017 |
Specifications subject to change.
