Klipsch RF-7 III Walnut, Each
Product Details
The RF-7 III is the top of the Klipsch Reference floorstanding line and one of the most efficient loudspeakers on the market at 100dB sensitivity — which means it will play loud and clean on modest amplifier power, and reveal exactly what the amplifier upstream is doing.

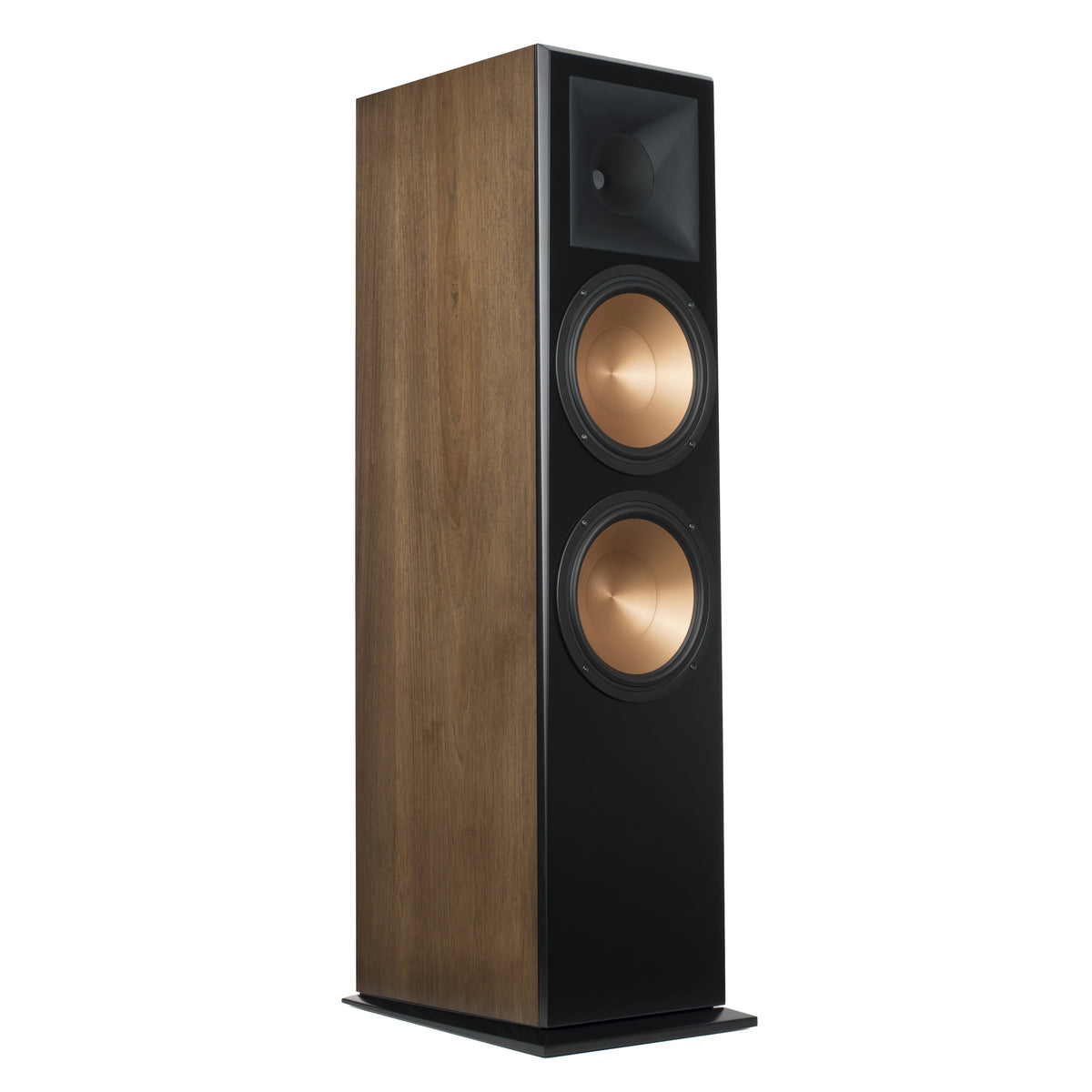

Two 10" spun-copper Cerametallic woofers work in a dual-chambered, bifurcated enclosure so each driver and its rear-firing Tractrix port operate independently of the other. That improves the linearity of both drive systems and suppresses the internal standing waves that color a single large cabinet.
High frequencies are handled by a 1.75" titanium diaphragm compression driver on an 8.5" square 90° x 90° Tractrix horn. The driver's phase plug improves phase coherency at the horn throat; the horn itself pairs a circular throat to a square mouth, with compression-molded rubber construction damping the high frequencies to reduce harshness.
Dual binding posts allow bi-wiring or bi-amping. This is the walnut finish. RF-7 III enclosures are designed and made in the USA in Hope, Arkansas, using domestic and imported components.
Features
- 100dB sensitivity — exceptionally efficient
- Two 10" spun-copper Cerametallic™ cone woofers
- 1.75" titanium diaphragm compression driver with new phase plug design
- 8.5" square 90° x 90° Tractrix® horn with circular throat and square mouth
- Compression-moulded rubber horn construction damps high frequencies
- Dual-chambered bifurcated enclosure — each woofer and port works independently

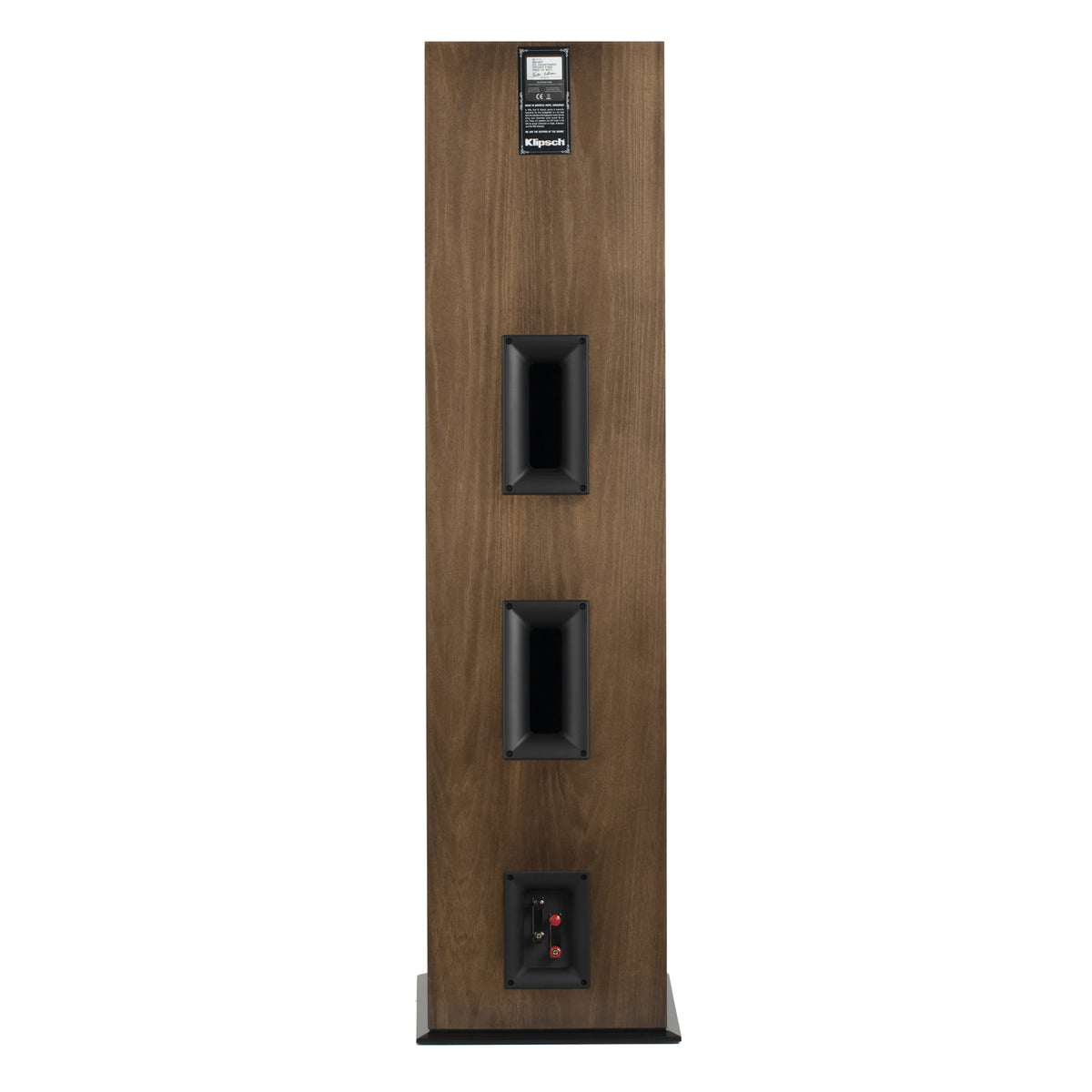

- Dual rear-firing Tractrix ports
- Dual binding posts for bi-wire or bi-amp
- 250W continuous / 1000W peak power handling
- Designed and made in the USA in Hope, Arkansas
- Walnut finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 32Hz – 25kHz +/- 3dB |
| Power Handling | 250W / 1000W peak |
| Sensitivity | 100dB @ 2.83V / 1m |
| Nominal Impedance | 8 ohms compatible |
| High Frequency Horn | 8.5" square 90° x 90° Tractrix® horn |
| High Frequency Driver | 1.75" (4.45cm) titanium diaphragm compression driver |
| Crossover Frequency | 1,300Hz |
| Low Frequency Drivers | Two 10" (25.4cm) Cerametallic cone woofers |
| Inputs | Dual binding posts / bi-wire / bi-amp |
| Enclosure Type | Dual chambered, bass-reflex via dual rear-firing Tractrix ports |
| Physical | |
|---|---|
| Height | 49" (124.5cm) including plinth |
| Width | 13.875" (35.2cm) including plinth |
| Depth | 17.875" (45.4cm) including plinth |
| Weight | 97 lbs (44.1kg) |
| Finish | Walnut |
Specifications subject to change.
