Klipsch R-8SW Black, Each
Product Details
The Klipsch R-8SW is a compact 8" powered subwoofer with an all-digital 50W (150W peak) amplifier. It is the smallest subwoofer in the Reference line, intended to add low-frequency support to bookshelf or compact tower systems in rooms where a 10" or 12" would dominate.
The spun-copper IMG woofer is down-firing, which loads the driver against the floor and gives more placement freedom than a front-firing design — it can sit closer to walls or inside furniture without the output changing character.

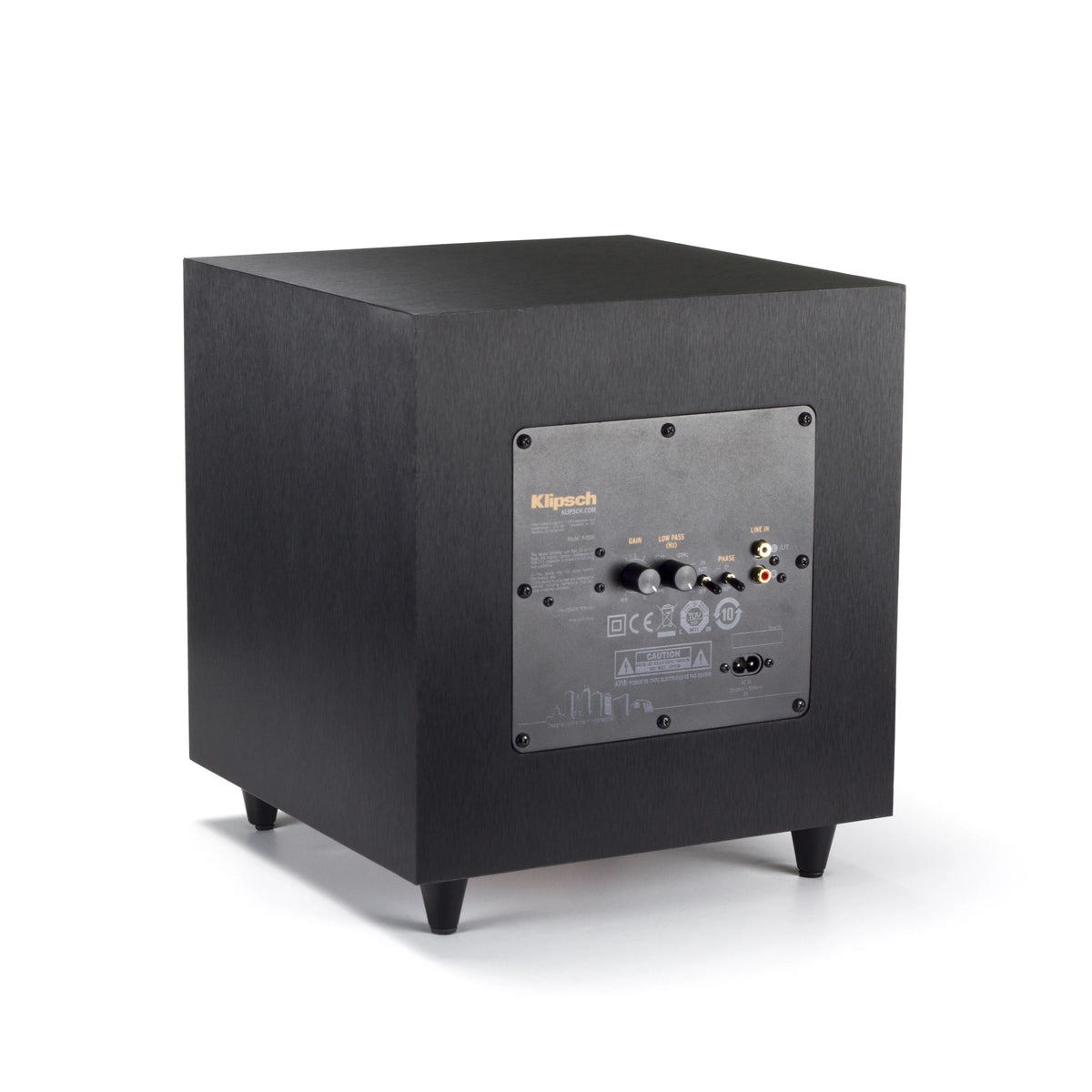

Line/LFE inputs connect to any AV receiver subwoofer output, with volume, low-pass, phase and auto power-on controls on the amplifier plate. The cabinet is MDF in brushed black polymer veneer.
Features
- 8" high-excursion spun-copper IMG down-firing woofer
- All-digital 50W / 150W peak amplifier
- 38Hz – 120Hz +/- 3dB
- Down-firing driver for flexible placement
- Volume, low-pass, phase and auto power-on controls
- Line / LFE inputs
- MDF cabinet with brushed black polymer veneer
- Compact 13.25" cabinet
Specifications
| Technical | |
|---|---|
| Frequency Response | 38Hz – 120Hz +/- 3dB |
| Amplifier | All digital |
| Amplifier Power | 50W / 150W |
| Drive Components | 8" (20.3cm) high-excursion IMG down-firing woofer |
| Enclosure Material | MDF |
| Features | Volume, Lowpass, Phase, Auto Power |
| Physical | |
|---|---|
| Height | 13.25" / 33.66 cm |
| Depth | 11.75" / 29.85 cm |
| Weight | 15.0 lbs (6.8 kg) |
| Finish | Brushed Black Polymer Veneer |
Specifications subject to change.
