Klipsch R-800F Black, Each
Product Details

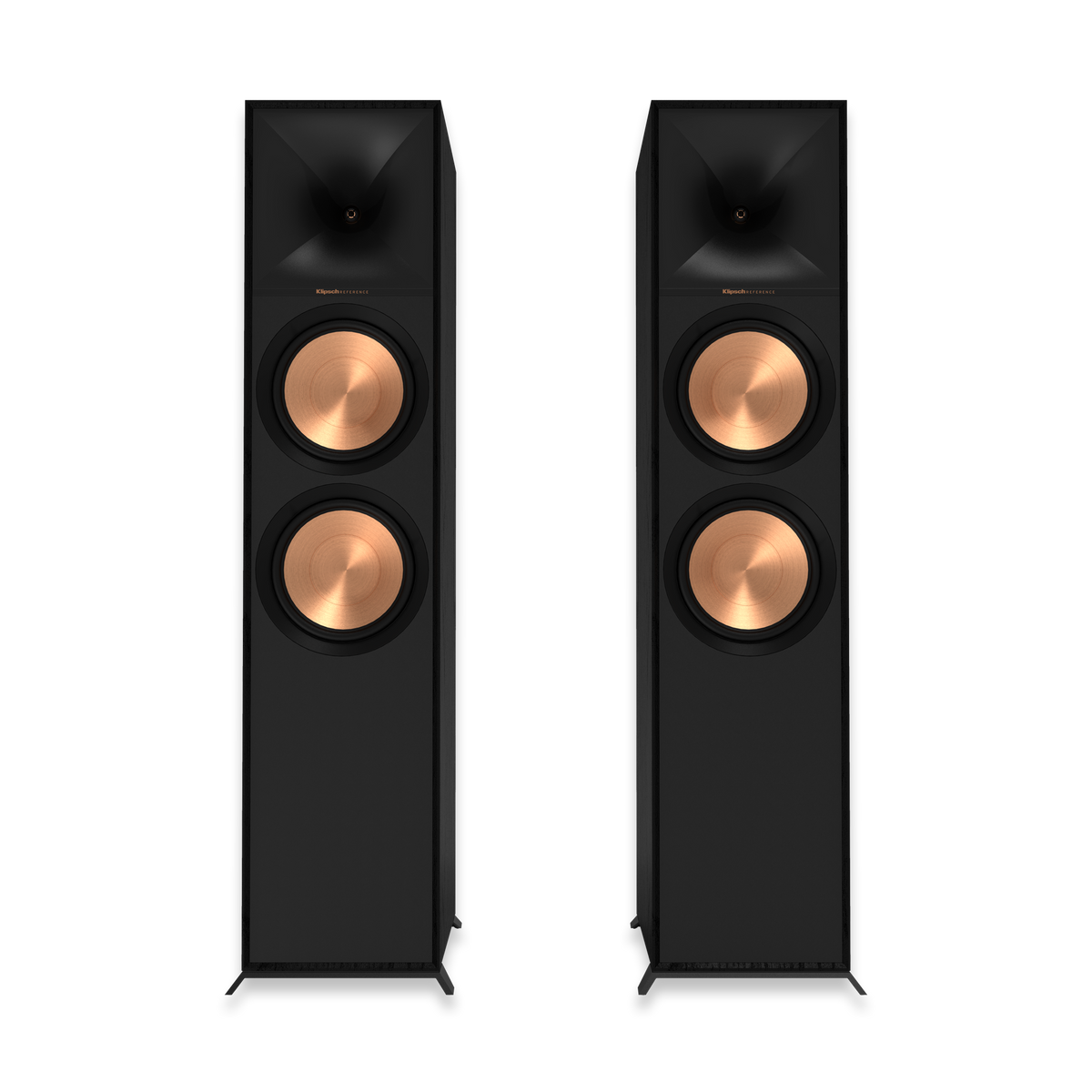

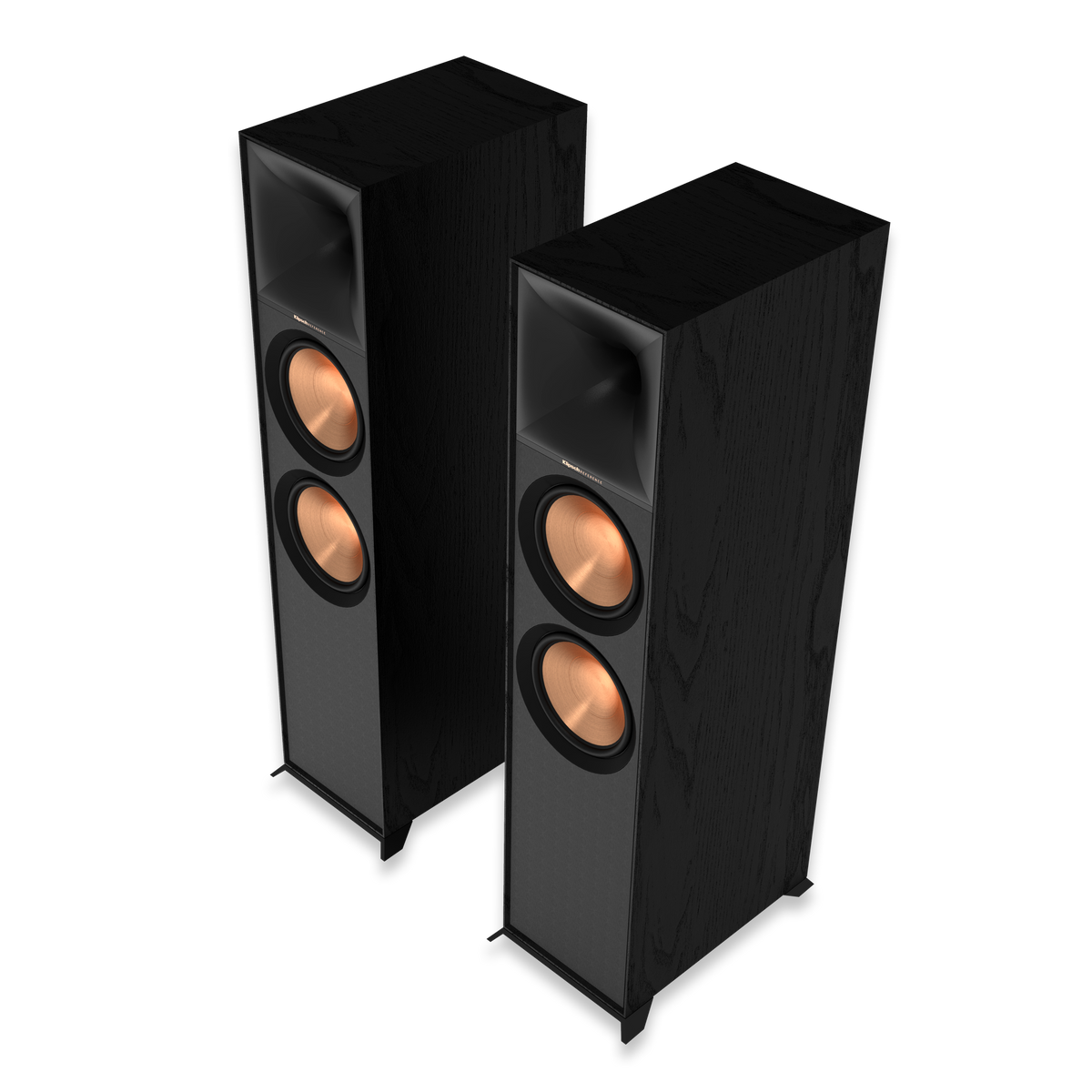

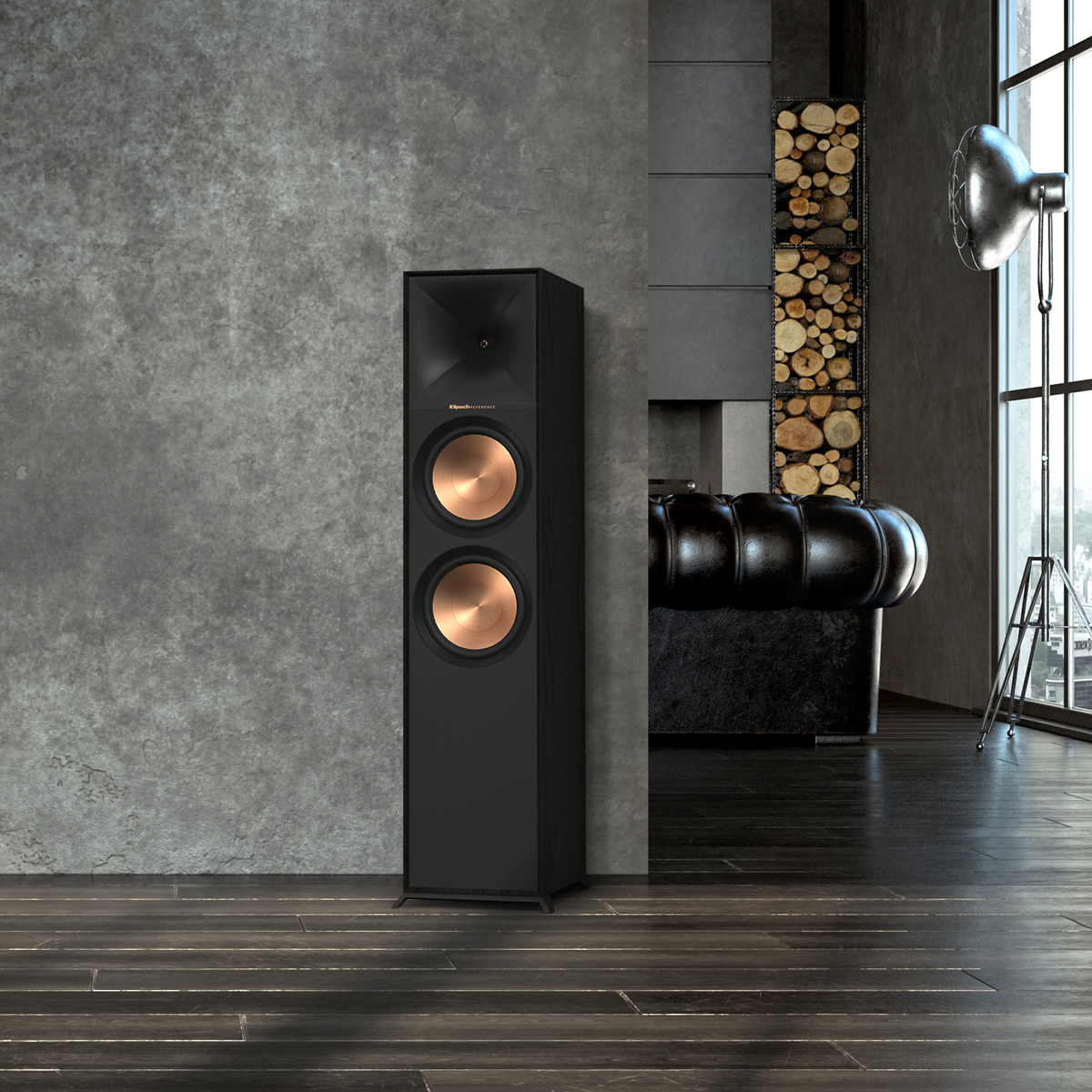

The Klipsch R-800F is the largest floorstanding speaker in the Reference line: dual 8" spun-copper IMG woofers reaching 34Hz, with 98dB in-room sensitivity and 150W/600W power handling. It is a genuinely full-range tower that does not need a subwoofer for music.
A 1" aluminum LTS tweeter sits on a 90° x 90° square Tractrix horn. Horn loading raises efficiency and directs high frequencies toward the listening area rather than scattering them off walls and ceiling, which is what gives Klipsch Reference speakers their characteristic clarity at low amplifier power.

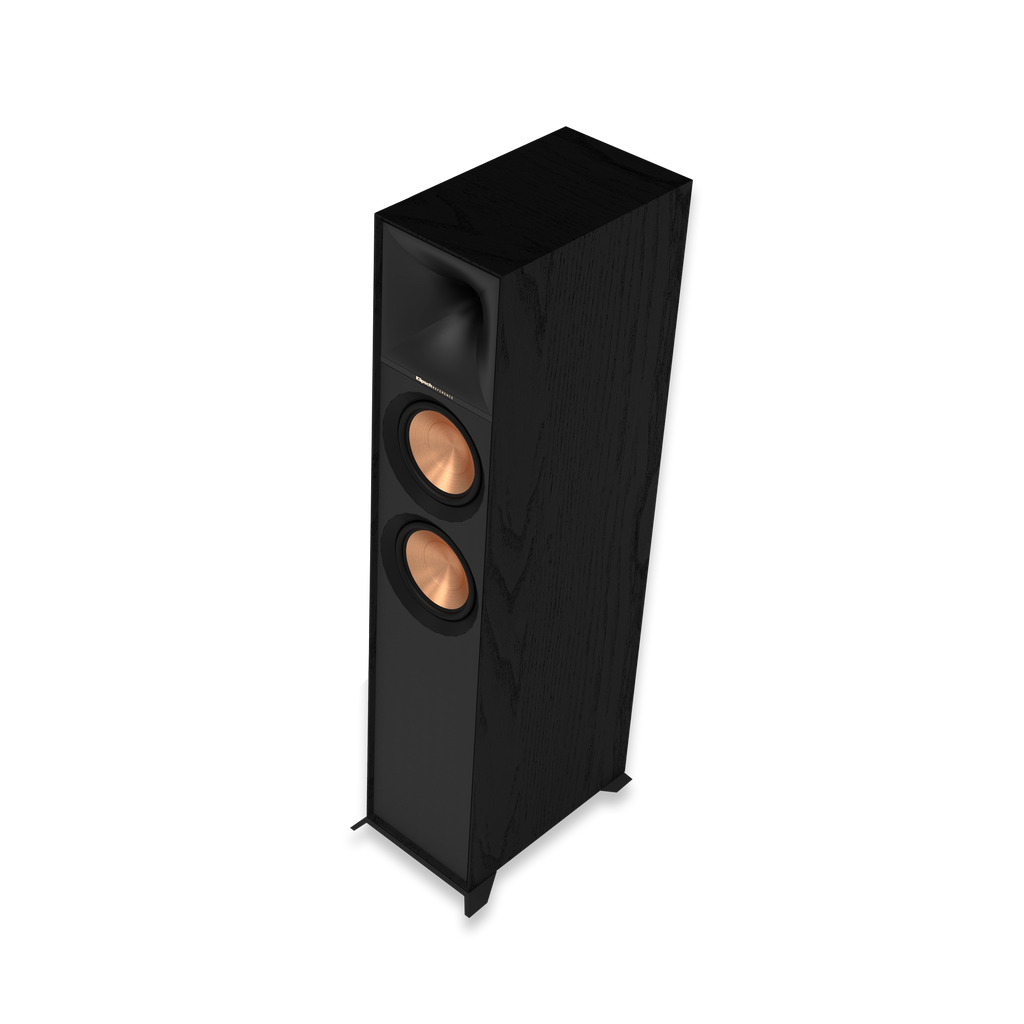

Spun-copper Injection Molded Graphite (IMG) woofers are light and rigid, keeping cone break-up out of the passband for low distortion. The copper finish is Klipsch's visual signature and is visible with the grille removed.

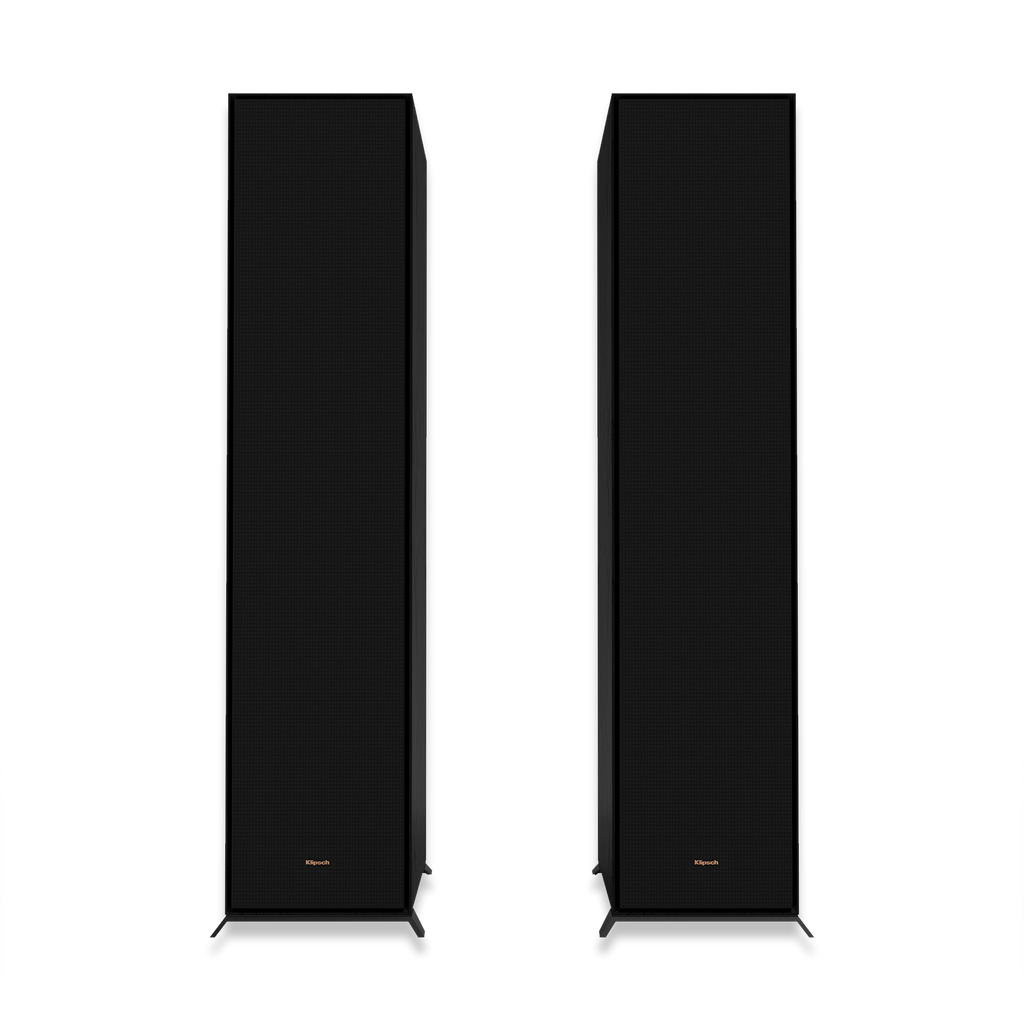

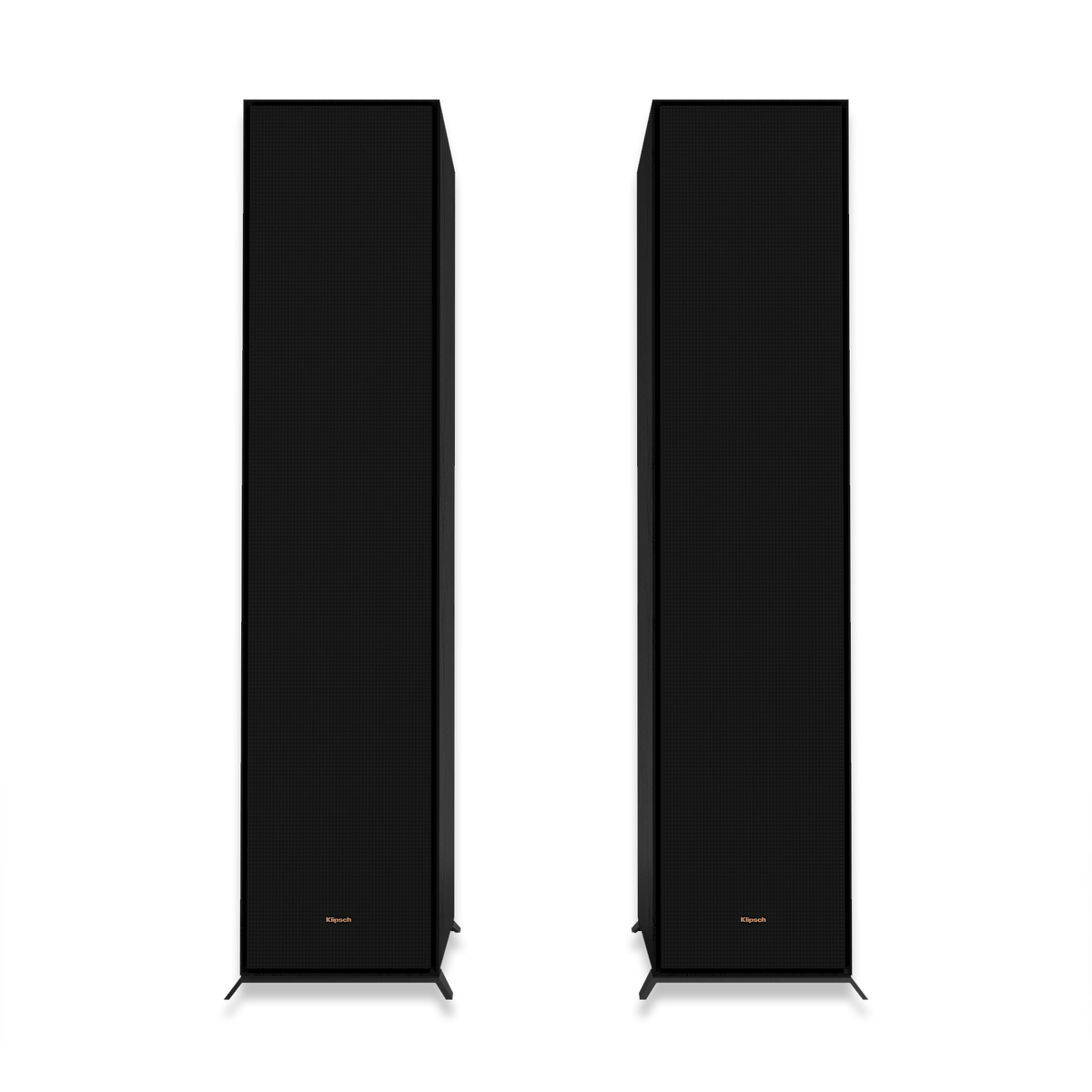

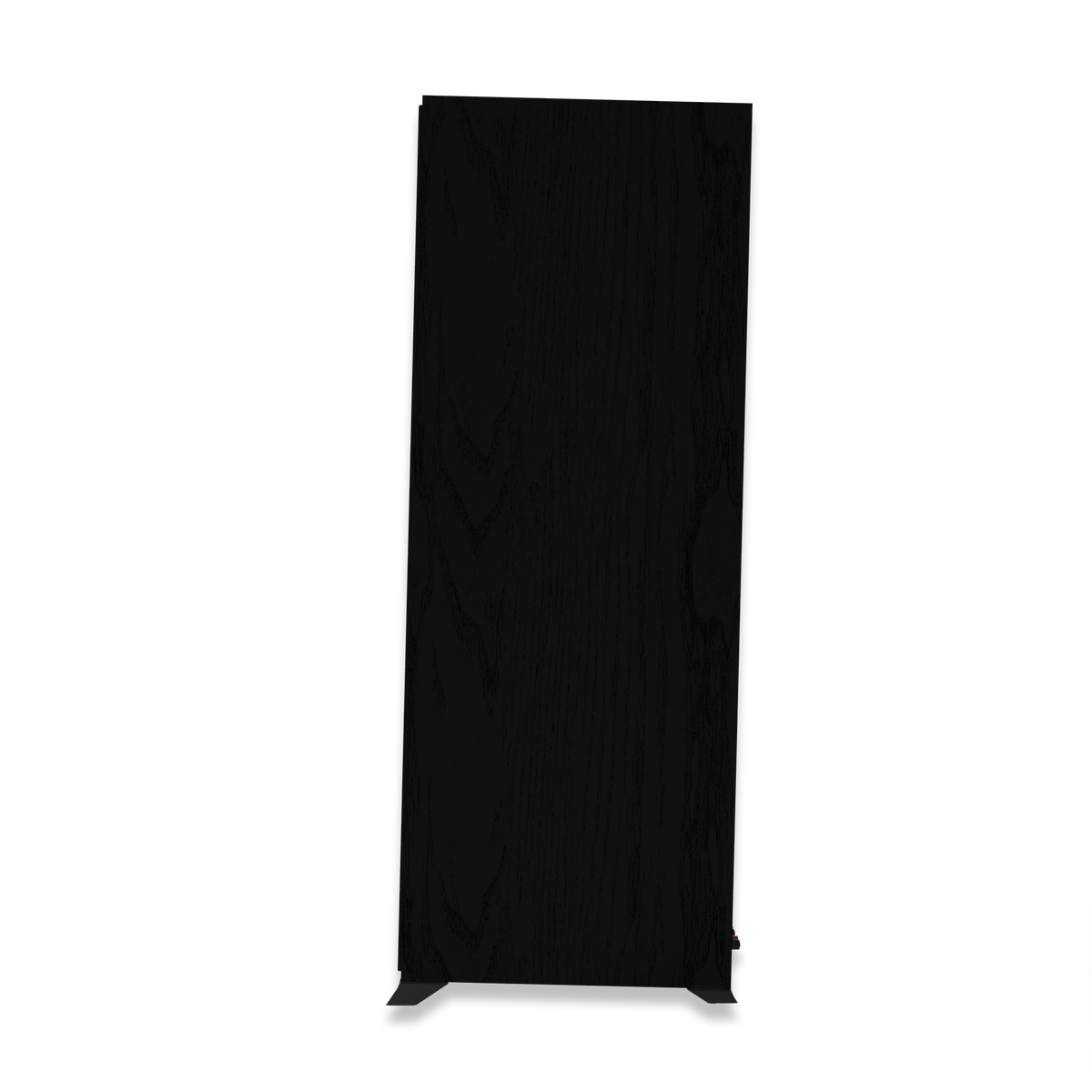

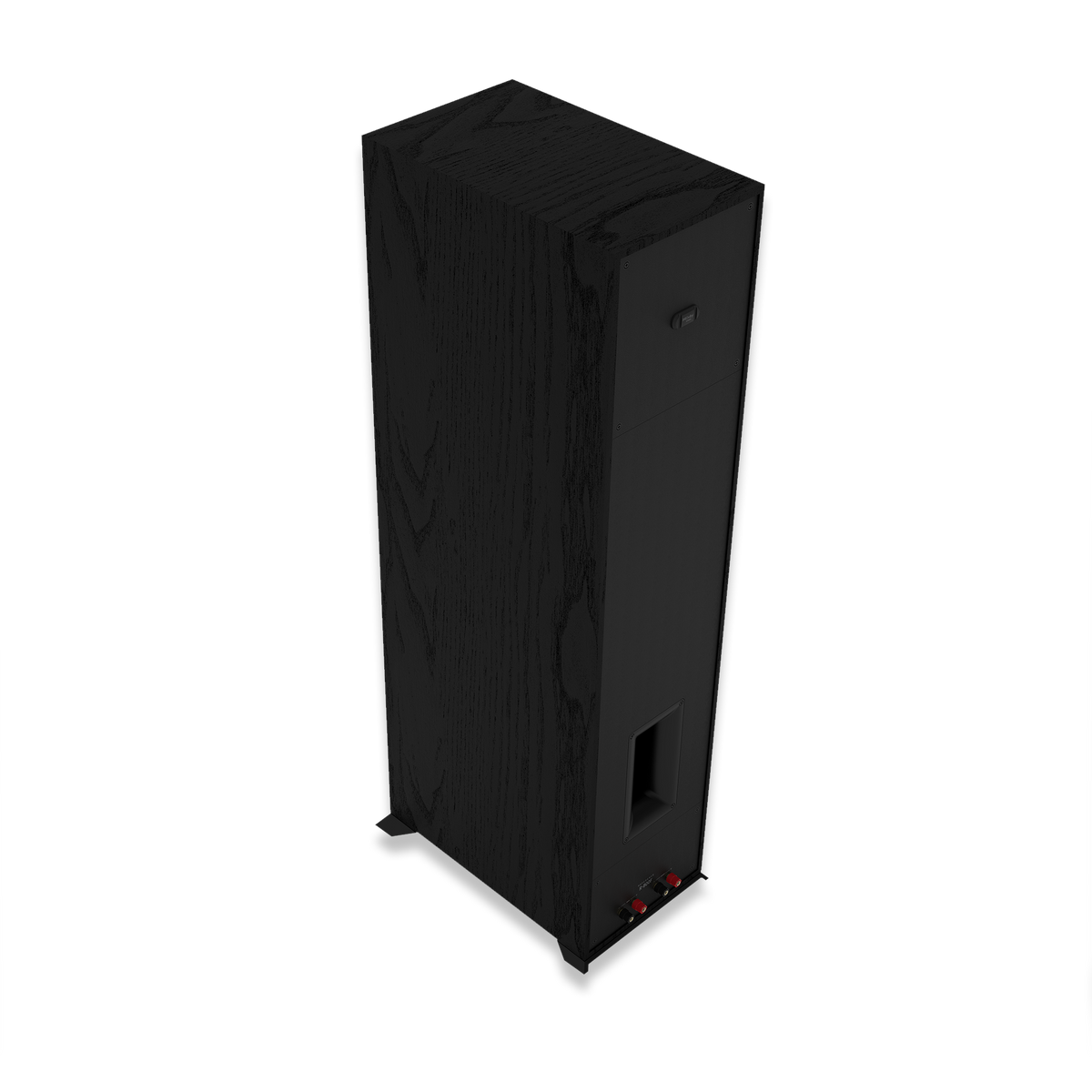

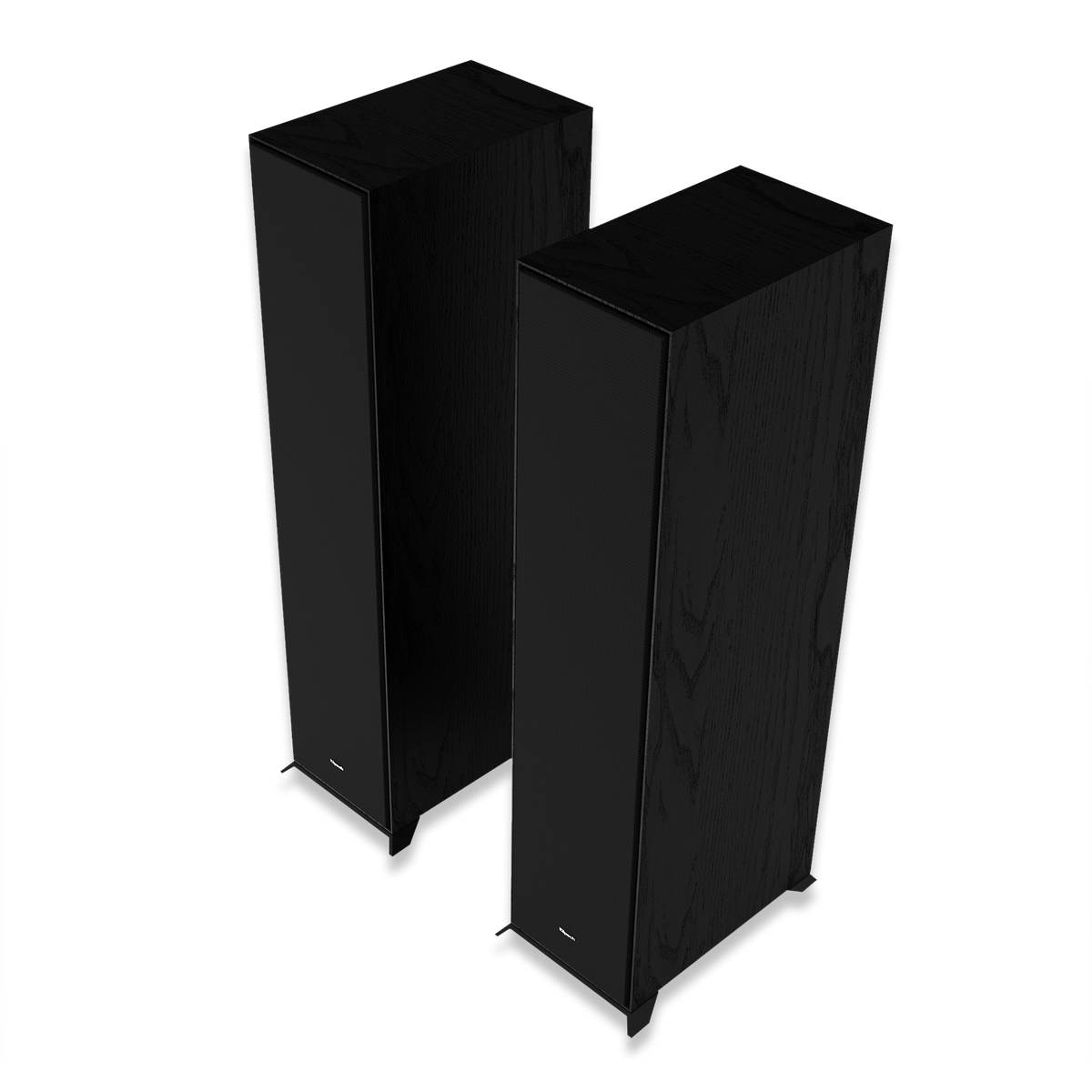

Bass-reflex loading through rear-firing Tractrix ports extends low-frequency output without the port noise of a conventional round port. The cabinet is MDF in scratch-resistant black textured wood-grain vinyl, with a removable magnetic grille and gold-plated binding posts. Injection-molded feet and screws are included.
Features
- Dual 8" spun-copper IMG woofers; 34Hz – 21kHz +/- 3dB
- 98dB in-room sensitivity — easy to drive
- 150W / 600W power handling
- 1" aluminum LTS tweeter on a 90° x 90° square Tractrix horn
- Bass-reflex via rear-firing Tractrix ports

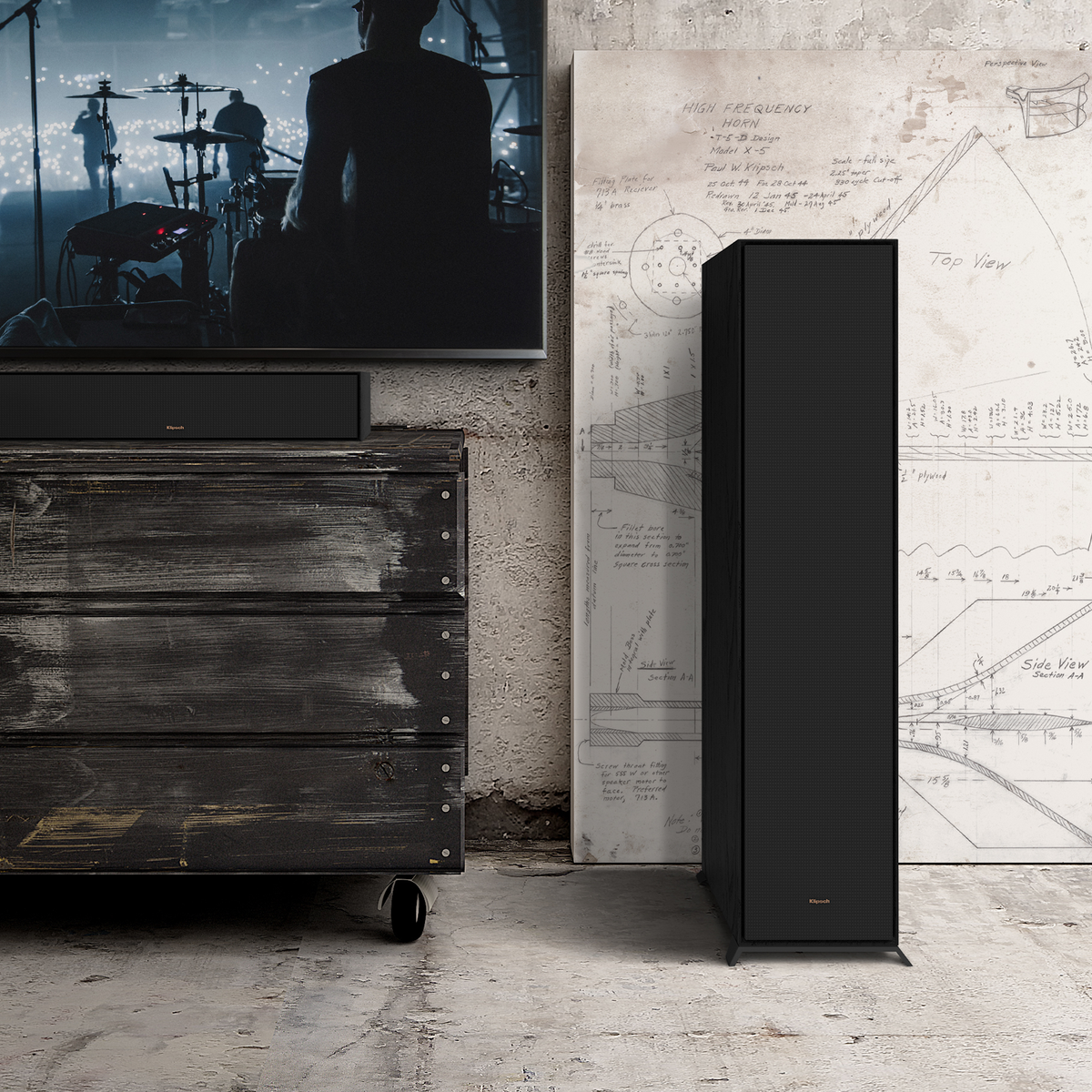

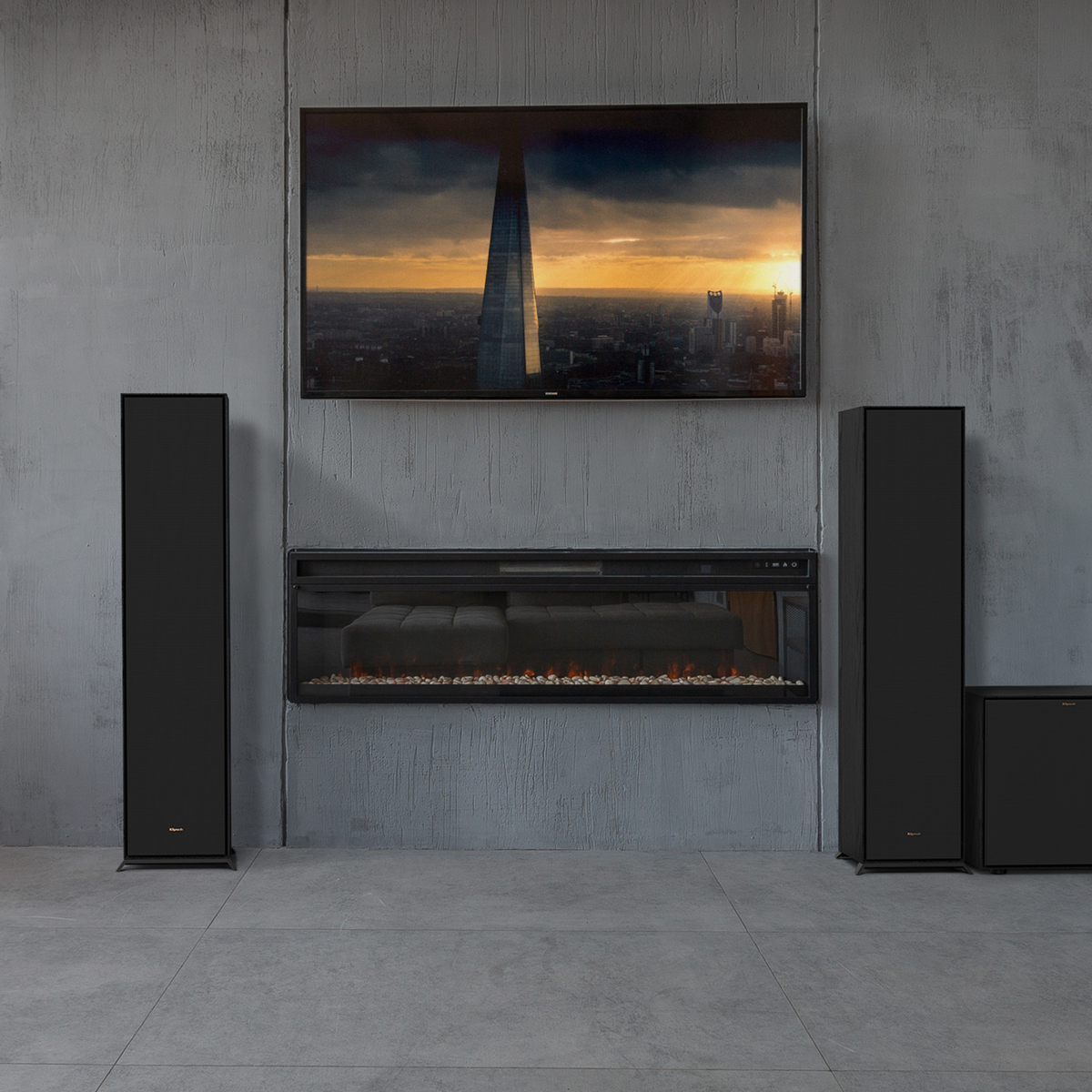

- Removable magnetic grille
- Gold-plated binding posts
- Injection-molded feet and screws included
- Sold individually (Each)
Specifications
| Technical | |
|---|---|
| Frequency Response | 34Hz - 21kHz +/- 3dB |
| Sensitivity | 98 dB (In-Room) |
| Power Handling (Cont/Peak) | 150W/600W |
| Nominal Impedance | 8 ohms Compatible |
| Crossover Frequency | 1,400 Hz |
| High Frequency Driver | 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
| Low Frequency Driver | Dual 8" spun-copper TCP woofers |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via rear-firing Tractrix®ports |
| Inputs | Single Gold Plated Binding Posts |
| Physical | |
|---|---|
| Height | 43" (1093 mm) |
| Width | 10.9" (277 mm) |
| Depth | 17.5" (443 mm) |
| Weight | 54 lbs (24.5 kg) |
| Finish | Black Textured Wood Grain Vinyl |
| Included Accessories | Injection molded feet & screws |
Specifications subject to change.
