Klipsch R-605FA Black, Each
Product Details

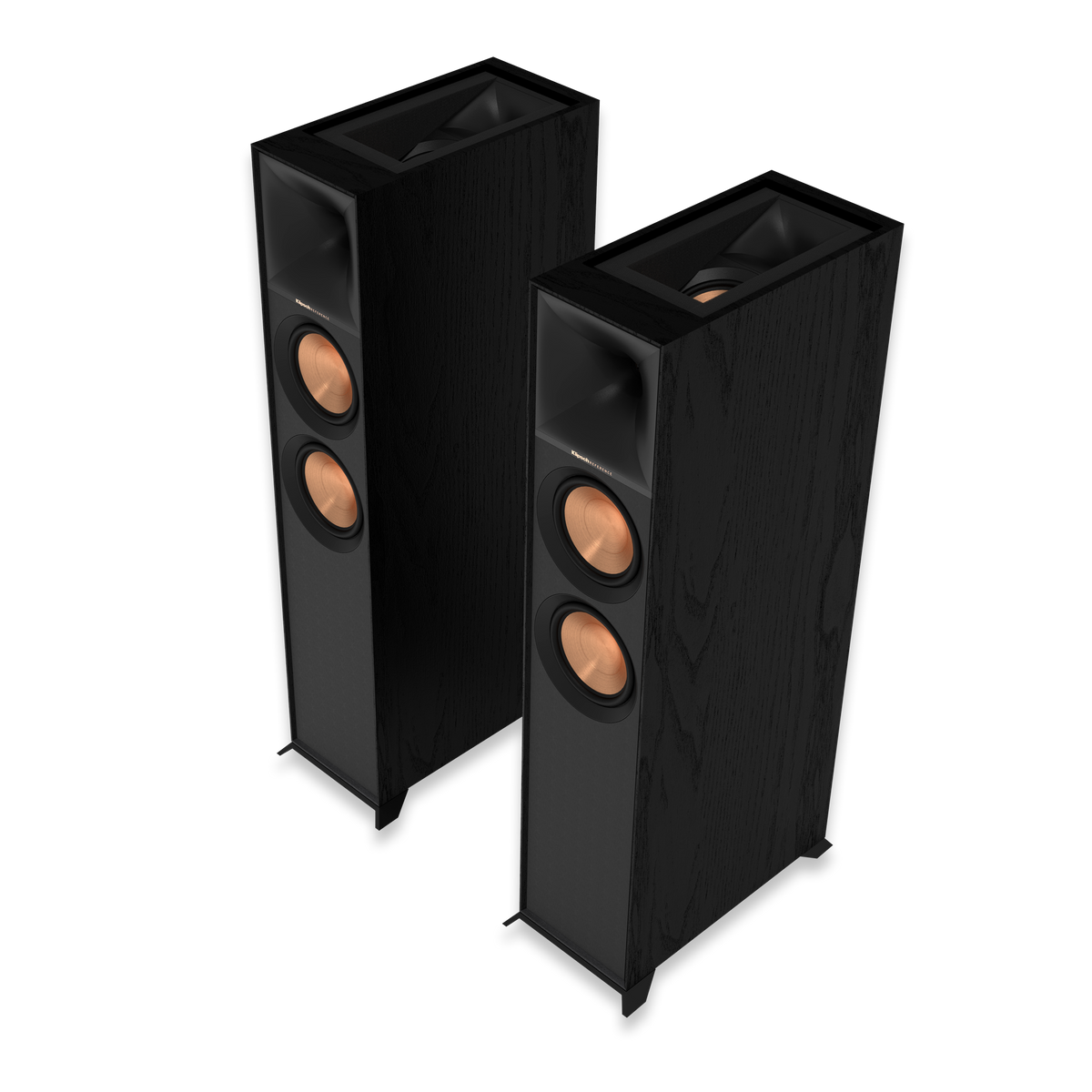

The Klipsch R-605FA is the Dolby Atmos version of the R-600F floorstander: the same dual 6.5" spun-copper IMG woofers and 38Hz extension, with an up-firing Atmos elevation channel built into the top of the cabinet.

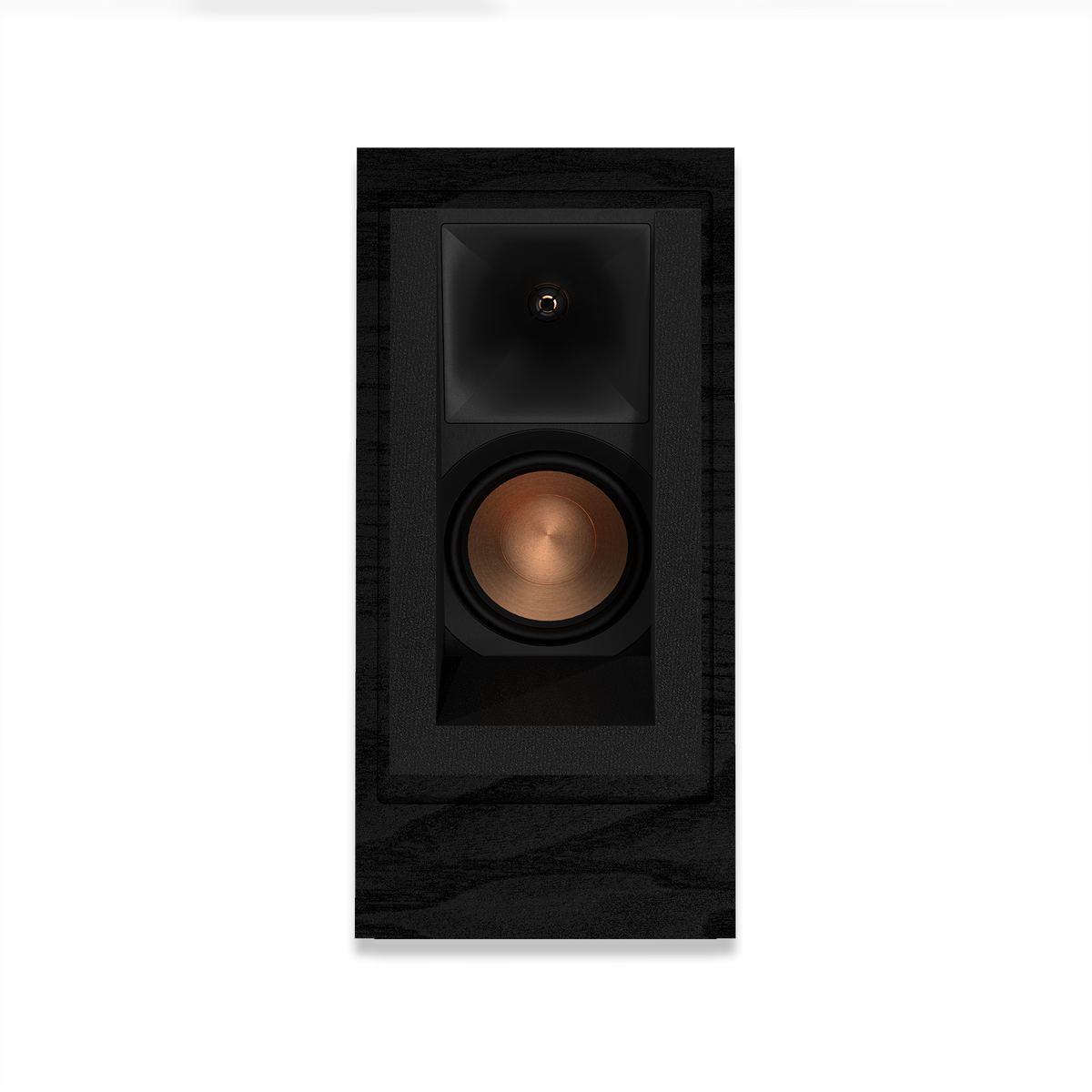

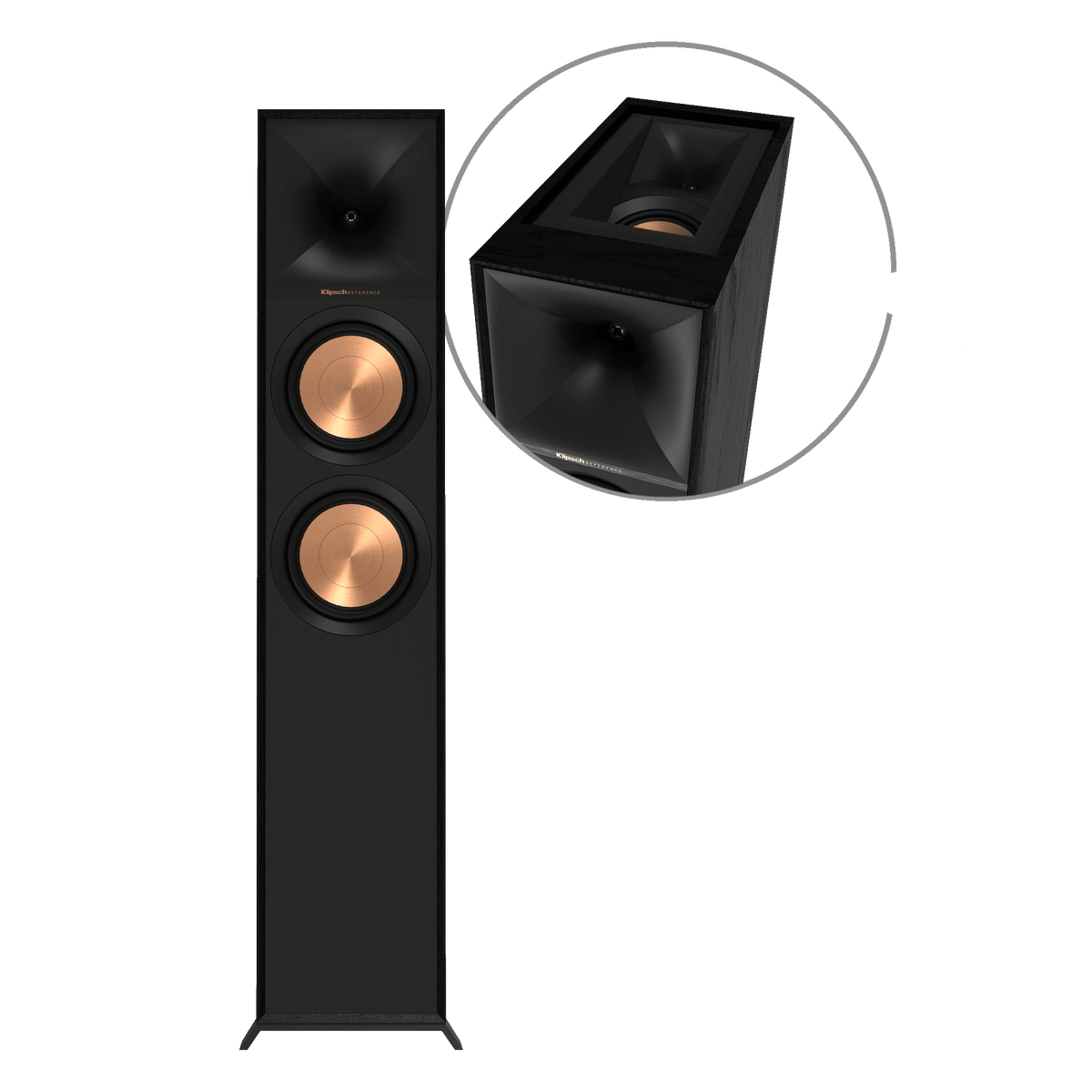

The elevation module fires at the ceiling to place height effects overhead without installing in-ceiling speakers or running wire above the room. It is a separate acoustic-suspension chamber with its own 1" tweeter and 3.5" woofer, driven from a second set of binding posts.
A 1" aluminum LTS tweeter sits on a 90° x 90° square Tractrix horn. Horn loading raises efficiency and directs high frequencies toward the listening area rather than scattering them off walls and ceiling, which is what gives Klipsch Reference speakers their characteristic clarity at low amplifier power.

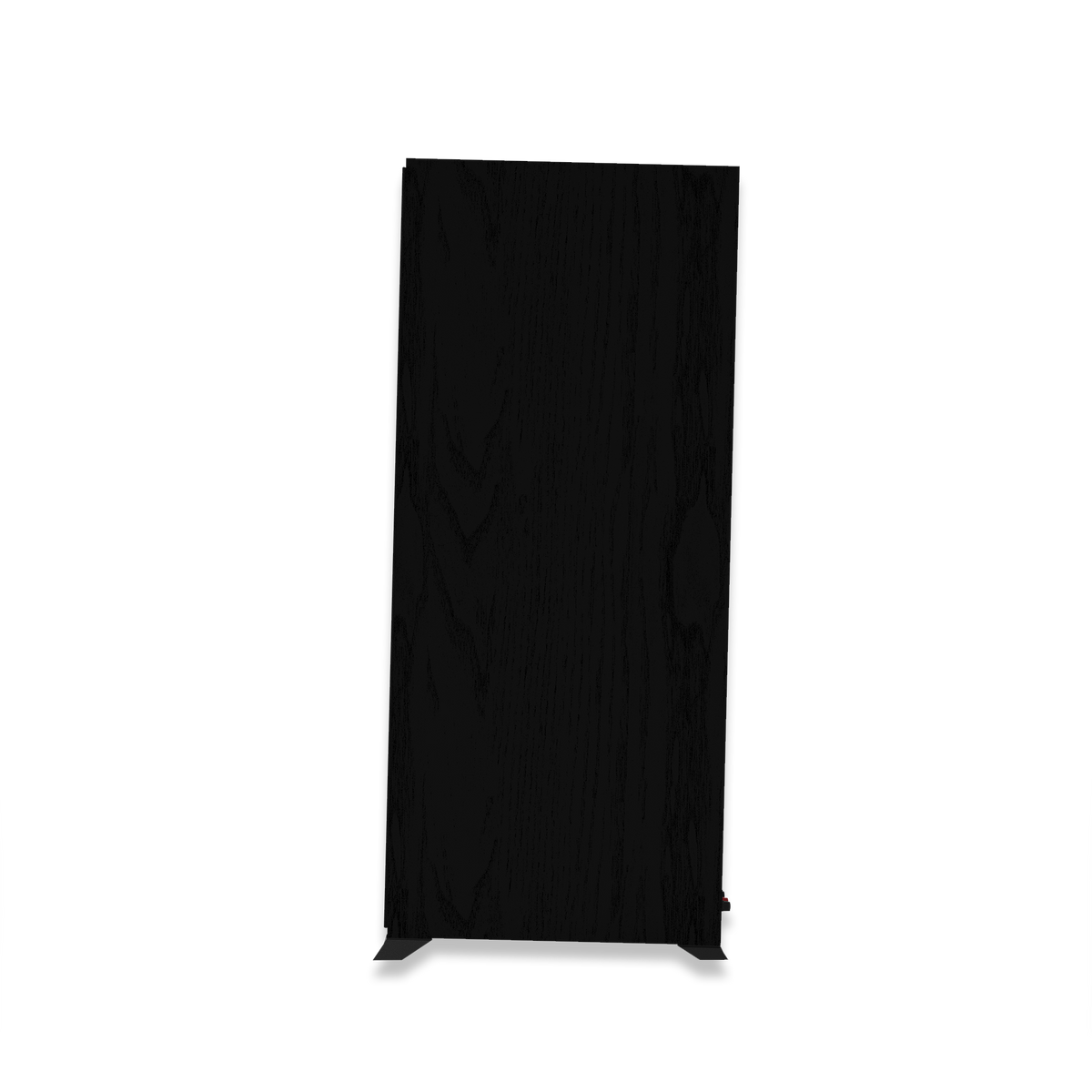

Spun-copper Injection Molded Graphite (IMG) woofers are light and rigid, keeping cone break-up out of the passband for low distortion. The copper finish is Klipsch's visual signature and is visible with the grille removed. The cabinet is MDF in scratch-resistant black textured wood-grain vinyl, with a removable magnetic grille and gold-plated binding posts.
Features
- Dual 6.5" spun-copper IMG woofers; 38Hz – 21kHz +/- 3dB
- Built-in up-firing Dolby Atmos elevation channel
- 96dB in-room sensitivity; 100W / 400W main channel power handling
- Elevation channel: 75W / 150W, 4,400Hz crossover
- 1" aluminum LTS tweeter on a 90° x 90° square Tractrix horn

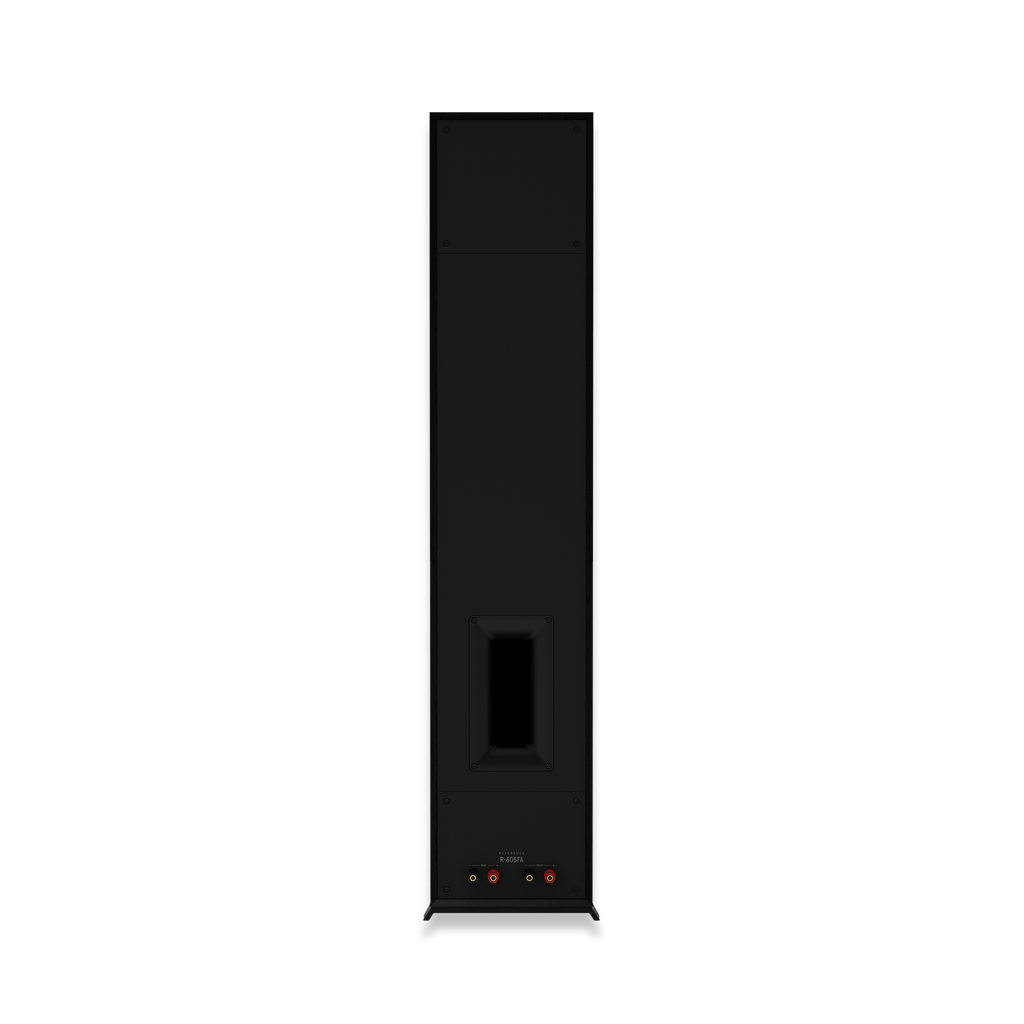

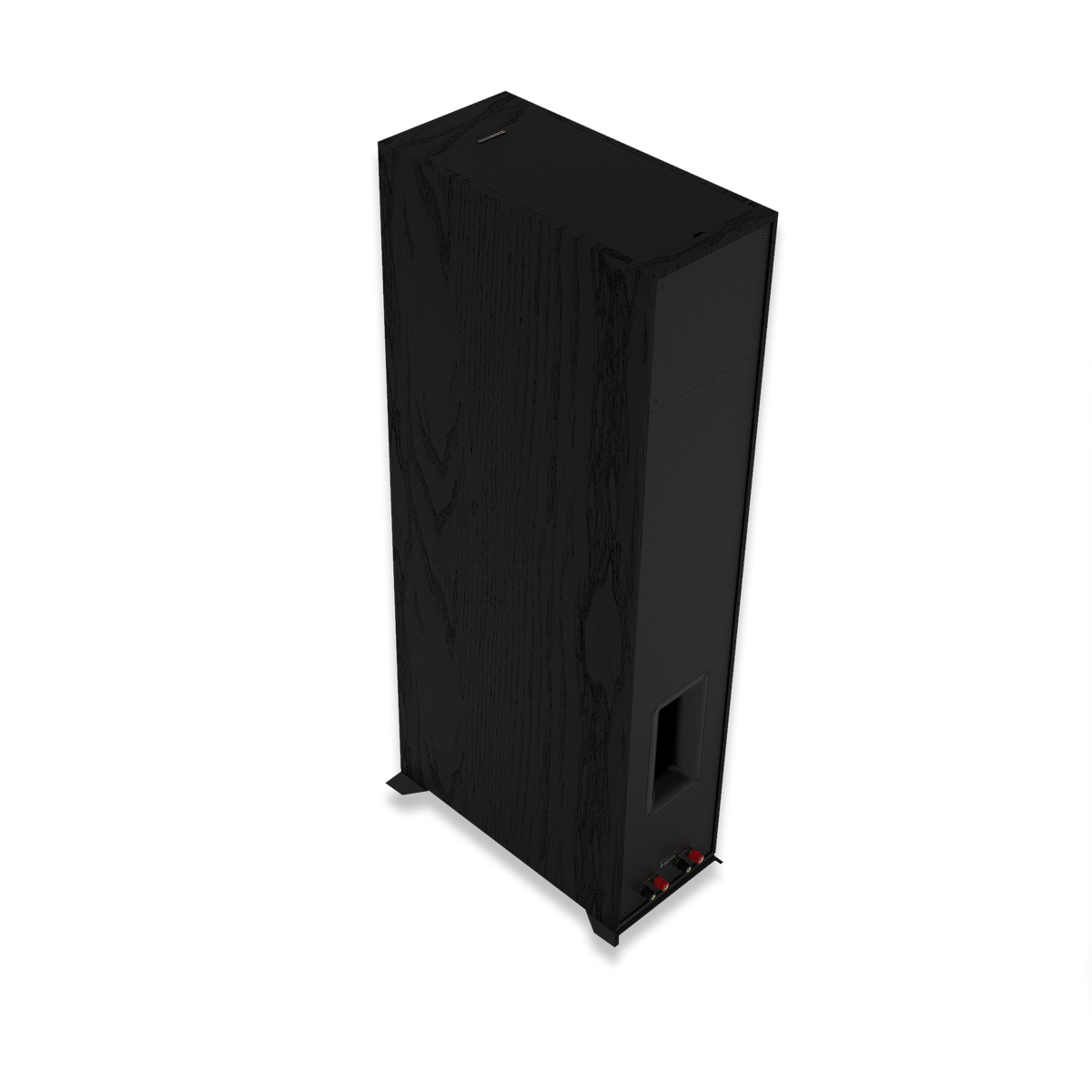

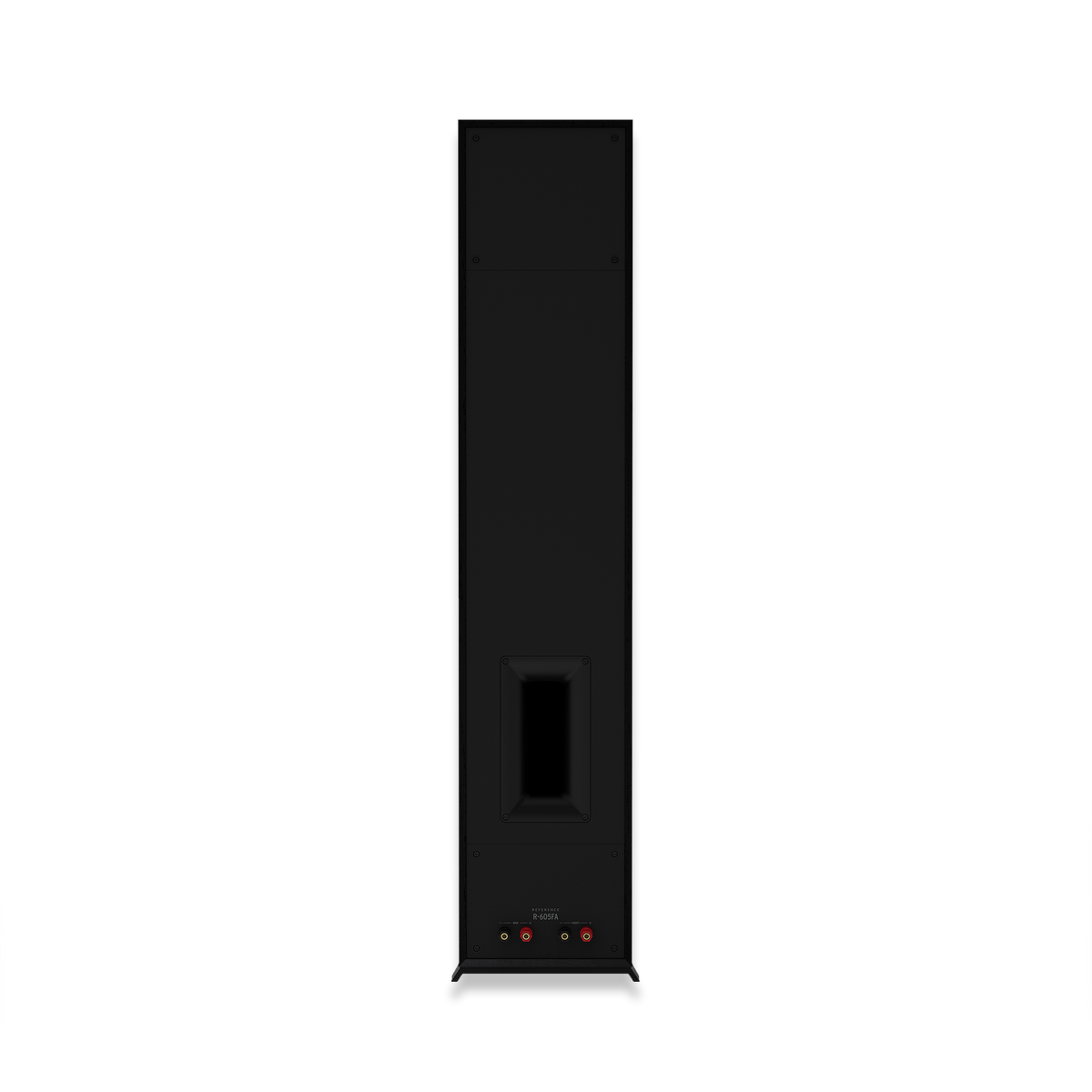

- Bass-reflex via rear-firing Tractrix ports

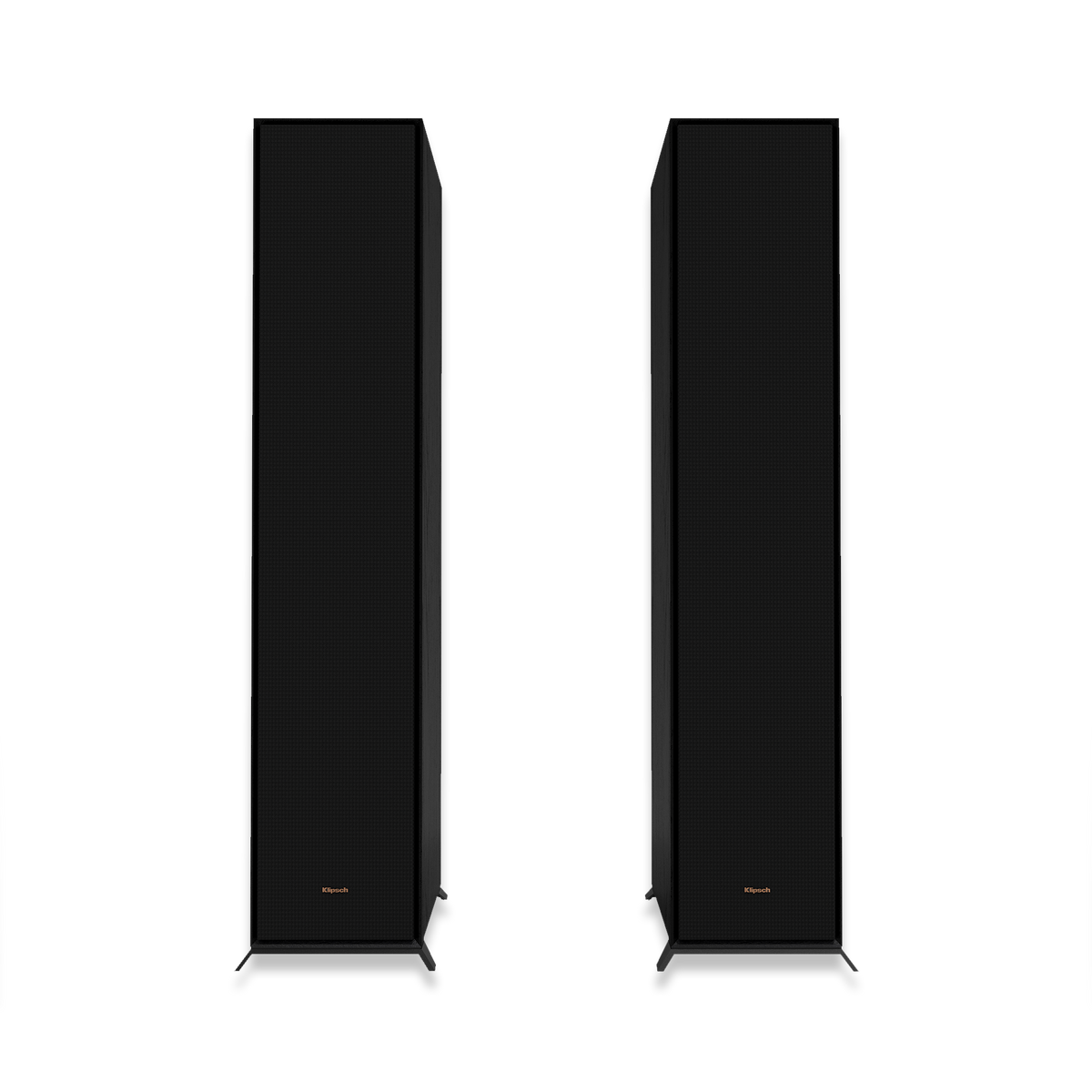

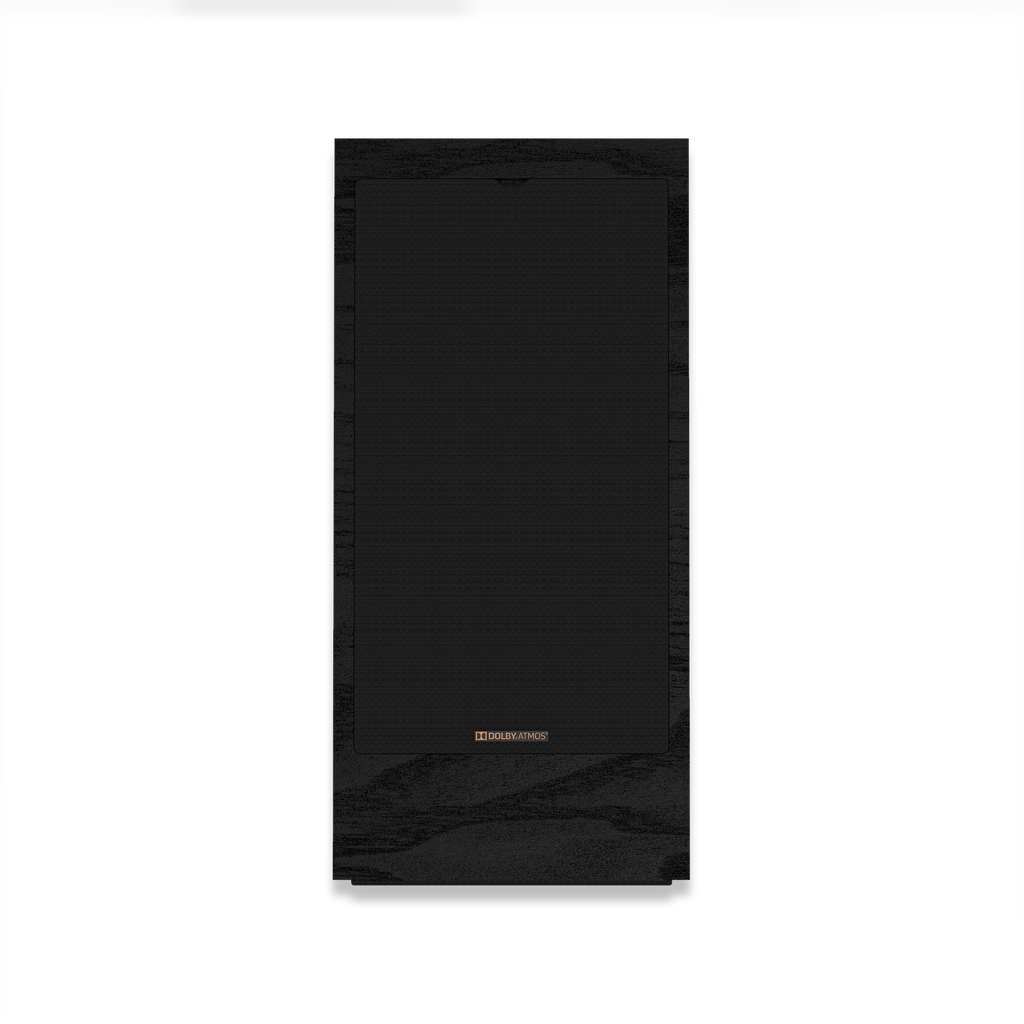

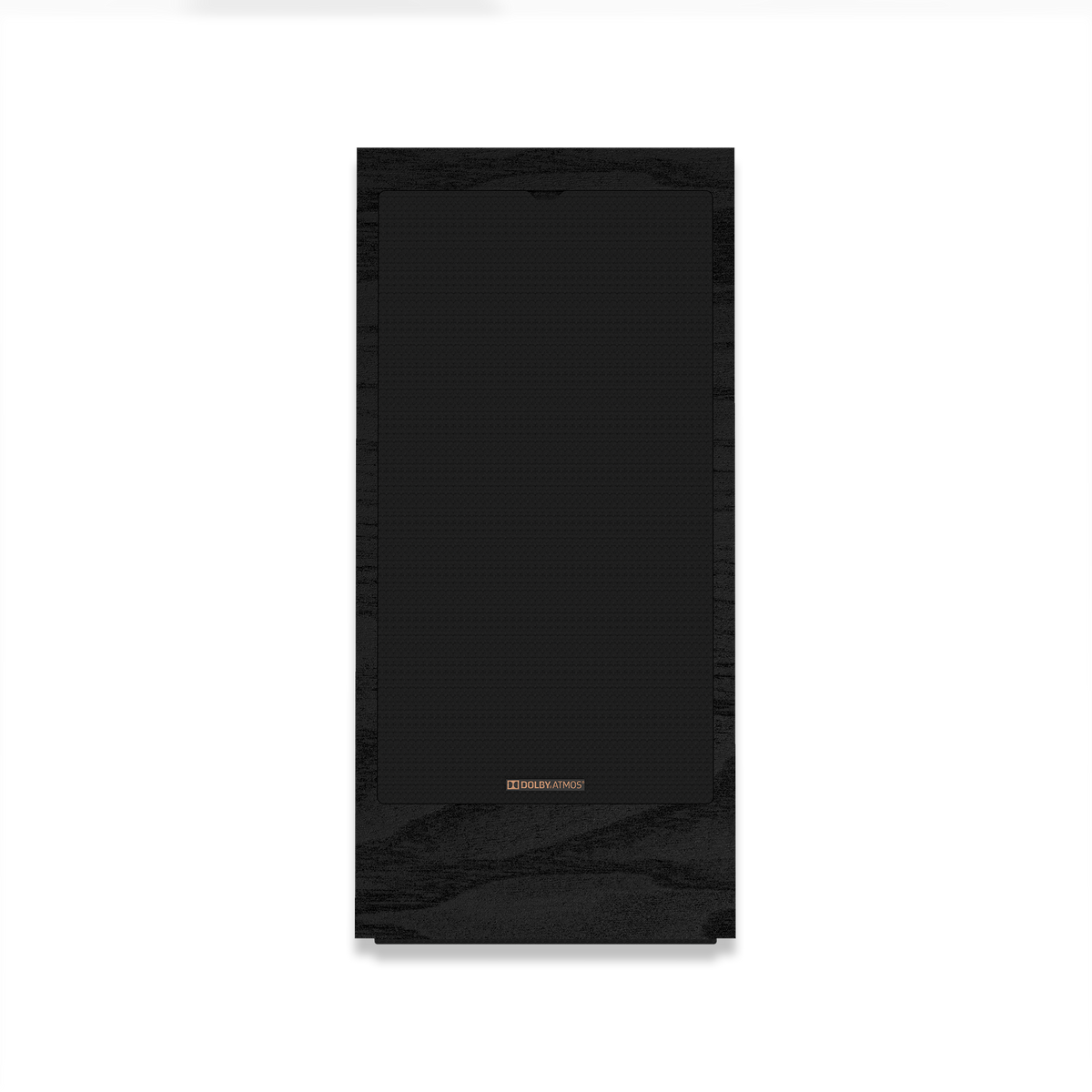

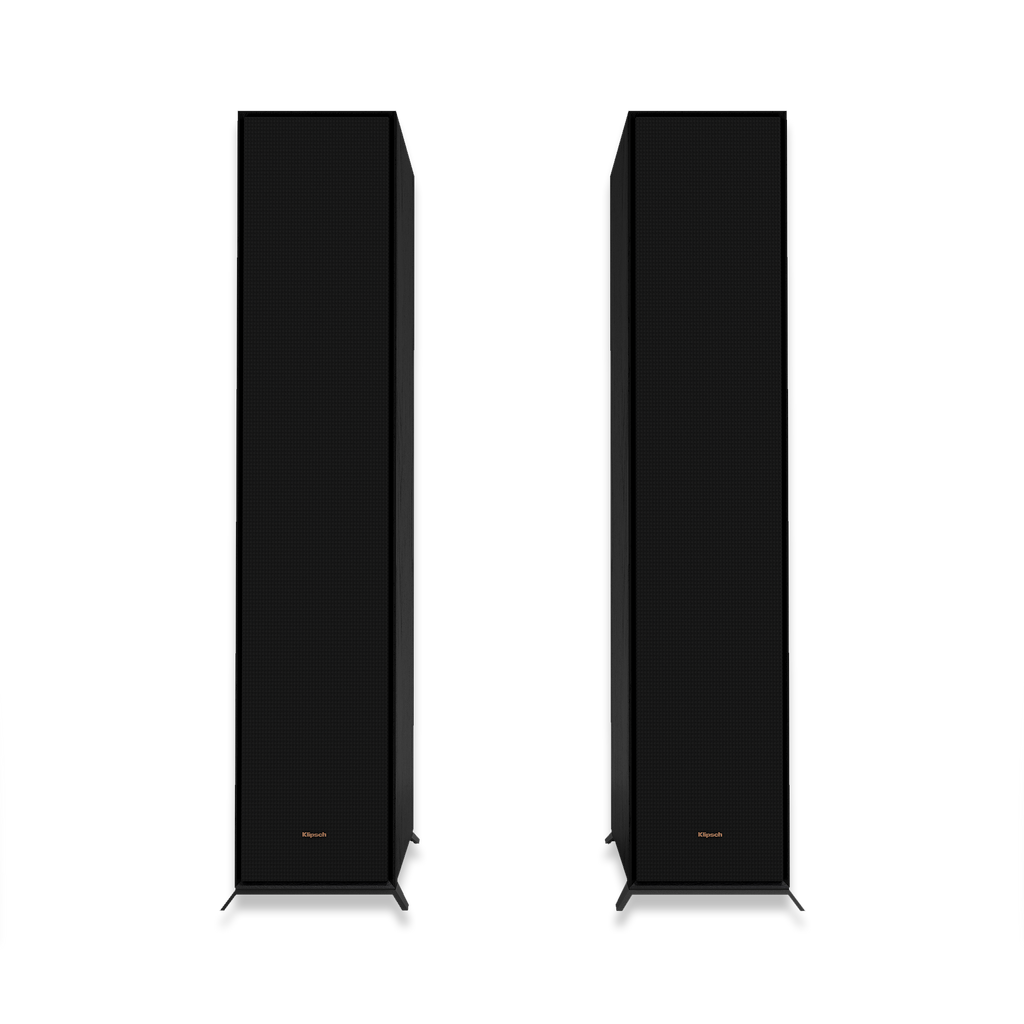

- Removable magnetic grille
- Gold-plated binding posts
- Injection-molded feet and screws included
- Sold individually (Each)
Specifications
| Technical | |
|---|---|
| Frequency Response | 38Hz - 21kHz +/- 3dB |
| Sensitivity | 96 dB (In-Room) |
| Power Handling (Cont/Peak) | 100W/400W |
| Nominal Impedance | 8 ohms Compatible |
| Crossover Frequency | 1,440 Hz |
| High Frequency Driver | 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
| Low Frequency Driver | Dual 6.5" spun-copper TCP woofers |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via rear-firing Tractrix®ports |
| Inputs | Single Gold Plated Binding Posts |
| Power Handling | 75W/150W |
| Physical | |
|---|---|
| Height | 40" (1017 mm) |
| Width | 9.5" (240 mm) |
| Depth | 18.2" (463 mm) |
| Weight | 50 lbs (22.7 kg) |
| Finish | Black Textured Wood Grain Vinyl |
| Included Accessories | Injection molded feet & screws |
Specifications subject to change.
