Klipsch R-50PM Powered Speakers With 5.25” Woofers
Product Details

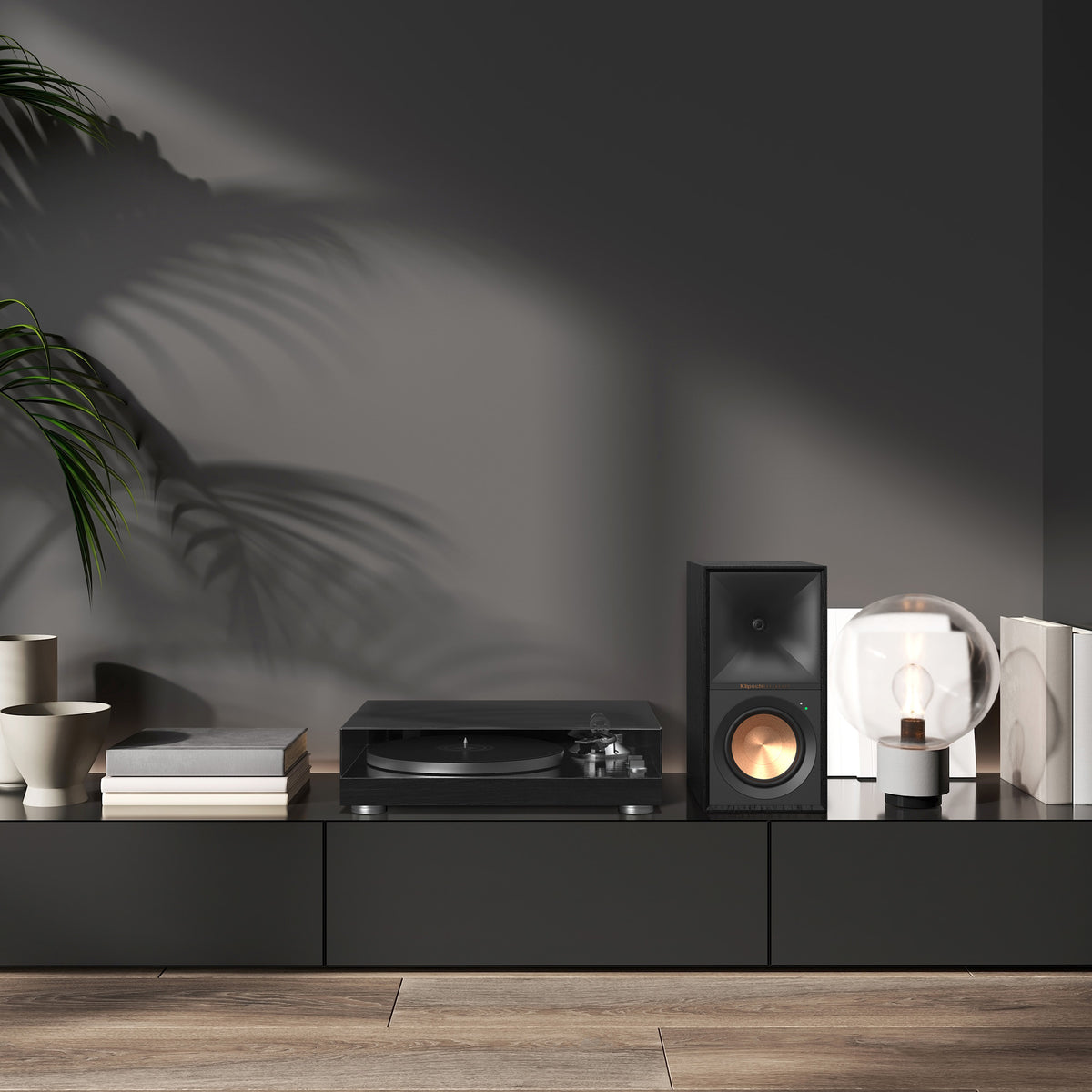

The R-50PM are powered speakers: amplification, digital inputs and a phono stage built into the cabinets, so the pair is a complete system rather than half of one. A turntable, a television and a phone connect straight to them.

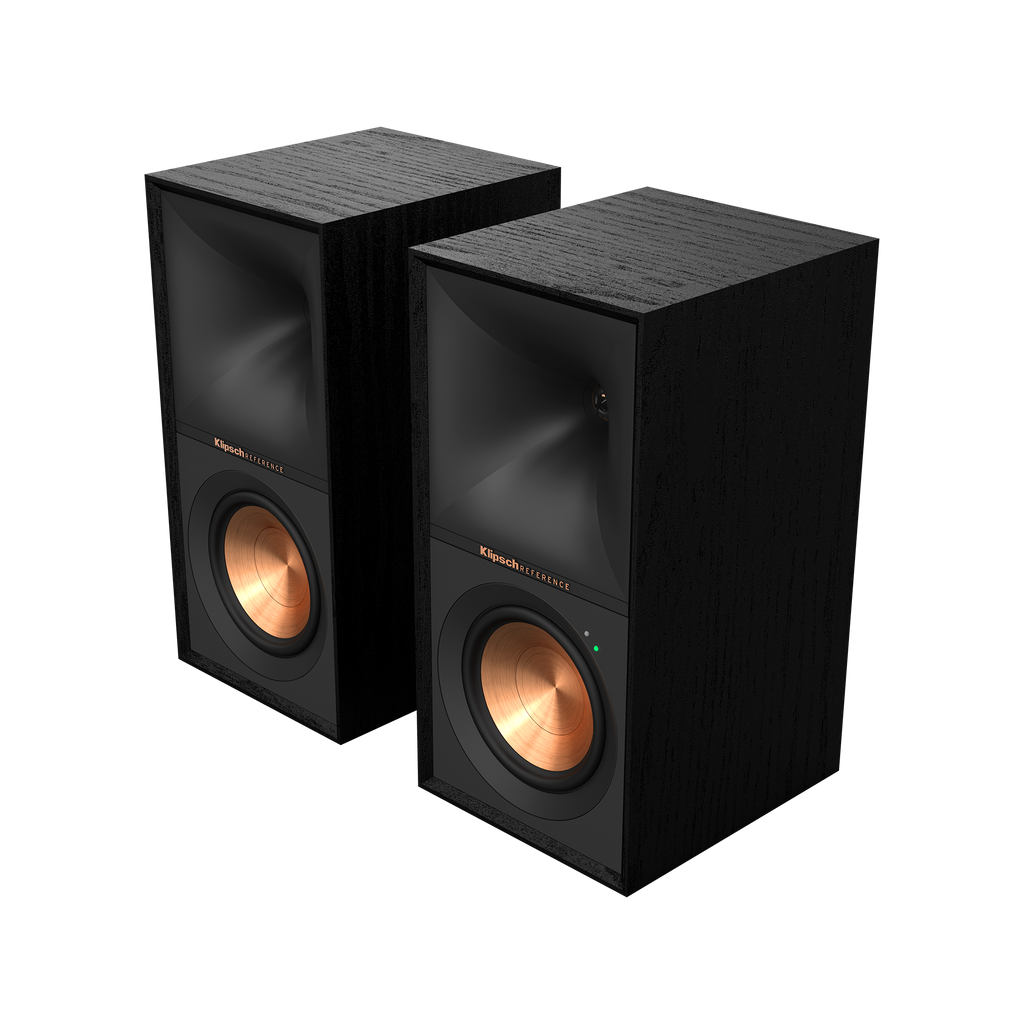

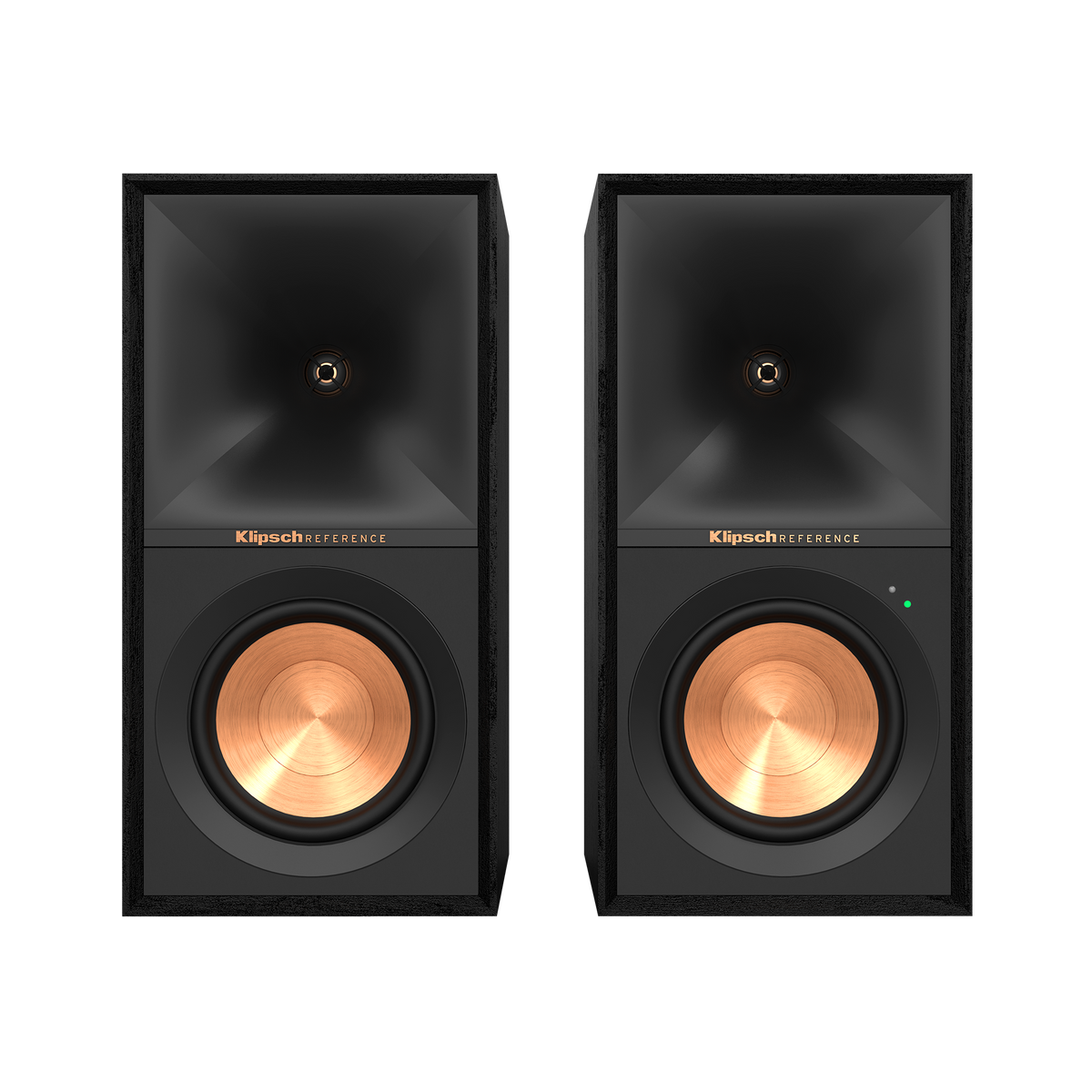

Each cabinet carries a 5.25" spun-copper IMG woofer and a 1" LTS tweeter on a Tractrix® horn — the same driver architecture as the passive Reference line, which is why they sound like Klipsch speakers rather than like powered monitors.
Connectivity covers Bluetooth®, USB, optical digital, analogue RCA and a dedicated phono input with a built-in preamp, plus a subwoofer output for adding low end later. A remote is included.
Features
- 1" (2.5cm) Aluminum LTS tweeter mated to 90° x 90° square Tractrix® horn
- Single 5.25" (13.3cm) spun-copper TCP woofer
- 55Hz - 20kHz frequency response
- Powered speakers — built-in amplification, no receiver required
- 5.25" spun-copper IMG woofers
- 1" LTS tweeter on a Tractrix® horn
- Built-in phono preamp for a direct turntable connection
- Bluetooth®, USB, optical digital and analogue RCA inputs
- Subwoofer output

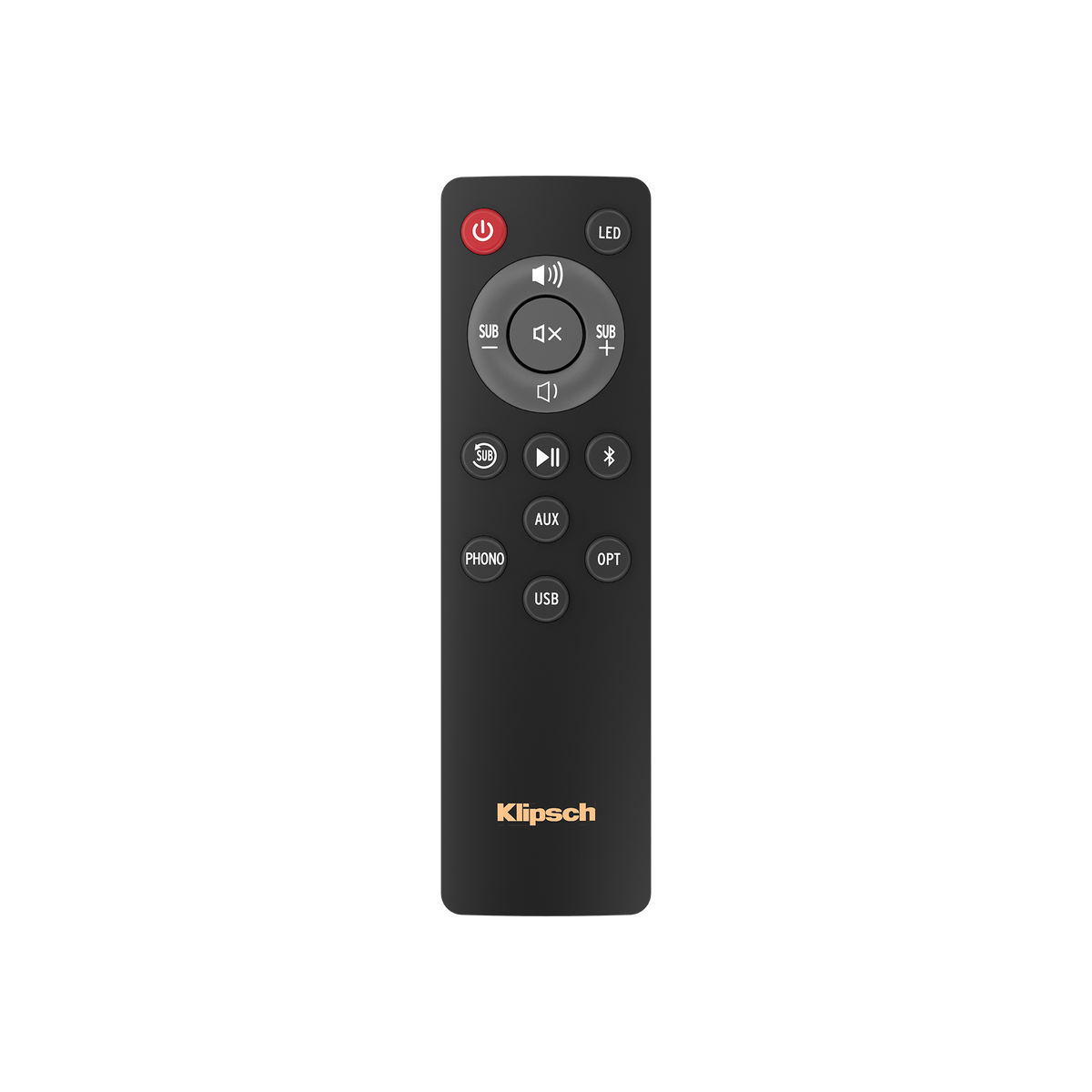

- Remote control included
Specifications
| Technical | |
|---|---|
| System Description | Powered Monitor (pair) |
| Frequency Response | 55Hz - 20kHz |
| Dynamic Bass Extension | 44Hz |
| Maximum Output | 104dB |
| Total System Power | 120W Total System Power (240W Peak) 60W per channel cont. @ <%1 THD |
| High Frequency Driver | 1" (2.5cm) Aluminum LTS tweeter mated to 90° x 90° square Tractrix® horn |
| Low Frequency Driver | Single 5.25" (13.3cm) spun-copper TCP woofer |
| Crossover Frequency | 1663 Hz (Passive) |
| Enclosure Material | Mdf |

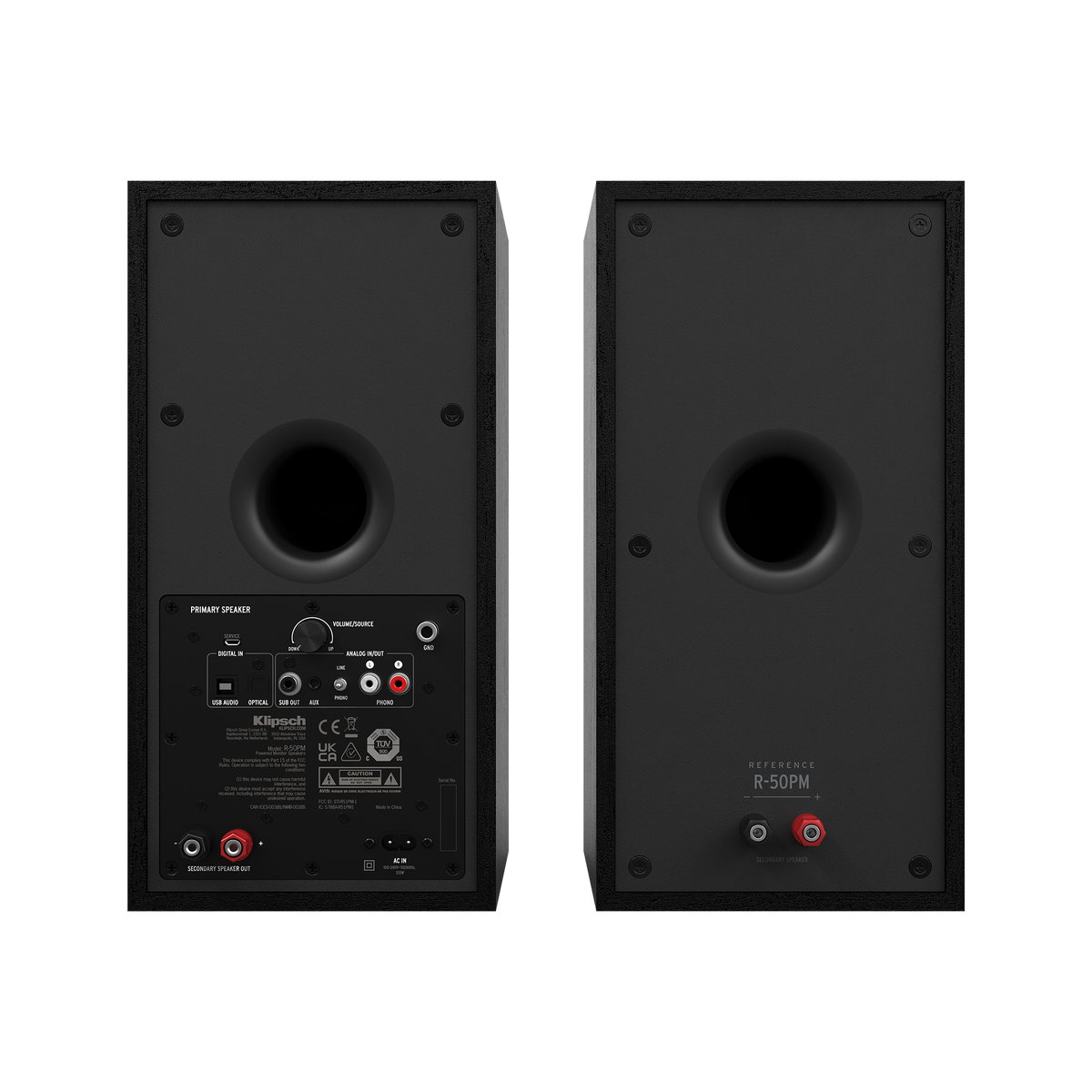

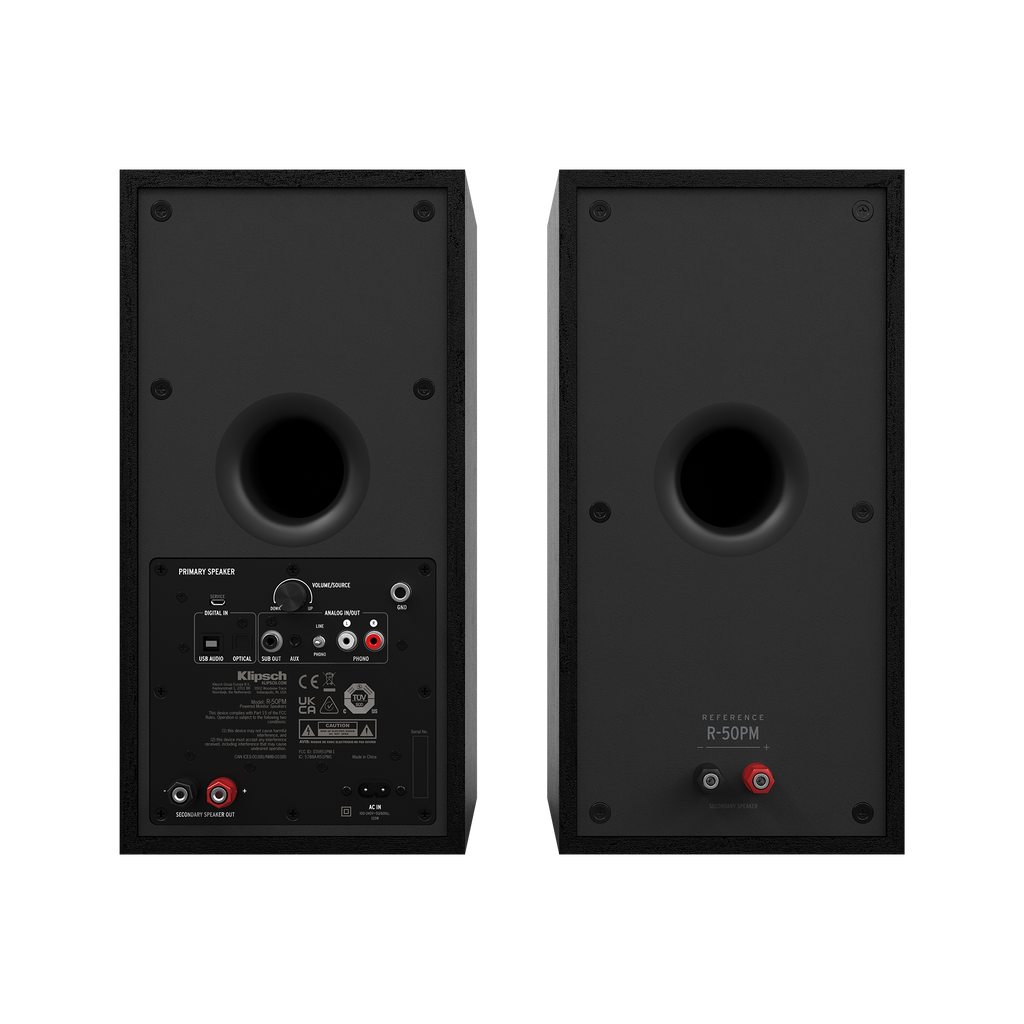

| Inputs | • Bluetooth® wireless technology • Phono/Line analog (with switch and ground screw terminal) • 3.5mm analog mini jack • USB digital • Optical digital |
| Outputs | Single RCA line level output for connection to subwoofer |
| Voltage | 100V-240V 50/60Hz internal power supply with region specific power cords |
| Physical | |
|---|---|
| Height, Width, Depth | 14" (35.6 cm), 7" (17.8 cm), 10.8" (27.4 cm) |
| Weight | 24.8 lbs (11.2 kg) |
| Finish | Black |
| Included Accessories | • Remote control (with 2 x AAA batteries) • 4M speaker wire with soldered tips • 2M power cord (region specific) • 2M USB Type A to Type B cable |
| Built From | 2022 |
Specifications subject to change.
