Klipsch R-50M Black, Pair
Product Details

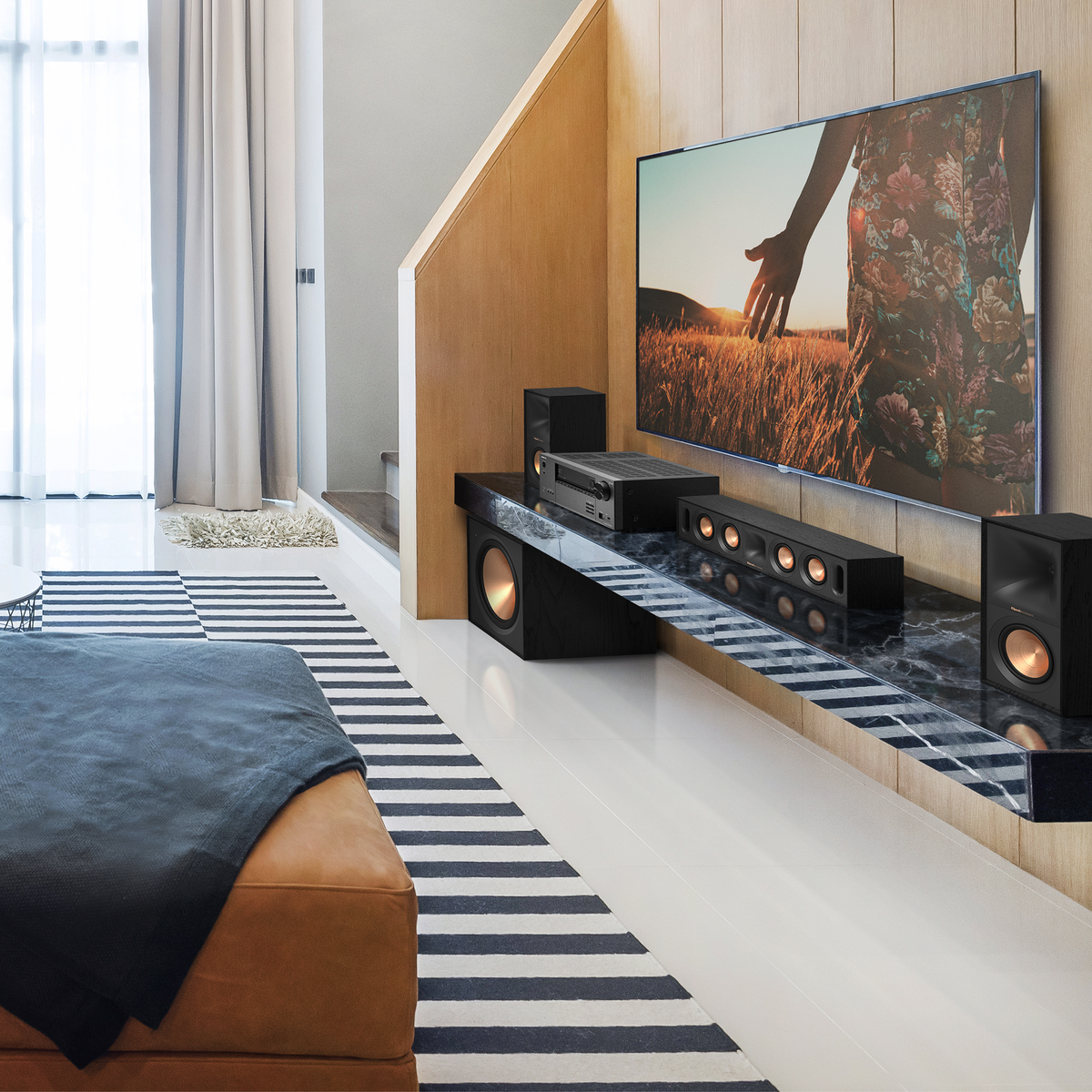

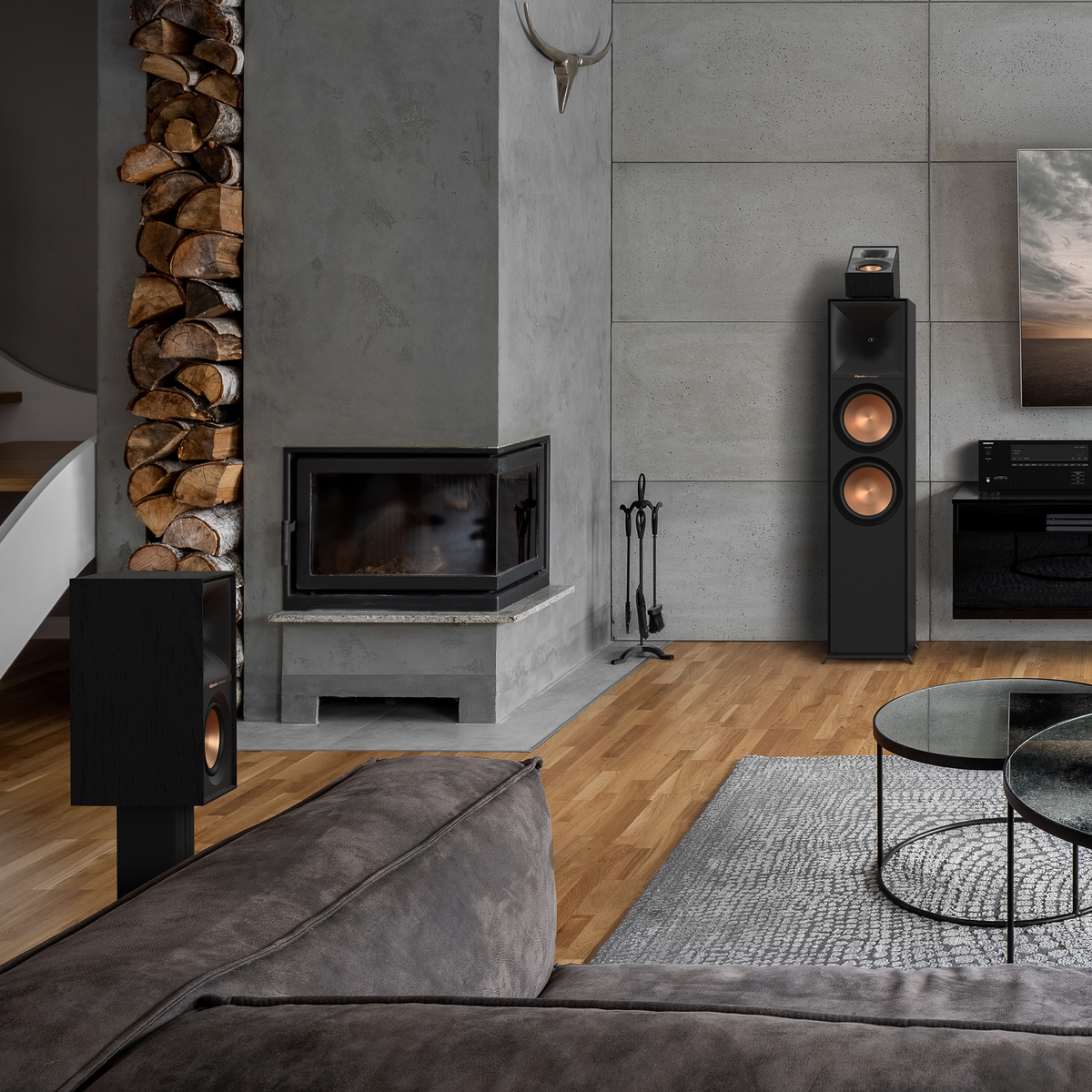

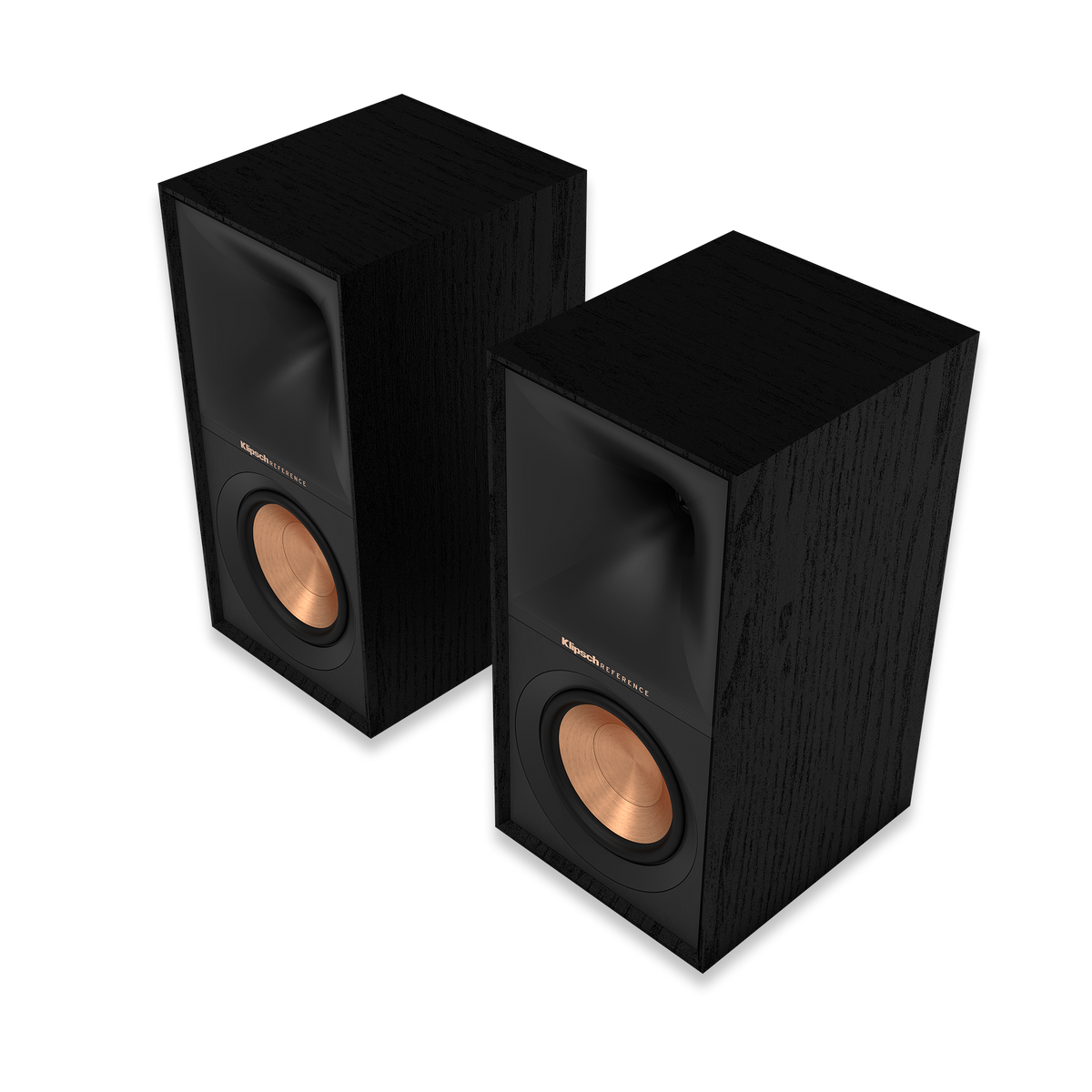

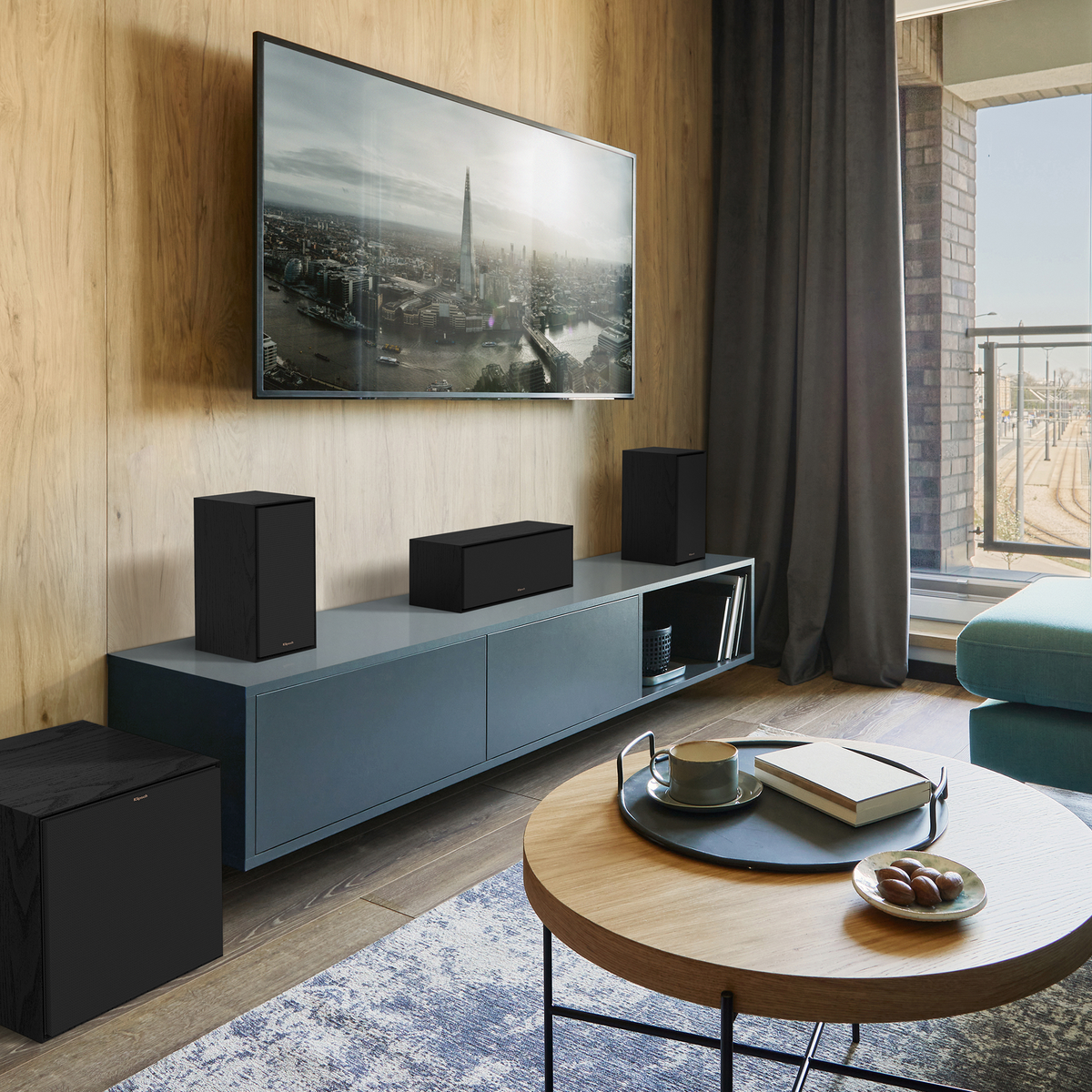

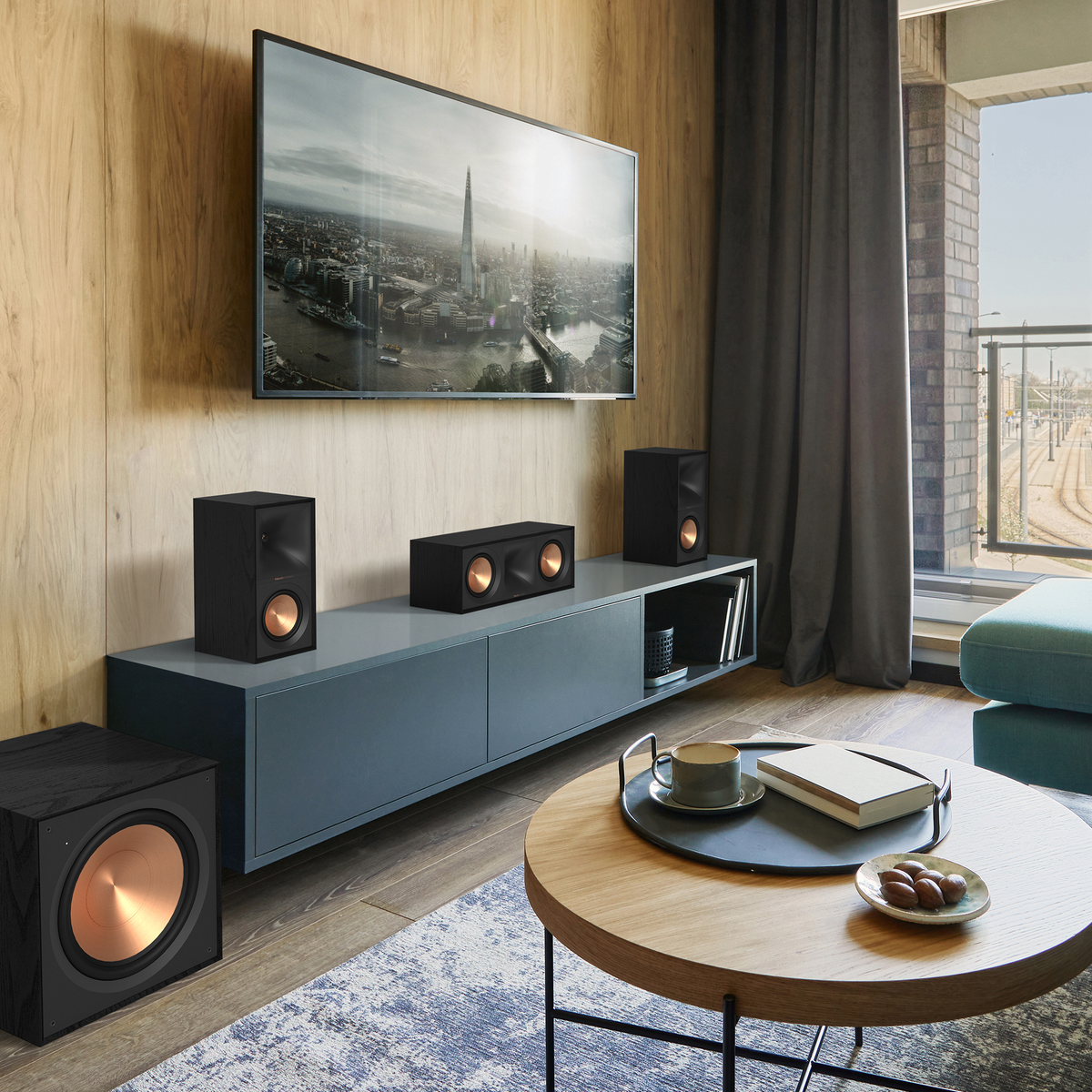

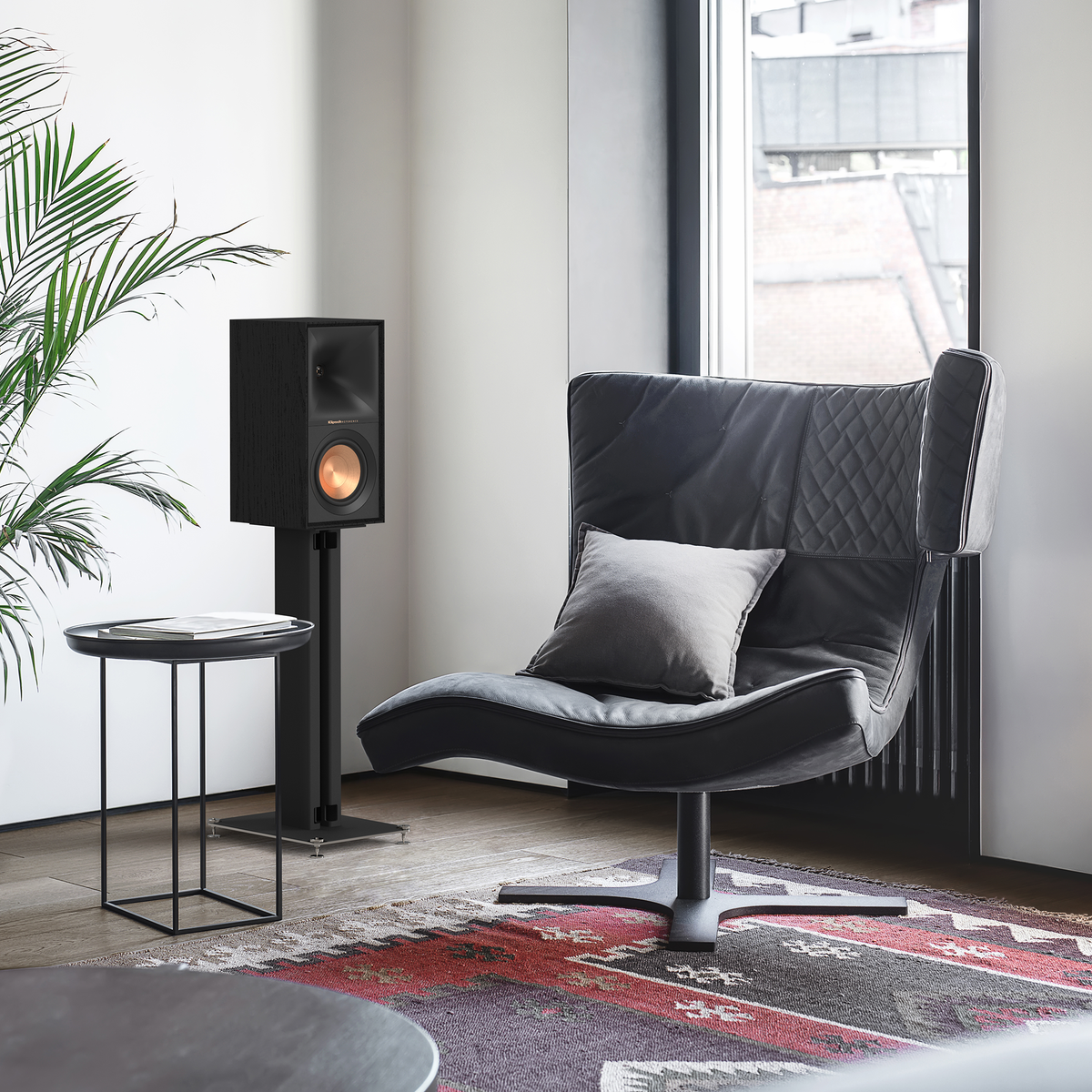

The Klipsch R-50M is a bookshelf speaker with a single 5.25" spun-copper IMG woofer, sold as a pair. It reaches 58Hz at 92dB sensitivity — enough to work as a main pair in a small room, a surround pair in a larger system, or a desktop pair.

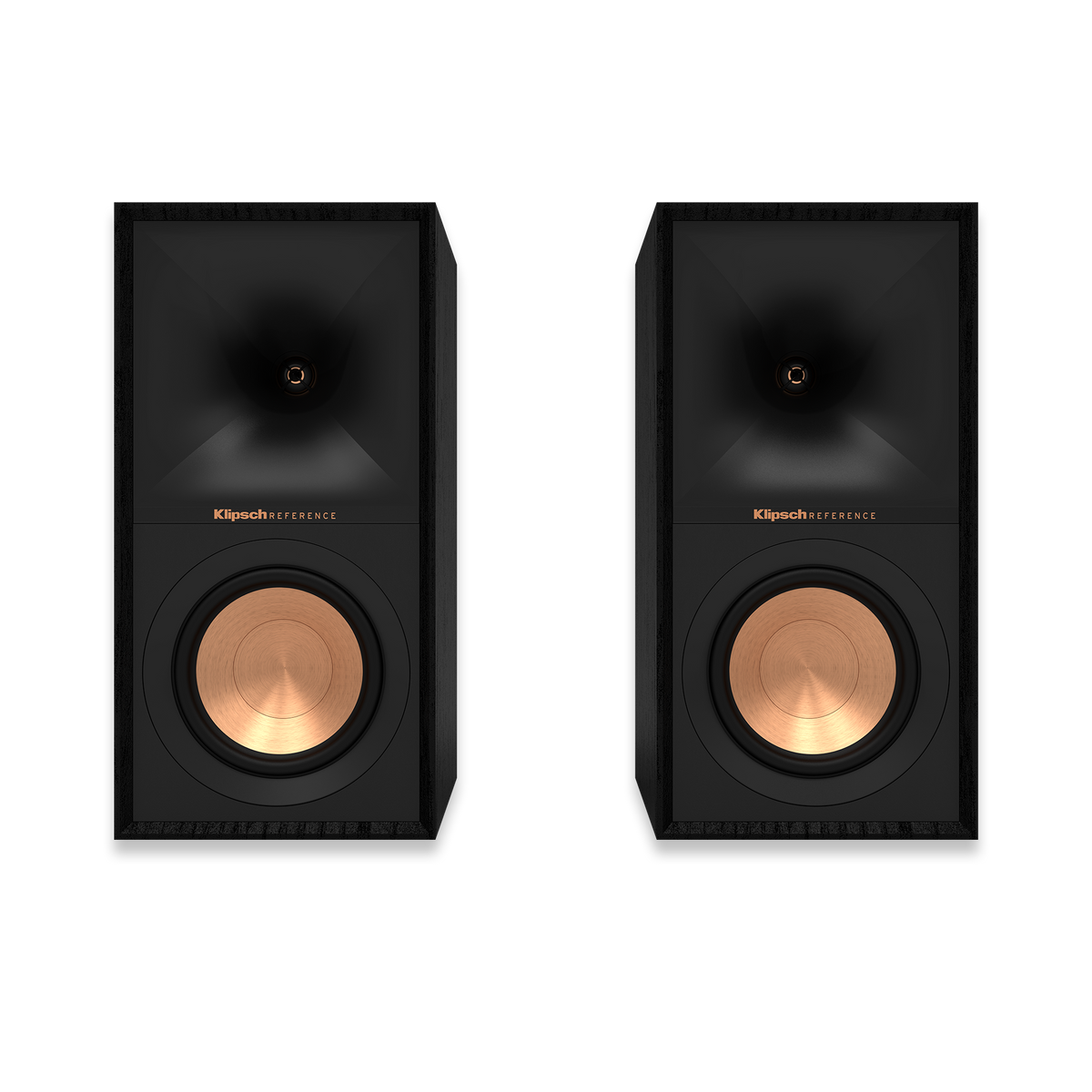

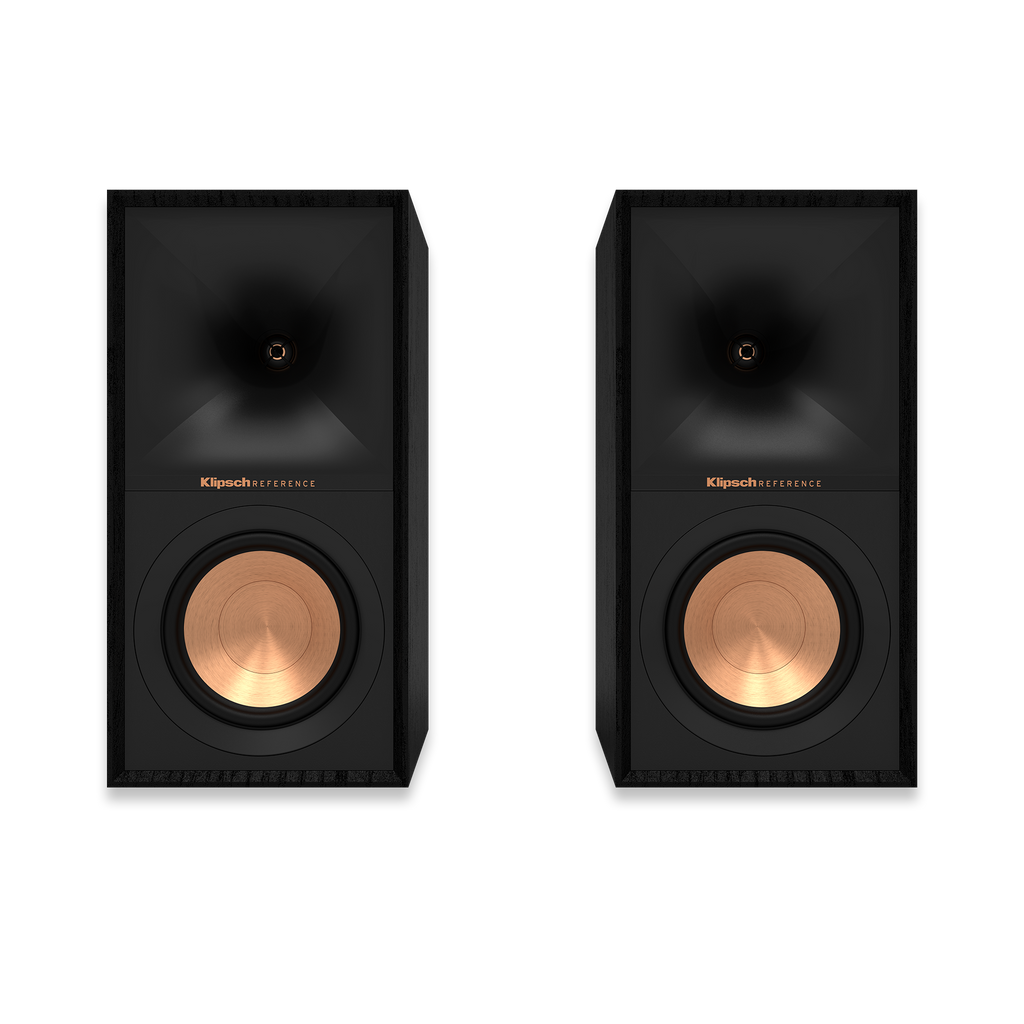

A 1" aluminum LTS tweeter sits on a 90° x 90° square Tractrix horn. Horn loading raises efficiency and directs high frequencies toward the listening area rather than scattering them off walls and ceiling, which is what gives Klipsch Reference speakers their characteristic clarity at low amplifier power.

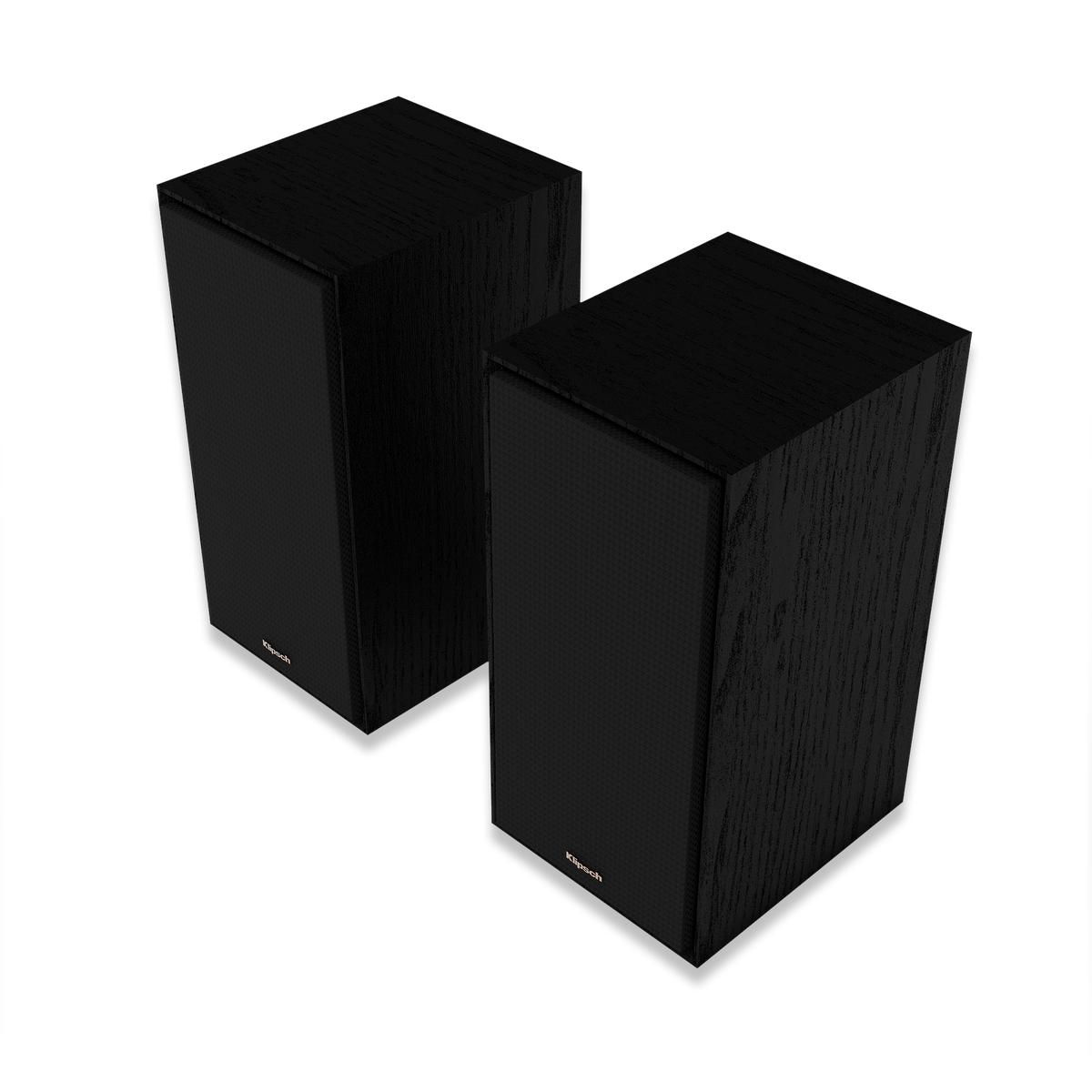

Spun-copper Injection Molded Graphite (IMG) woofers are light and rigid, keeping cone break-up out of the passband for low distortion. The copper finish is Klipsch's visual signature and is visible with the grille removed. The cabinet is MDF in scratch-resistant black textured wood-grain vinyl, with a removable magnetic grille and gold-plated binding posts.
Features
- 5.25" spun-copper IMG woofer; 58Hz – 21kHz +/- 3dB
- 92dB in-room sensitivity; 75W / 300W power handling
- 1" aluminum LTS tweeter on a 90° x 90° square Tractrix horn

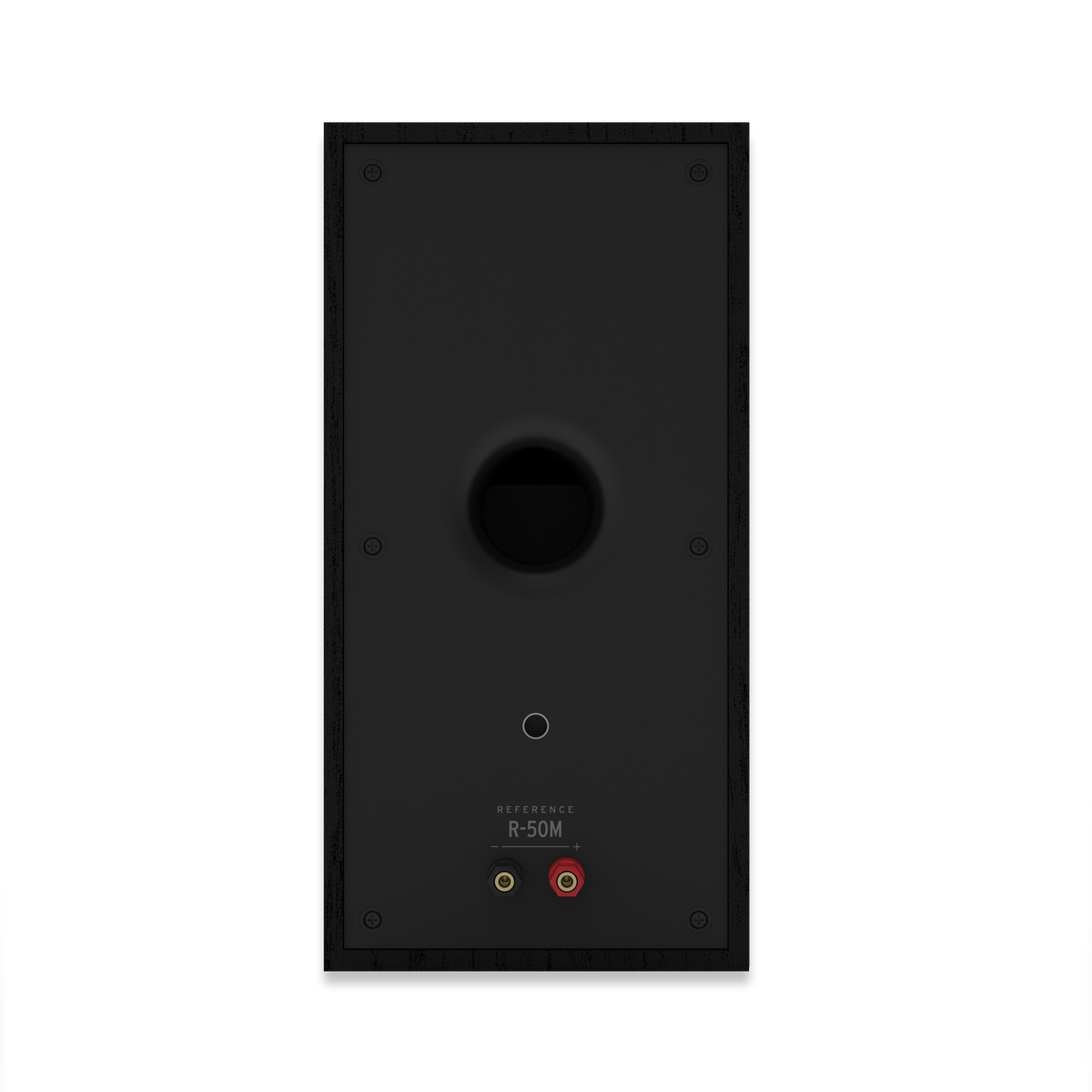

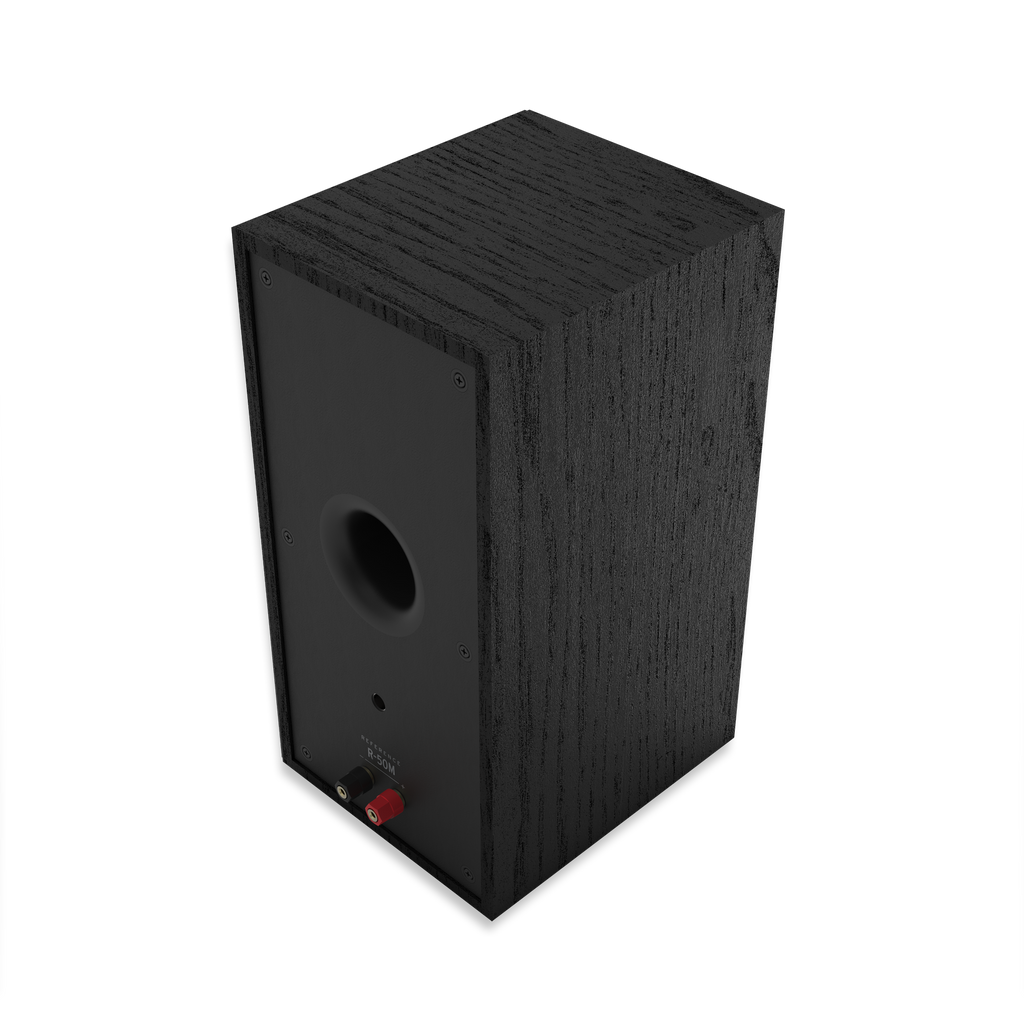

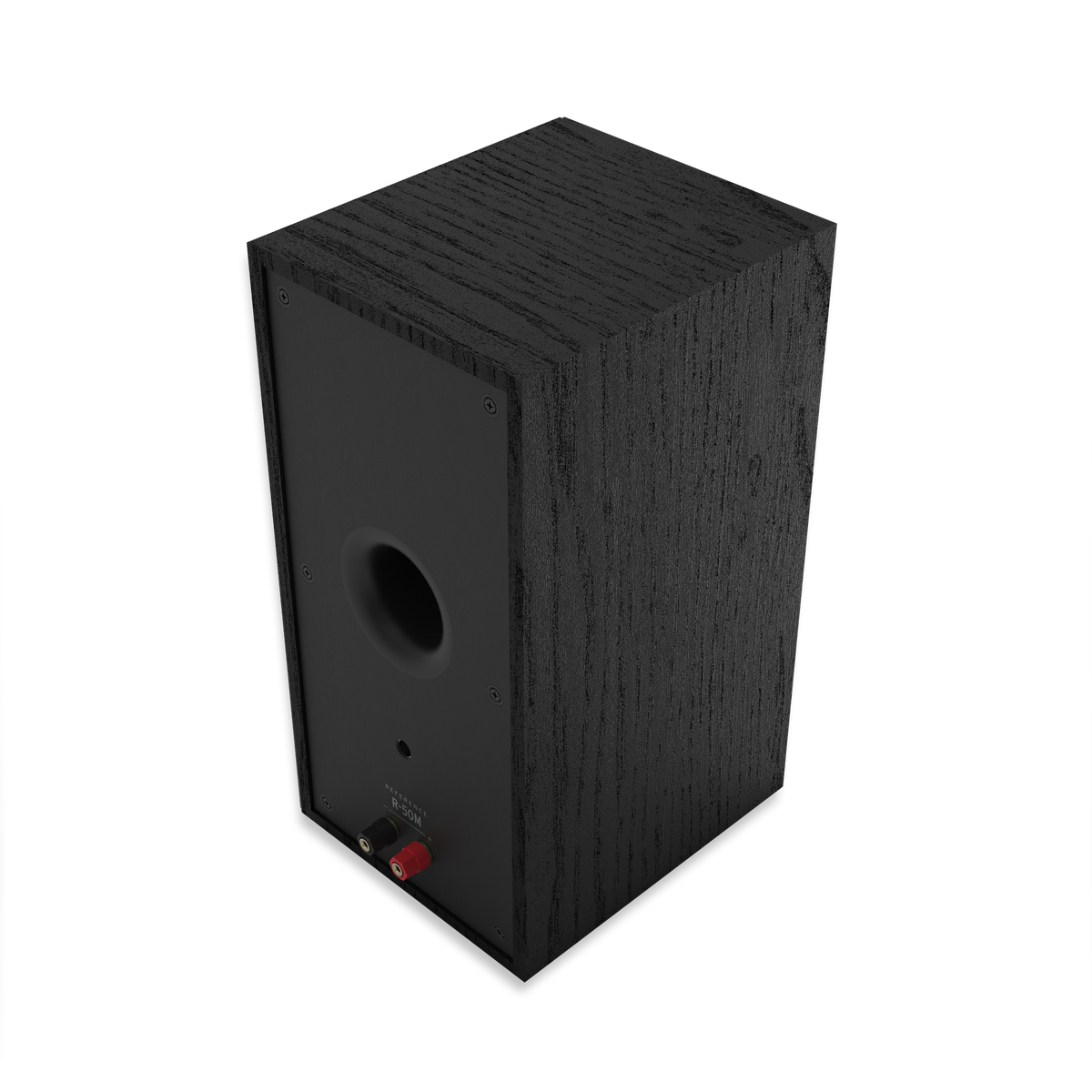

- Bass-reflex via rear-firing ports

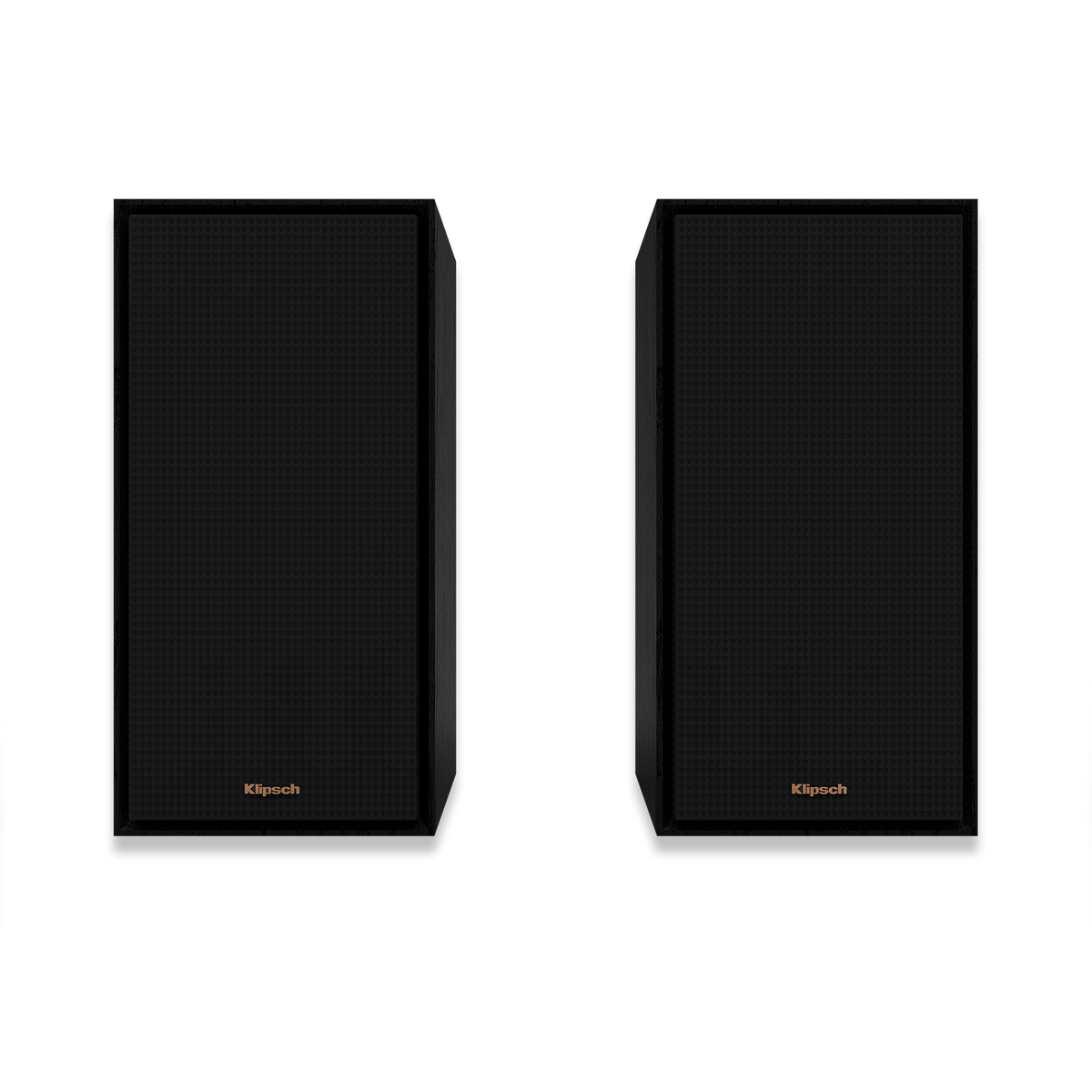

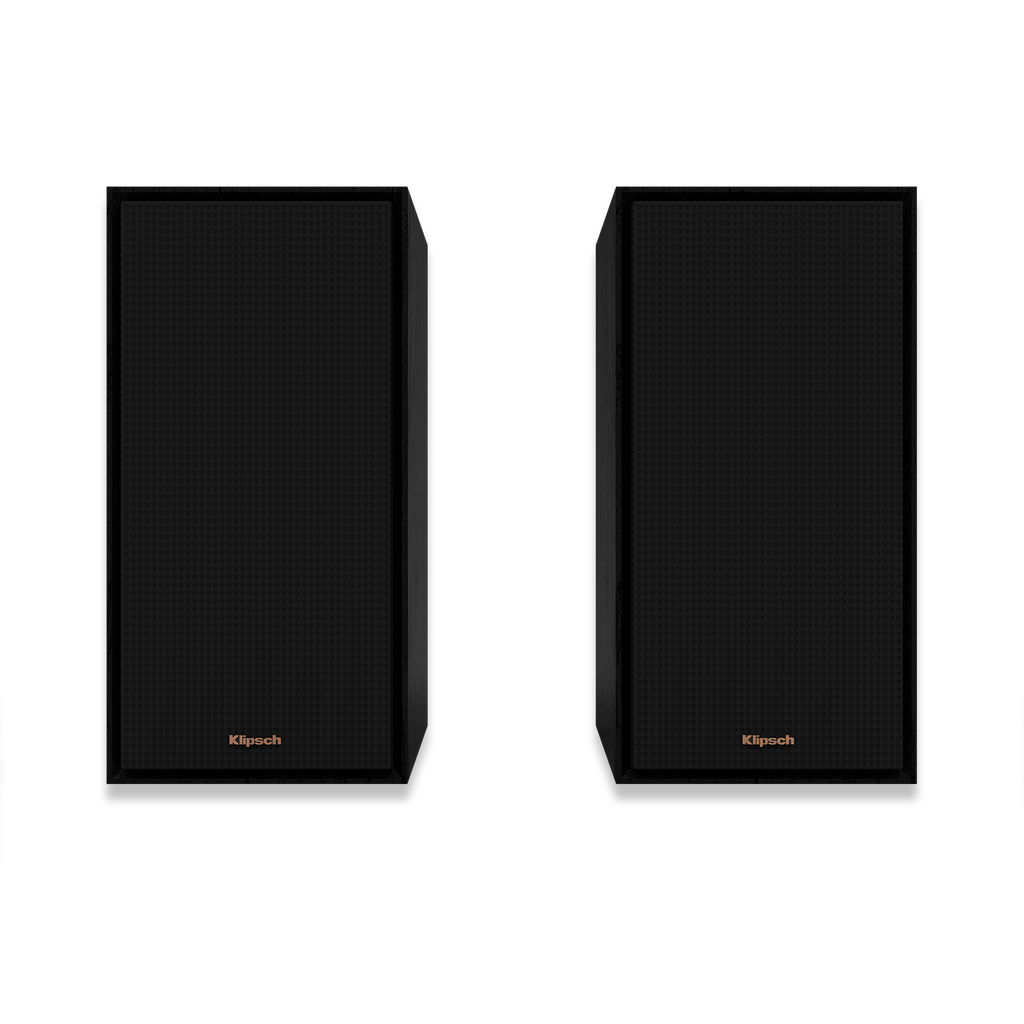

- Removable magnetic grille
- Gold-plated binding posts
- Sold as a pair
Specifications
| Technical | |
|---|---|
| Frequency Response | 58Hz - 21kHz +/- 3dB |
| Sensitivity | 92 dB (In-Room) |
| Power Handling (Cont/Peak) | 75W/300W |
| Nominal Impedance | 8 ohms Compatible |
| Crossover Frequency | 1,560 Hz |
| High Frequency Driver | 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
| Low Frequency Driver | Single 5.25" spun-copper TCP woofer |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via rear-firing ports |
| Inputs | Single Gold Plated Binding Posts |
| Physical | |
|---|---|
| Height | 13.9" (354 mm) |
| Width | 7" (178 mm) |
| Depth | 9" (229 mm) |
| Weight | 11 lbs (5 kg) |
| Finish | Black Textured Wood Grain Vinyl |
Specifications subject to change.
