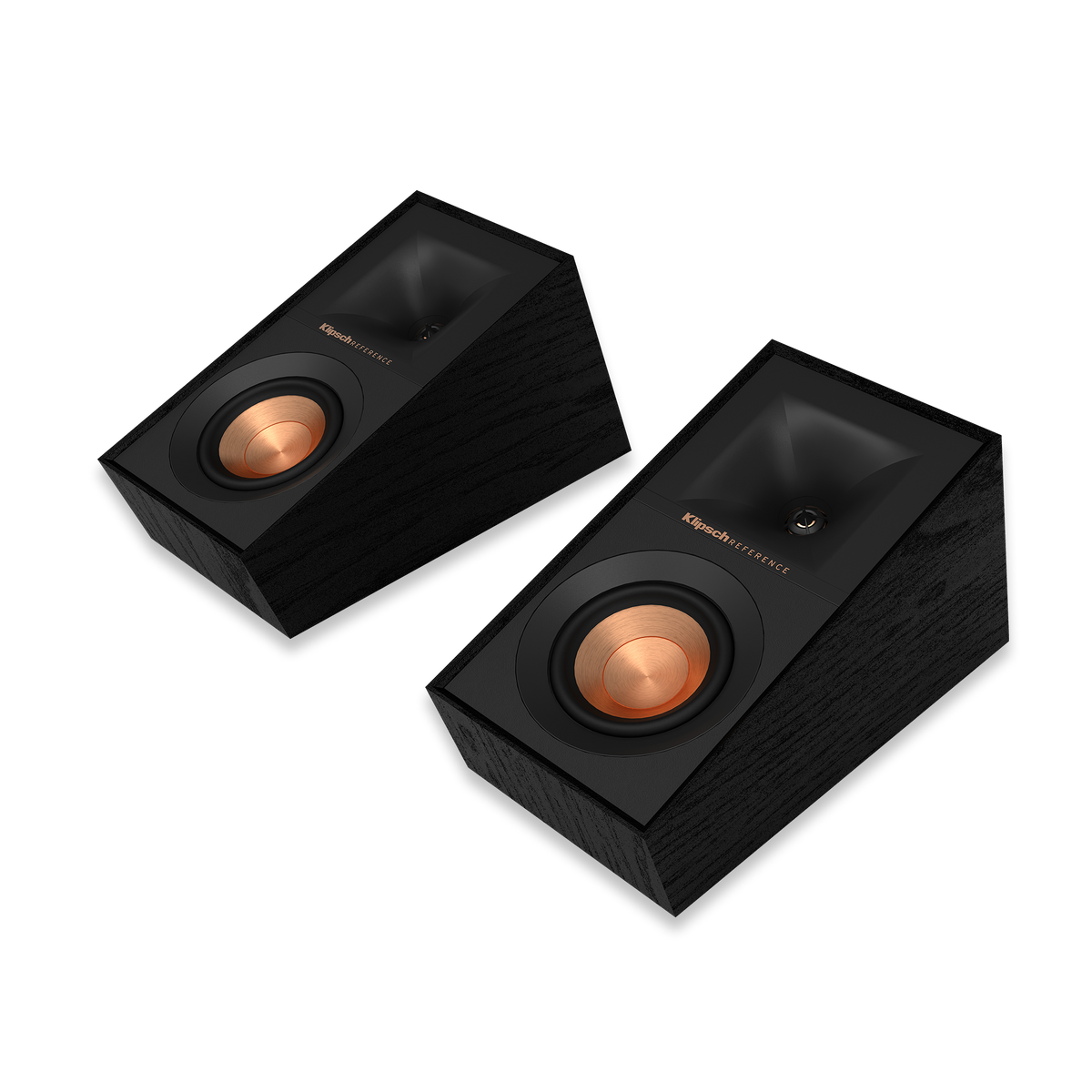

Klipsch R-40SA Black, Pair
Product Details

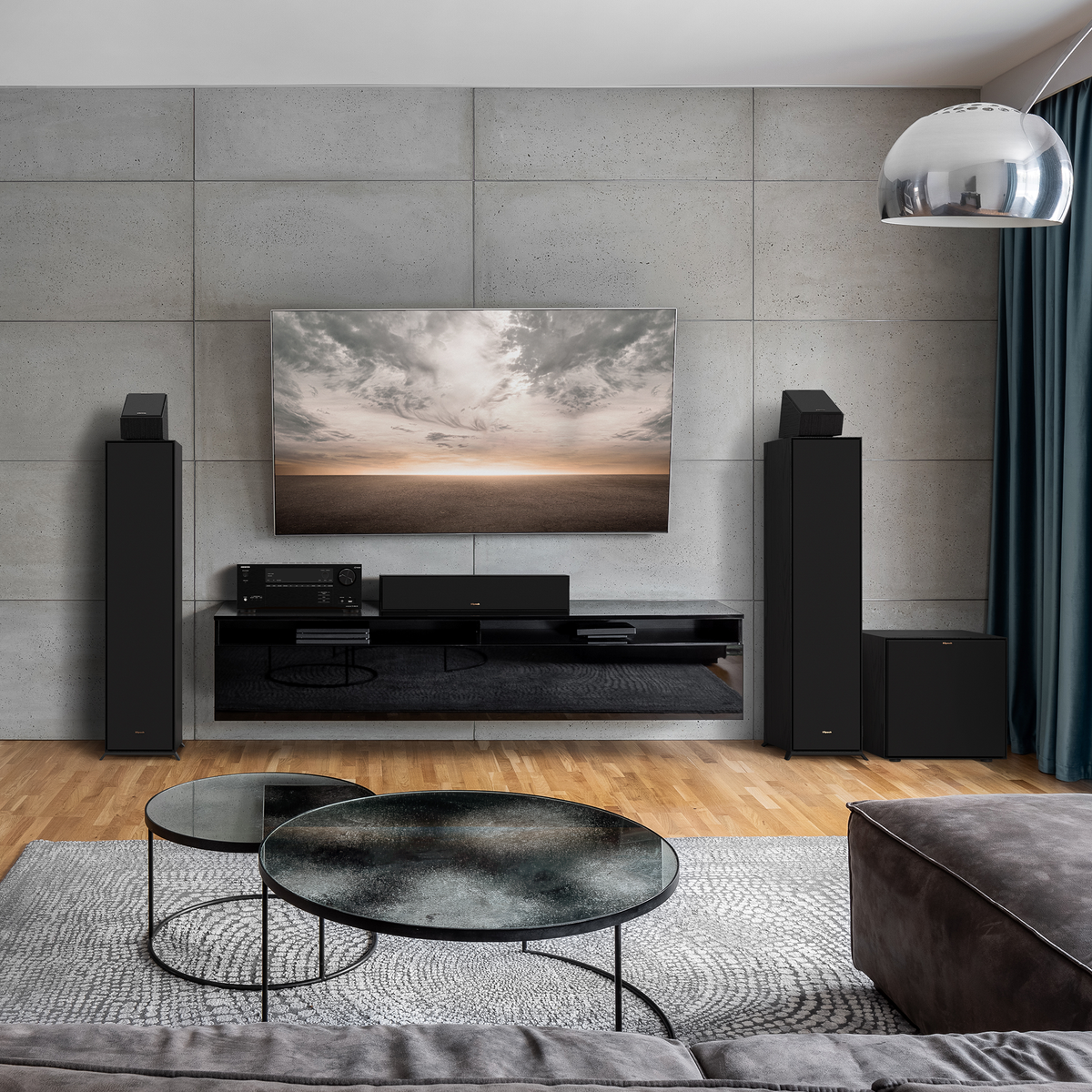

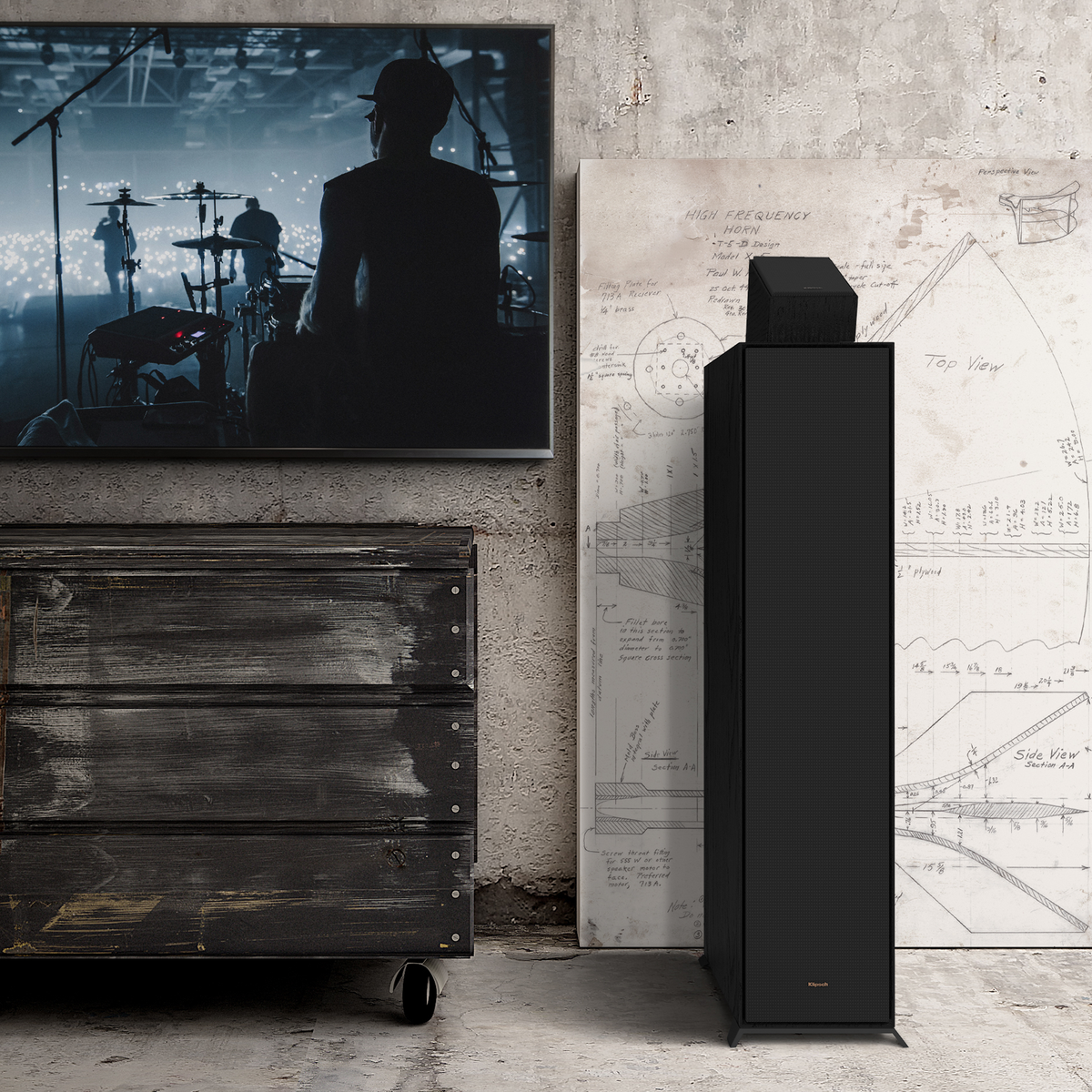

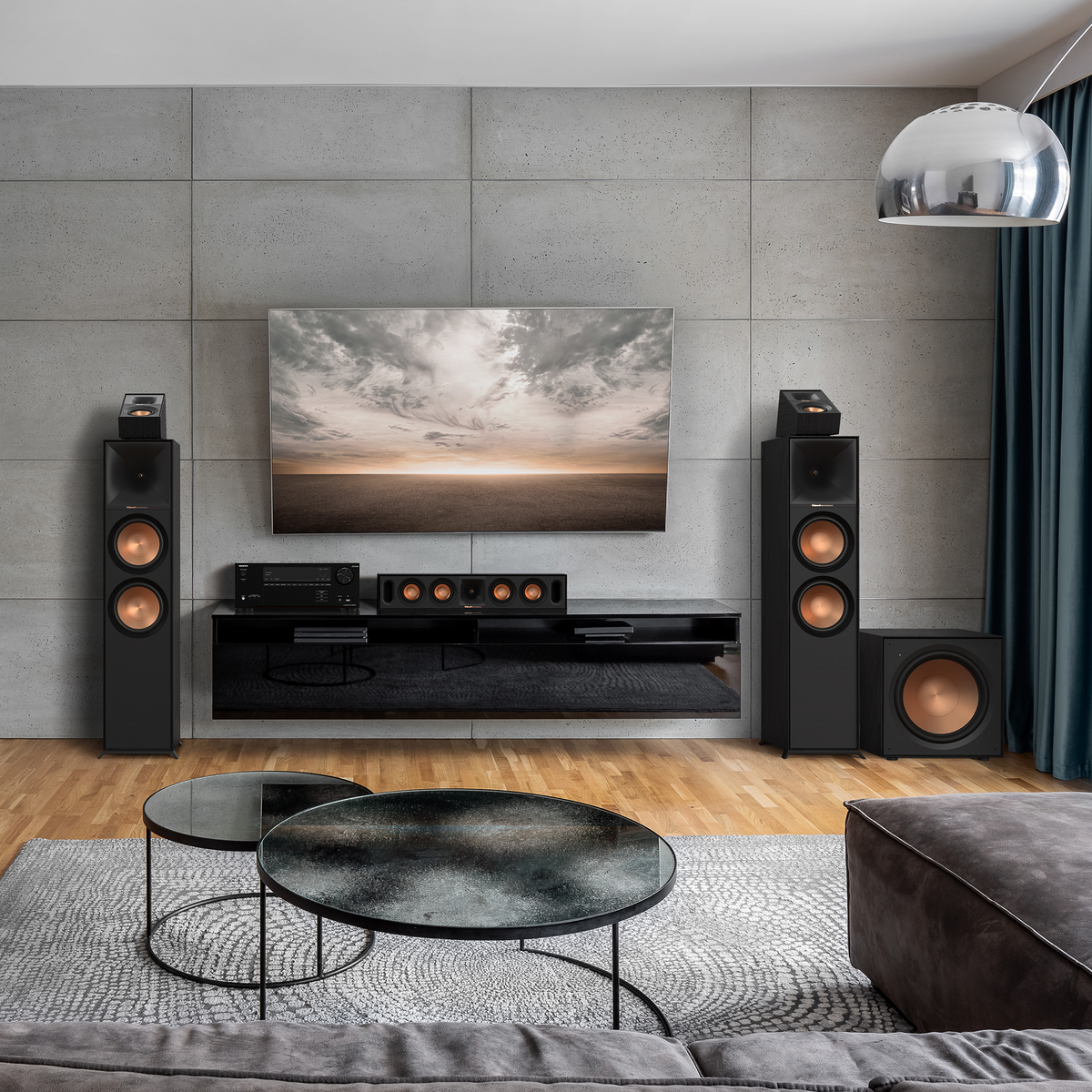

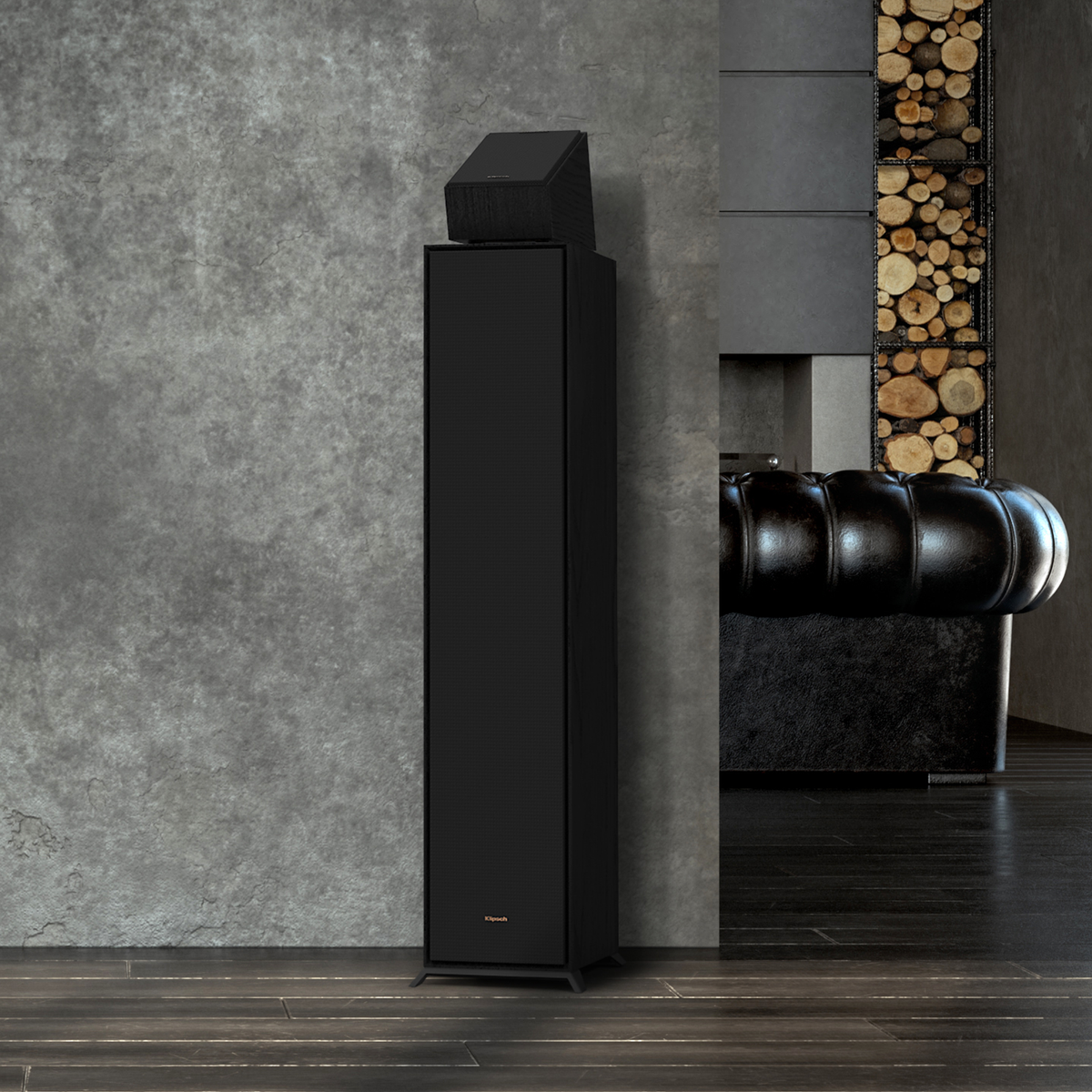

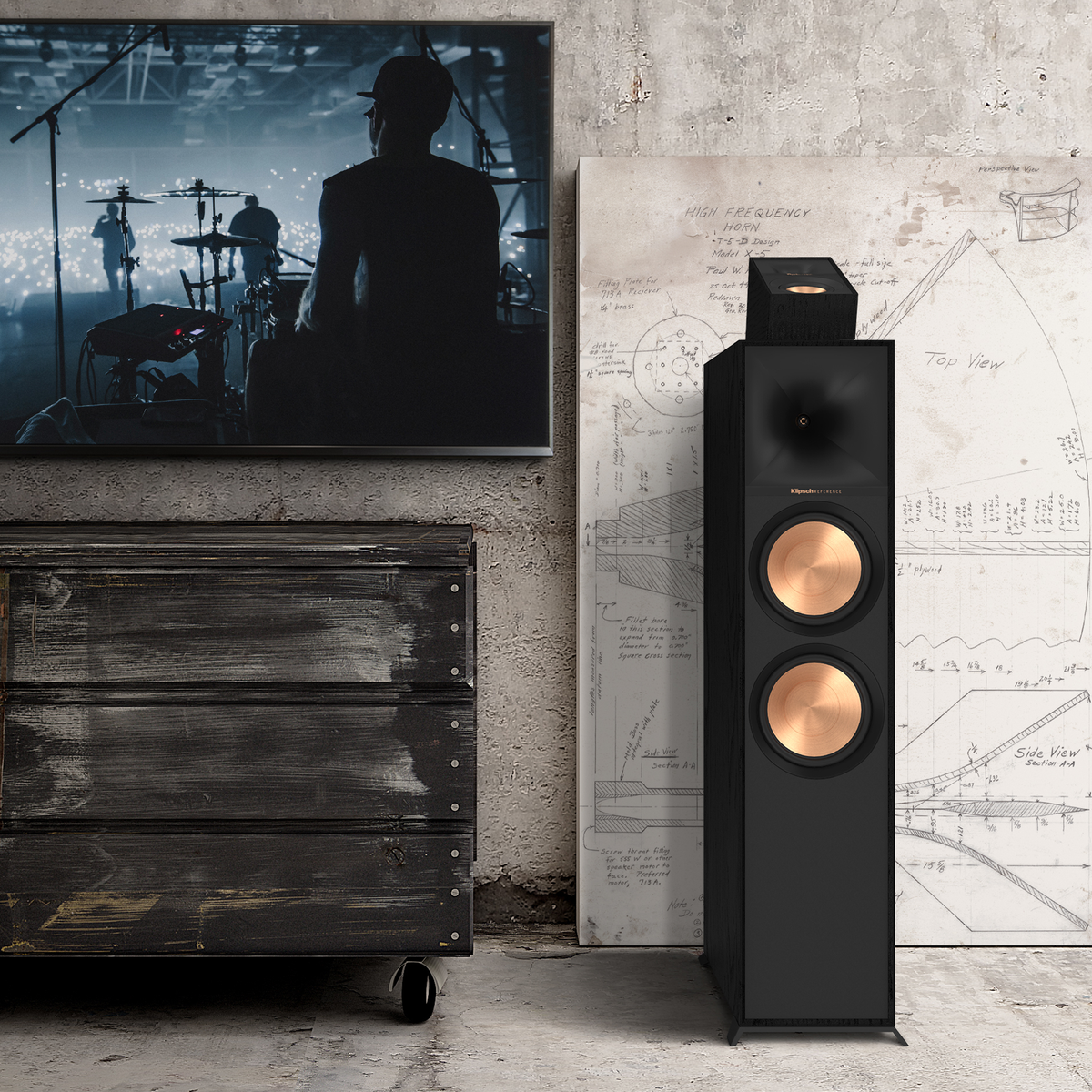

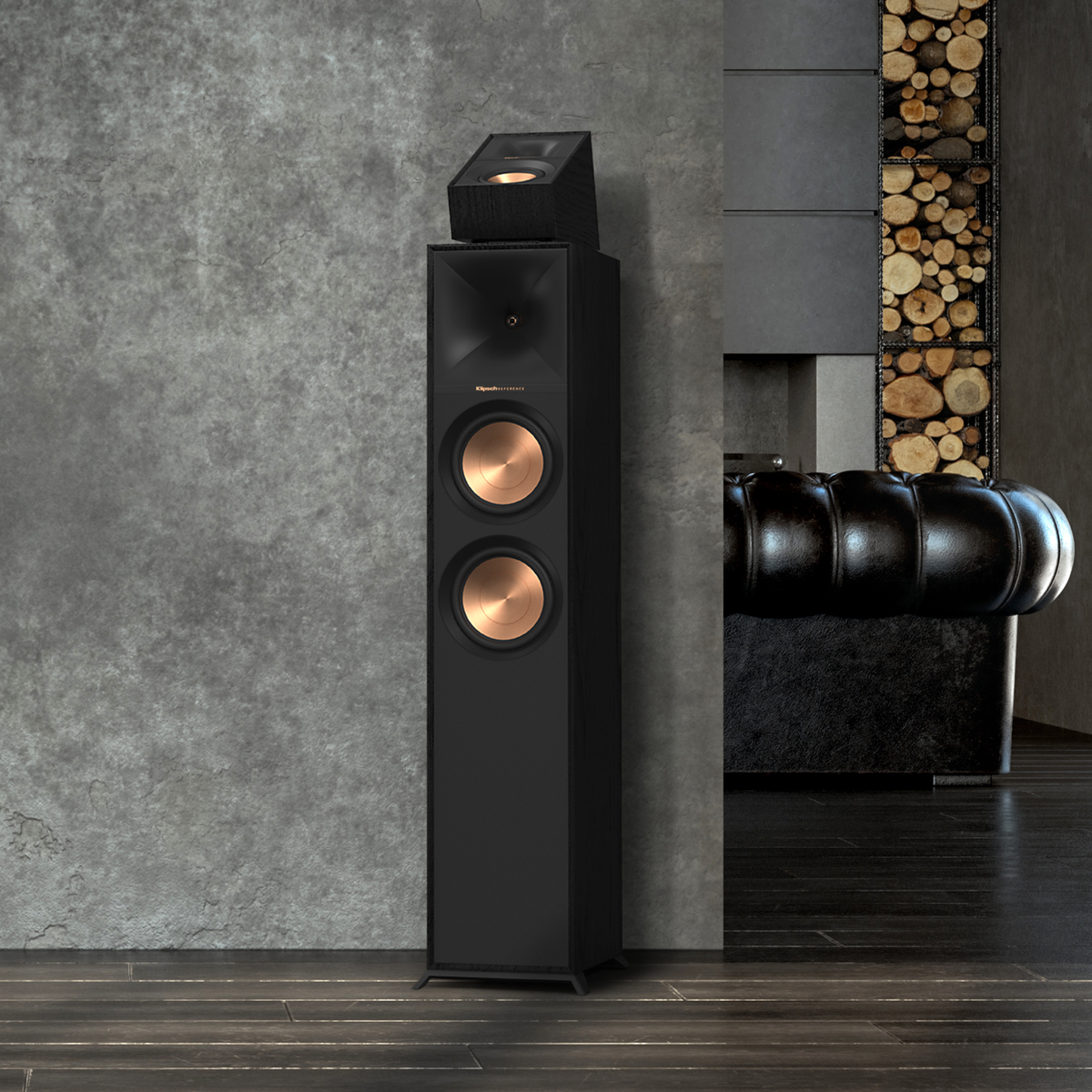

The Klipsch R-40SA is a Dolby Atmos elevation speaker, sold as a pair. It sits on top of a floorstanding or bookshelf speaker and fires at the ceiling, reflecting height effects down to the listening position — Atmos without cutting into ceilings or running wire overhead.

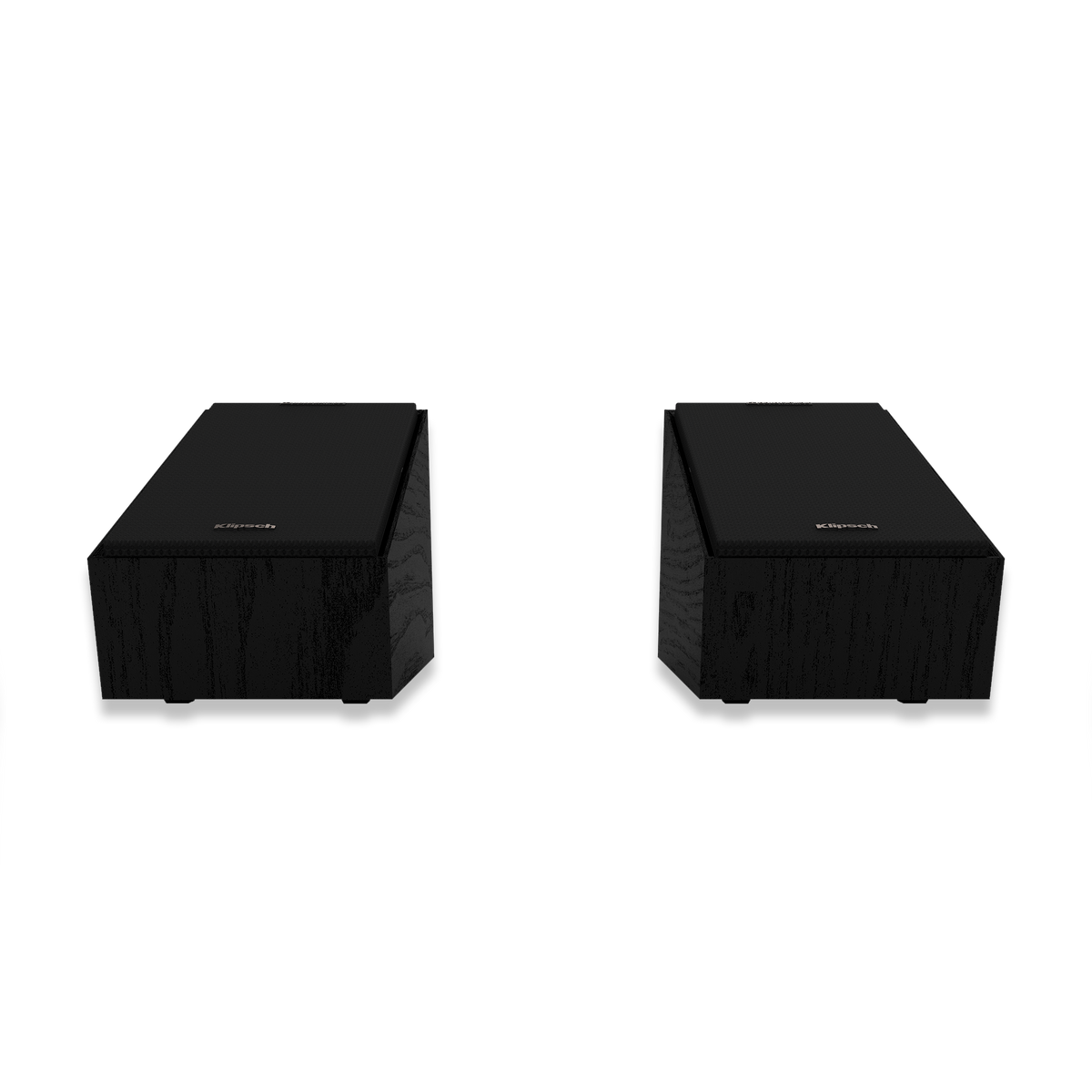

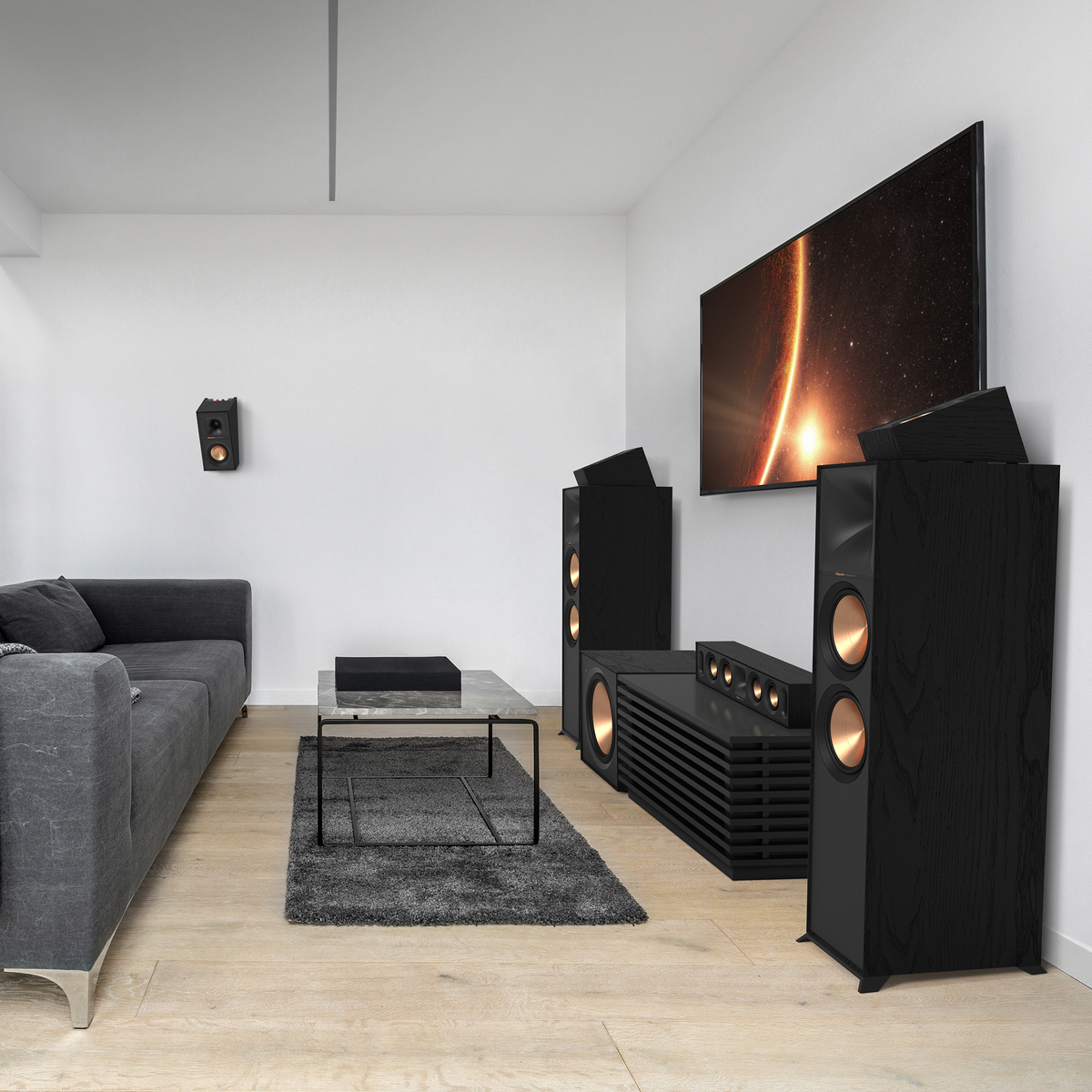

The angled cabinet is voiced to Dolby Atmos specification for the reflected-height role, and can also be wall mounted and used as a conventional surround. Four rubber feet are included for placing it on top of another speaker without marking the cabinet.

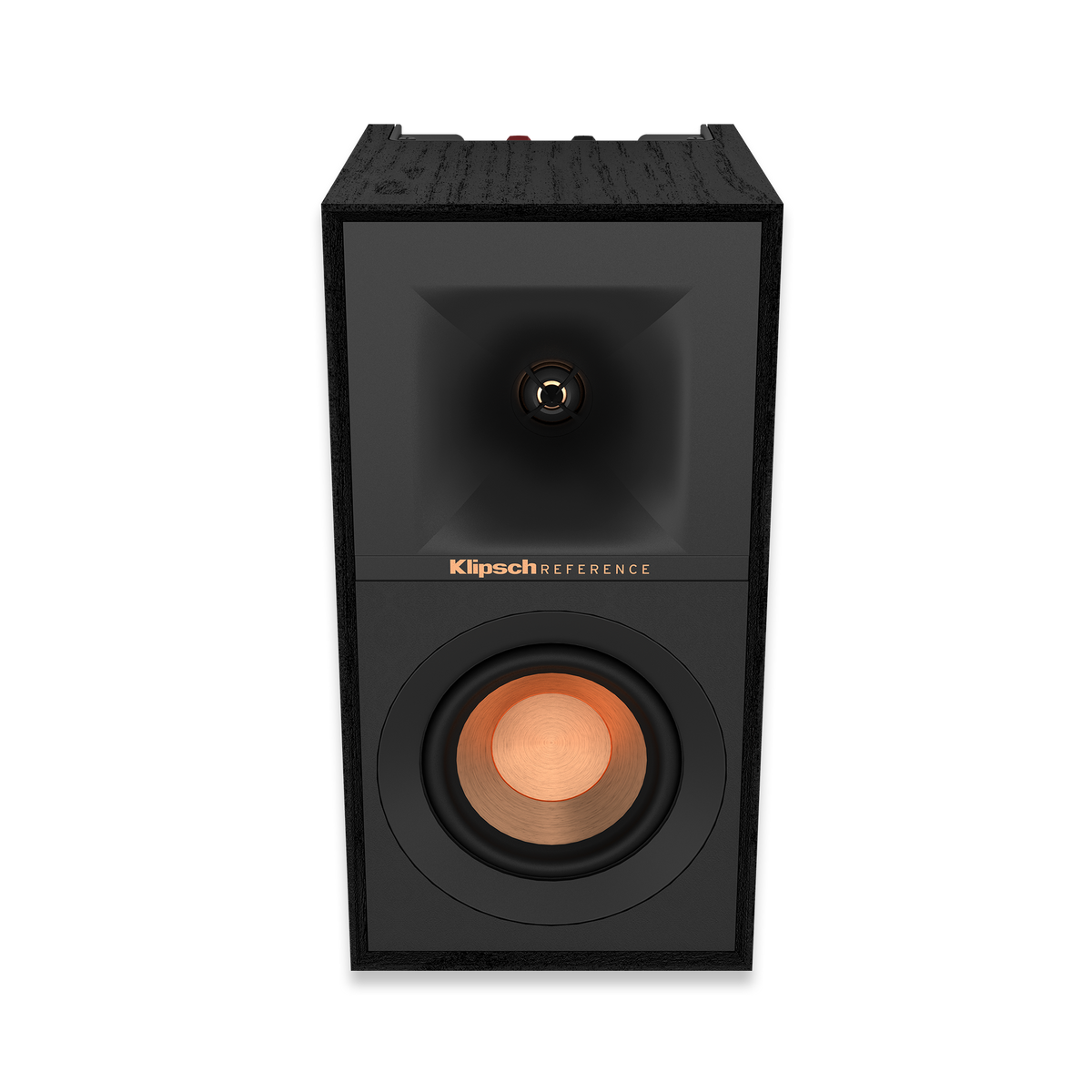

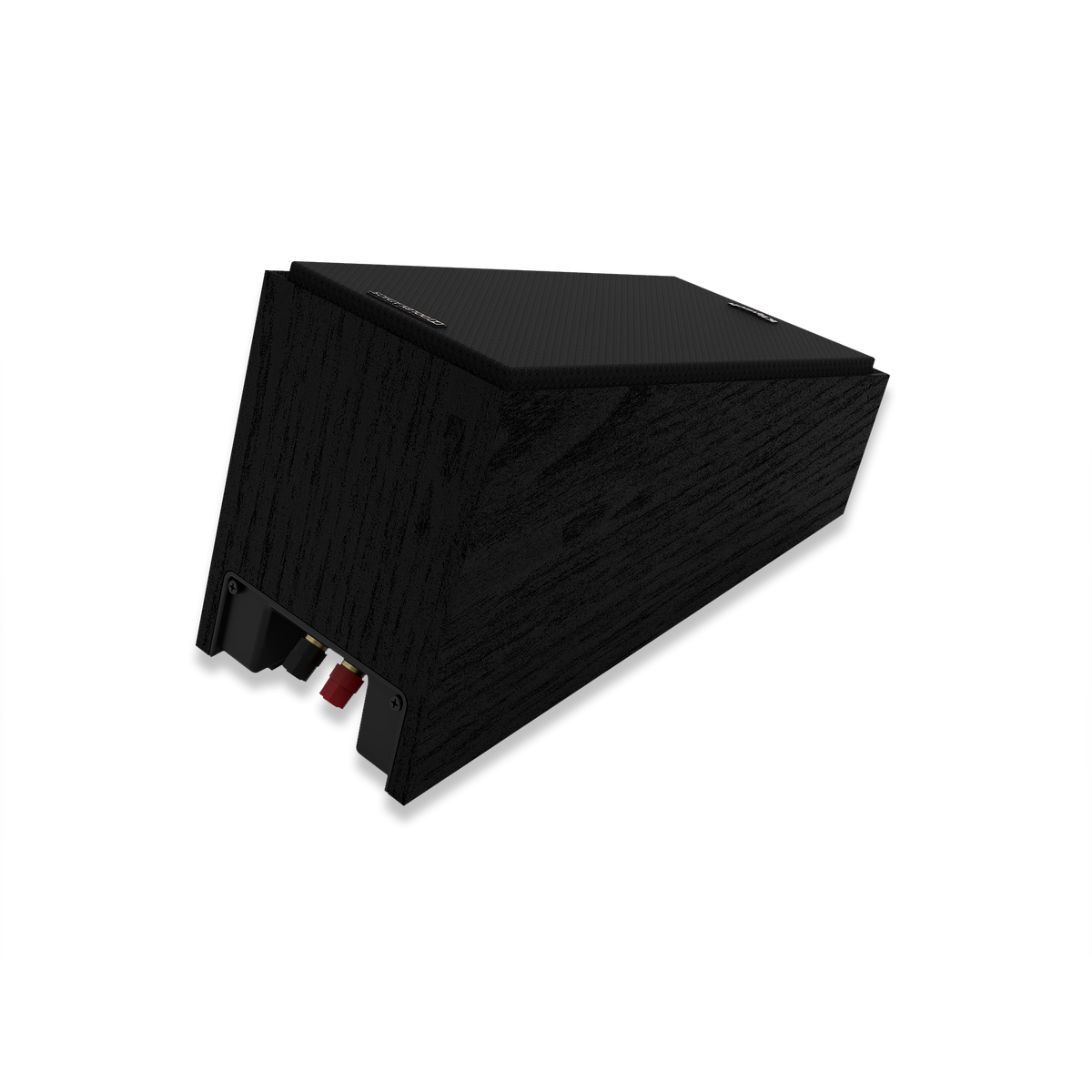

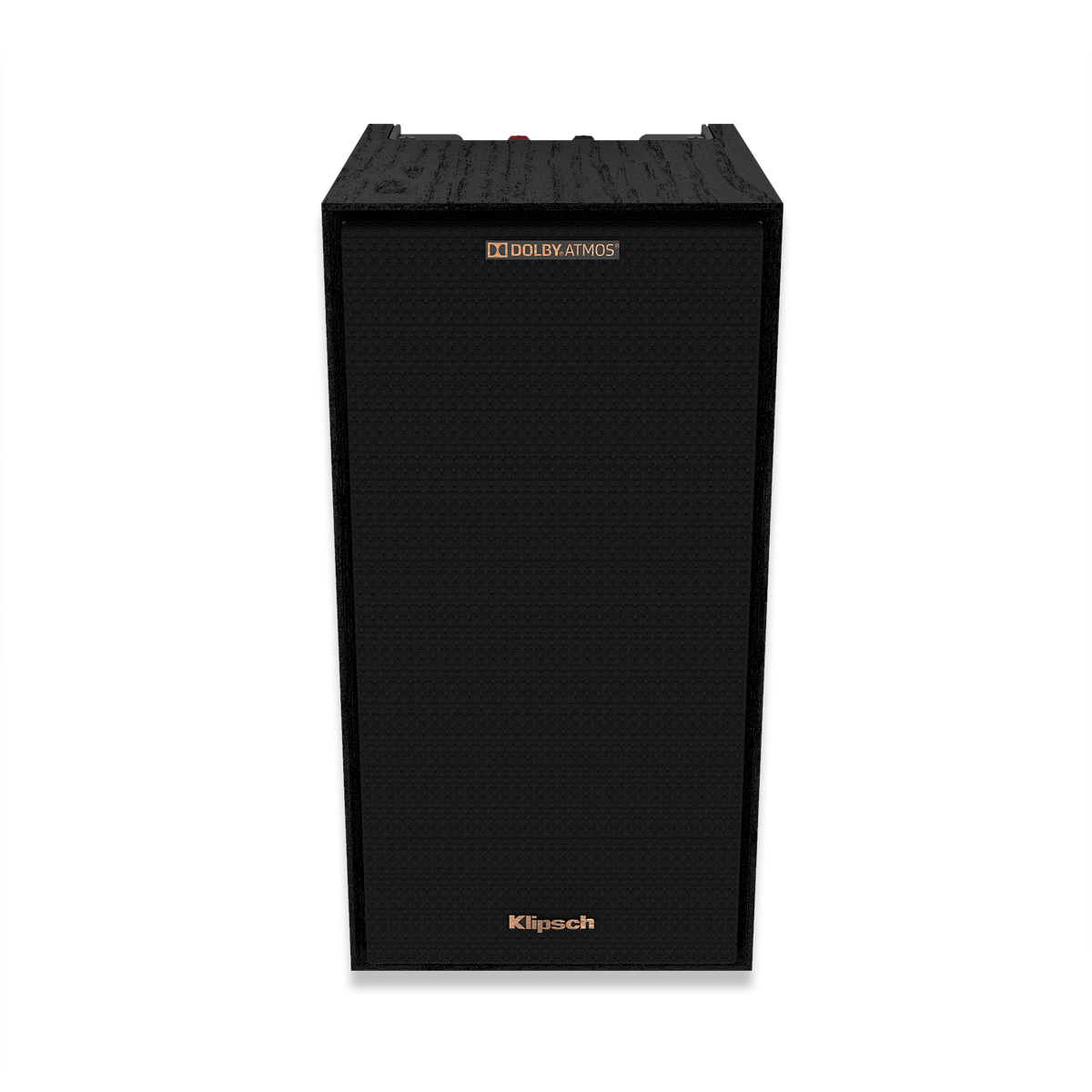

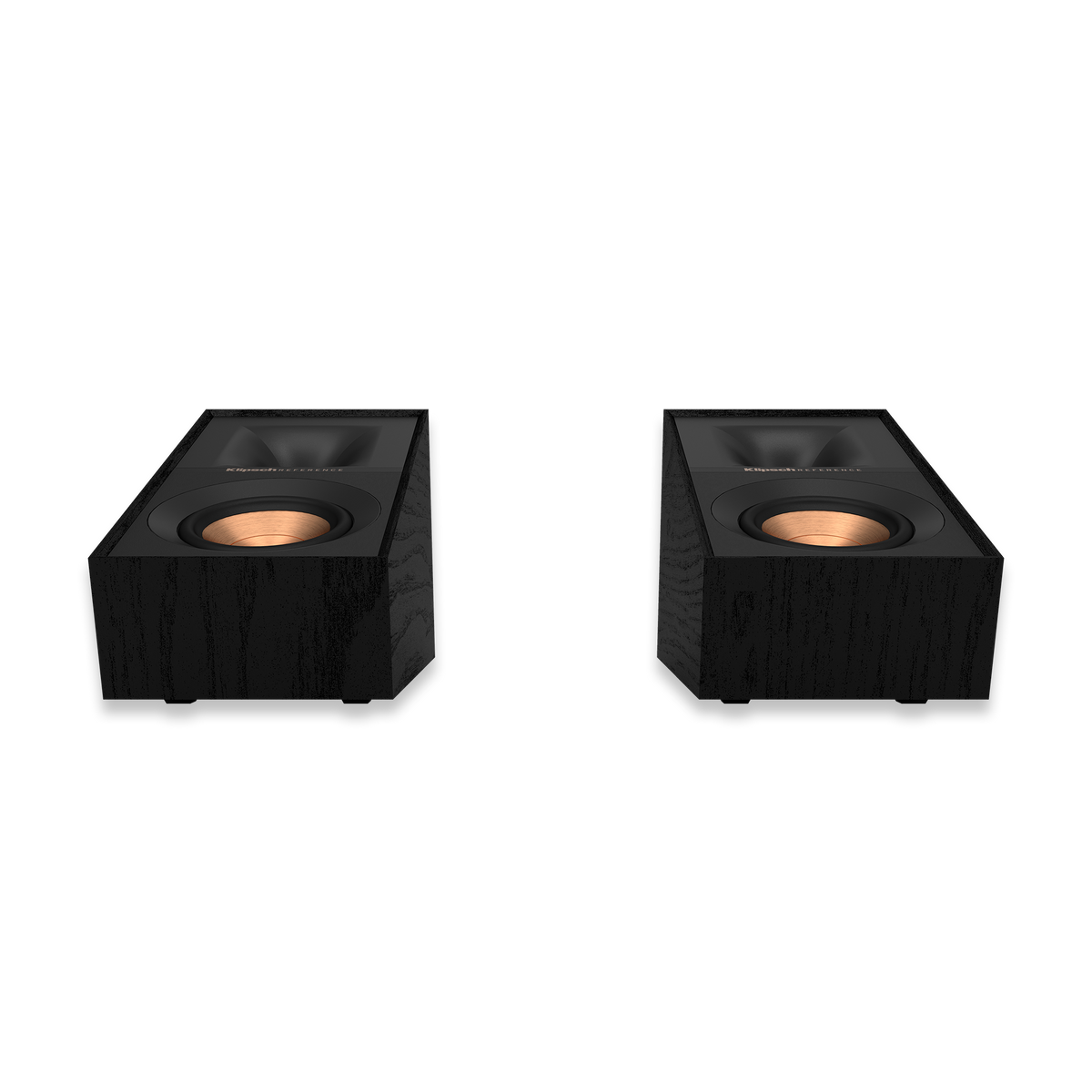

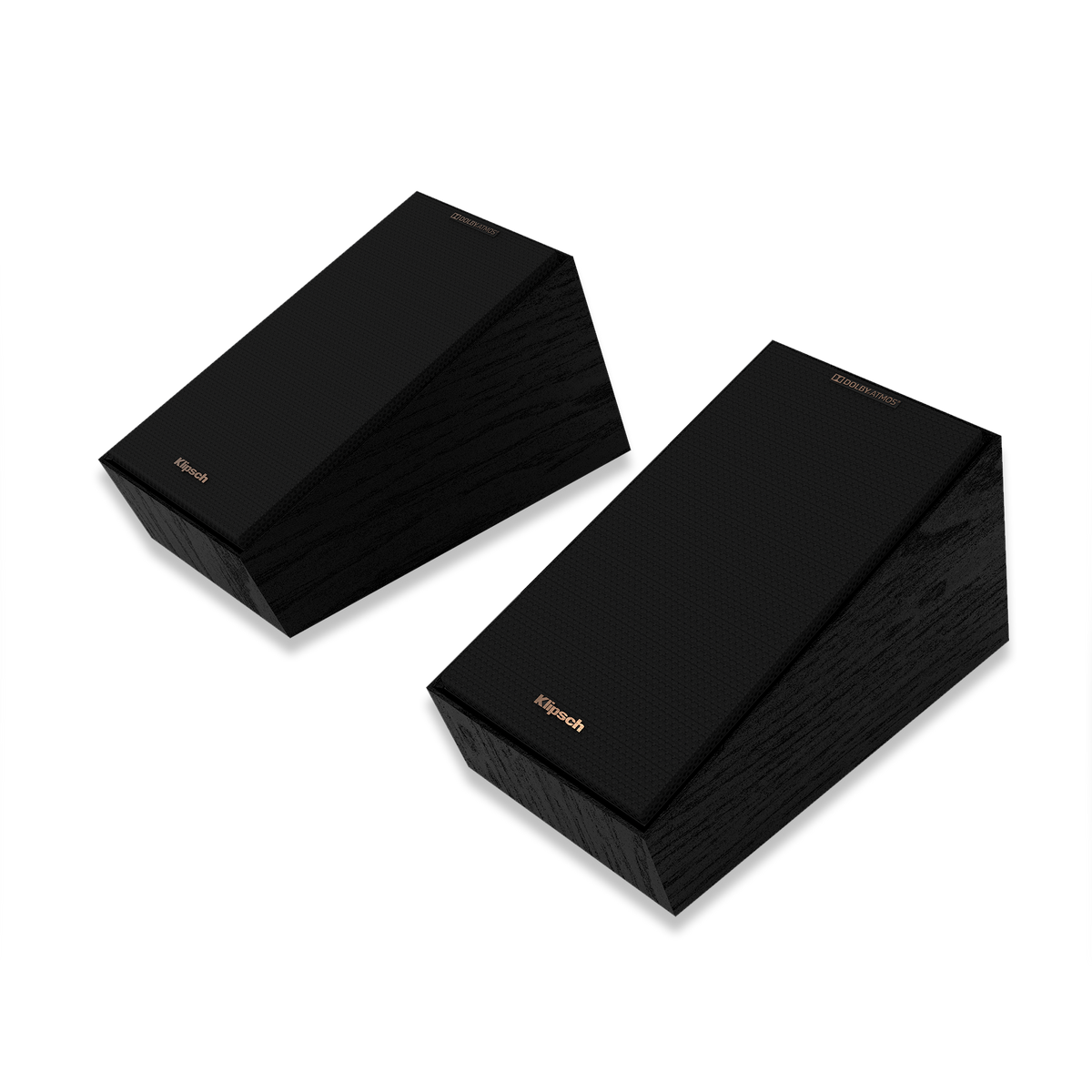

A 1" aluminum LTS tweeter sits on a 90° x 90° square Tractrix horn. Horn loading raises efficiency and directs high frequencies toward the listening area rather than scattering them off walls and ceiling, which is what gives Klipsch Reference speakers their characteristic clarity at low amplifier power. The cabinet is MDF in scratch-resistant black textured wood-grain vinyl, with a removable magnetic grille and gold-plated binding posts.
Features
- Dolby Atmos elevation speaker — place on a speaker or wall mount
- 4" spun-copper IMG woofer with 1" aluminum LTS tweeter
- 50W / 100W power handling; 4,400Hz crossover

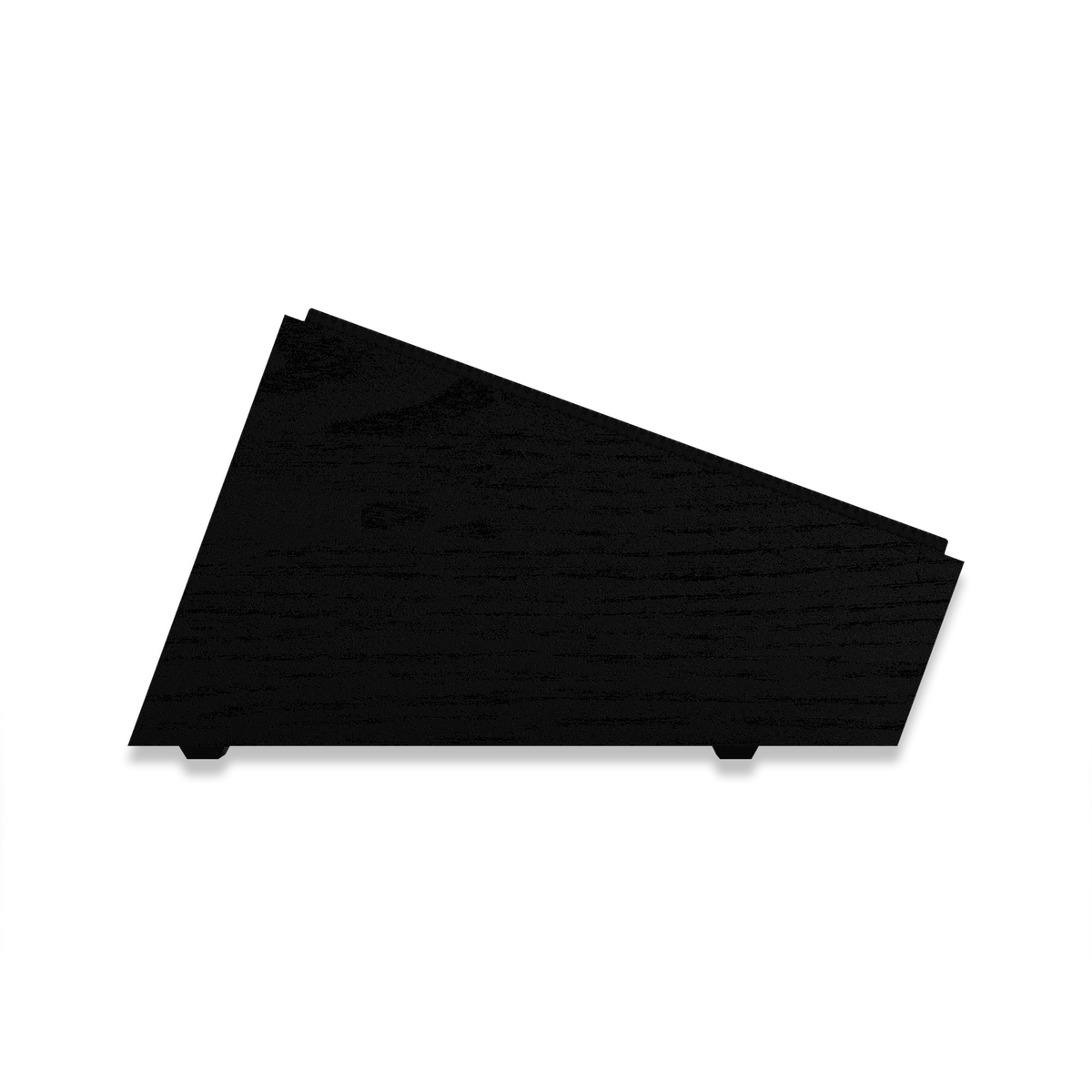

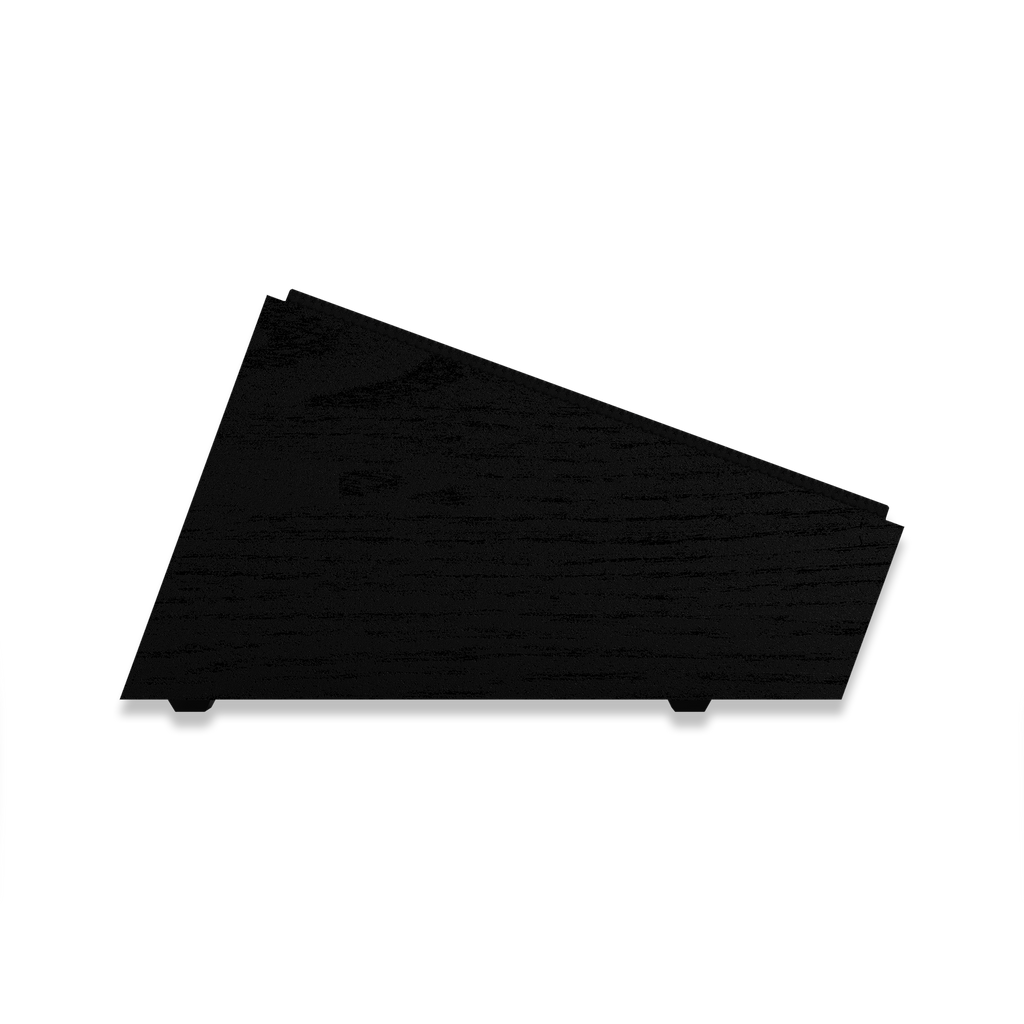

- Acoustic suspension (sealed) enclosure, angled for ceiling reflection
- 90° x 90° square Tractrix horn
- Rubber feet (4) included
- Removable magnetic grille
- Sold as a pair
Specifications
| Technical | |
|---|---|
| Frequency Response | Conforms to Dolby Atmos Specifications |
| Sensitivity | Conforms to Dolby Atmos Specifications |
| Power Handling (Cont/Peak) | 50W/100W |
| Nominal Impedance | 8 ohms Compatible |
| Crossover Frequency | 4,400 Hz |
| High Frequency Driver | 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn |
| Low Frequency Driver | 4" spun-copper TCP woofer |
| Enclosure Material | MDF |
| Enclosure Type | Acoustic Suspension |

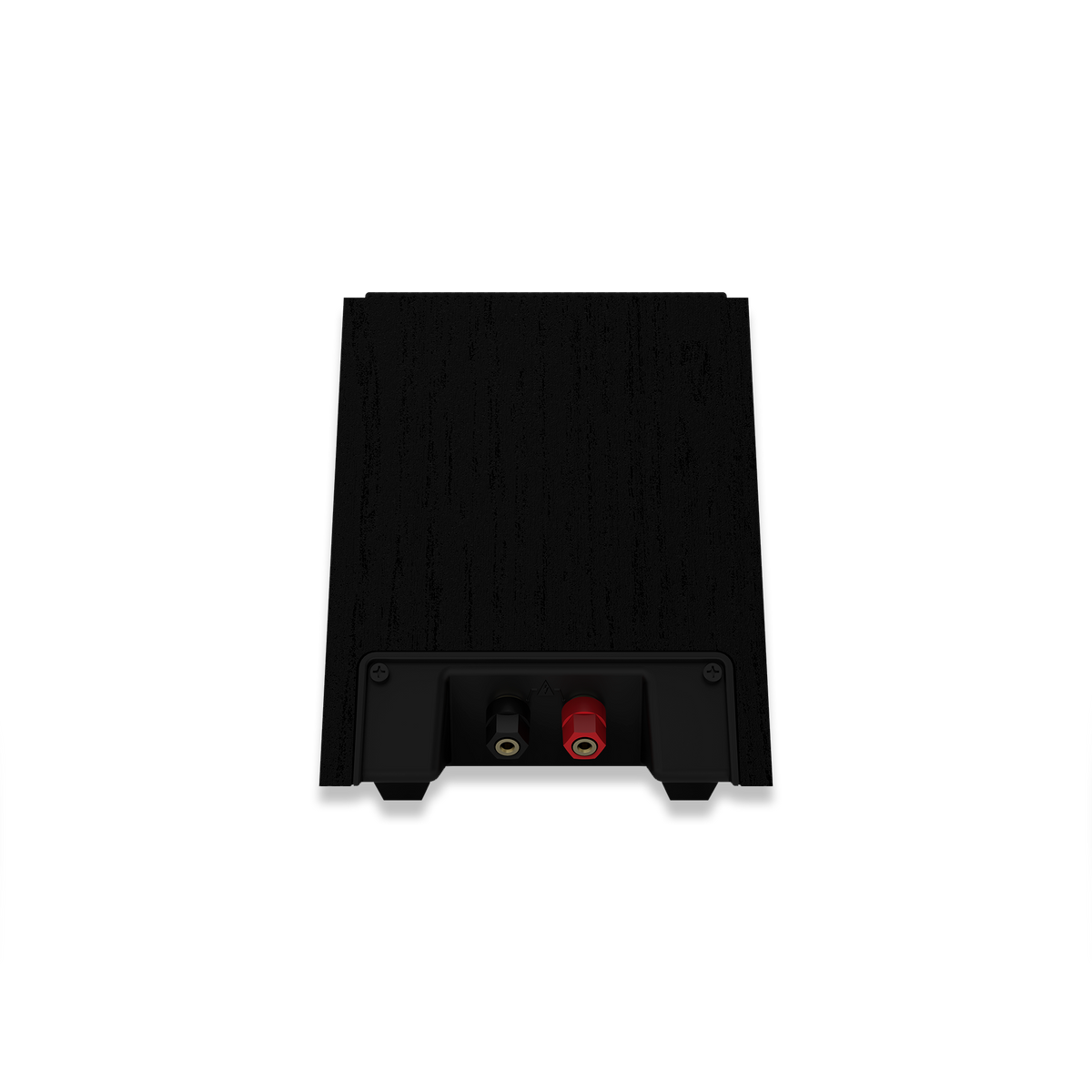

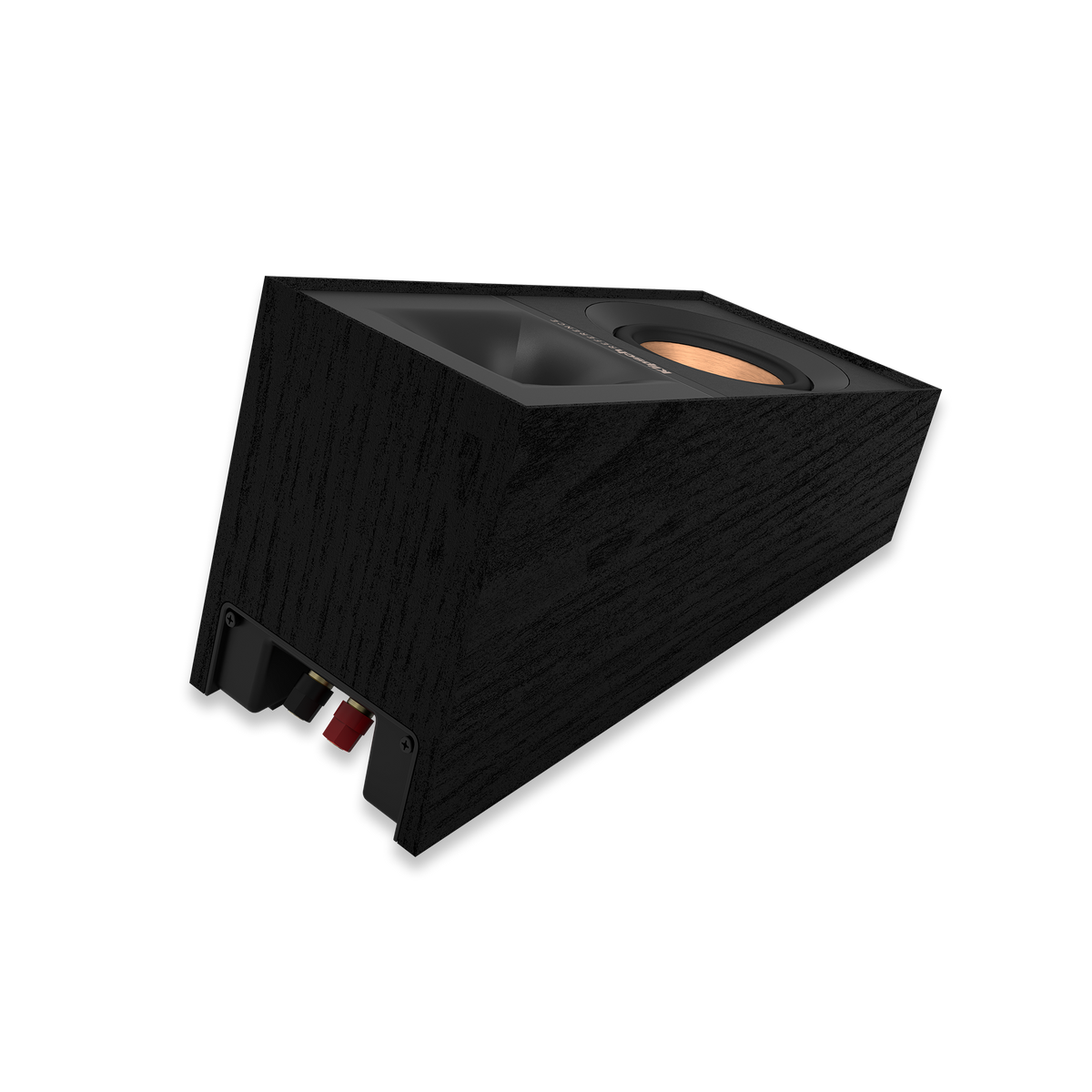

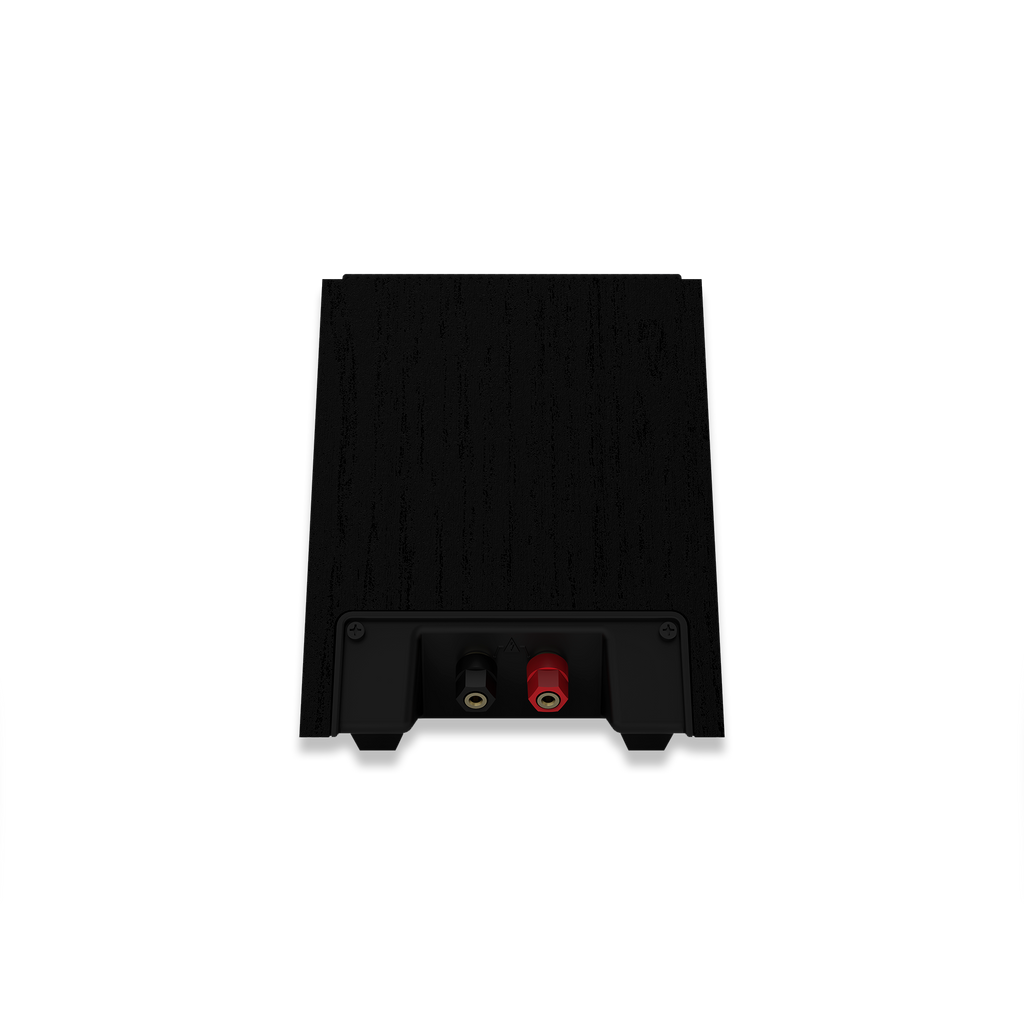

| Inputs | Single Gold Plated Binding Posts |
| Physical | |
|---|---|
| Height | 7" (178 mm) |
| Width | 5.75" (146 mm) |
| Depth | 12.7" (298 mm) |
| Weight | 6 lbs (2.8 kg) |
| Finish | Black Textured Wood Grain Vinyl |
| Included Accessories | Rubber Feet (4) |
Specifications subject to change.
