Klipsch R-101SW Black, Each
Product Details

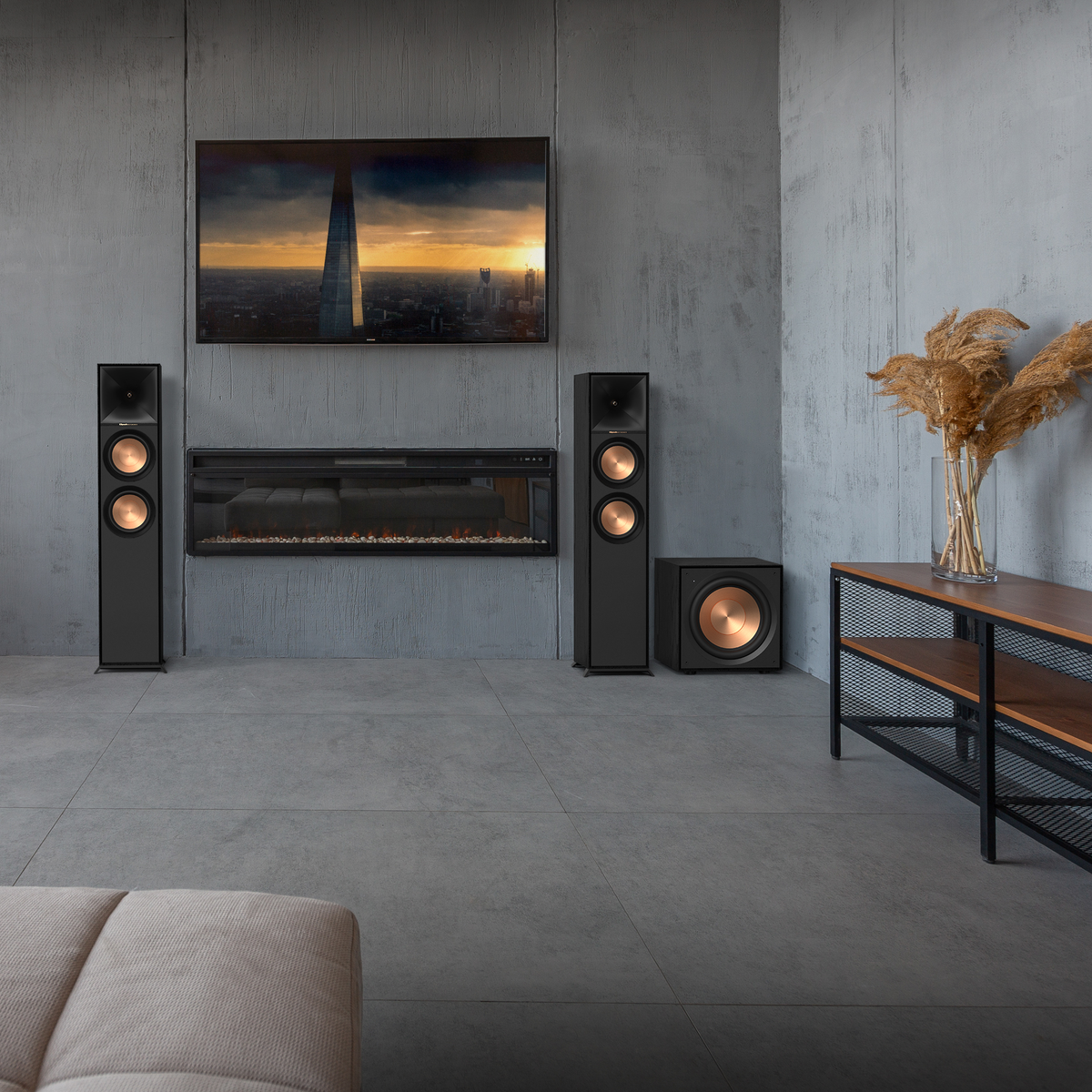

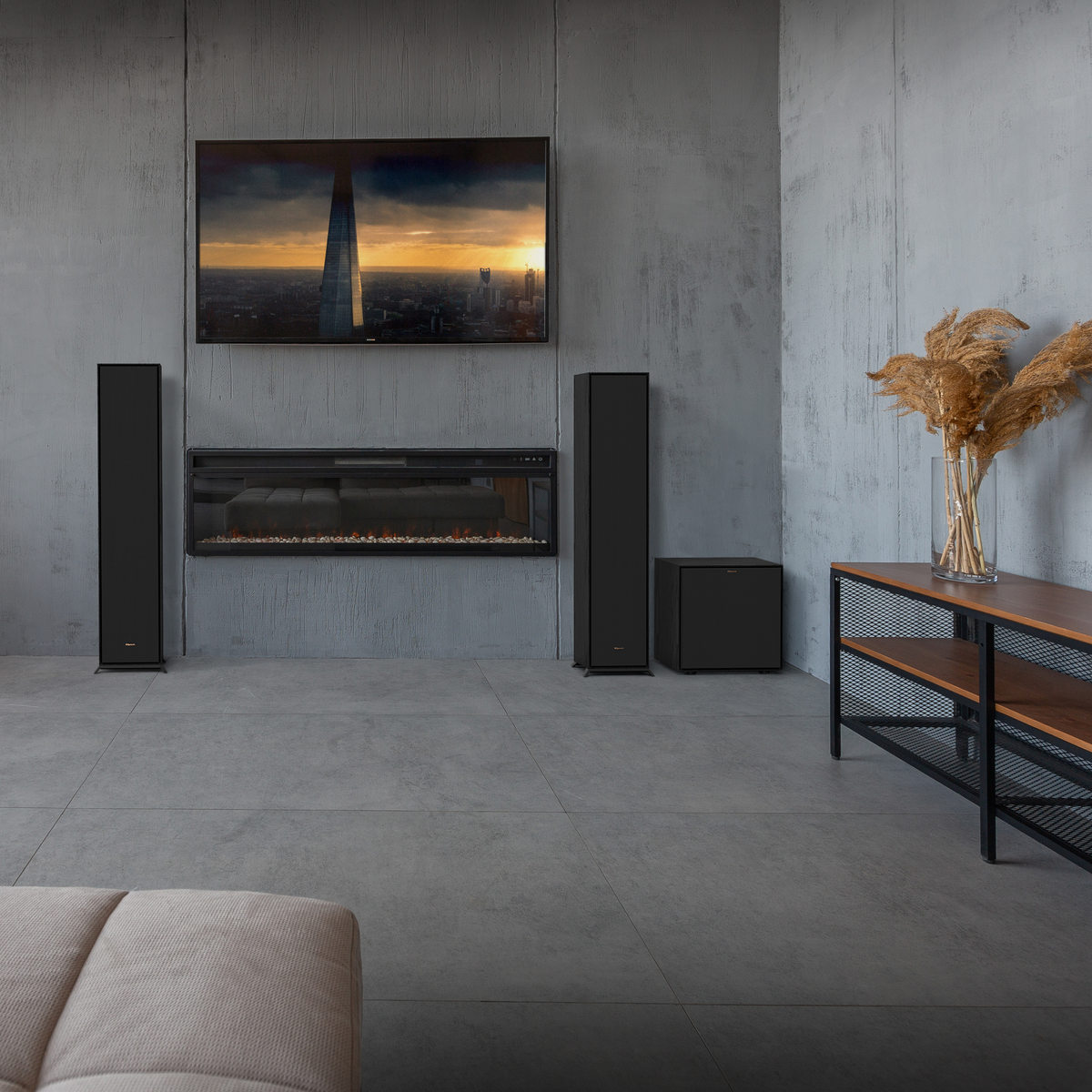

The Klipsch R-101SW is a 10" powered subwoofer with an all-digital 150W RMS (300W peak) amplifier, reaching 29.5Hz. It is the entry point to Klipsch subwoofers and pairs naturally with Reference bookshelf and center speakers that roll off in the 60–90Hz region.
The high-excursion spun-copper woofer moves a lot of air for its size, and bass-reflex loading through a rear-firing port extends output below the driver's natural roll-off. Front-mounted controls cover volume, low-pass frequency and 0/180 phase, with auto power-on so the subwoofer sleeps when the system is off.

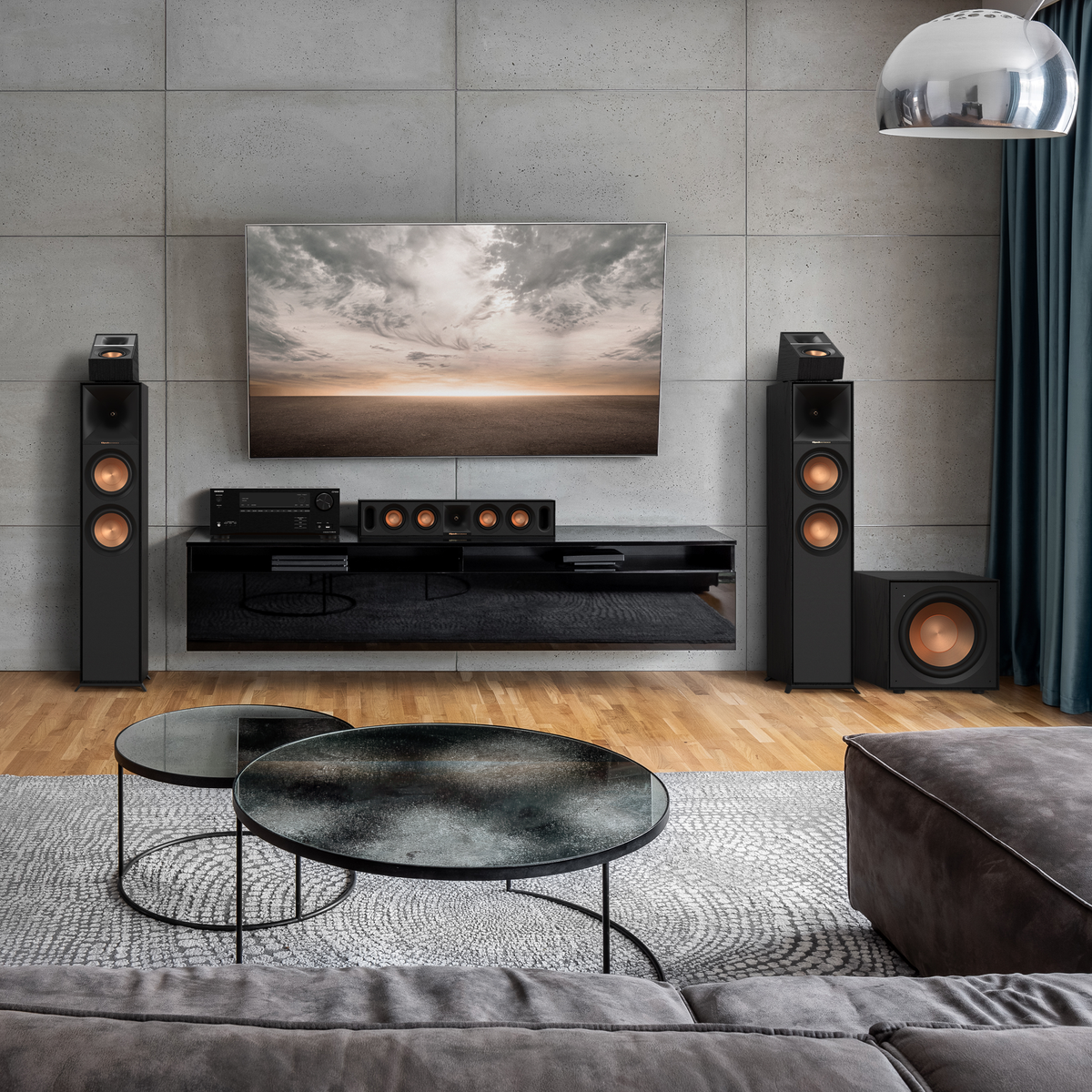

Line-level / LFE RCA inputs connect to any AV receiver subwoofer output.
Features

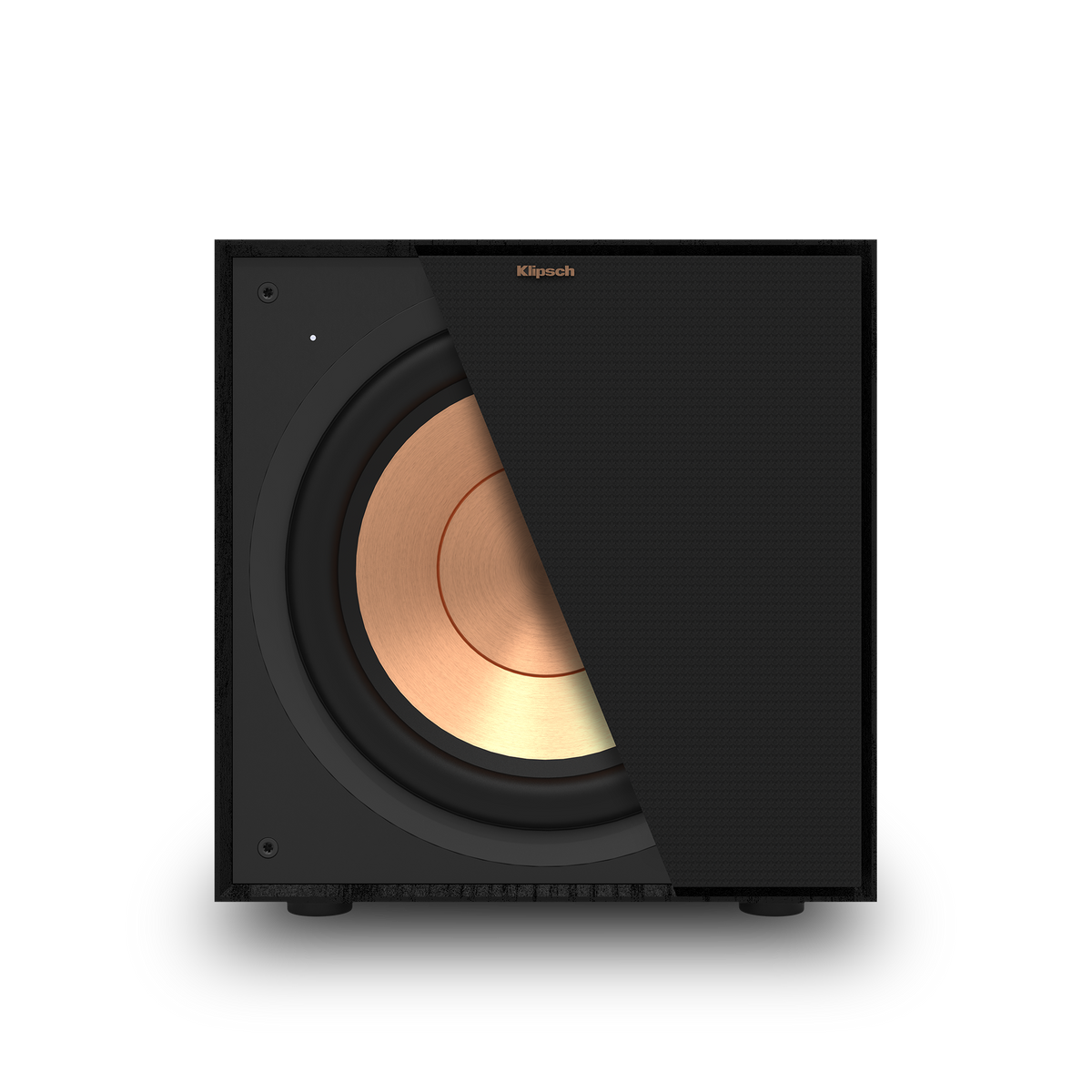

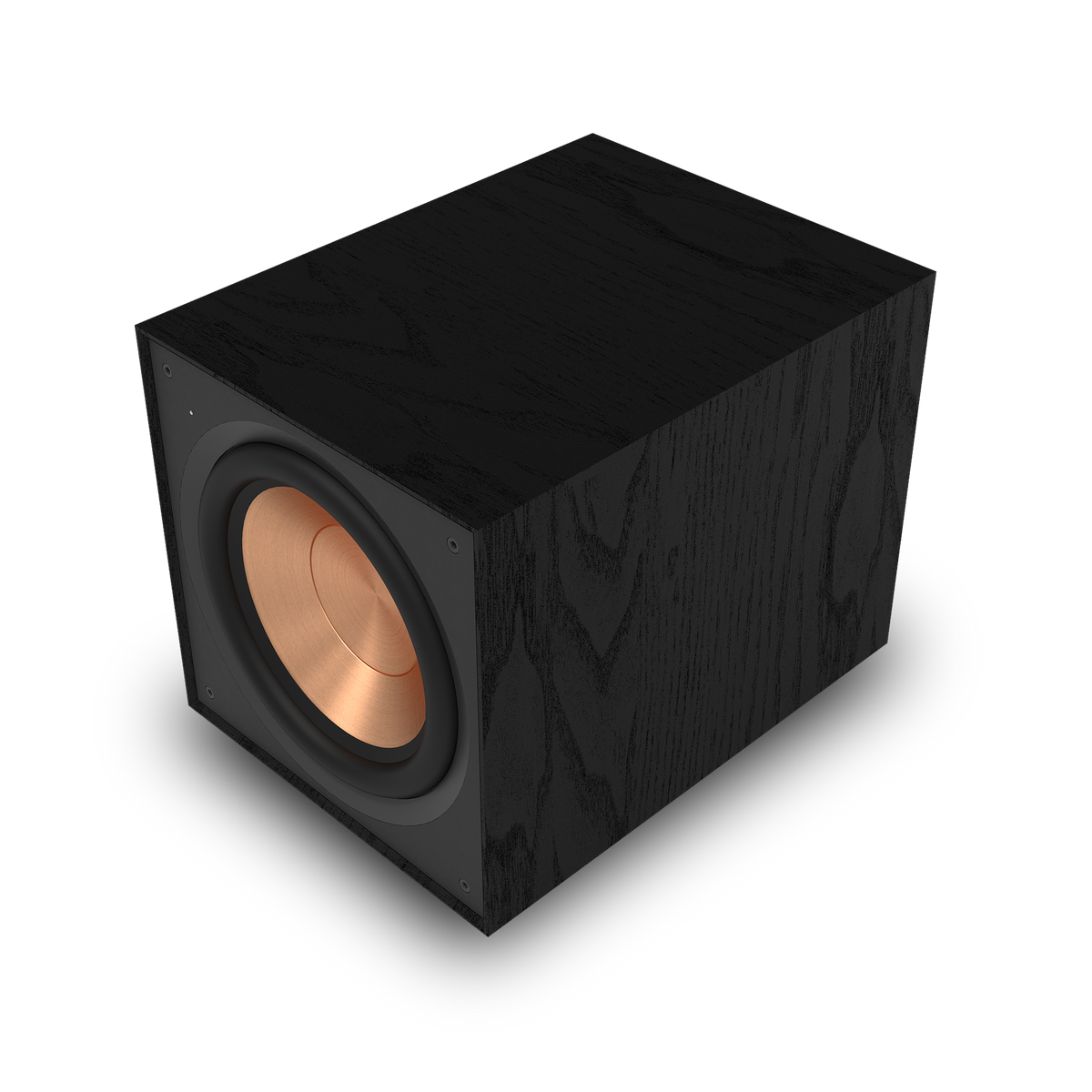

- 10" high-excursion spun-copper IMG woofer
- All-digital 150W RMS / 300W peak amplifier
- 29.5Hz – 120Hz frequency range; 115dB maximum output

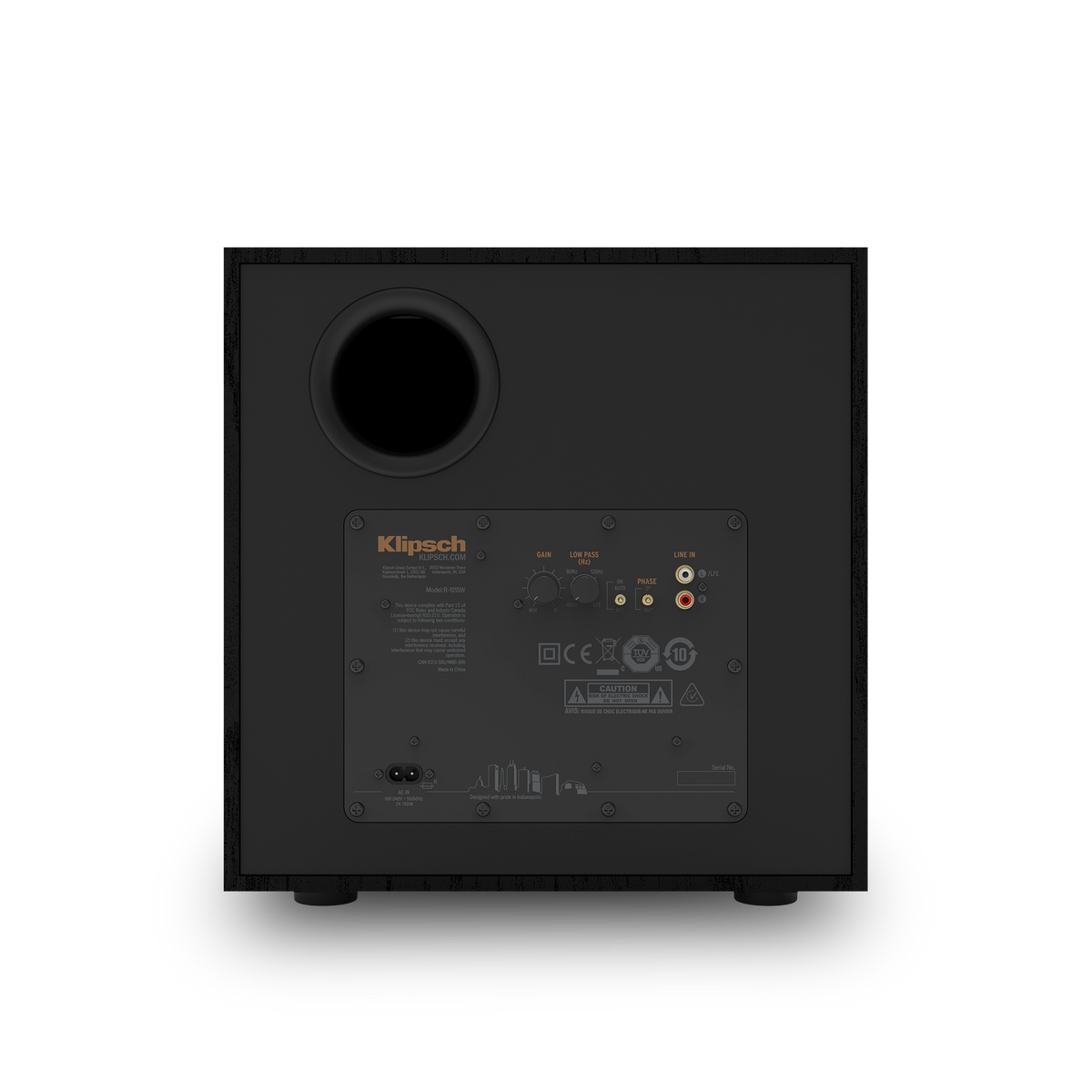

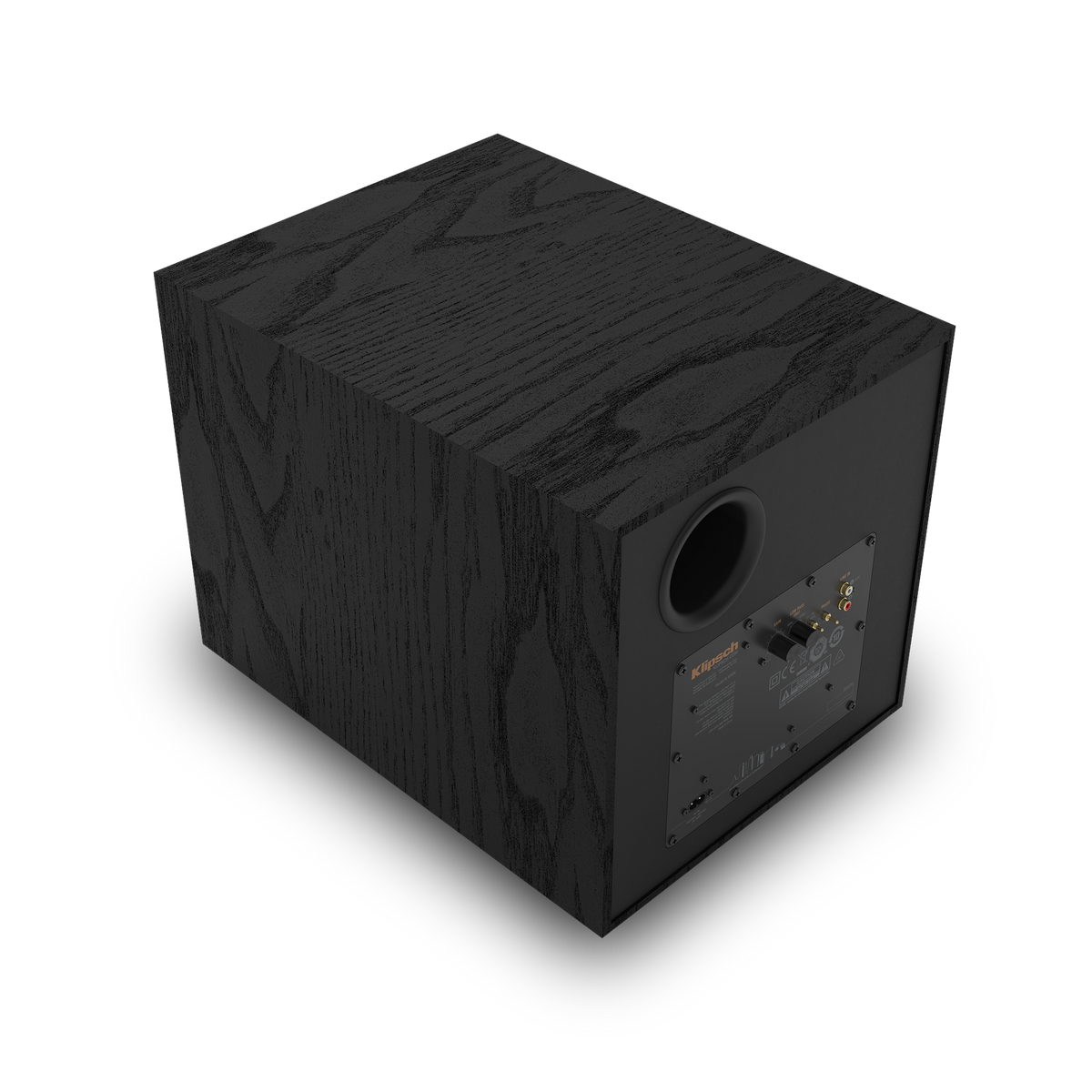

- Bass-reflex via rear-firing port
- Volume, low-pass, 0/180 phase and auto power-on controls
- Line level / LFE RCA inputs

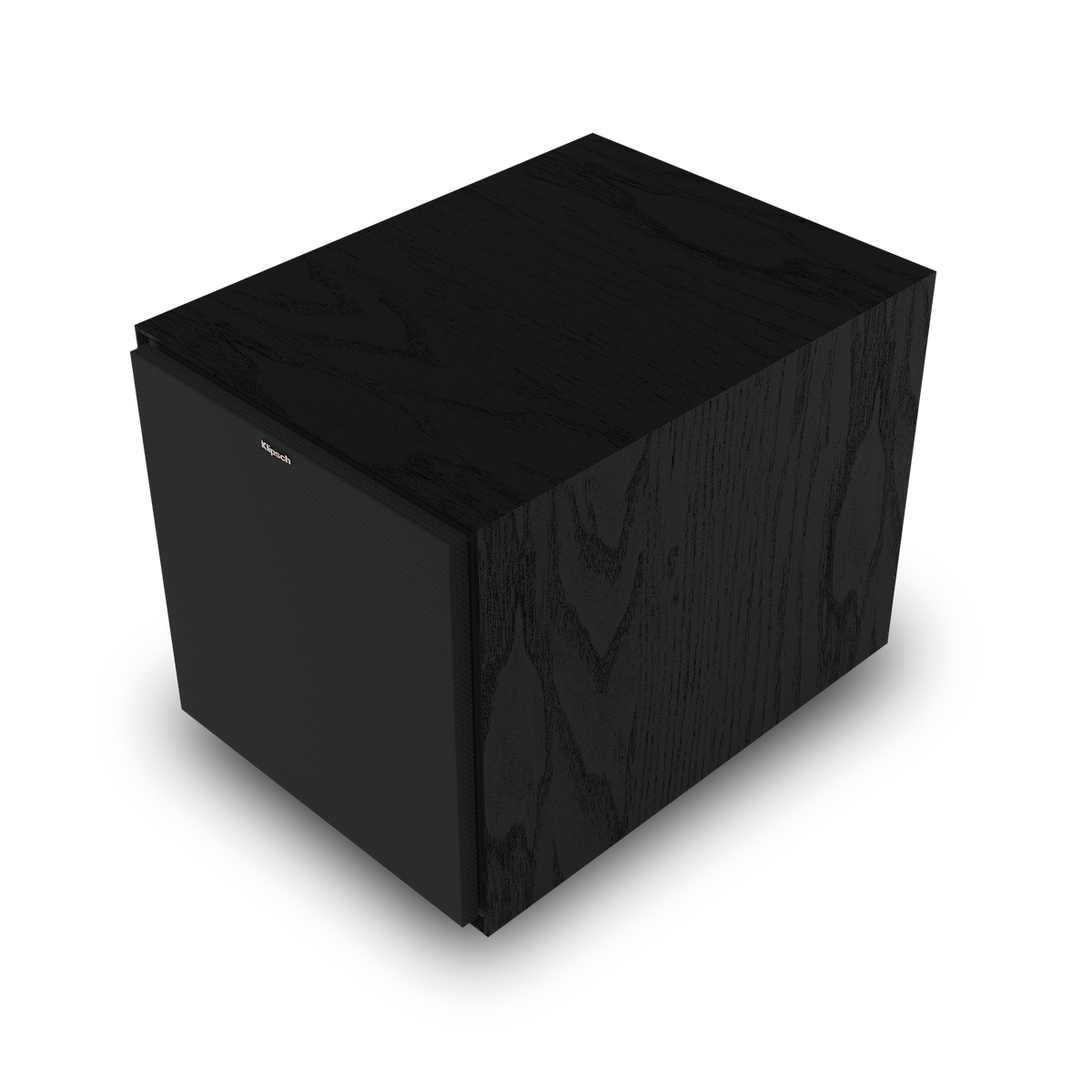

- MDF cabinet
Specifications
| Technical | |
|---|---|
| Frequency Range | 29.5Hz - 120Hz |
| Maximum Acoustic Output | 115 dB |
| Amplifier | All Digital |
| Amplifier Power (Cont/Peak) | 150W/300W |
| Amplifier Features | Volume, Low-pass, 0/180 phase, Auto Power On |
| Driver Components | 10" high excursion spun-copper TCP woofer |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via rear-firing port |
| Inputs | Line level/LFE RCA jacks |
| Physical | |
|---|---|
| Height | 14.6" (370 mm) |
| Width | 14.0" (356 mm) |
| Depth | 19.7" (500 mm) |
| Weight | 31 lbs (13.9 kg) |
| Finish | Black Textured Wood Grain Vinyl |
Specifications subject to change.
