Klipsch PSM-800-SW-T BLACK Black, Each
Product Details

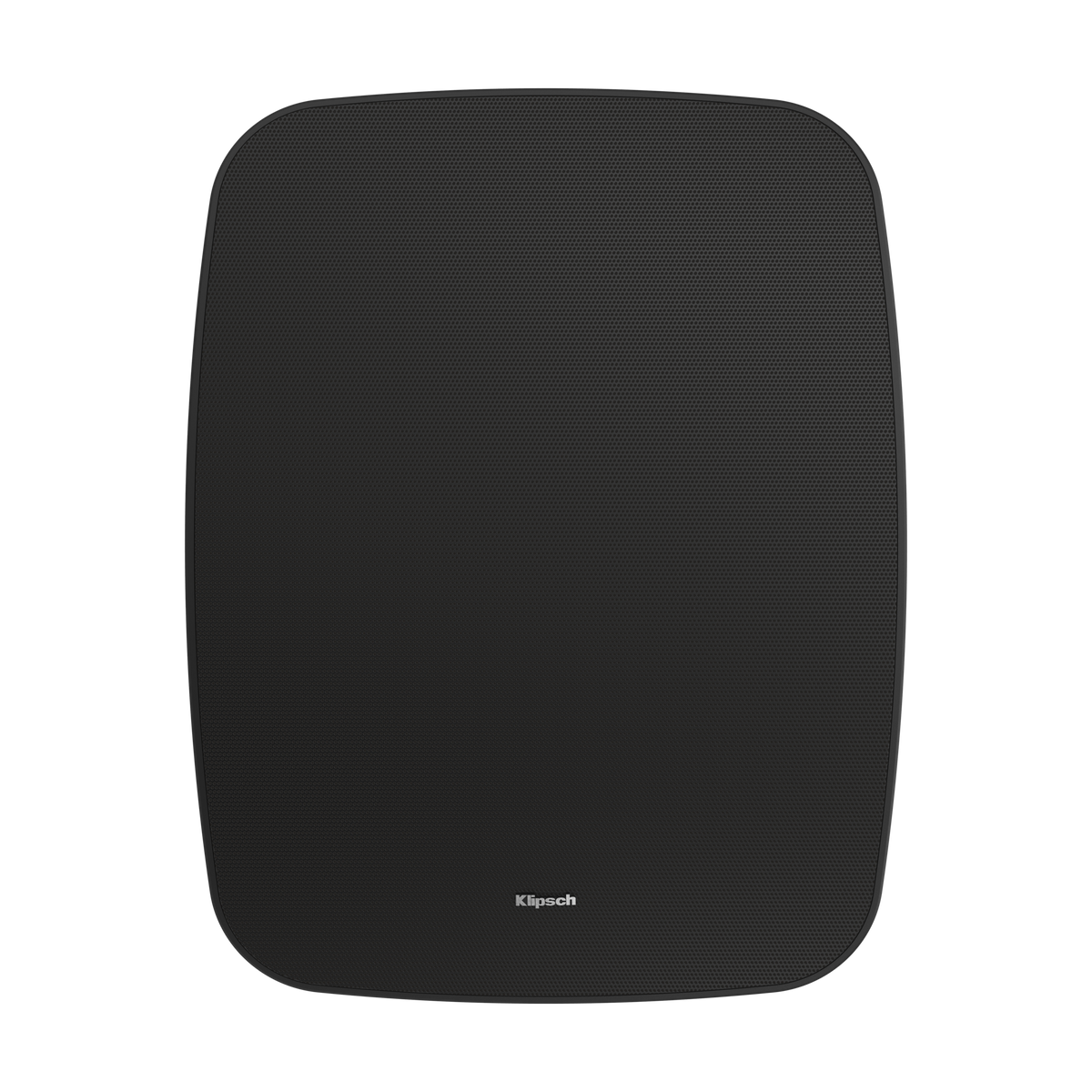

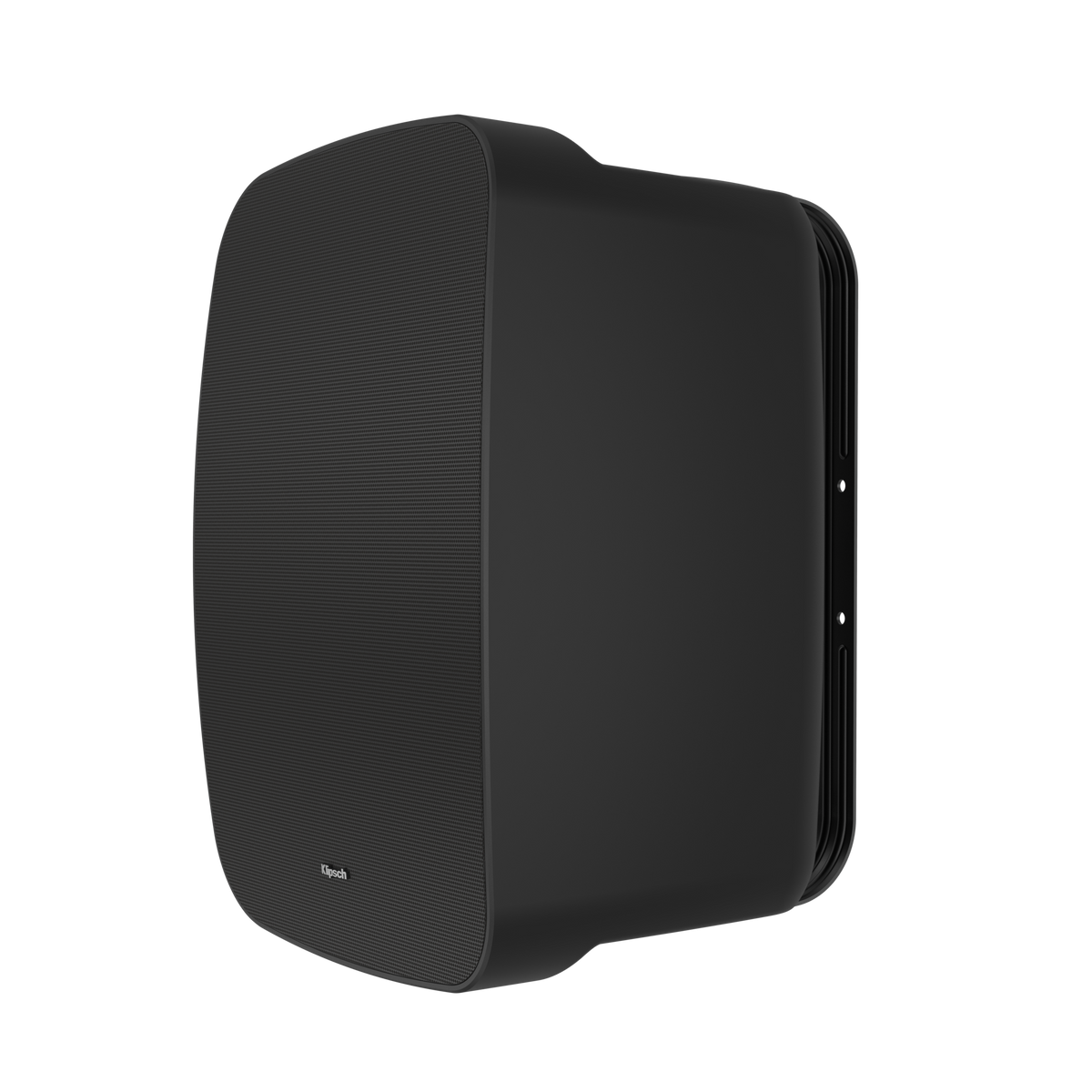

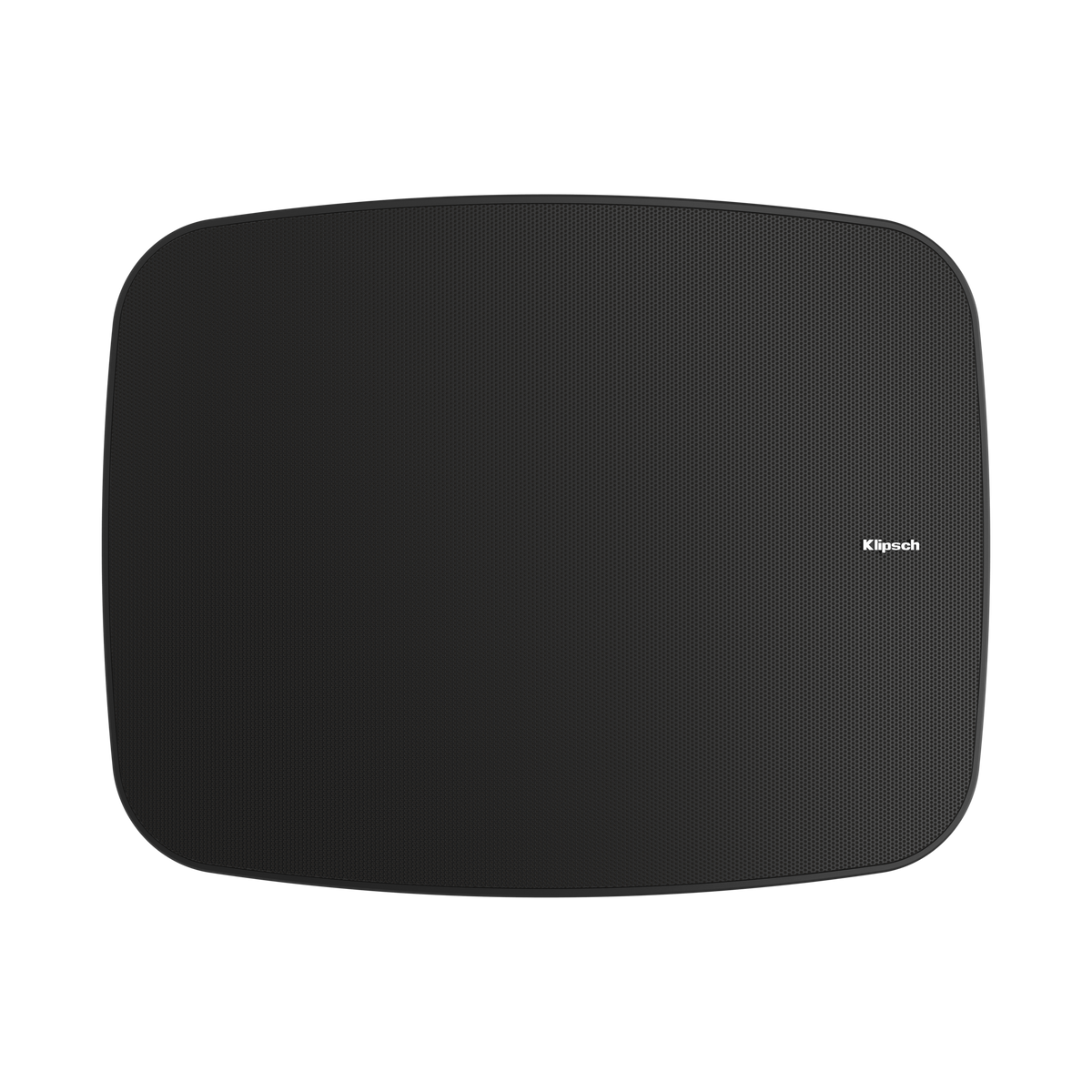

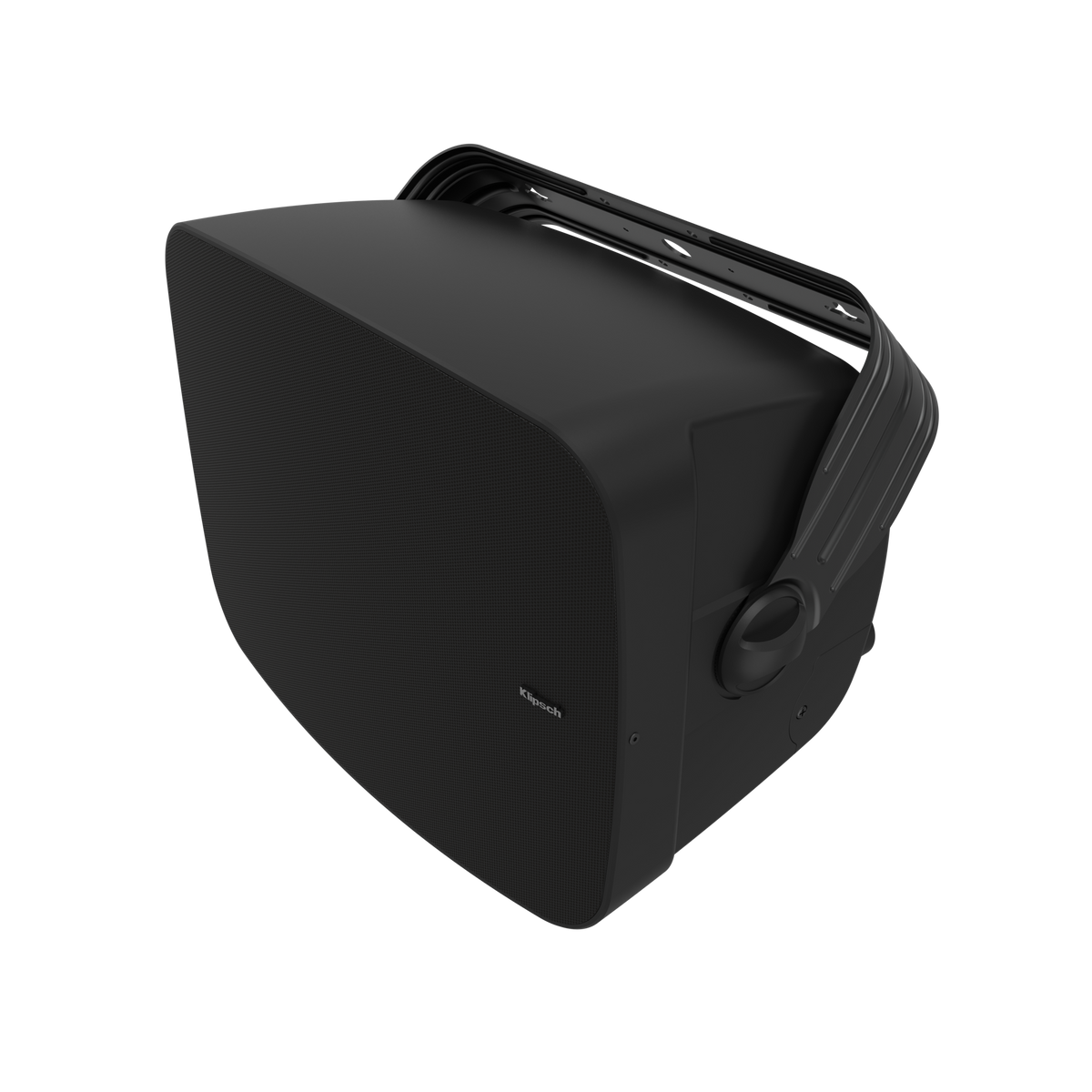

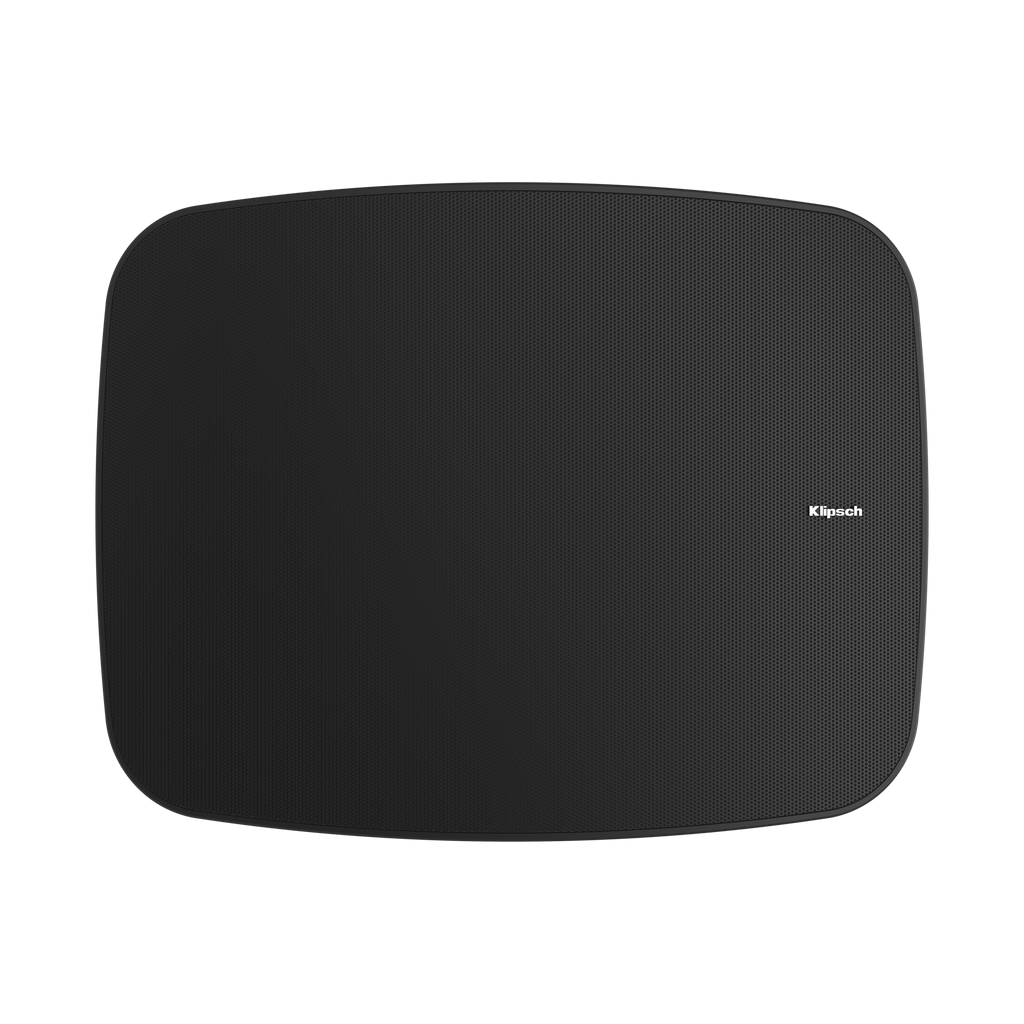

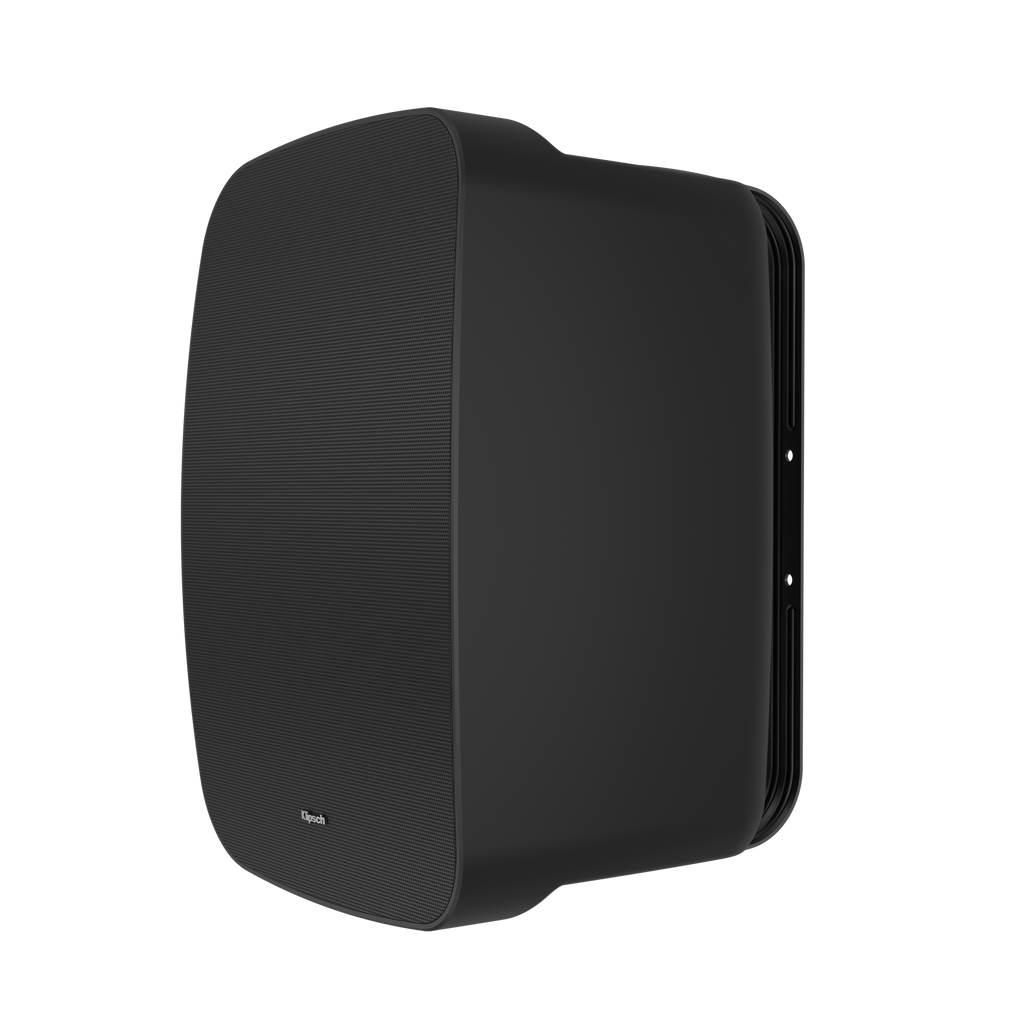

The Klipsch PSM-800-SW-T is a surface-mount subwoofer for indoor and outdoor commercial installations, with an 8" woofer in an all-weather, paintable ABS cabinet. It adds low-frequency support to a distributed system without the floor space or the aesthetics of a conventional subwoofer.
The built-in 70V transformer taps at 70W and 35W allow it to sit on a constant-voltage distributed line alongside surface-mount satellites, which is how most restaurant, retail and hospitality systems are wired. It can also be run at 8 ohms directly.
Enclosure tuning is vented through three folded Tractrix ports, reaching 38Hz. The cabinet is paintable so it can be finished to match the building rather than announcing itself.
Features
- 8" woofer for distributed indoor/outdoor systems
- 70V transformer taps at 70W and 35W, or 8 ohm direct
- 38Hz – 200Hz +/- 4dB (30Hz at -10dB)
- 150 watts continuous, 600 watts peak
- All-weather ABS cabinet, paintable to match the building
- Vented via three folded Tractrix ports
- 4-pin Euroblock input connector

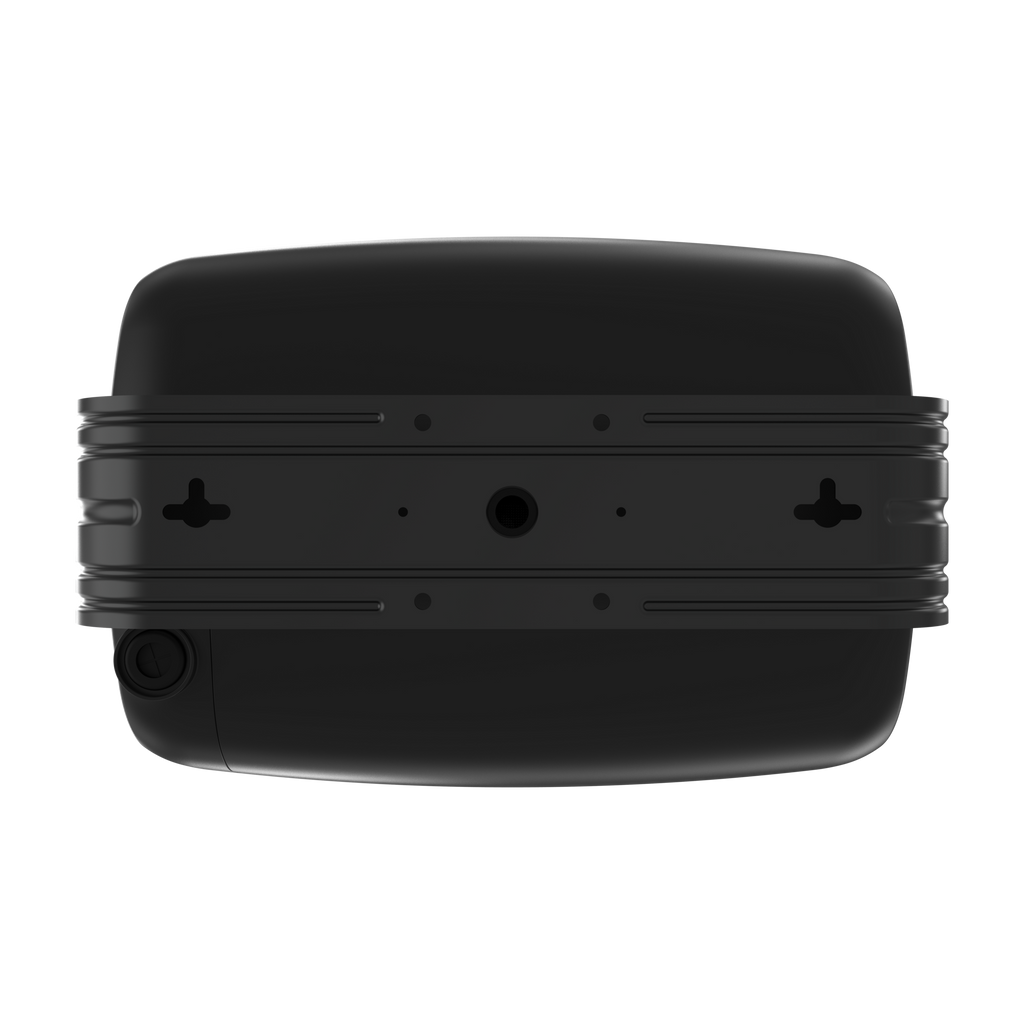

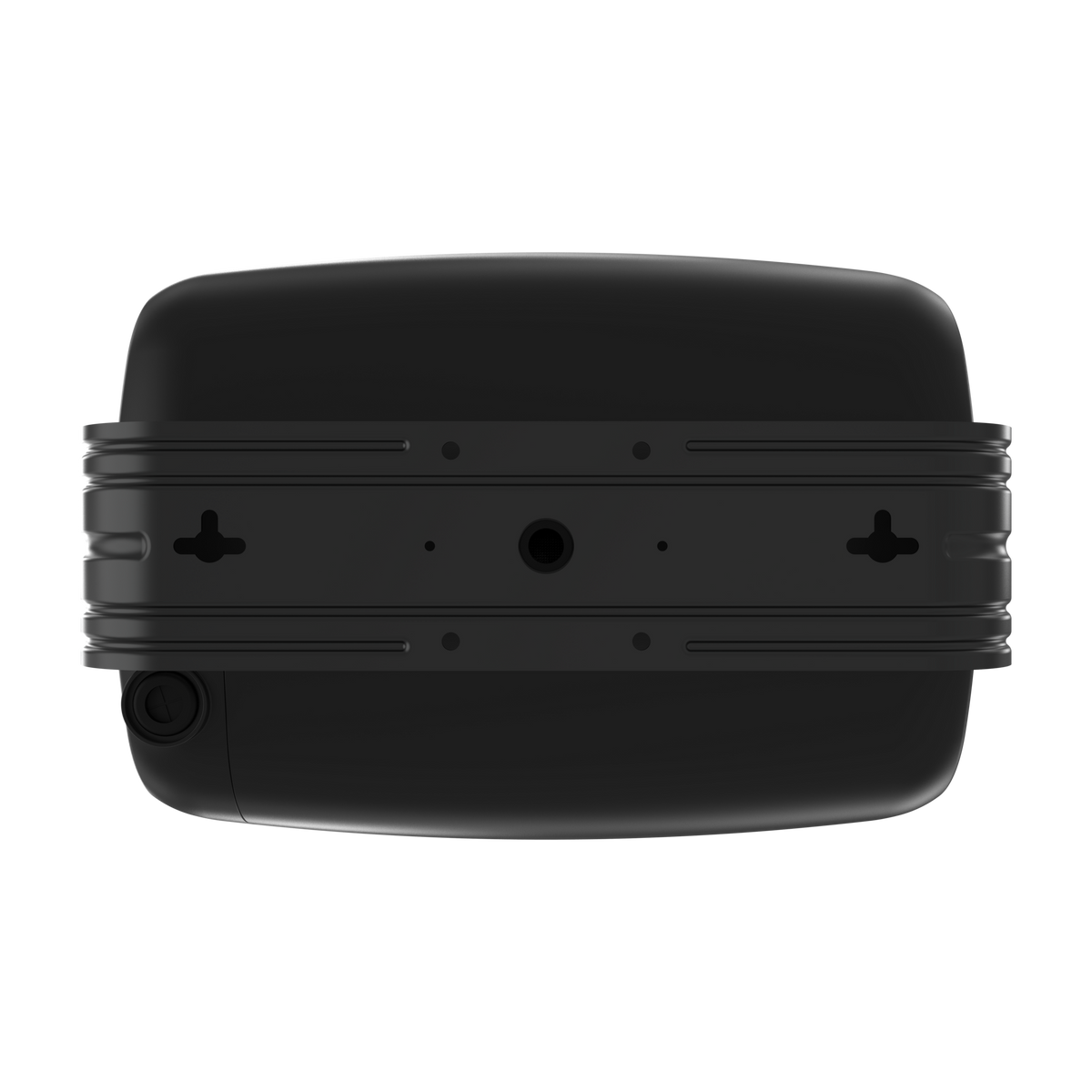

- Mounting bracket included
Specifications
| Technical | |
|---|---|
| Frequency Response | 38Hz – 200Hz +/- 4dB; 30Hz at -10dB |
| Power Handling | 150 watts (25.4V) 40Hz – 200Hz; 600 watts peak |
| Sensitivity | 88dB |
| Nominal Impedance | 8 ohms (4.2 ohms at 36Hz minimum) |
| Transducers | 8" woofer |
| Enclosure Material | All Weather ABS Plastic, Paintable |
| Enclosure Tuning | Vented via 3 folded Tractrix ports |
| Input Connectors | 4-pin Euroblock |
| Transformer Taps | 70V: 70W, 35W |
| Physical | |
|---|---|
| Width | 15.5" |
| Height | 12" |
| Depth | 9.31" |
| Depth with Bracket | 11.12" |
| Weight | 15.75 lbs (7.15kg) |
| Finish | Black |
Specifications subject to change.
