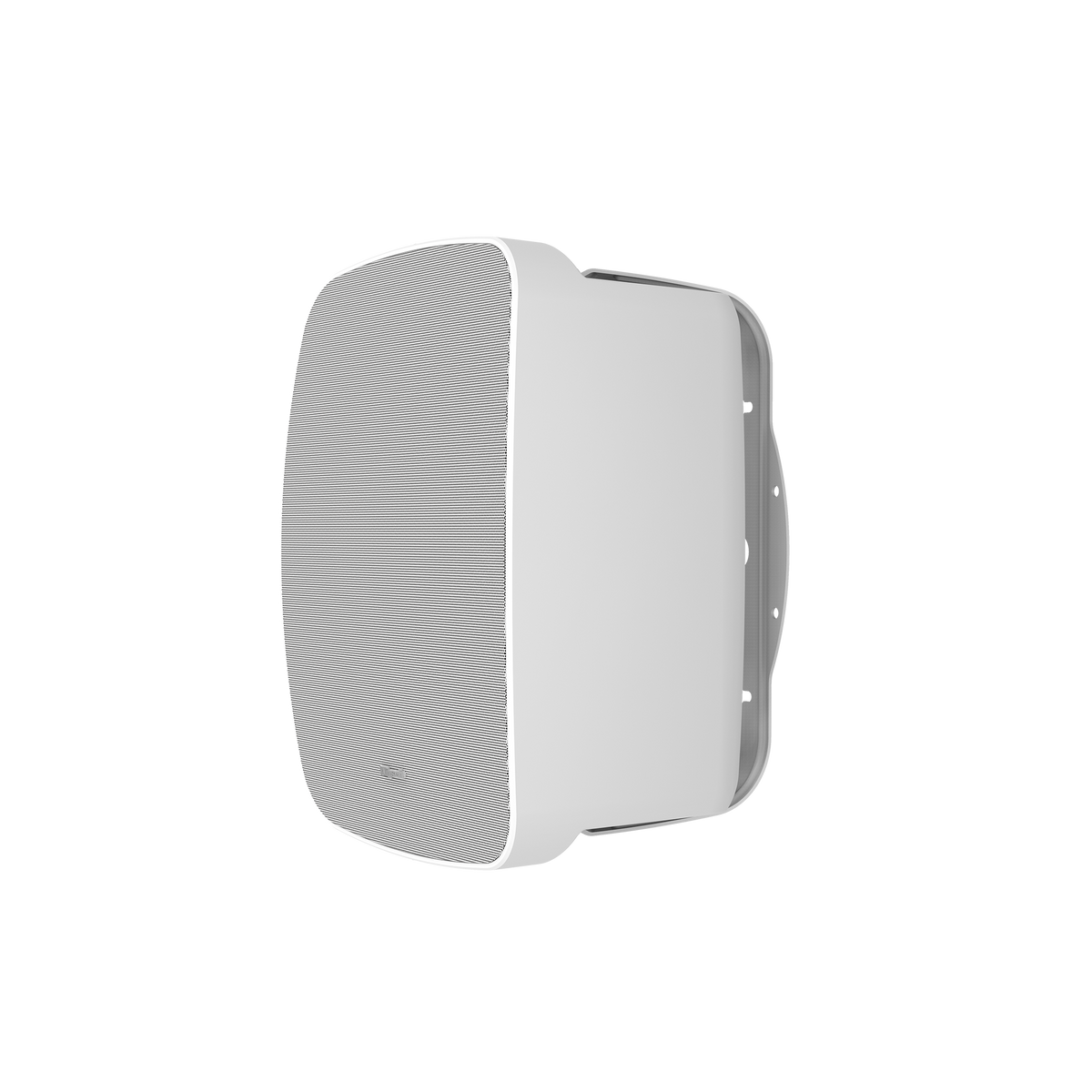

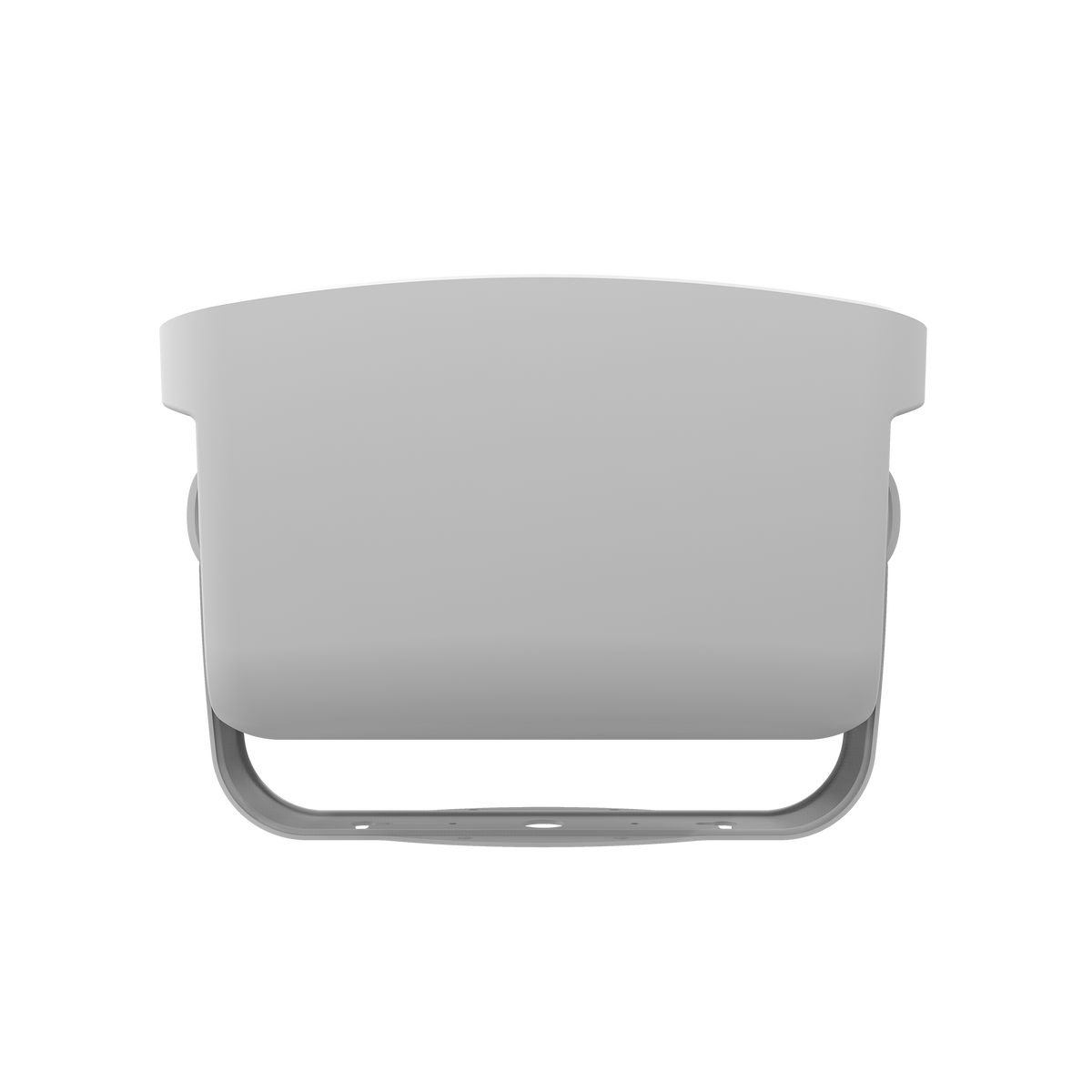

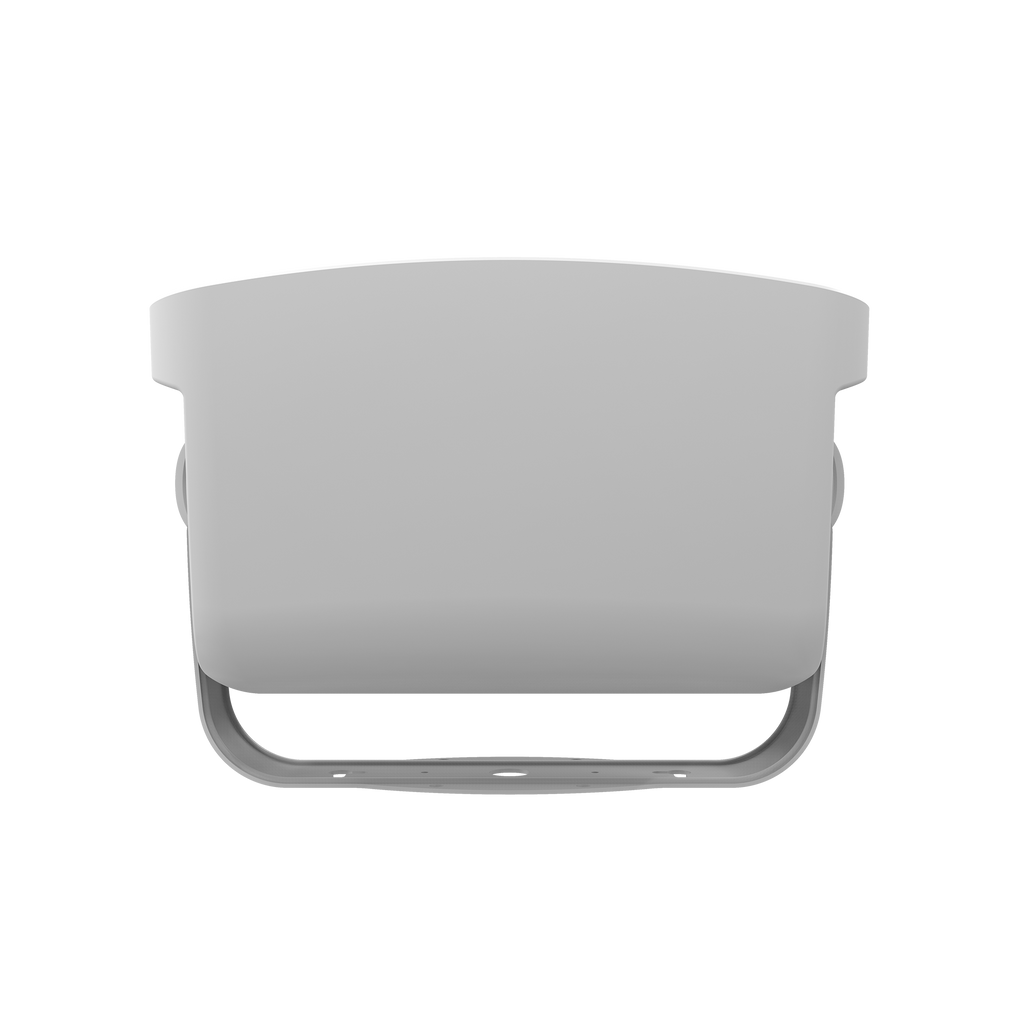

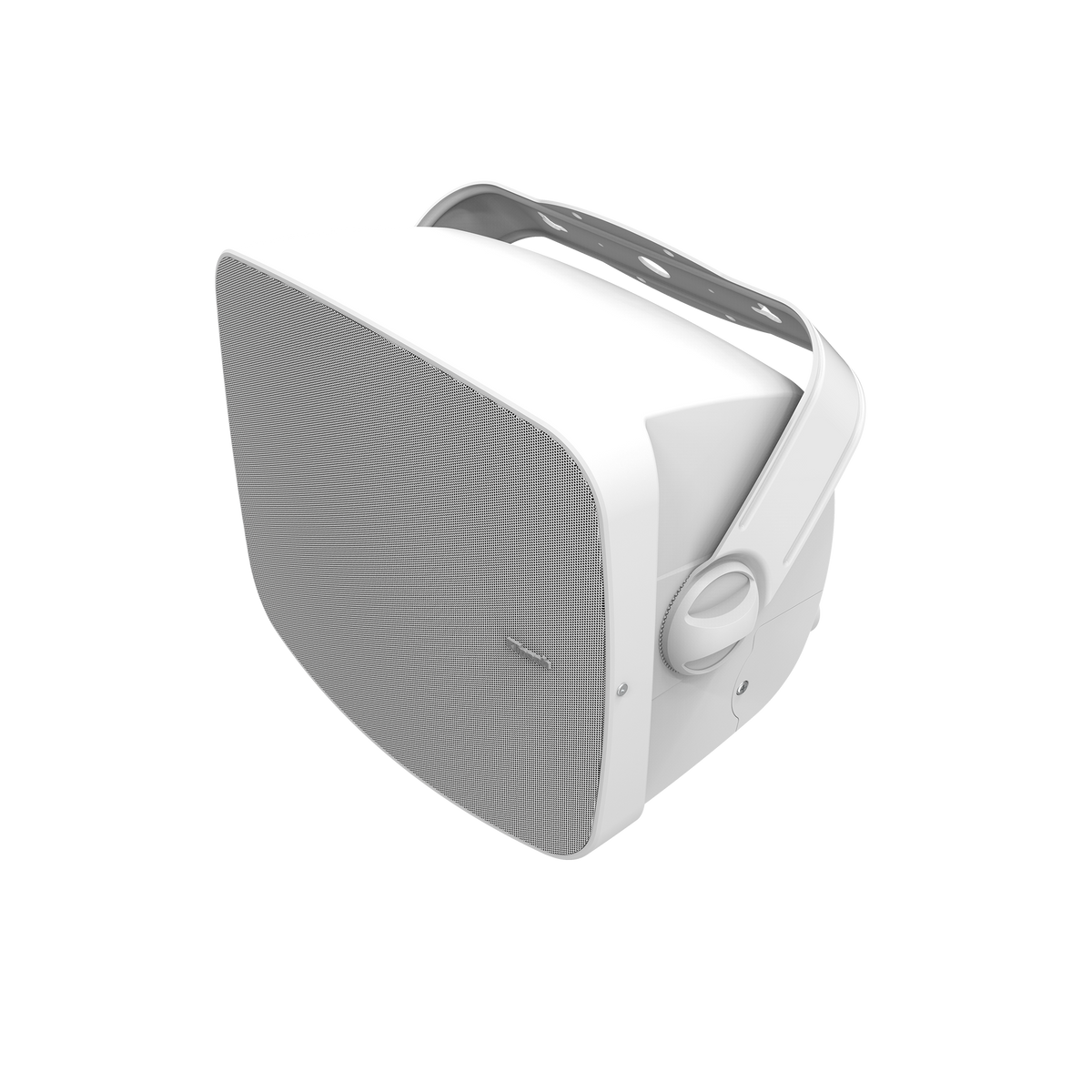

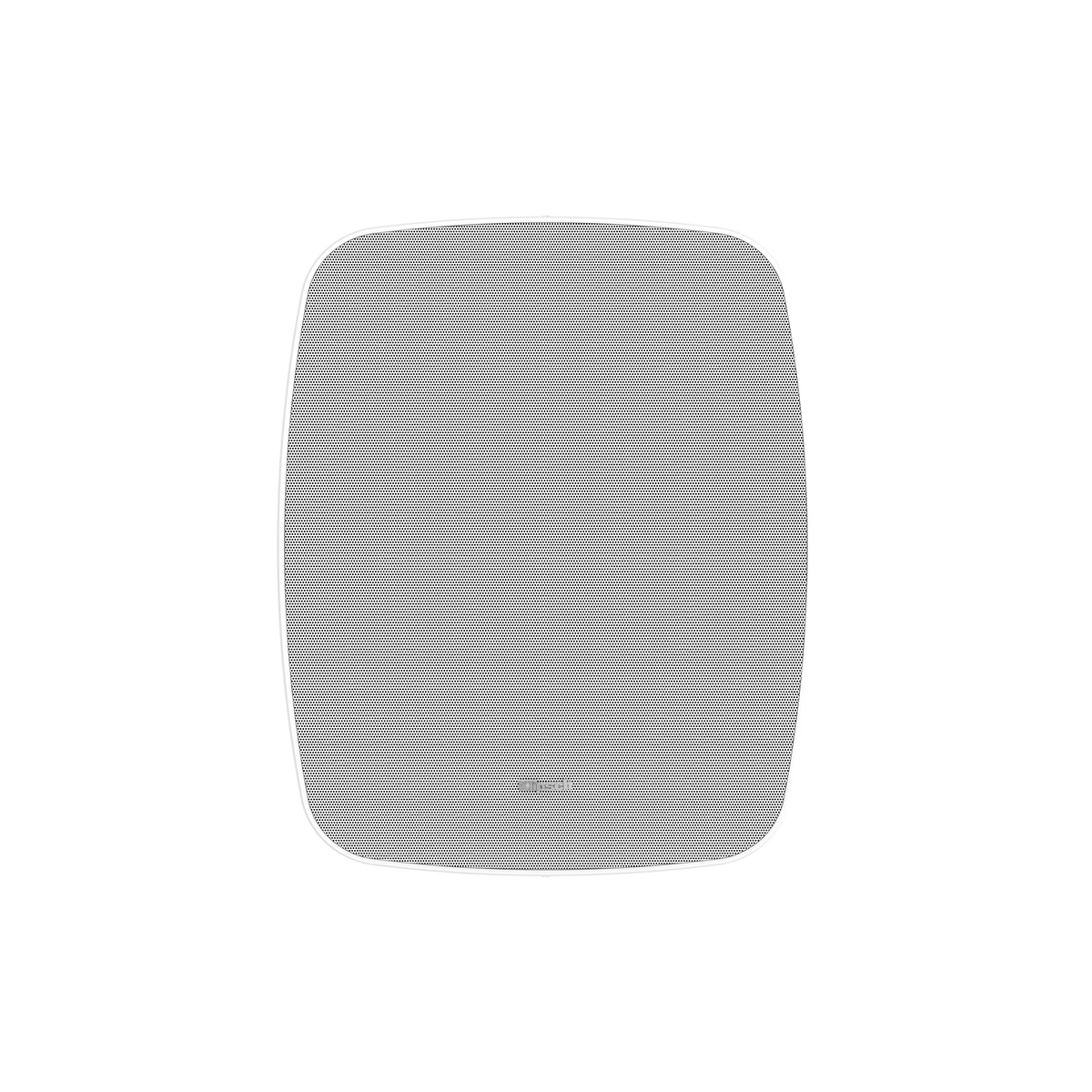

Klipsch PSM-650-T - White, Each
Product Details
The Klipsch PSM-650-T is a full-range 6.5" professional surface-mount loudspeaker for indoor and outdoor commercial installations — the kind of speaker that ends up on a restaurant patio, a retail ceiling soffit or a covered walkway and is expected to survive there.
It uses the patented Tractrix® Hyperfold Port™, a five-step folded port design that extends effective port length for more bass output from a smaller box. The increased airflow removes chuffing and port noise and widens the dispersion pattern for larger coverage areas.
High frequencies come from a 1" titanium compression driver on a K-1200M horn/tweeter bridge with a wide-dispersion phase plug, giving even, consistent energy across a wide coverage angle rather than a hot spot under each speaker.
The multi-tap transformer covers 70V and 100V distributed systems, with a bypass position for normal 8 ohm operation where no transformer is needed. Connection is a four-pin Phoenix-style euro block. The all-weather paintable ABS enclosure is IPX6 rated, and set screws on the grille keep it on the speaker whatever the environment. This is the white finish.
Features
- Full-range 6.5" indoor/outdoor professional surface-mount loudspeaker
- Patented Tractrix® Hyperfold Port™ five-step folded port design
- 1" titanium compression driver on a K-1200M horn/tweeter bridge
- Wide-dispersion phase plug for even coverage
- 100° +/- 20° 900Hz – 20kHz coverage pattern
- Multi-tap transformer — 70V: 60W, 30W, 15W, 7.5W / 100V: 60W, 30W, 7.5W / bypass: 8 ohms nominal
- Bypass position for 8 ohm operation without a transformer
- Four-pin Phoenix-style euro block connector
- IPX6 rated, all-weather paintable ABS enclosure
- Set screws secure the grille to the enclosure
- EN54-24 certified
- Five year warranty
- White finish
Specifications
| Technical | |
|---|---|
| Frequency Response | 56Hz – 20kHz +/- 4dB; 46Hz -10dB |
| Power Handling | 80 watts (19V) 50Hz – 10kHz (320 watts peak) |
| Calculated Max. Continuous Output | 106dB |
| Sensitivity | 90dB |
| Coverage | 100° +/- 20° 900Hz – 20kHz |
| Directivity Index | 7dB +/- 1.5dB 800Hz – 20kHz |
| Nominal Impedance | 8 ohms; 4.5 ohms minimum at 160Hz |
| Acoustic Crossover | 2kHz |
| Transducers | 6.5" woofer; 1" titanium compression driver on a K-1200M horn/tweeter bridge |
| Enclosure Material | All-weather ABS plastic, paintable |
| IP Rating | IPX6 |
| Enclosure Tuning | Vented via three folded Tractrix ports |
| Input Connectors | 4-pin euro block |
| Transformer Taps | 70V: 60W, 30W, 15W, 7.5W / 100V: 60W, 30W, 7.5W / bypass: 8 ohms nominal |
| Certification | EN54-24 |
| Physical | |
|---|---|
| Dimensions (With Bracket) | 12.81" (326mm) x 10.19" (259mm) x 7.57" (193mm) |
| Depth With Bracket | 9.19" (234mm) |
| Weight | 11.25 lbs (5.11kg) |
| Finish | White |
Specifications subject to change.
